Features
- Art-Net interface for controlling 512 DMX channels
- Power supply via 48V PoE switch/PoE injector (802.3af) or 5V USB-C port
- Online fixture library available with over 300 devices from Eurolite and Futurelight; new device profiles can be easily created using the editor
- DMX output frequency: 40 Hz, 30 Hz, or 20 Hz
- ArtDMX reception via broadcast or unicast
- Configuration via website or Art-Net
- Settings: IP address, subnet mask, Art-Net ShortName, Art-Net LongName, Art-Net Net, Art-Net Subnet, Art-Net Universe, as well as DMX refresh rate and DMX input/output via website
- Durable metal housing
- Can receive and process up to 512 DMX channels
- Can send up to 512 DMX channels

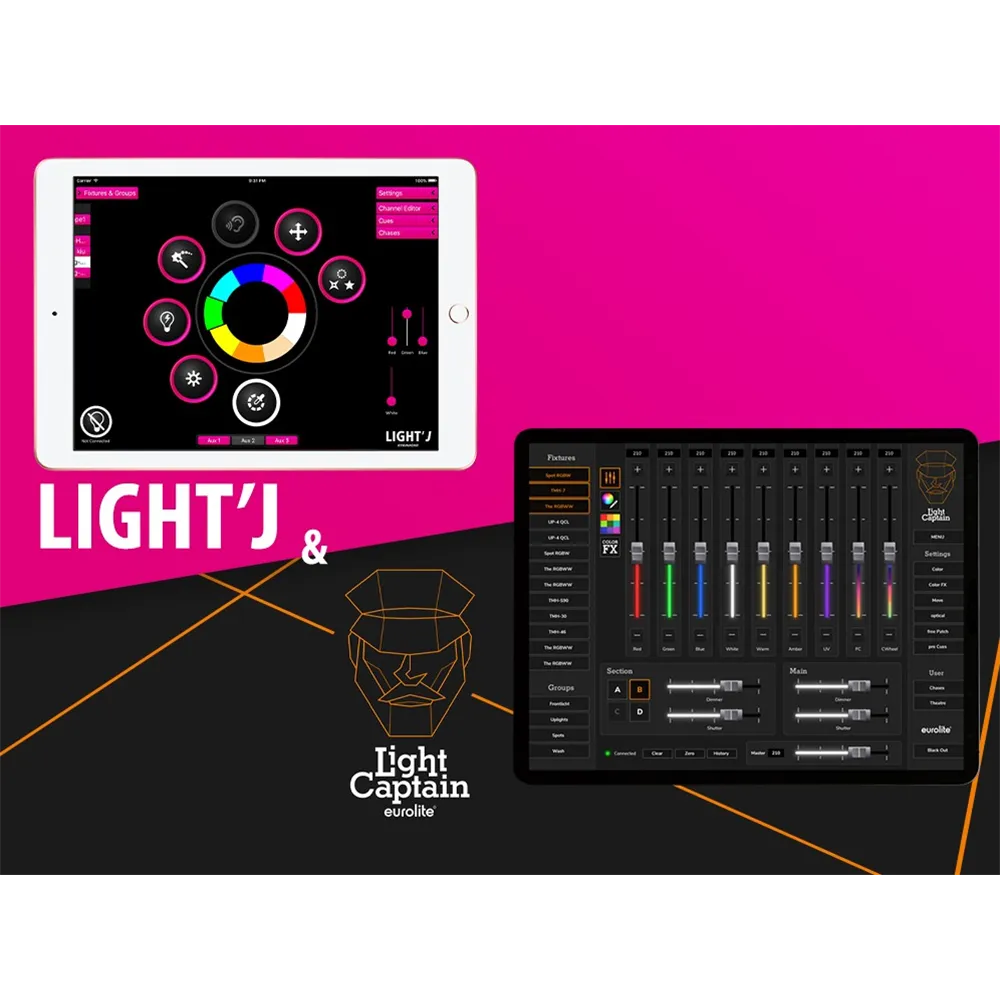

- Controllable via Art-Net, Light’J App, Light Captain App
- Equipped with NEUTRIK connector
- Made in Germany
- Power supply: 5V DC 500 mA, 37-56V DC
- Protection class: IP20
- Power connection: Power supply via USB C or RJ-45
- DMX channels: Input 512, Output 512
- DMX output: 1 x 3-pin XLR
- Network connection: Ethernet TCP/IP via RJ-45 etherCON, 10/100 Mbit/s
- Status LED: Signal, Link
- Color: Black
- Dimensions: Width 7.8 cm, Depth 5 cm, Height 4.2 cm
- Weight: 0.29 kg

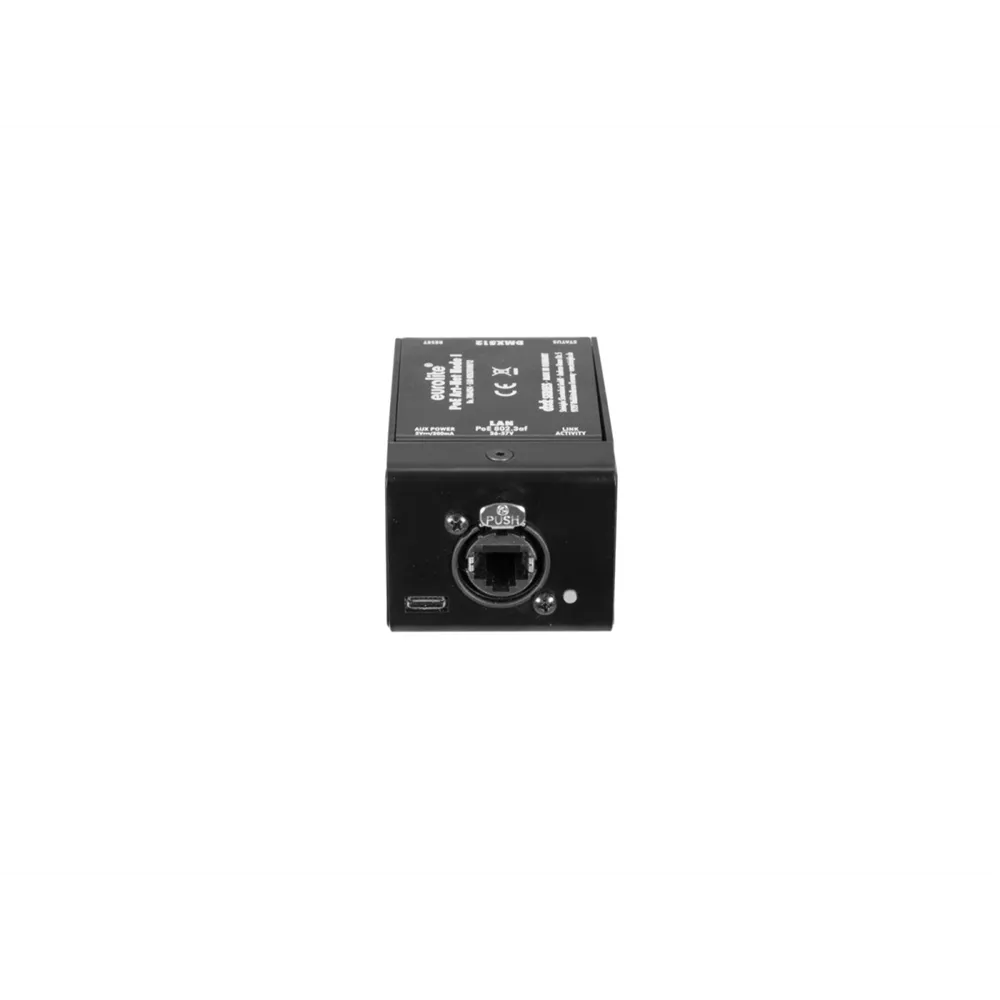

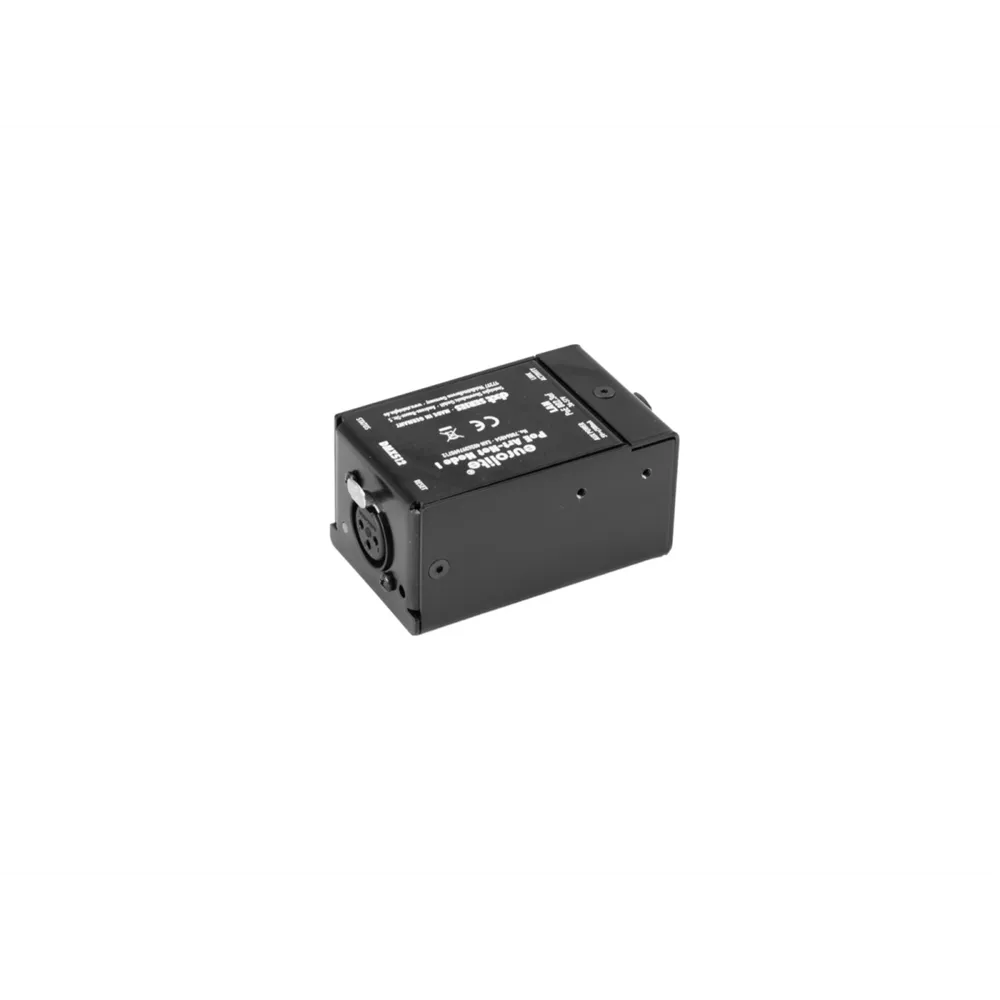

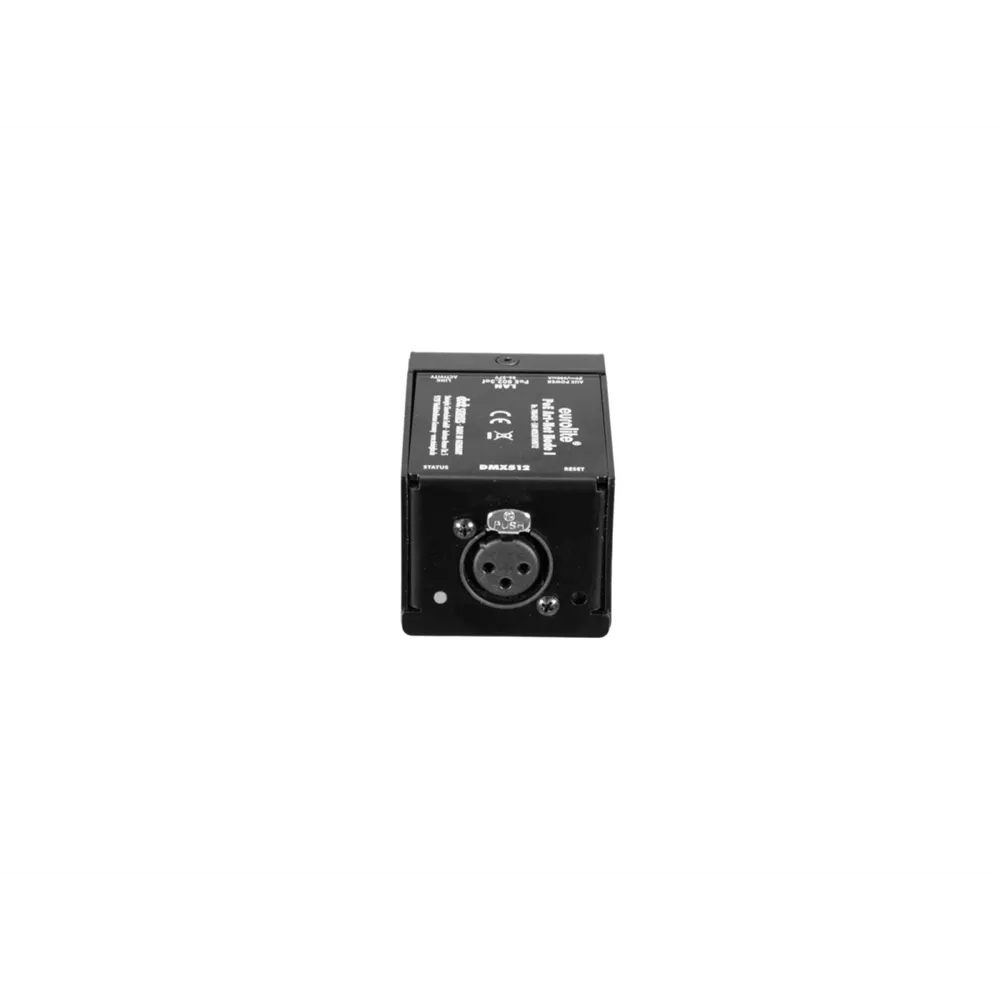

EUROLITE DXT PoE Art-Net Node I
The EUROLITE DXT PoE Art-Net Node I is the ideal solution for controlling up to 512 DMX channels, providing a reliable connection for your lighting technology. With the option to be powered via a 48V PoE switch or a 5V USB-C port, this node is extremely flexible and user-friendly.
The continuously updated fixture library of the apps already includes over 300 devices from Eurolite and Futurelight, and new device profiles can be easily created using the editor. The DMX output frequency can be selected between 20 Hz, 30 Hz, and 40 Hz, while ArtDMX reception occurs via both broadcast and unicast.
Configuration is conveniently done through a web interface or Art-Net, offering numerous settings such as IP address, subnet mask, and DMX refresh rate. The sturdy metal housing ensures durability, while the NEUTRIK connector provides a secure connection. The EUROLITE DXT PoE Art-Net Node I is "Made in Germany" and impresses with its high quality and reliability.
