Features
- Wireless Wi-Fi DMX Interface for wireless lighting control from your tablet or PC
- Receives control signals via the network and transmits them via cable to the DMX chain
- Compatible with iOS and Android devices
- Online accessible fixture library within the apps featuring over 300 devices from Eurolite and Futurelight
- Configuration via integrated web server
- Access Point and Infrastructure mode
- 1 DMX loop-through output

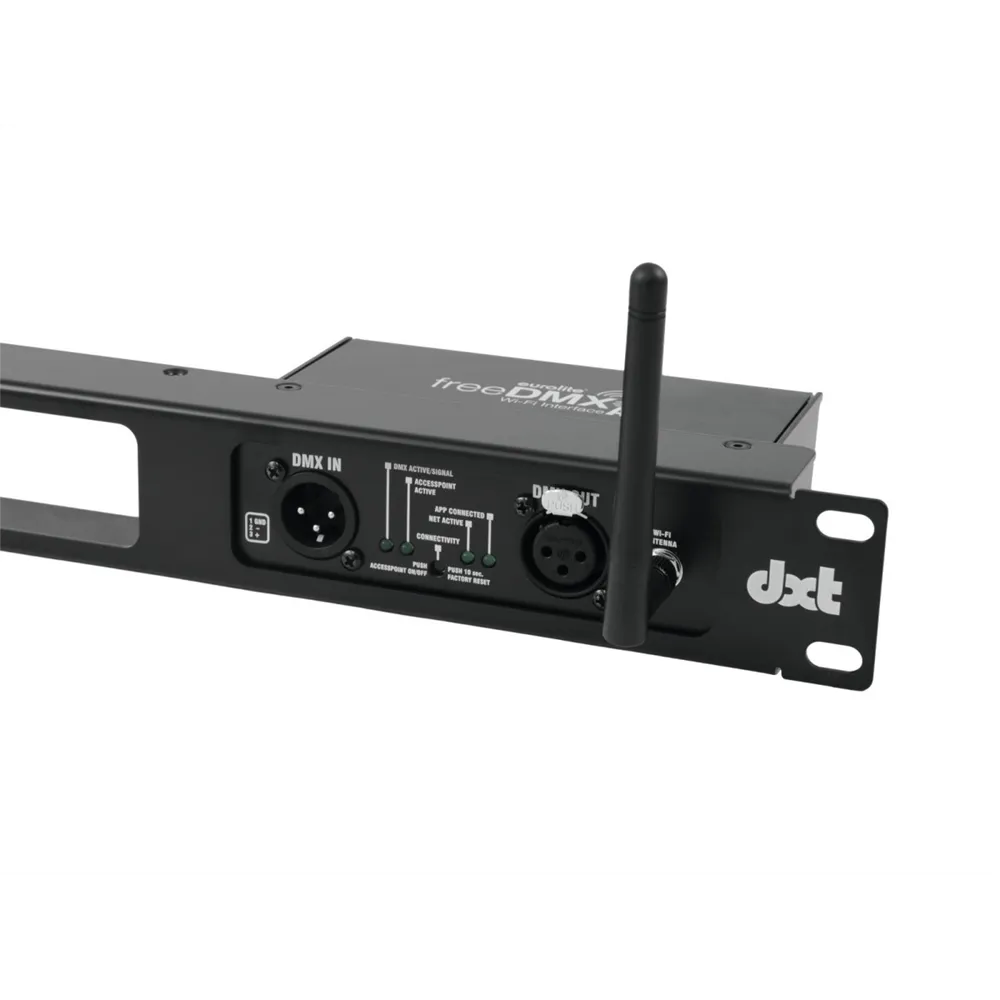

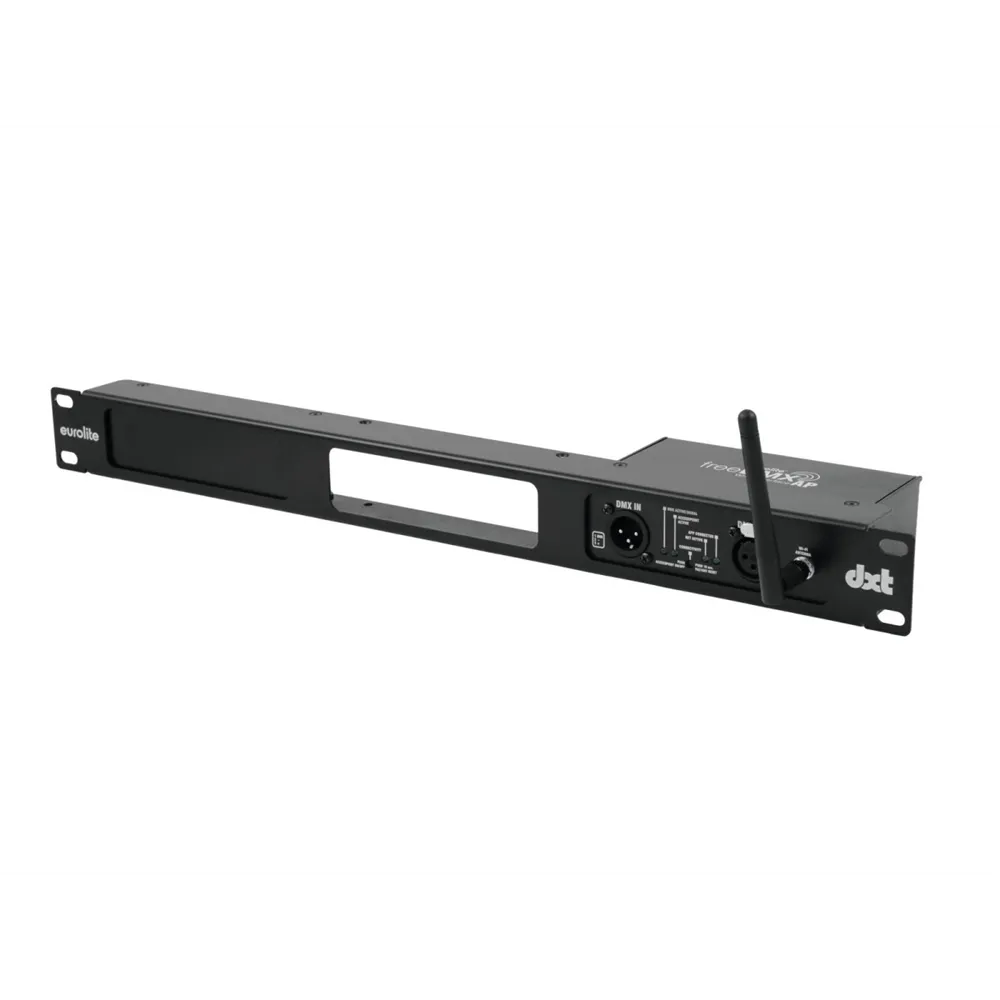

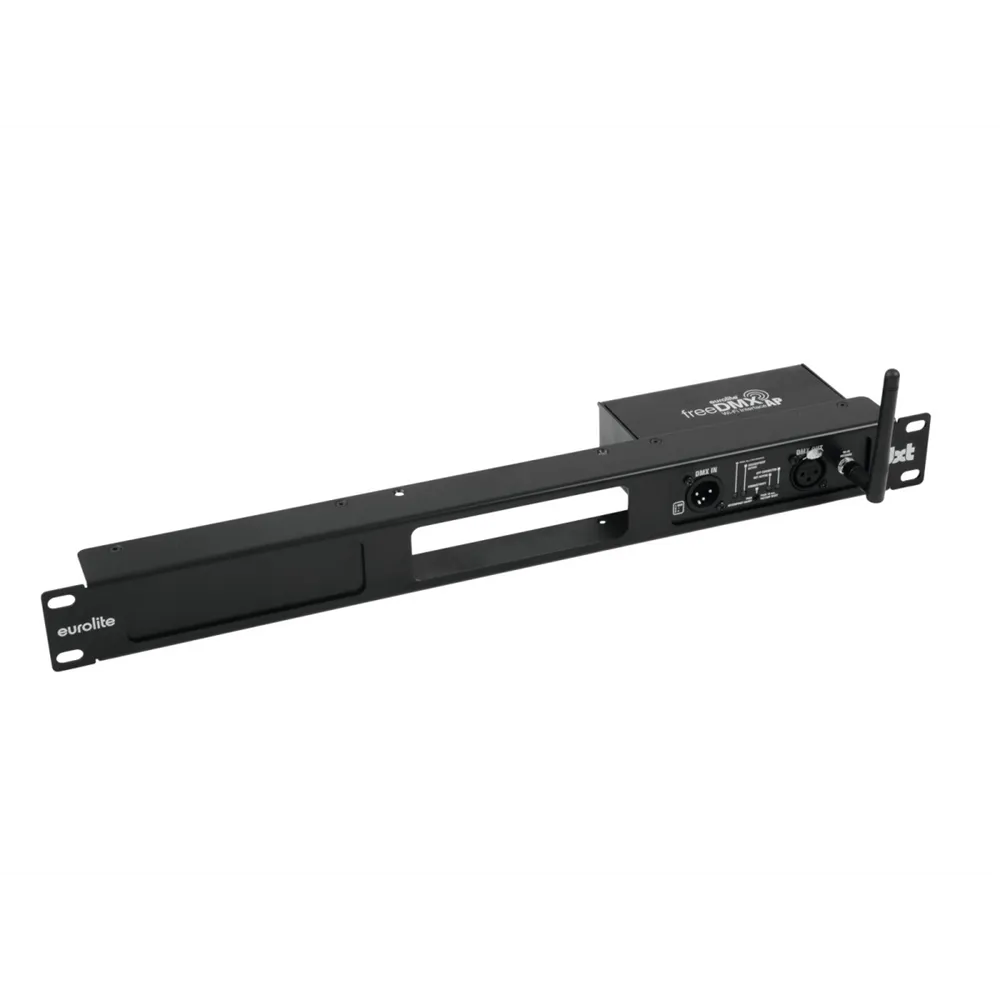

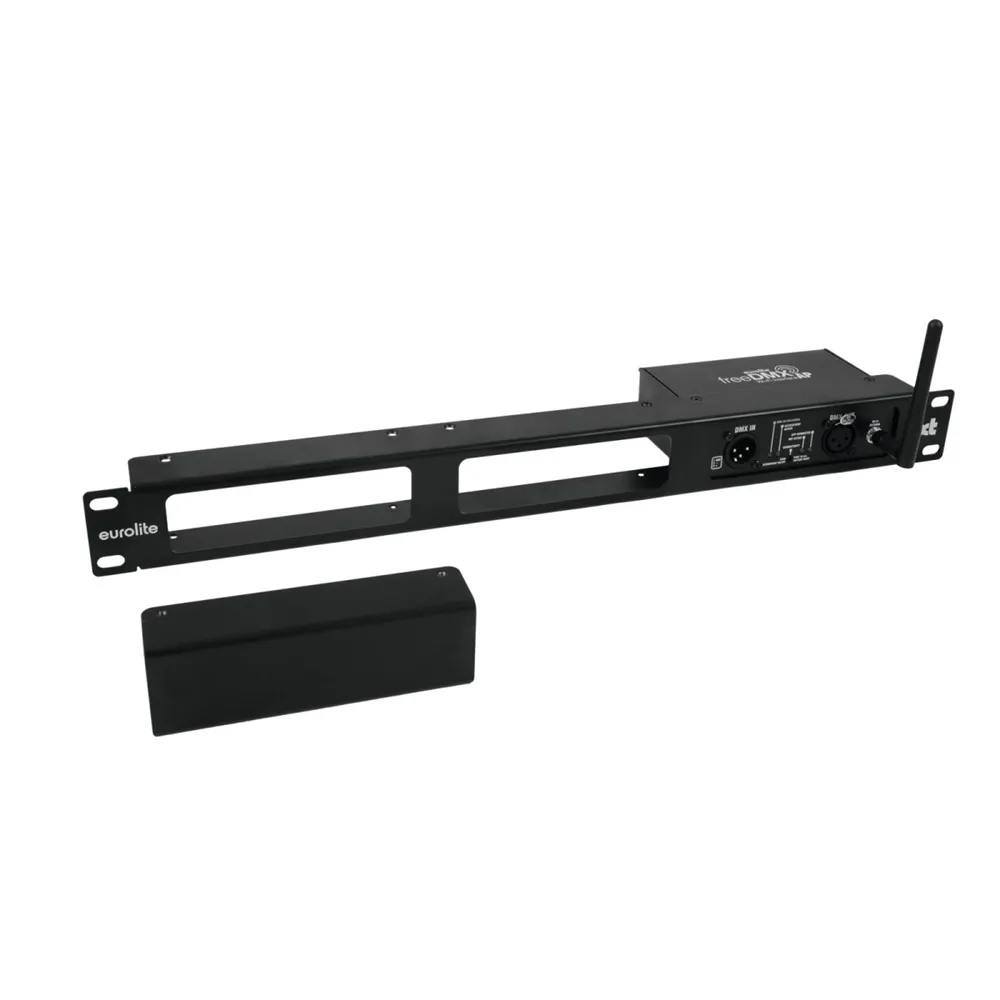

- Mounting brackets for rack installation, table, and truss mounting available as accessories
- Can transmit up to 512 DMX channels

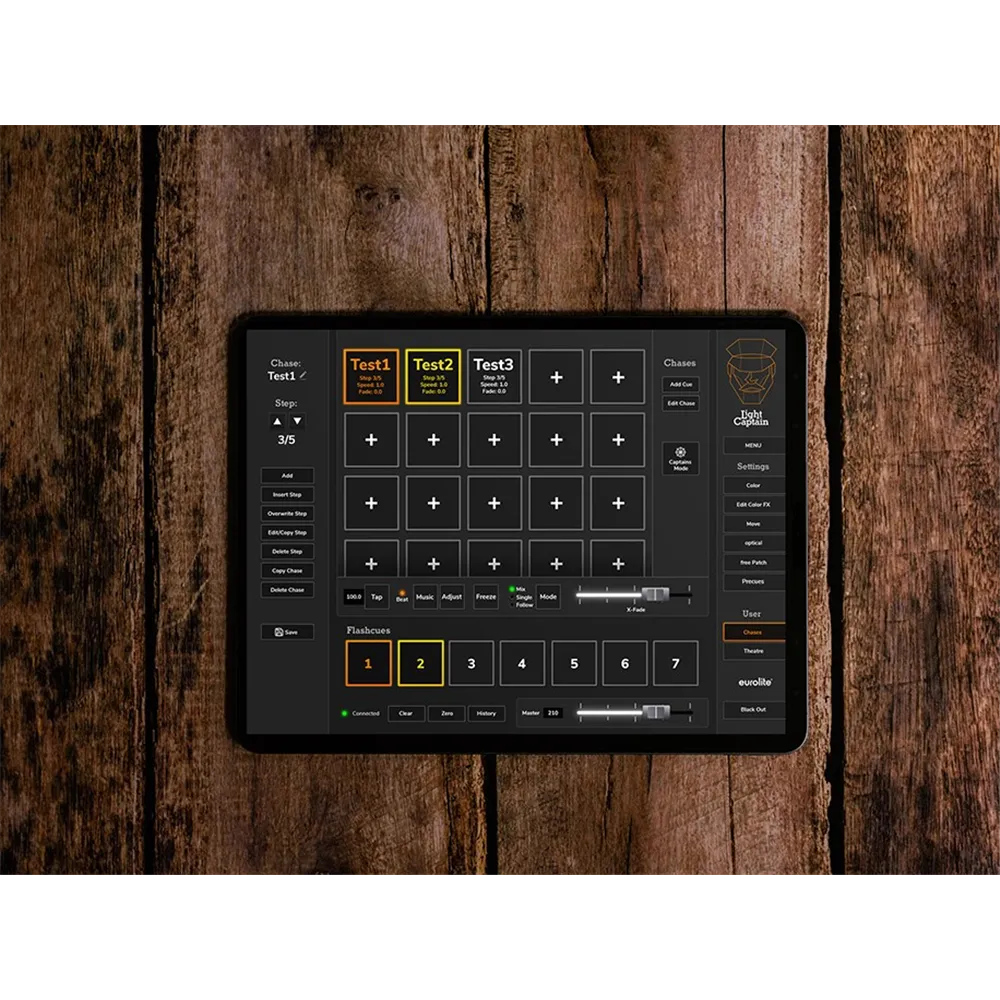

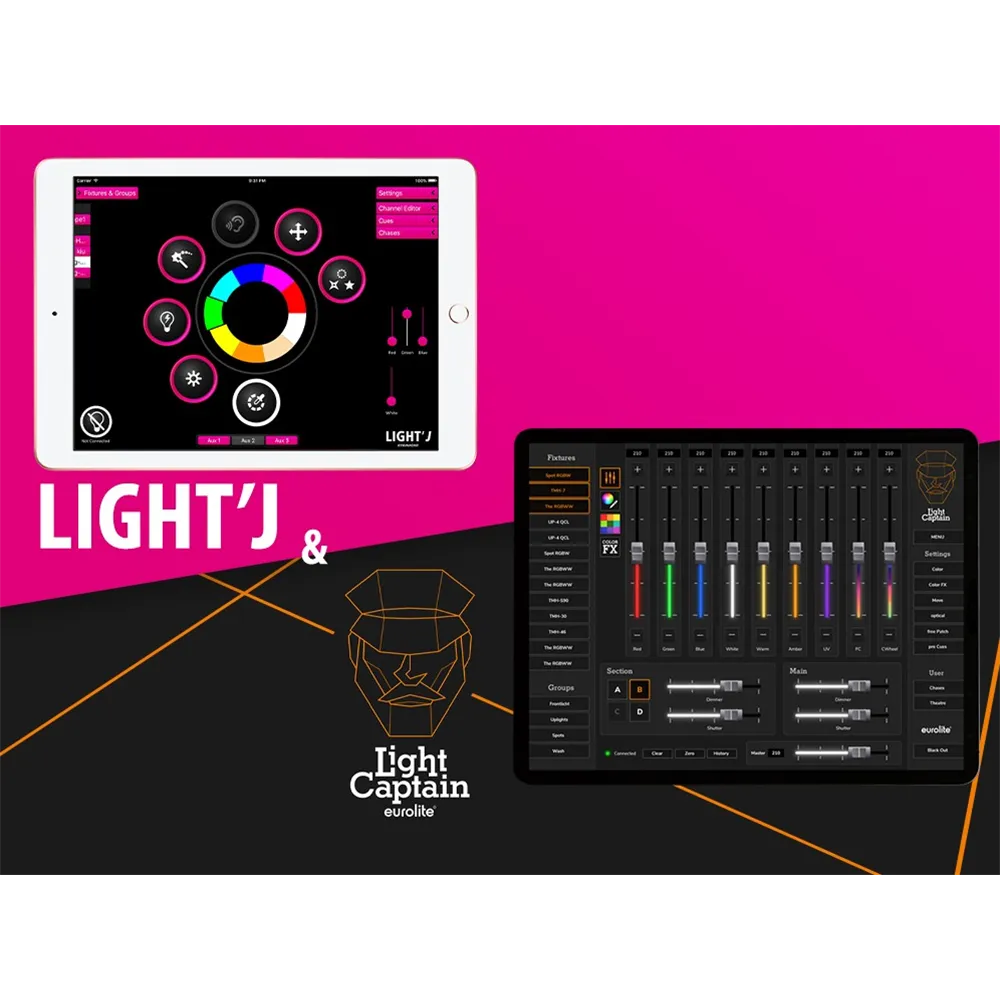

- Controllable via DMX; Light’J App; Wi-Fi; Light Captain App; Art-Net
- 2.4 GHz, worldwide registration-free and fee-free
- Range of up to 60m outdoors
- Range of up to 30m indoors
- Equipped with NEUTRIK connectors
- Compatible with software such as FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Made in Germany
- Suitable for applications such as clubs/dance schools; weddings/gala/events; stage; theater; mobile DJs/solo entertainers
- Silent operation

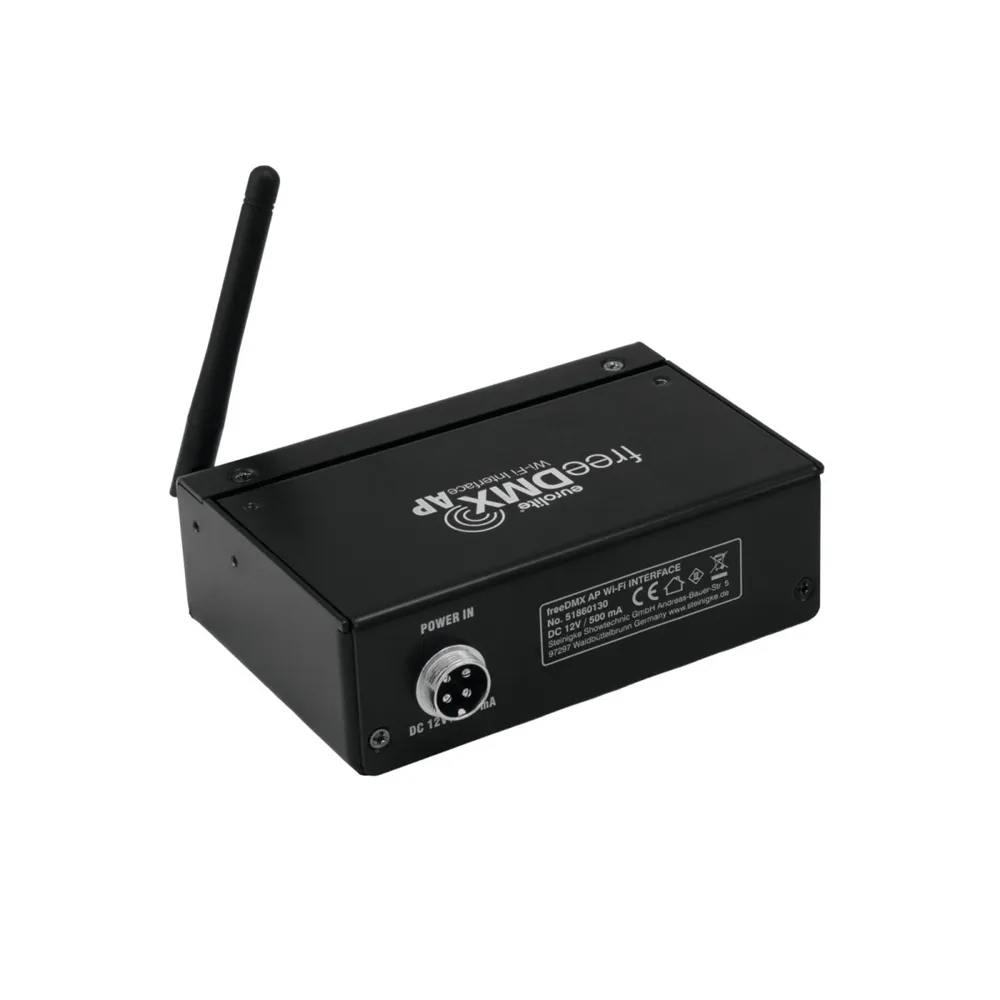

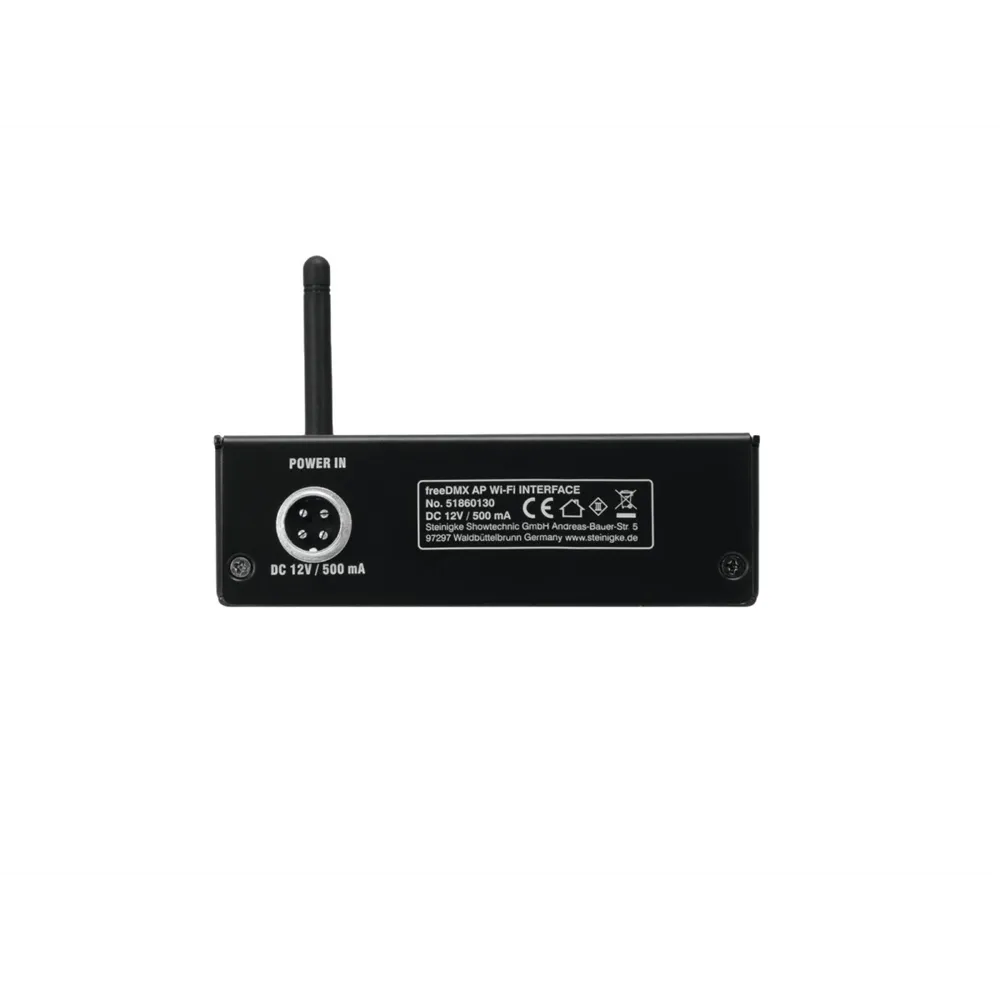

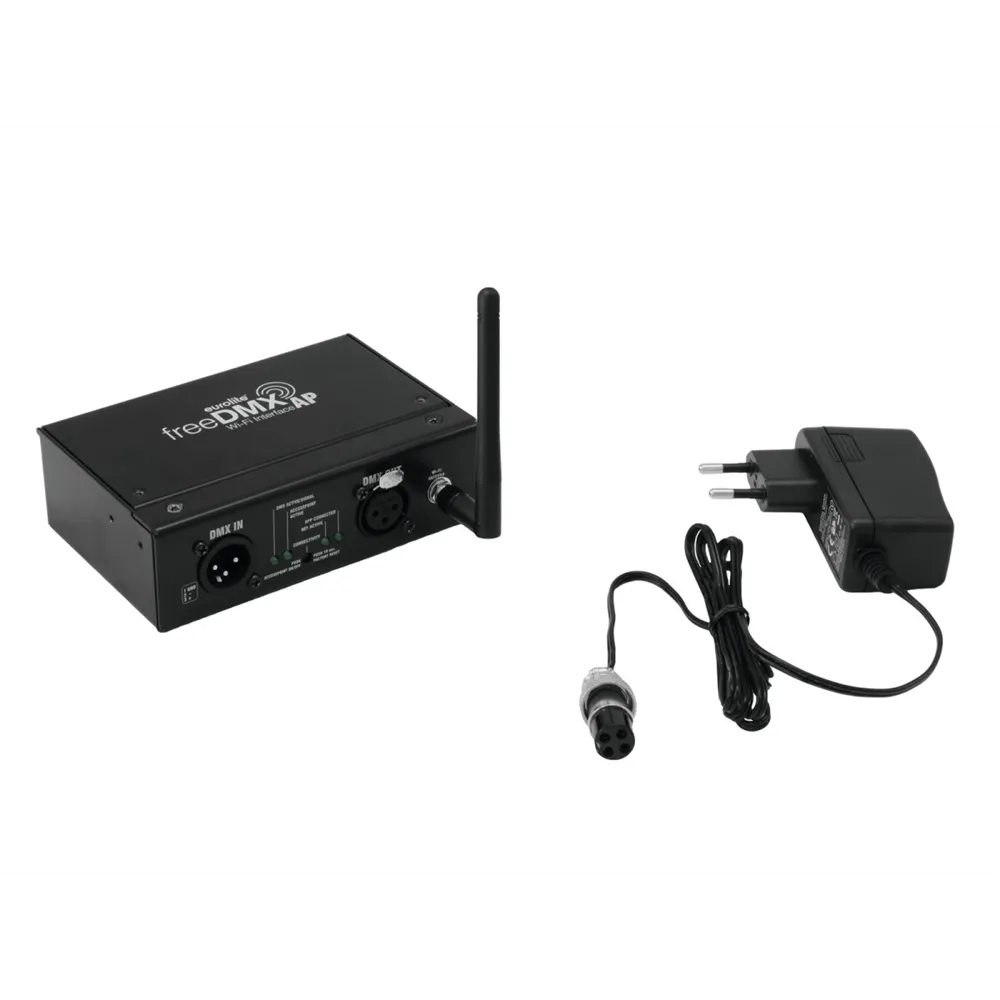

- Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
- Protection class: IP20
- Wi-Fi standard: IEEE 802.11 b/g/n

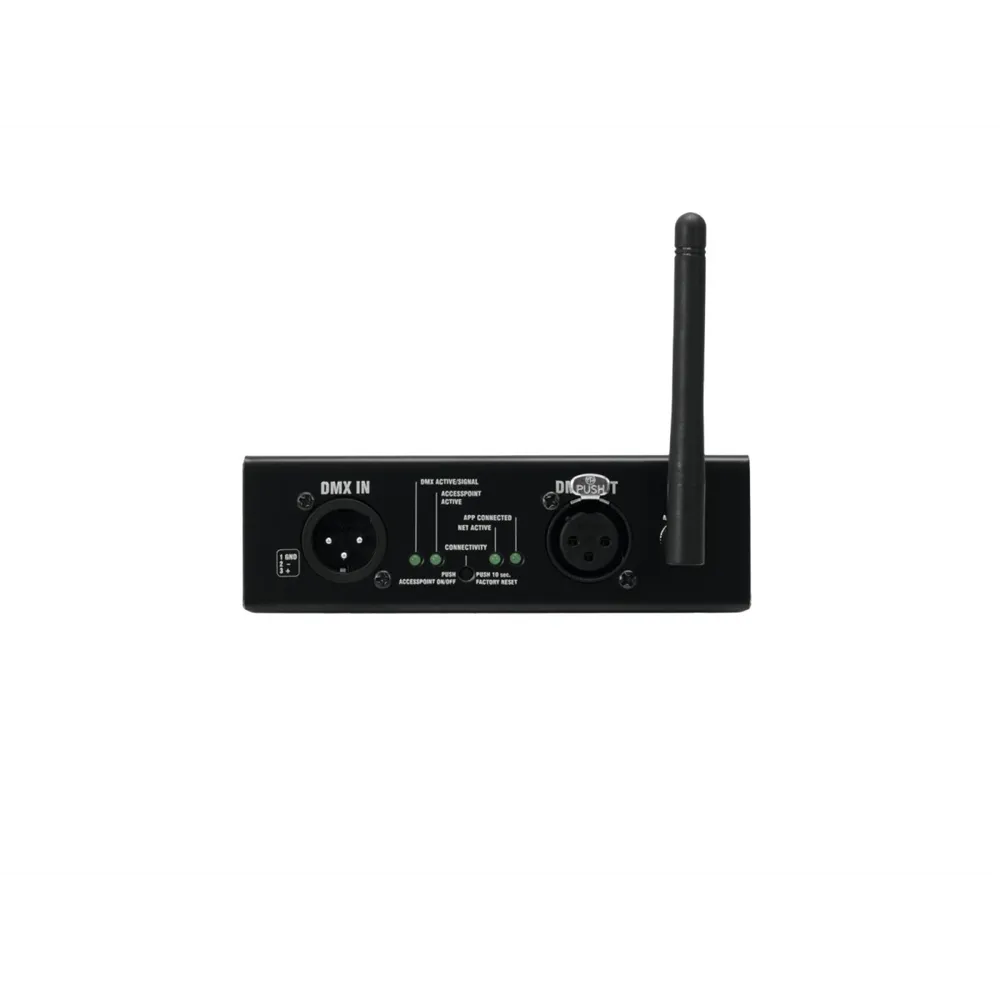

- DMX input: 1 x 3-pin XLR (M) installation version
- DMX output: 1 x 3-pin XLR (F) installation version
- Frequency band: 2.4 GHz
- Antenna gain: 2 dBi
- Status LED: Signal, Pairing, Link, Channel Source
- Color: Black
- Dimensions: Width: 13 cm, Depth: 11.5 cm, Height: 4.1 cm
- Weight: 0.64 kg
- Noise classification: Class 0 (no noise)
EUROLITE freeDMX AP Wi-Fi Interface
Experience the freedom of wireless lighting control with the EUROLITE freeDMX AP Wi-Fi Interface. This innovative Wi-Fi DMX interface allows you to conveniently manage your light show from your tablet or PC. It receives control signals over the network and transmits them via cable to your DMX chain, ensuring seamless integration with your existing lighting technology.
The device is compatible with iOS and Android devices and provides access to a constantly updated fixture library featuring over 300 devices from Eurolite and Futurelight. Configuration is straightforward through the integrated web server, and with both Access Point and Infrastructure modes, you can work flexibly. With a range of up to 60 meters outdoors and 30 meters indoors, you are well-equipped for any event.
The EUROLITE freeDMX AP supports up to 512 DMX channels and can be controlled via DMX, Light’J App, Wi-Fi, Light Captain App, and Art-Net. Its silent operation and robust NEUTRIK connector make it the ideal choice for clubs, weddings, stages, and mobile DJs. Enjoy the benefits of a professional, reliable, and user-friendly DMX interface – Made in Germany!
