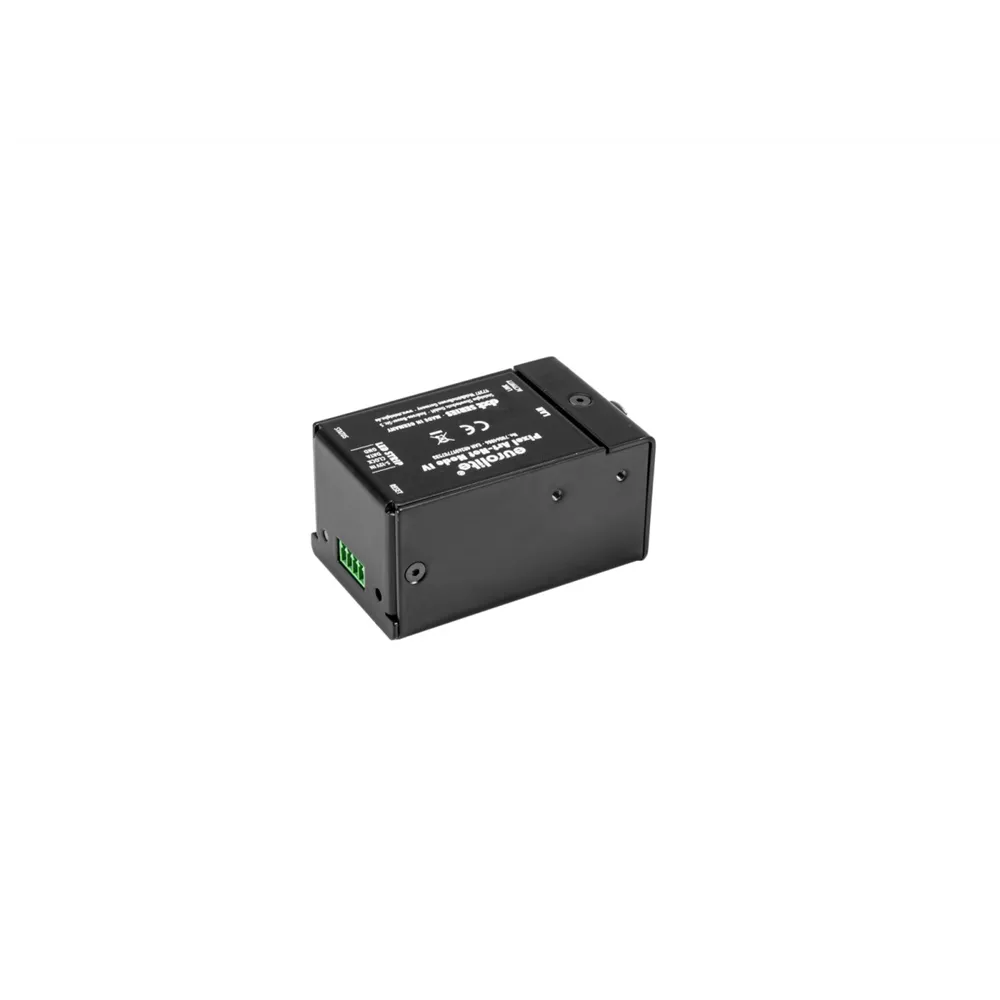

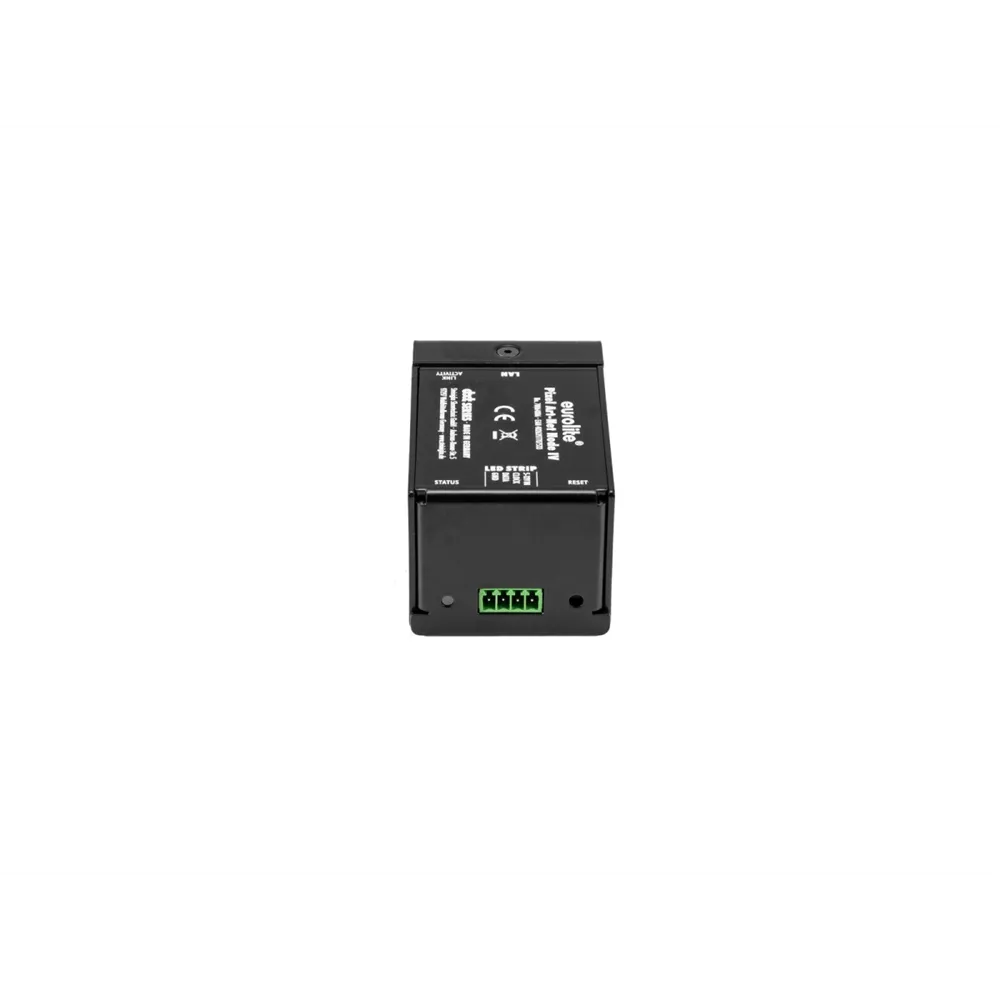

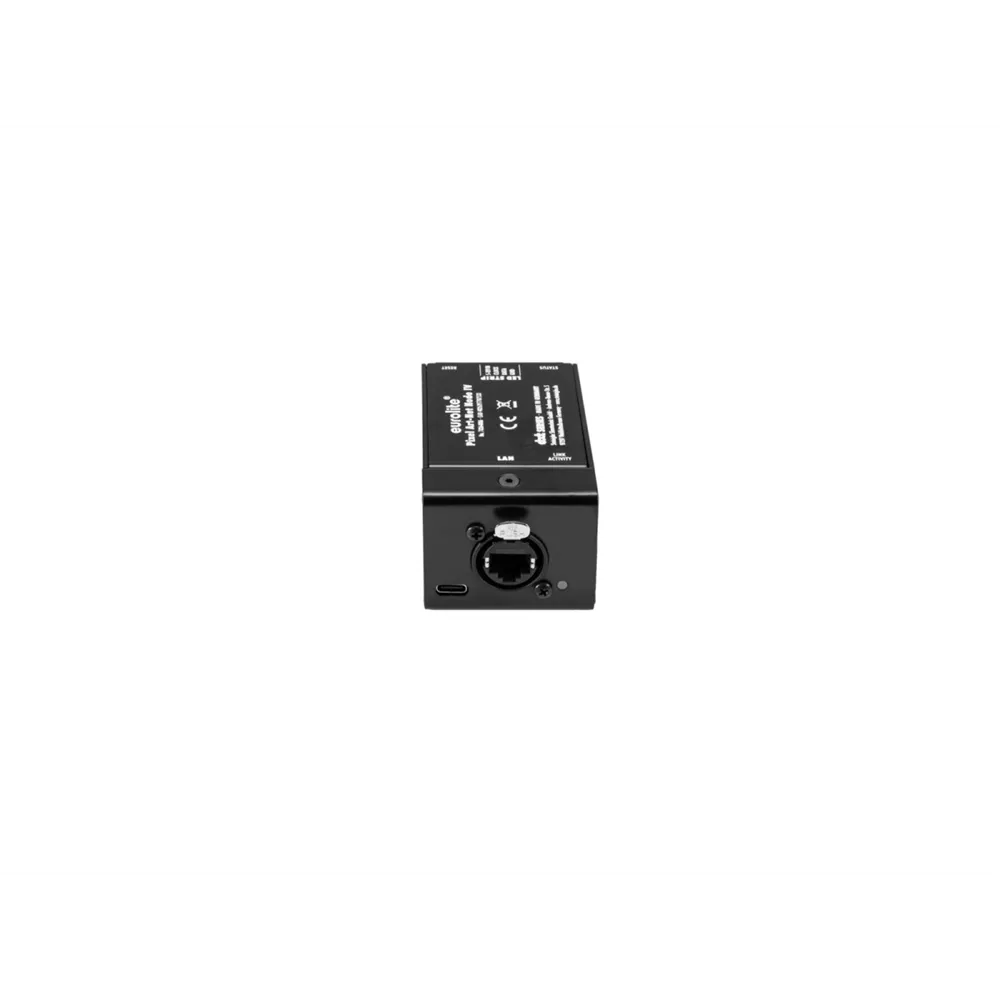

EUROLITE DXT Pixel Art-Net Node IV

Brand:

Features

Art-Net interface for controlling 50,000 digital LED channels
Can receive and process up to 2048 DMX channels
1 to 6 colors per pixel
Create pixel groups (1 - 9999)
Controllable via Art-Net; sACN
Configuration through website or Art-Net
Compatible with WS2801; WS2811, WS2812, SK6812; APA102 LEDs
No separate power supply required - powered via LED strips (5-12 V)
Durable metal housing
Desktop housing
Made in Germany
Device connects to PC via RJ-45 etherCON (W) panel mount version, compatible with FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Equipped with NEUTRIK connector
Power supply: 5-12V DC
Pin configuration: Pin1 (GND) / Pin2 (DATA) / Pin3 (CLOCK) / Pin4 (VIN)
Total connection value: 1 W
Protection class: IP20
Power connection: Power supply via 4-pin screw terminal (M) panel mount version
DMX channels: Input 2048
Network connection: Protocol: Ethernet TCP/IP via 1x RJ-45 etherCON (W) panel mount version, 10 Mbit/s, Standard: IEEE 802.3u
Control: Art-Net; sACN
Control channels: 50,000
Housing color: Black
Status LED: Signal, Link
Connections: Input: 1 x RJ-45 etherCON (W) panel mount version, Output: Screw terminal
Brand usage: Equipped with NEUTRIK connector
PC connection: E.g., FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (W) panel mount version
Housing design: Desktop housing
Dimensions: Length: 7.8 cm, Width: 5.0 cm, Height: 4.2 cm
Weight: 0.25 kg

EUROLITE DXT Pixel Art-Net Node IV

The EUROLITE DXT Pixel Art-Net Node IV is the perfect solution for controlling up to 50,000 digital LED channels. With the capability to receive and process up to 2048 DMX channels, this powerful Art-Net interface opens up new possibilities for creative lighting installations. It supports 1 to 6 colors per pixel and allows for the creation of pixel groups ranging from 1 to 9999.

Configuration is conveniently done via a user-friendly web interface or directly through Art-Net. The node is compatible with a variety of LED types, including WS2801, WS2811, WS2812, SK6812, and APA102, and does not require a separate power supply, as it is powered through the LED strips (5-12 V).

The sturdy metal housing in a desktop design ensures durability and ease of use. With an RJ-45 etherCON connector, the node can be easily connected to a PC and is compatible with software such as FreeStyler, DMXControl 3, and Lightkey (MAC). The EUROLITE DXT Pixel Art-Net Node IV is the ideal choice for professional lighting technicians and creative lighting designers.
