EUROLITE USB/LAN DMX 2x512 Channel Interface

Brand:

Features

  • DMX/Art-Net interface via USB and Ethernet LAN with software bundle, 1024 channels
  • DMX control (Showlight control)
  • LED PC control (architectural lighting)
  • Pixel control (pixel mapping and video mixing)
  • Can transmit up to 1024 DMX channels
  • 64 Art-Net universes with 512 channels each via Ethernet
  • Controllable via DMX; Art-Net; Wi-light 2 app; RDM; sACN; Master/Slave function
  • Button for selecting the next scene
  • Compatible with Pro DMX 2
  • Compatible with LED PC-Control 512, firmware update capable
  • Compatible with Windows 7, Windows 10, Linux, OS X 10.13 or later
  • Suitable for applications such as clubs/dance schools; weddings/gala/events; stage; mobile DJs/solo entertainers
  • Power supply: 5V DC 200 mA
  • Protection class: IP20
  • Protection rating: Class III
  • Power connection: Power supply via USB C (W) built-in version
  • DMX channels: Output 1024

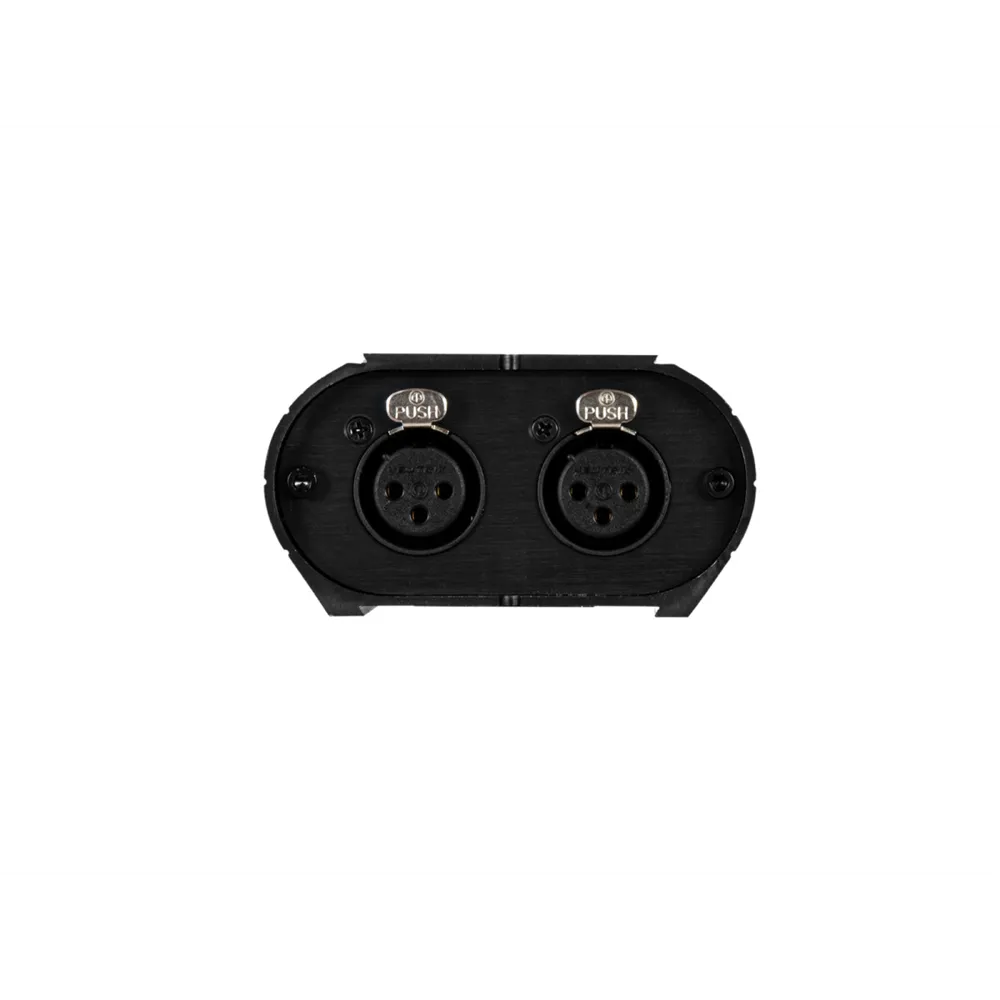

  • DMX output: 2 x 3-pin XLR (W) built-in version

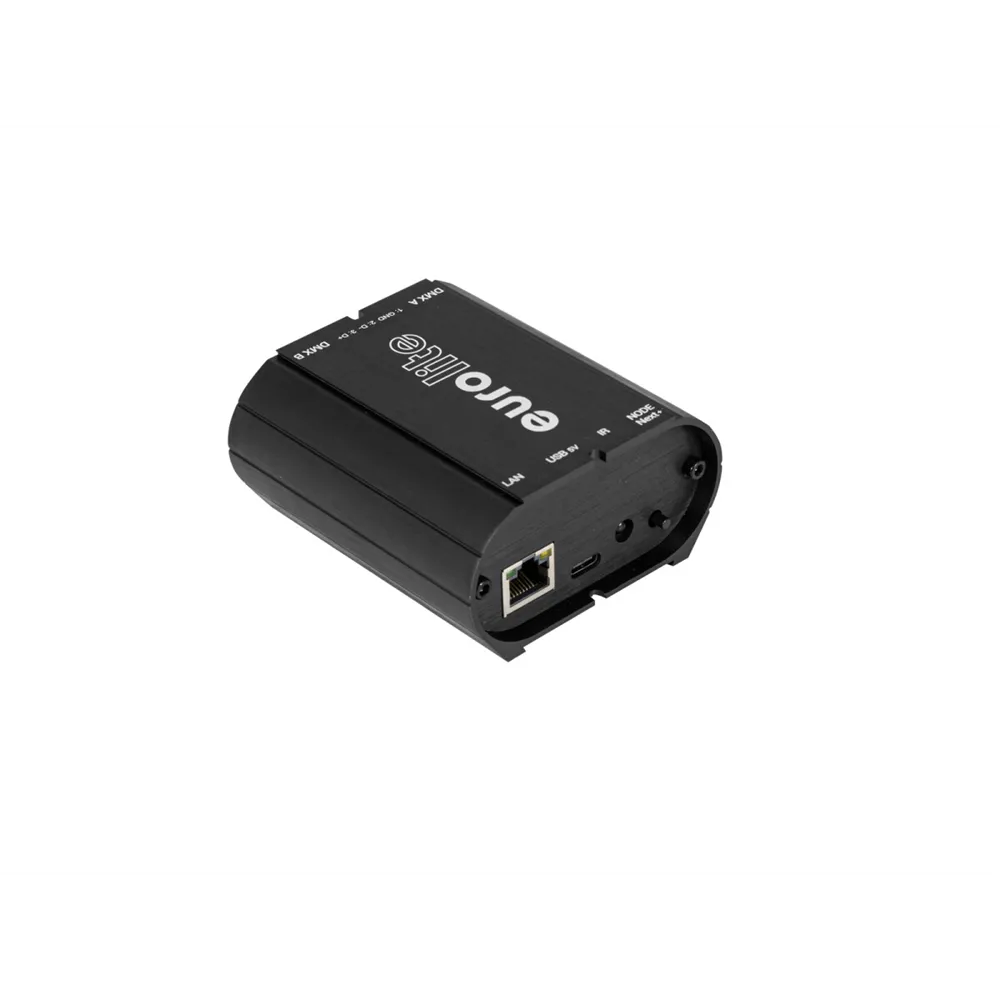

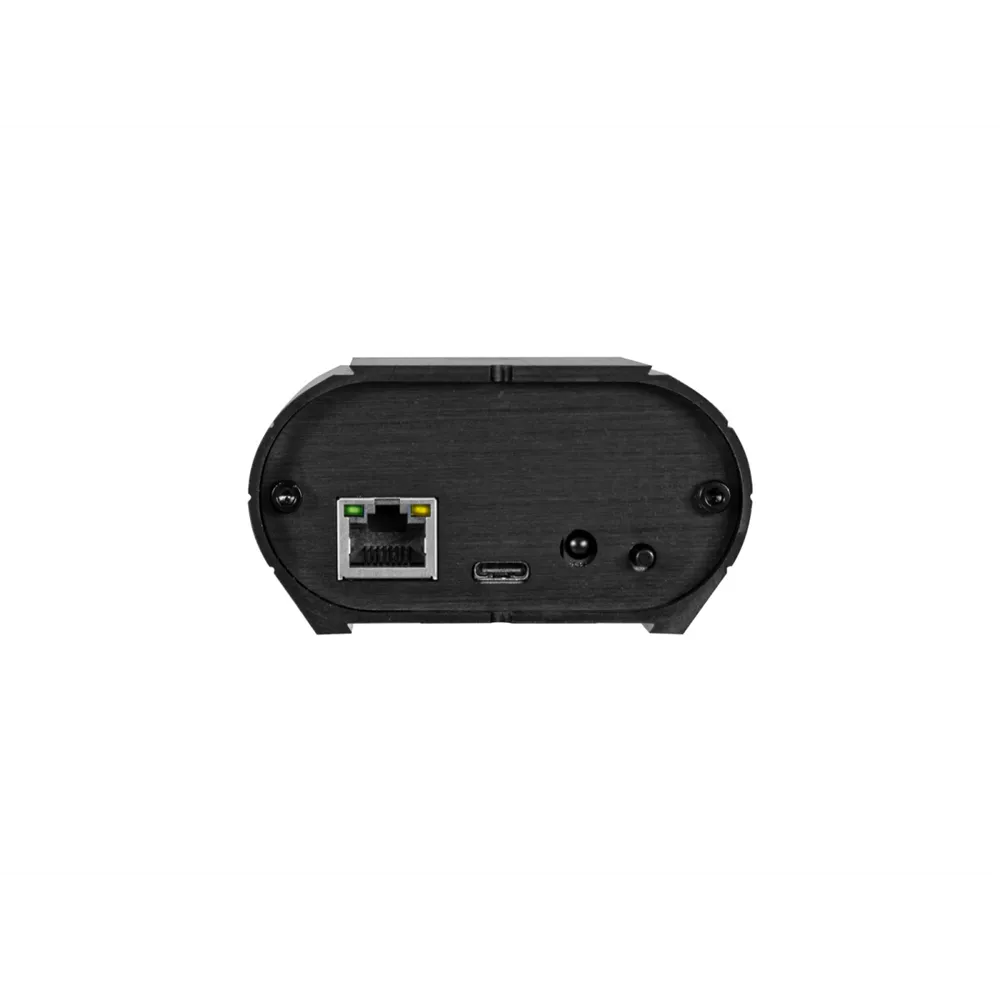

  • Network connection: Protocol: Ethernet TCP/IP via RJ-45 (W) built-in version
  • USB connection: Type C
  • Material: Aluminum
  • Color: Anthracite
  • PC connection: Pro DMX 2, LED PC-Control 512, firmware update capable
  • Dimensions: Length: 8.7 cm, Width: 8.0 cm, Height: 4.4 cm
  • Weight: 0.22 kg
Read moreShow less
262.00 (tax incl.)
Reference:
ST51860117
Love0
Add to compare0
Description

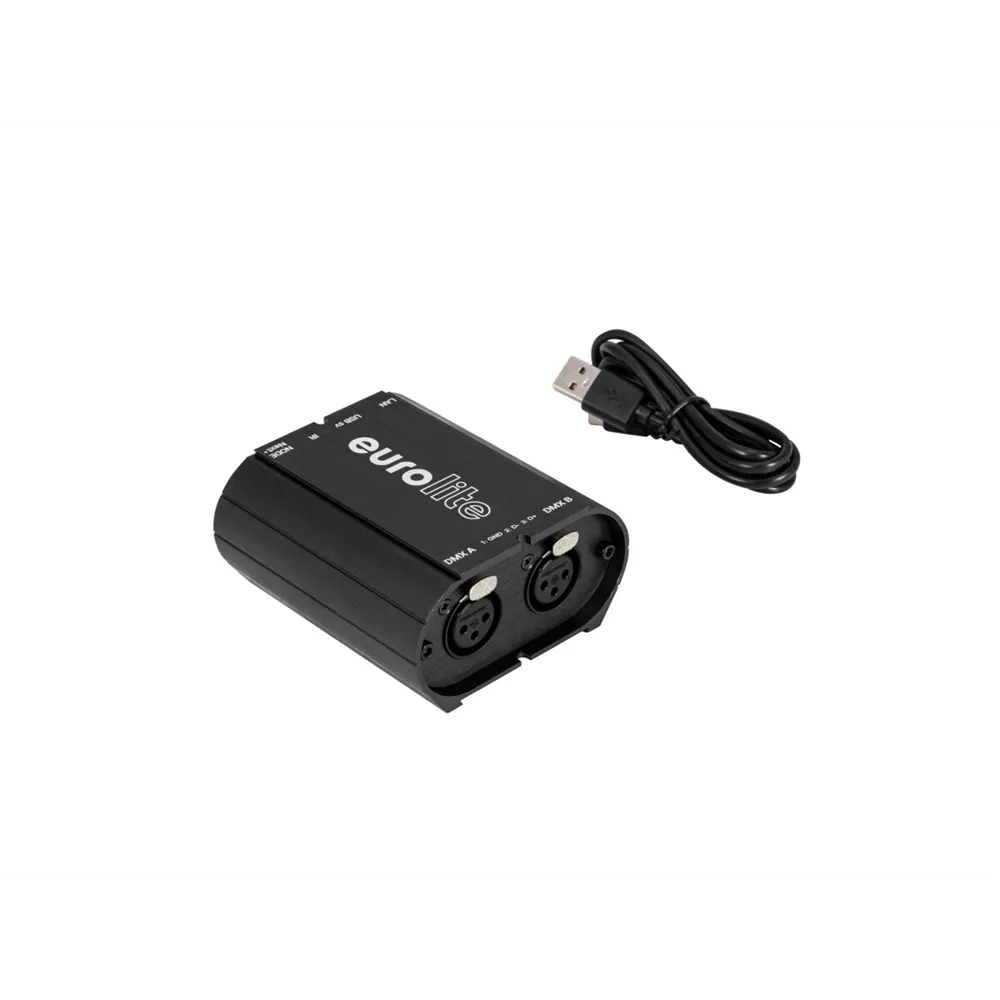

EUROLITE USB/LAN-DMX 2x512ch Interface

The EUROLITE USB/LAN-DMX 2x512ch Interface is the perfect solution for anyone in need of a powerful and versatile DMX control system. With the capability to transmit up to 1024 DMX channels, this interface offers impressive control over your lighting installations. It supports 64 Art-Net universes, each with 512 channels via Ethernet, making it ideal for professional applications in clubs, dance schools, weddings, galas, and on stage.

The interface can be controlled via various protocols, including DMX, Art-Net, Wi-light 2 App, RDM, and sACN. The Master/Slave function allows for easy integration into existing setups. With a compact aluminum design and an elegant anthracite finish, the device is not only functional but also aesthetically pleasing.

Included in the package are the interface itself and a USB cable. It is compatible with Windows 7, Windows 10, Linux, and OS X 10.13 or later, and the firmware is updatable to ensure you always have the latest features. Experience the future of lighting control with the EUROLITE USB/LAN-DMX 2x512ch Interface!

Read moreShow less
Product Details
ST51860117
