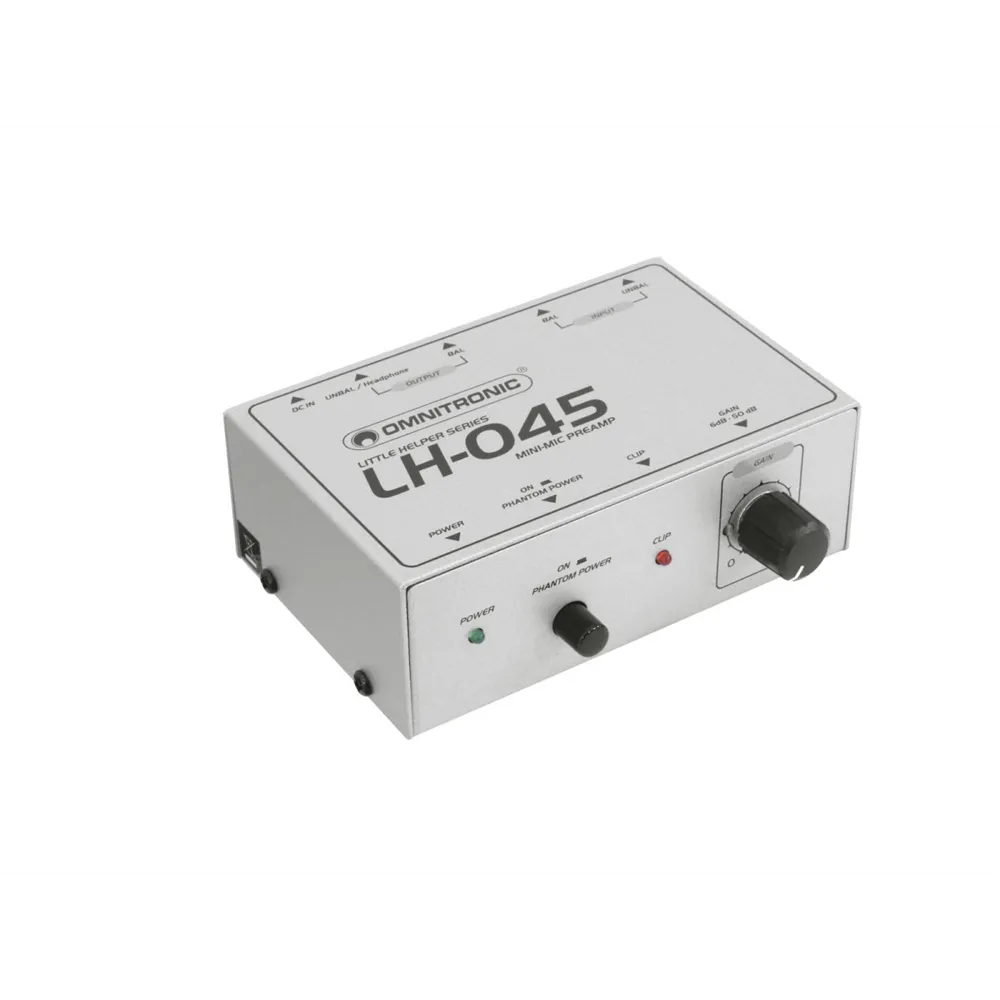

OMNITRONIC LH-045 Microphone Preamplifier

Brand:

Features

  • 1-Channel Microphone Preamplifier
  • 1 Microphone Input, XLR (balanced) or 6.3 mm Jack (unbalanced)
  • Continuously adjustable gain (6-50 dB)
  • Switchable phantom power
  • Clip LED
  • 1 Line Output, XLR (balanced) or 6.3 mm Jack (unbalanced)
  • Suitable for applications such as: Installation; mobile use; Mobile DJs / Solo entertainers
  • Power Supply: 230 V AC, 50 Hz, 12V 150 mA
  • Protection Class: Class III
  • Power Connection: Power supply via barrel connector (M) with built-in power supply cable and adapter (included)
  • Number of Channels: 1
  • Frequency Range: 25 - 16,000 Hz
  • Signal-to-Noise Ratio: >75 dB
  • Phantom Power: 30 V DC
  • Impedance: Input: 10 kOhm
  • Gain: 50 dB
  • Controls: Volume Control, Phantom Power Switch

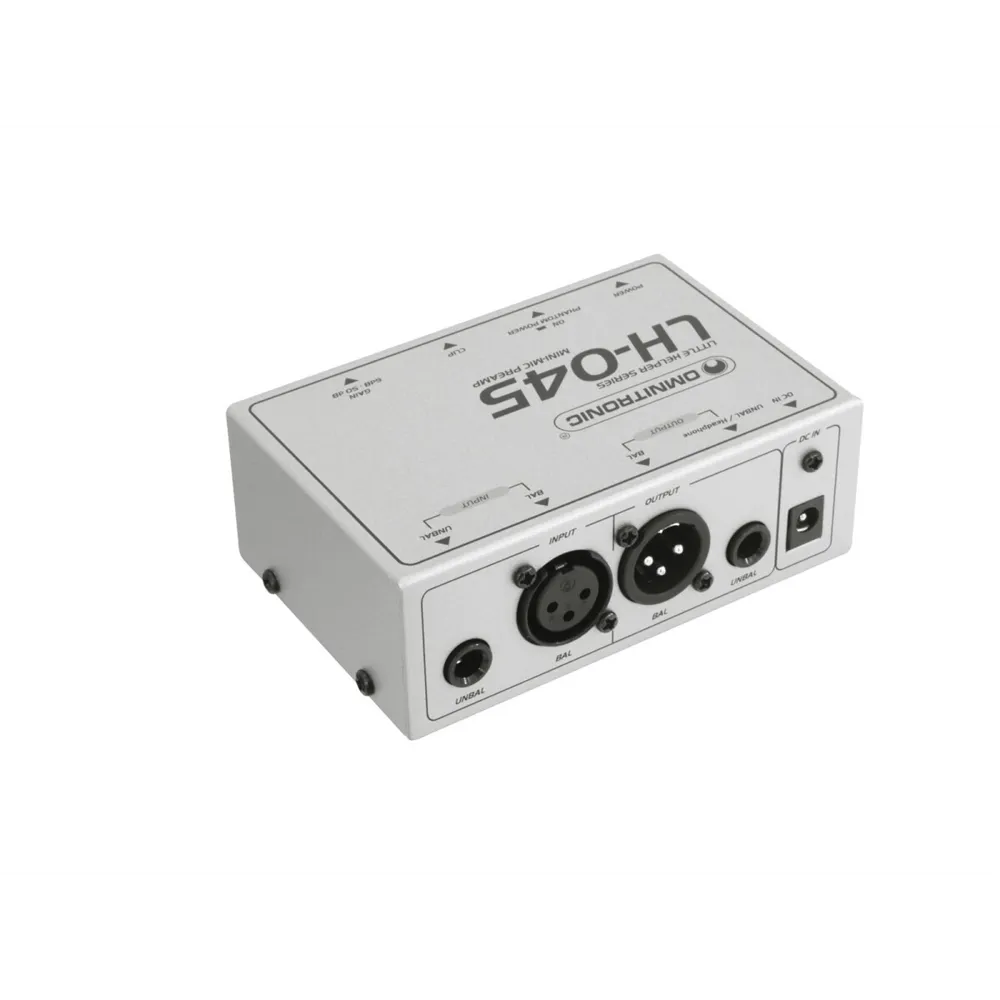

  • Connections: Input: Microphone via 1 x 3-pin XLR (F) built-in version, Input: Microphone via 1 x 6.3 mm Jack (unbalanced), Output: Line via 1 x 3-pin XLR (M) built-in version, Output: Line via 1 x 6.3 mm Jack (unbalanced)
  • Max Level: Input: +4 dB, balanced; Input: +10 dB, unbalanced
  • Material: Metal
  • Color: Silver
  • Dimensions: Width: 11.7 cm, Depth: 9.2 cm, Height: 4 cm
  • Weight: 0.54 kg
Read moreShow less
79.90 (tax incl.)
Reference:
ST10355045
Love0
Add to compare0
Description

OMNITRONIC LH-045 Microphone Preamplifier

The OMNITRONIC LH-045 Microphone Preamplifier is the ideal solution for anyone in need of high-quality sound amplification. Featuring a 1-channel design, this preamplifier offers both a balanced XLR input and an unbalanced 6.3 mm jack input, making it versatile for various applications. The continuously adjustable gain range of 6 to 50 dB allows for precise sound customization, while the switchable phantom power supports condenser microphones.

The LH-045 is perfect for a variety of uses, whether in installations, mobile setups, or for DJs and solo performers. With a clip LED for level monitoring and a line output available in both XLR and jack formats, this preamplifier is both functional and user-friendly. The robust metal housing in silver ensures durability and an appealing design.

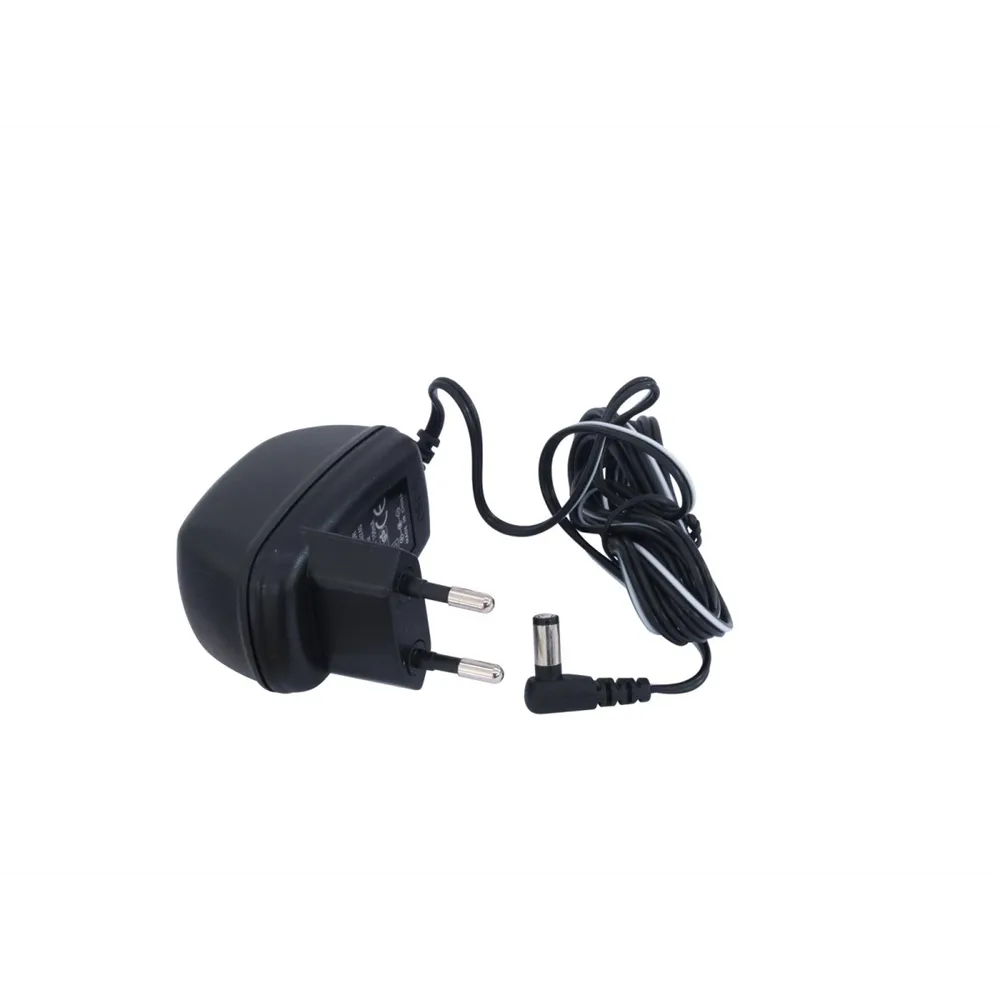

Included in the package are the device itself, an external power supply, four feet for stabilization, and a user manual. With a frequency range of 25 to 16,000 Hz and a signal-to-noise ratio of over 75 dB, the OMNITRONIC LH-045 delivers outstanding sound quality that elevates your audio applications to the next level.

Read moreShow less
Product Details
ST10355045
Delivery and shipping costs
Reviews
No comments
