IMG STAGELINE 2-Kanal Mikrofon-Vorverstaerker

IMG STAGELINE 2-Channel Microphone Preamplifier

Brand:

Features

2-Channel Low-Noise Microphone Preamplifier
2 Microphone Inputs, XLR, Balanced
Gain: 11-Step Adjustable from 20-70 dB
2 Level Controls ±5 dB
LED Indicators: Green/Red for Power/Peak
Switchable +12 V Phantom Power
Channel-Switchable Microphone Phase
Continuously Adjustable Low-Cut Filter: 15-240 Hz
Subsonic Filter: 15 Hz, 18 dB/Octave
2 Line Outputs, XLR Balanced
2 Line Outputs, RCA Unbalanced
Frequency Range: 20-20,000 Hz
Input Sensitivity: Switchable 0.16-150 mV
Input Impedance: 4.4 kΩ (Balanced), 2.2 kΩ (Unbalanced)
Output Signal: 1-14 V (Line, Balanced), 1-7 V (Line, Stereo)
Output Impedance: 100 Ω/600 Ω
Gain: 15-75 dB
Cutoff Frequency: 15-240 Hz, 6 dB/Octave (Low-Cut), 15 Hz, 18 dB/Octave (Subsonic)
Low Cut: 100 Hz
Signal-to-Noise Ratio: > 68 dB, Unweighted; > 87 dB, Weighted
Operating Temperature Range: 0-40 °C
Power Supply: Via Included Plug-In Power Adapter
Dimensions: 116 x 55 x 135 mm
Weight: 980 g

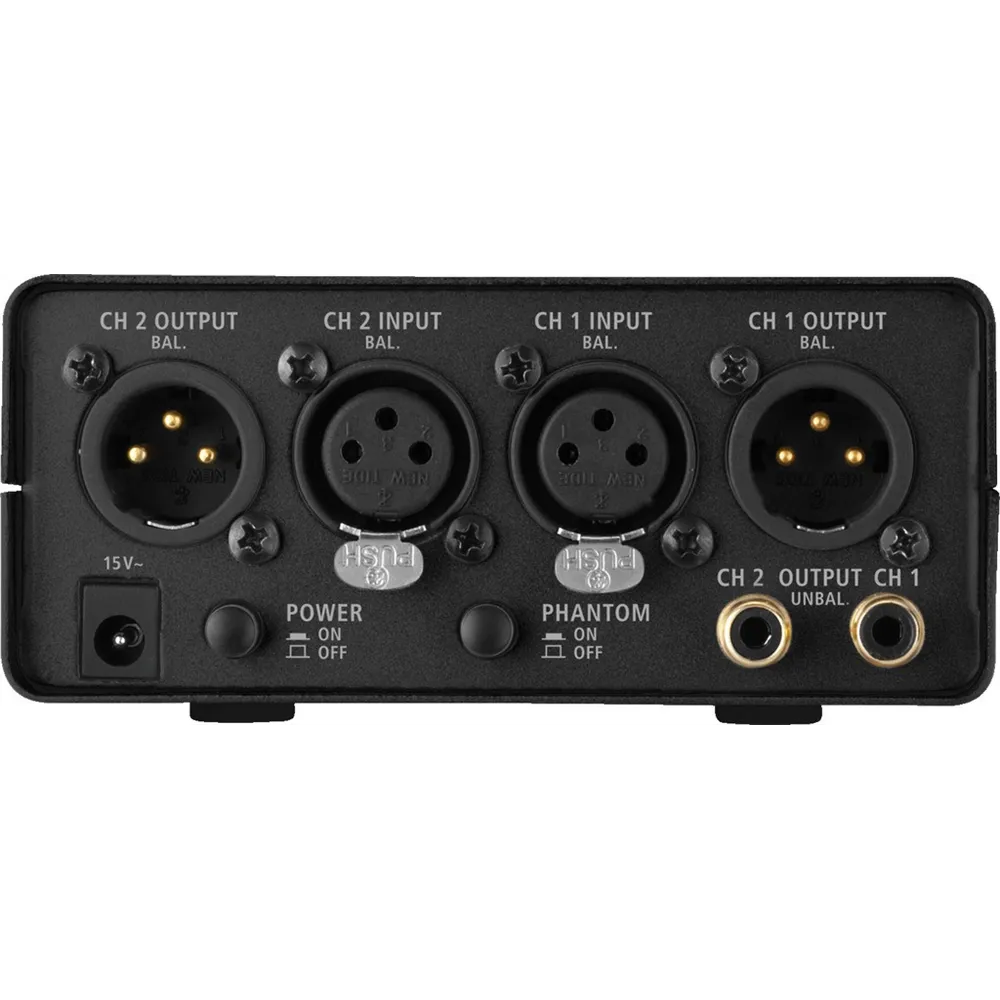

Inputs: 2 x XLR
Outputs: 2 x XLR, 2 x RCA

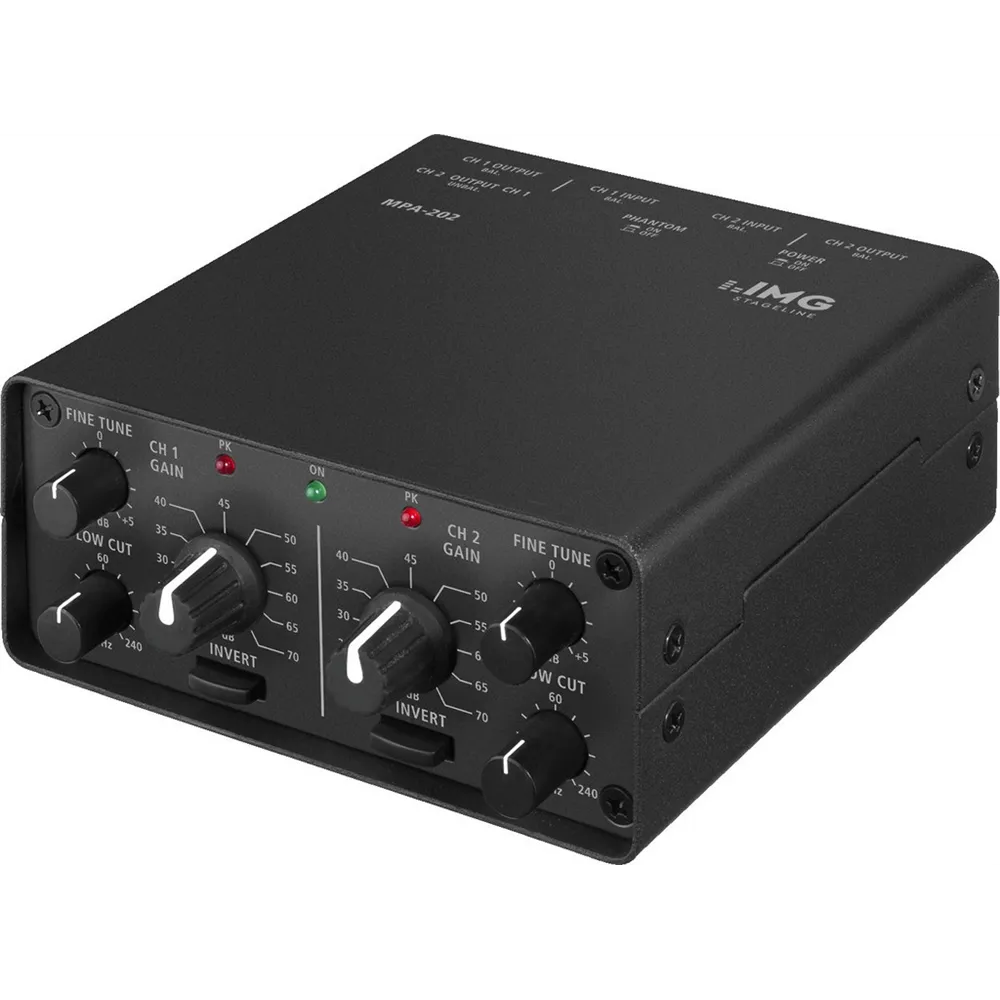

IMG STAGELINE 2-Channel Microphone Preamplifier

The IMG STAGELINE 2-Channel Microphone Preamplifier is the ideal solution for professional audio applications that demand the highest sound quality. Featuring two balanced XLR microphone inputs and an 11-step gain adjustment ranging from 20 to 70 dB, this preamplifier offers outstanding flexibility and adaptability. The integrated level controls allow for precise volume fine-tuning, while the LED indicators for operation and peak ensure easy monitoring of the signal status.

Another highlight is the switchable +12 V phantom power, which supports a wide range of microphones. The microphone phase can be toggled per channel to achieve optimal results. The continuously adjustable low-cut filter from 15 to 240 Hz and the subsonic filter at 15 Hz effectively eliminate unwanted frequencies.

With two balanced XLR outputs and two unbalanced RCA line outputs, the IMG STAGELINE Preamplifier is versatile for various applications. Its compact dimensions of 116 x 55 x 135 mm and lightweight design of 980 g make it the perfect companion for studio and live settings. Trust in the quality of IMG STAGELINE and elevate your sound to the next level!
