IMG STAGELINE Microphone Preamplifier

Features

• 1-channel low-noise microphone preamplifier for mains or battery operation
• 1 microphone input, XLR, balanced

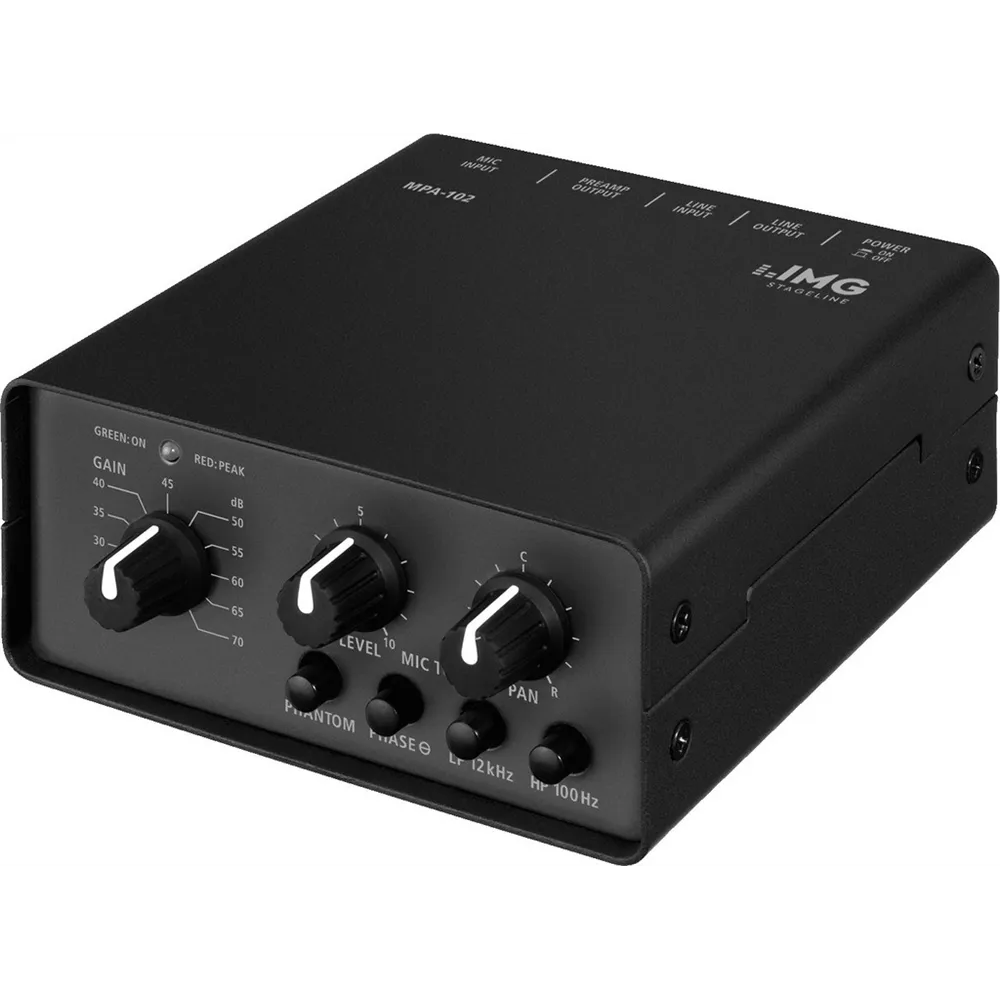

• 11-step gain control from 20 to 70 dB
• Green/red LED for power/peak indication
• Switchable +24 V phantom power
• Switchable microphone phase inversion
• Lo-Cut at 100 Hz, Hi-Cut at 12 kHz, 12 dB/octave, switchable
• 1 preamplifier output
• 1 stereo line input
• 1 stereo line output
• Level and pan controls for mixing the microphone signal into the stereo line channel
• Frequency range: 20-20,000 Hz
• Input sensitivity: 0.3-150 mV, switchable
• Input impedance: 2.2 kΩ (microphone), 10 kΩ (line)
• Output signal: 1-12 V (line, balanced), 1-6 V (line, stereo)
• Output impedance: 100 Ω
• Cut-off frequency: 100 Hz/-3 dB, 12 dB/octave (Low-Cut), 12 kHz/-3 dB, 12 dB/octave (High-Cut)
• Signal-to-noise ratio: > 66 dB, unweighted (microphone), 80 dB, unweighted (line)
• Permissible operating temperature: 0-40 °C
• Power supply: via included plug-in power supply; alternatively 3 x 9V battery
• Dimensions: 116 x 55 x 125 mm
• Weight: 978 g

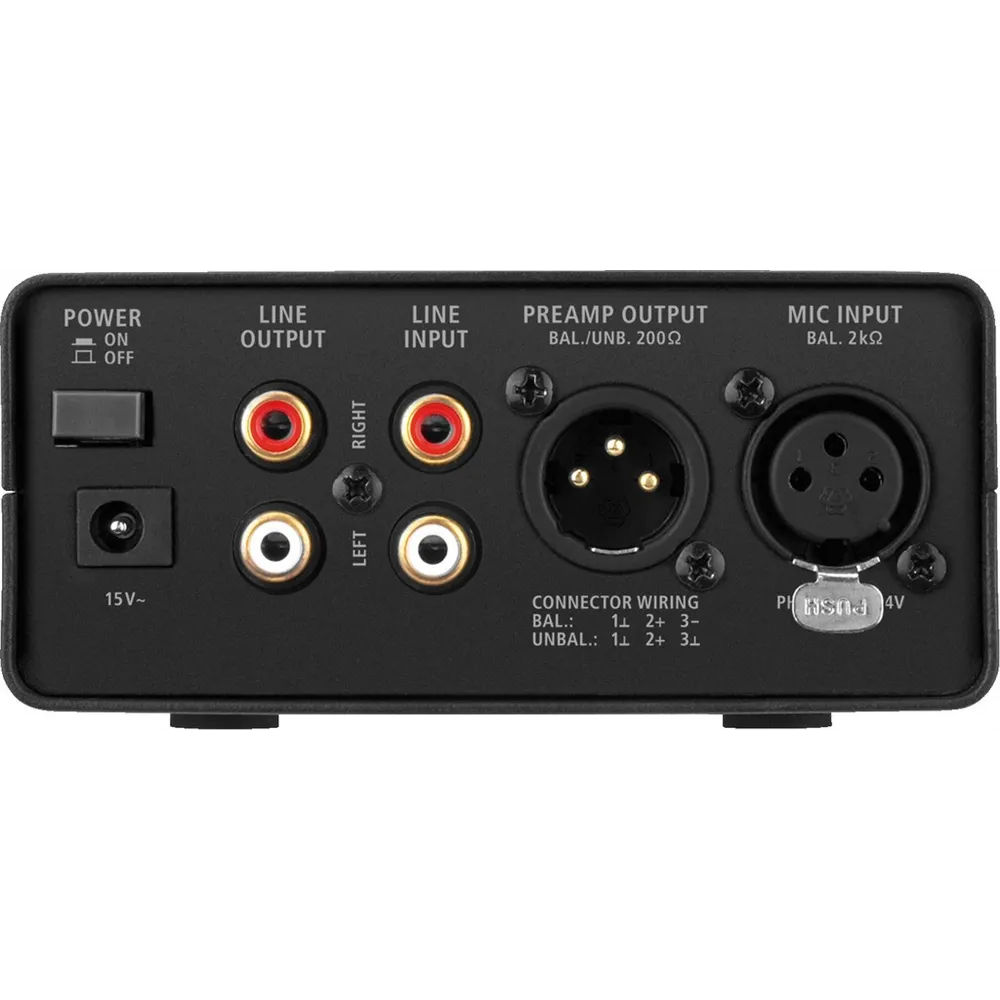

• Inputs: 1 x XLR (microphone), 1 x RCA L/R (line)
• Outputs: 1 x XLR (preamplifier), 1 x RCA L/R (line)
