Features
- 1-channel microphone preamplifier with switchable phantom power
- 1 microphone input, XLR, balanced or 6.3 mm jack, balanced
- Adjustable gain, up to a maximum of 50 dB
- Clip indicator
- 30 V phantom power switchable
- Frequency range: 10-30,000 Hz
- Input signal: 3.5 mV (XLR, balanced), 16 mV (jack, balanced)
- Input impedance: 10 kΩ
- Output signal: 1 V
- Gain: 50 dB (for balanced connection), 44 dB (for unbalanced connection)
- Signal-to-noise ratio: 58 dB
- Total harmonic distortion: 0.1%
- Permissible operating temperature: 0-40 °C
- Power supply: via included plug-in power supply
- Dimensions: 113 x 92 x 40 mm
- Weight: 345 g
- Inputs: 1 x XLR, 1 x 6.3 mm jack
- Outputs: 1 x XLR, 1 x 6.3 mm jack

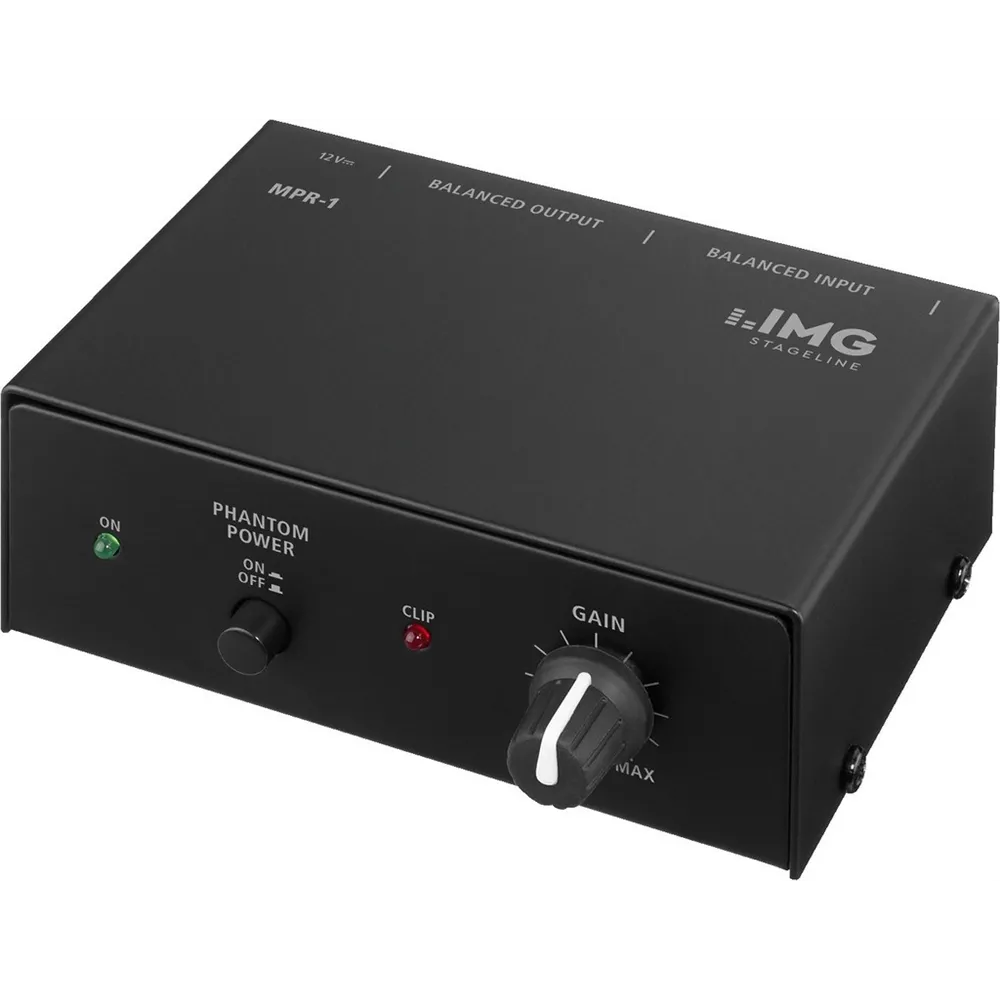

IMG STAGELINE Microphone Preamplifier
The IMG STAGELINE Microphone Preamplifier is the ideal solution for those seeking high-quality sound and flexibility in their audio applications. Featuring a 1-channel design, this preamplifier offers both a balanced XLR input and a 6.3 mm jack input, allowing for seamless integration into various setups. The adjustable gain of up to 50 dB enables you to optimize the input signal, while the clip indicator ensures you always have a clear view of your signal strength.
A standout feature is the switchable 30V phantom power, which supports a wide range of microphones. With a frequency range of 10 Hz to 30 kHz, it guarantees excellent sound reproduction, while the high input impedance of 10 kΩ and a signal-to-noise ratio of 58 dB ensure clear and noise-free audio transmission. With a compact design of 113 x 92 x 40 mm and a weight of only 345 g, the IMG STAGELINE Microphone Preamplifier is both portable and powerful. Perfect for studio and live applications!
