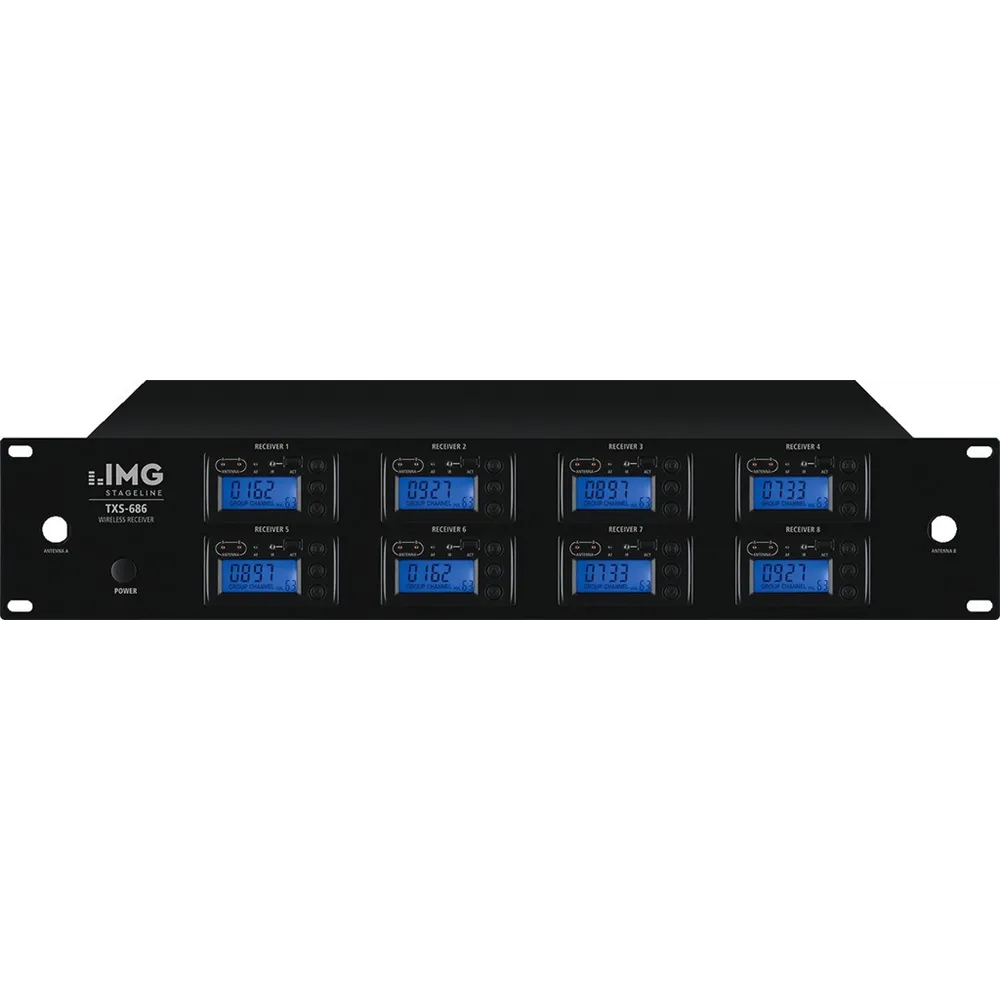

IMG STAGELINE 8-Channel True Diversity Wireless Receiver 672-696 MHz

Features

• 8-channel multi-frequency receiver unit with UHF PLL technology
• 1000 UHF frequencies (672.000-696.975 MHz) adjustable per channel (10 groups with 100 channels each)
• ACT function for transferring the selected frequency to the bodypack transmitter TXS-60HSE/2, lavalier microphone transmitter TXS-606LT/2, tabletop microphone transmitter TXS-606DT/2, or handheld microphone TXS-606HT/2 via infrared signal
• Automatic frequency scan
• True diversity system with detachable antennas (BNC connection)
• Adjustable volume and squelch per channel
• LCD display for group/channel, RF reception level, audio level, and additional LED indicators for antenna A/B, audio signal per channel
• XLR output per channel, balanced
• 6.3 mm jack output for mixed signal
• 8V power supply for active antennas or antenna amplifiers (e.g., TXS-875B) available
• Sturdy metal housing
• Power supply included
• 482 mm rack mount (19"), 2U
• Carrier frequency range: 672.000-696.975 MHz
• Audio frequency range: 30-18,000 Hz
• Channels: 8
• Dynamic range: 100 dB
• RF signal-to-noise ratio: 105 dB
• Permissible operating temperature: 0-40 °C
• Audio signal receiver: 350 mV/600 Ω (jack), 25 mV/600 Ω (XLR, balanced)
• Power supply for receiver: via included plug-in power supply
• Receiver width: 482 mm
• Receiver height: 90 mm
• Receiver depth: 310 mm
• Receiver weight: 4.4 kg
• Receiver connections: 8 x XLR, balanced, 1 x 6.3 mm jack, unbalanced
