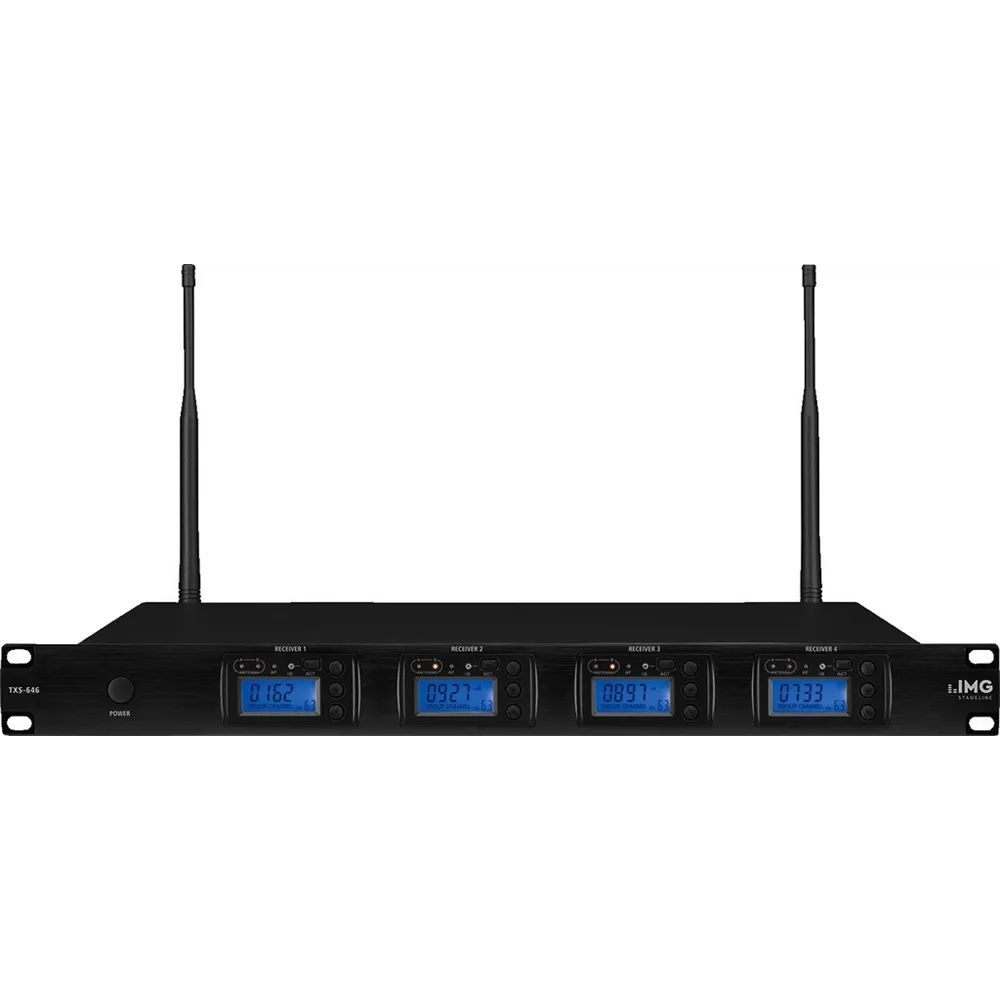

IMG STAGELINE 4-Channel True Diversity Wireless Receiver 672-696 MHz

Brand:

Features

  • 4-channel multi-frequency receiver unit with UHF PLL technology
  • 1000 UHF frequencies (672.000-696.975 MHz) adjustable per channel (10 groups with 100 channels each)
  • ACT function for transferring the selected frequency to bodypack transmitters, lavalier microphone transmitters, tabletop microphone transmitters, or handheld microphones via infrared signal
  • Automatic frequency scan
  • True diversity system with detachable antennas (BNC connector)
  • Adjustable volume and squelch per channel
  • LCD display for group/channel, antenna A/B, RF reception level, audio level, and additional LED display for audio signal per channel
  • XLR output per channel, balanced
  • 6.3 mm jack output for mixed signal
  • 8V power supply available for active antennas or antenna amplifiers
  • Sturdy metal housing
  • Power supply included
  • 482 mm rack mount (19"), 1U
  • Audio frequency range: 30-18,000 Hz
  • Dynamic range: 100 dB
  • RF signal-to-noise ratio: 105 dB
  • Permissible operating temperature: 0-40 °C
  • Weight: 2.9 kg
  • Dimensions: 482 mm (W) x 45 mm (H) x 310 mm (D)
  • Audio signal receiver: 350 mV/600 Ω (jack), 25 mV/600 Ω (XLR, balanced)
  • Power supply via included plug-in power supply
  • Connections: 4 x XLR, balanced; 1 x 6.3 mm jack, unbalanced
Read moreShow less
453.00 (tax incl.)
Reference:
MCTXS-646
Love0
Add to compare0
Description

IMG STAGELINE 4-Channel True Diversity Wireless Receiver 672-696 MHz

Experience the next level of wireless audio transmission with the IMG STAGELINE 4-Channel True Diversity Wireless Receiver. This state-of-the-art device operates in the frequency range of 672 to 696 MHz, offering you the flexibility of 1000 adjustable UHF frequencies per channel. Thanks to the innovative True Diversity technology and detachable antennas (BNC connection), you can enjoy a stable and interference-free connection, even in challenging environments.

The user-friendly ACT function allows for easy frequency transfer to compatible bodypack transmitters and microphones via infrared signal. With an automatic scan feature, you can quickly find the best frequencies. The LCD display provides information on group, channel, RF reception level, and audio level, while volume and squelch can be individually adjusted per channel.

The robust metal housing and the option for rack mounting (482 mm, 1U) make this wireless receiver ideal for professional use. Enjoy clear sound and excellent value for money with the IMG STAGELINE 4-Channel Wireless Receiver – the perfect choice for musicians, event organizers, and studios.

Read moreShow less
Product Details
MCTXS-646
Delivery and shipping costs
Reviews
No comments
