LD Systems U505 IEM R - Empfänger - 584 - 608 MHz

LD Systems U505 IEM R - Empfänger - 584 - 608 MHz

Brand:

LD Systems U505 IEM HP - In-Ear Monitoring System with Earphones - 584 - 608 MHz

LD Systems U505 IEM T - Sender - 584 - 608 MHz

Features

Reliable in-ear monitoring with a range of over 100 meters
96 selectable channels
Adjustable transmission power of 2, 10, or 30 mW ERP
Convenient infrared synchronization
User name input and storage for 10 custom presets
Wide frequency response
3-band EQ with parametric mids
Switchable limiter
Operation in stereo or mono mode
Direct monitoring via headphone output on the transmitter
Bodypack with three-stage switchable noise filter
10-hour bodypack runtime with two AA batteries
Up to 12 systems can be used simultaneously
U500® IEM transmitter compatible with U300® IEM bodypack
Headphone output: 3.5 mm stereo jack
Transmission method: FM, mono/stereo
Frequency response: 40 - 16,000 Hz
Minimum connected impedance: 16 Ohms
Max audio output level: 33 mW @ 16 Ohms
Max audio output level: 80 mW @ 33 Ohms
Antenna connection: Fixed to the housing
Controls: Volume, On/Off, Up, Down
Display elements: Multifunctional OLED display, RF (LED)
Power supply: 2 x 1.5 V AA
Width: 64 mm
Height: 100 mm
Depth: 24 mm
Weight: 0.095 kg
Included accessories: 2 x AA batteries, antenna
Features: Battery status LED

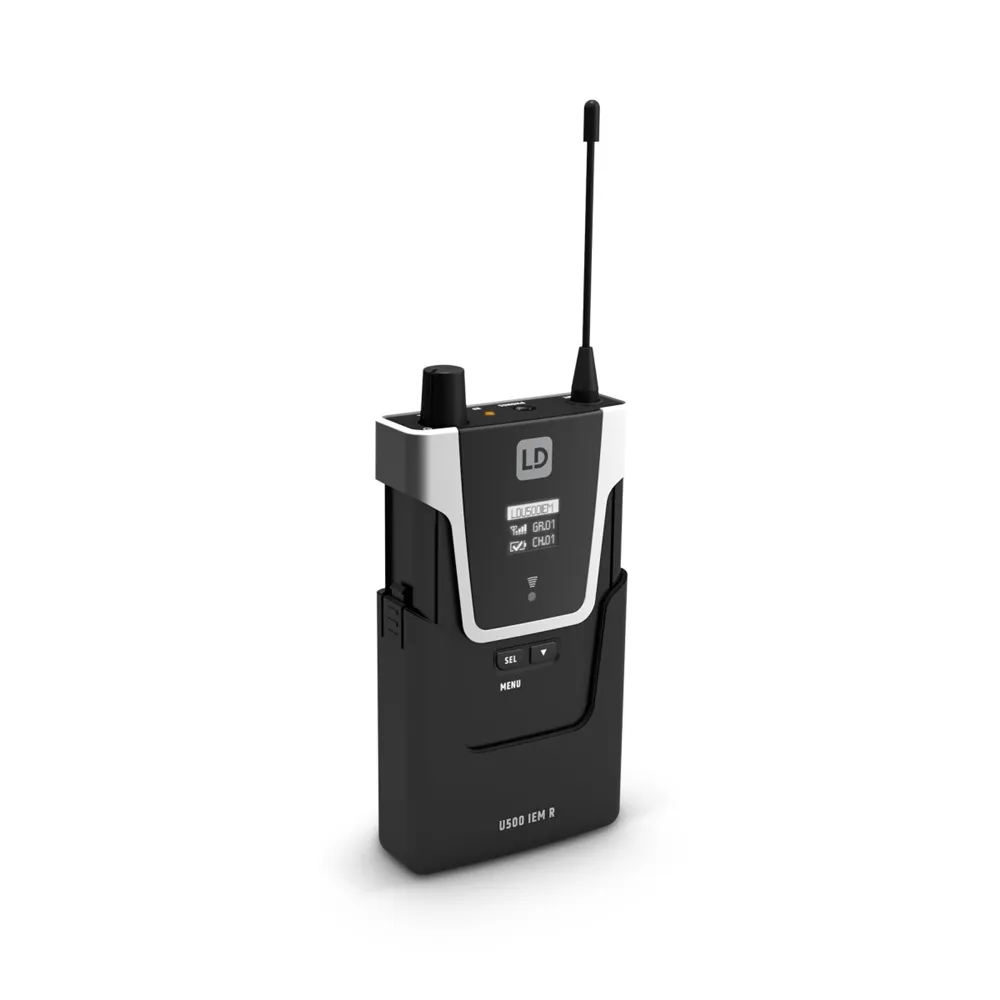

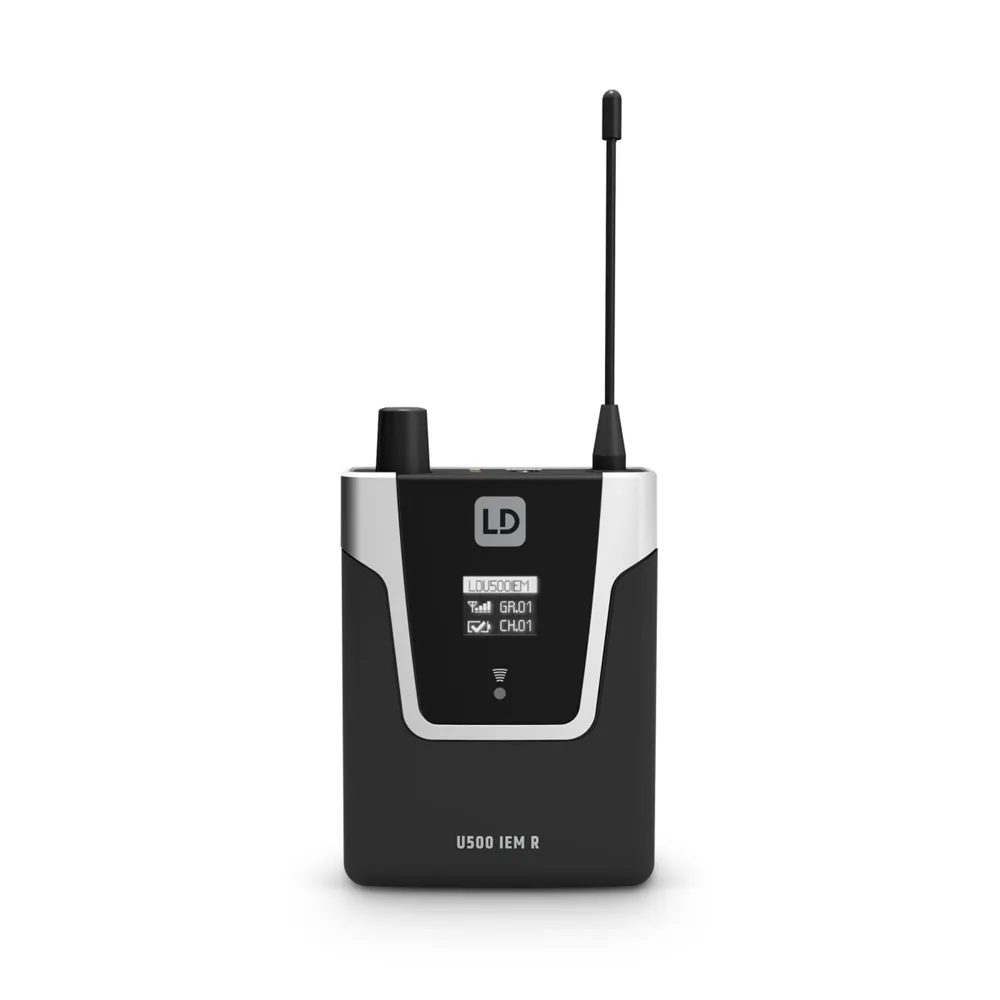

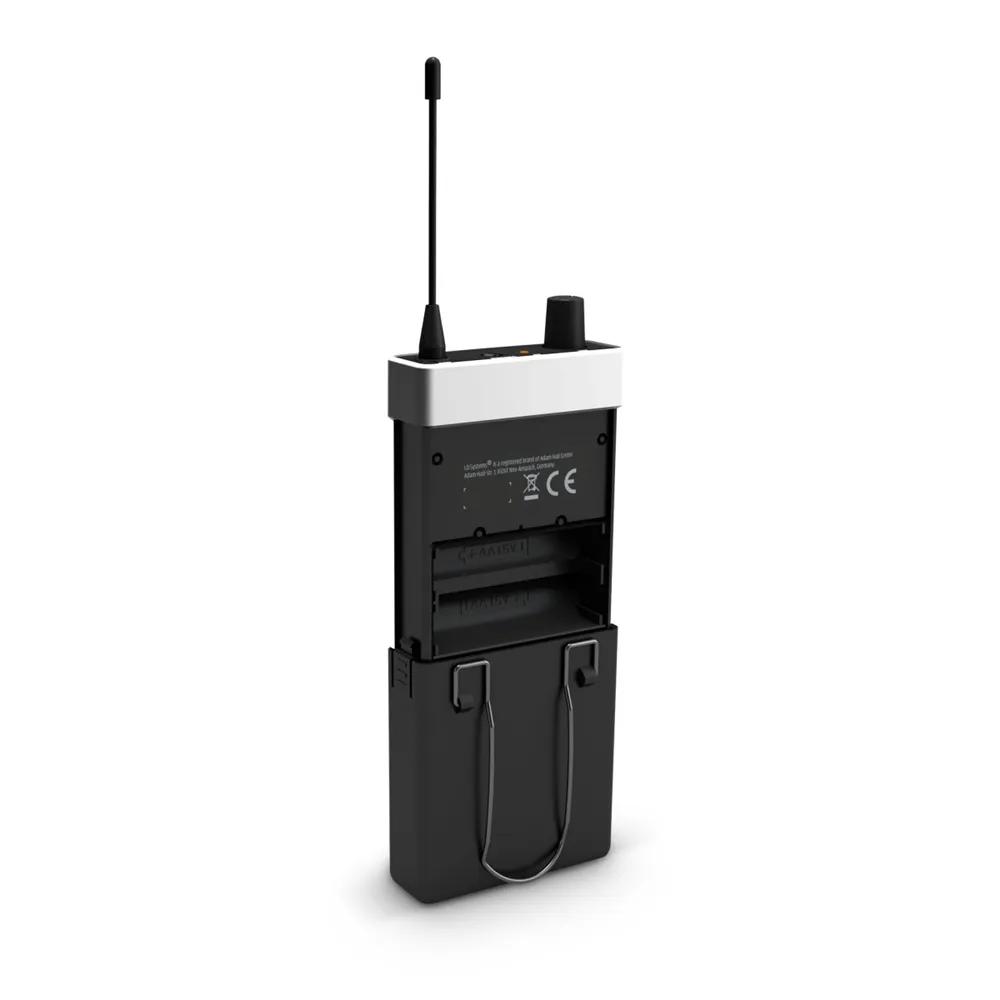

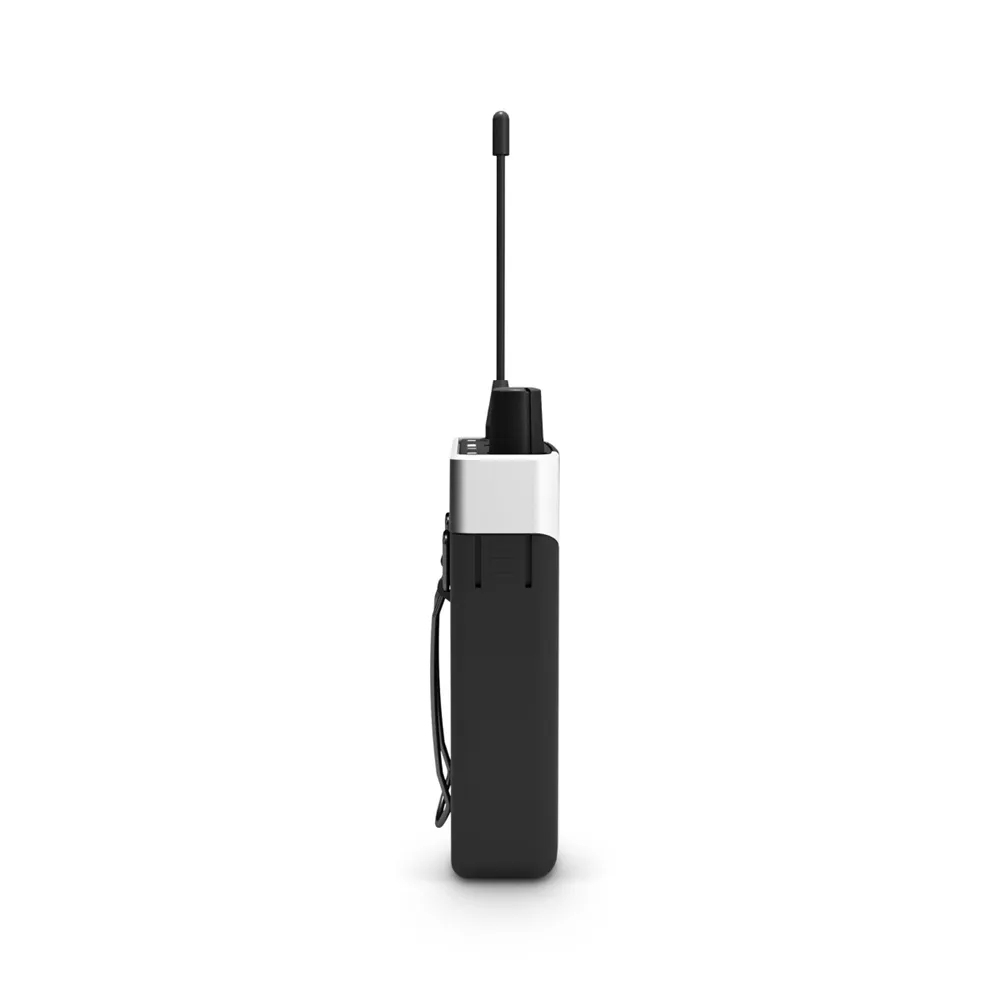

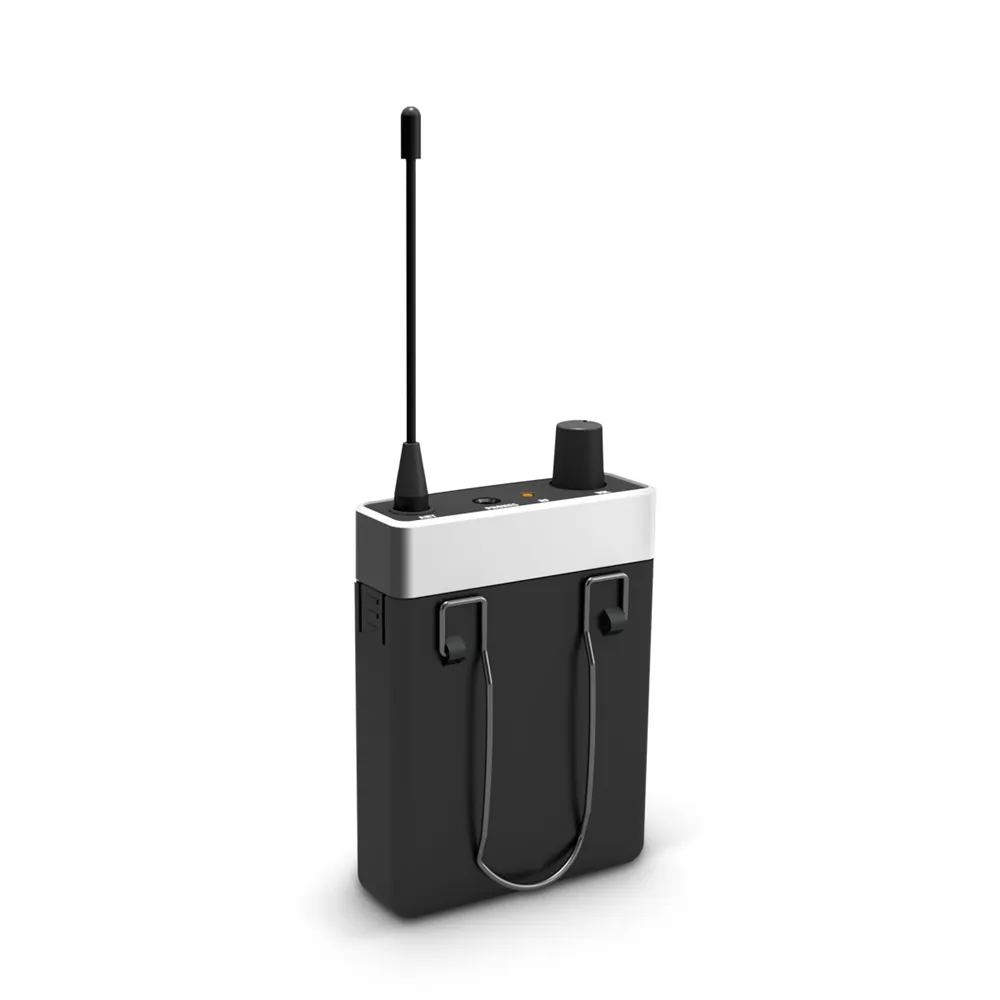

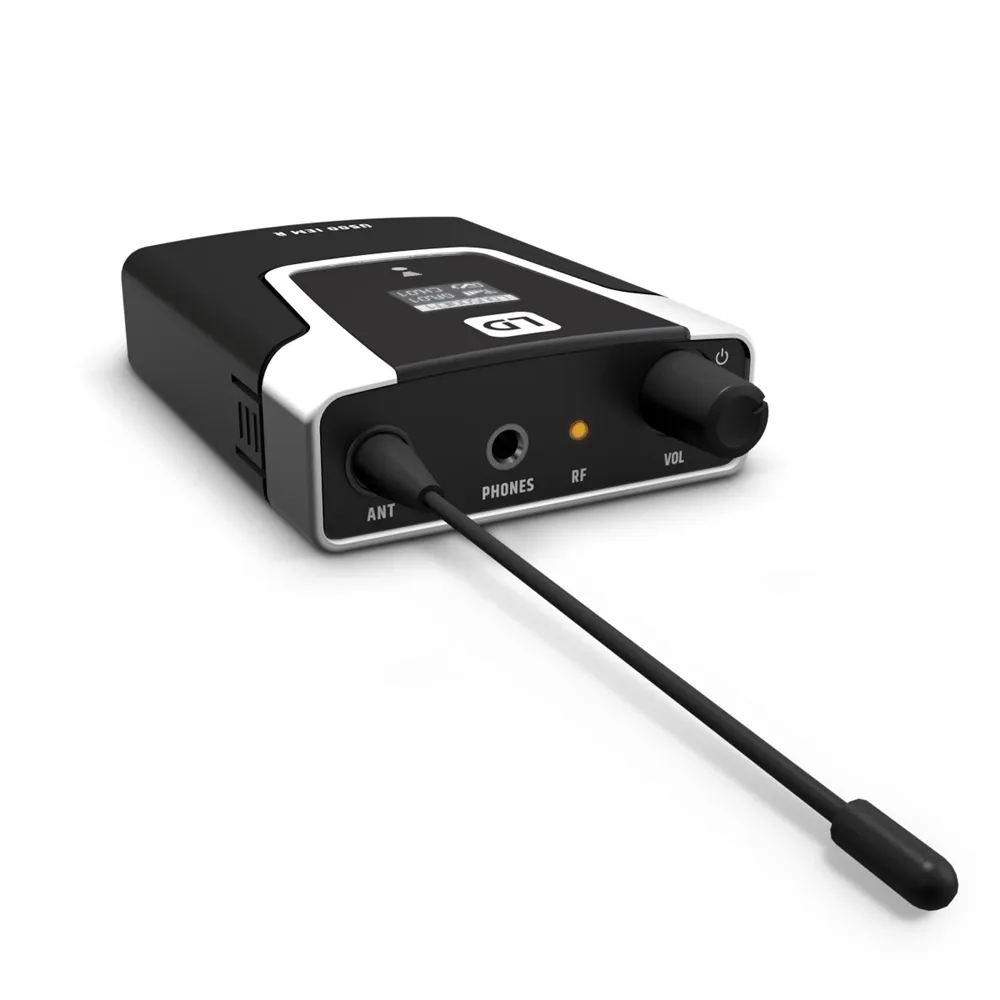

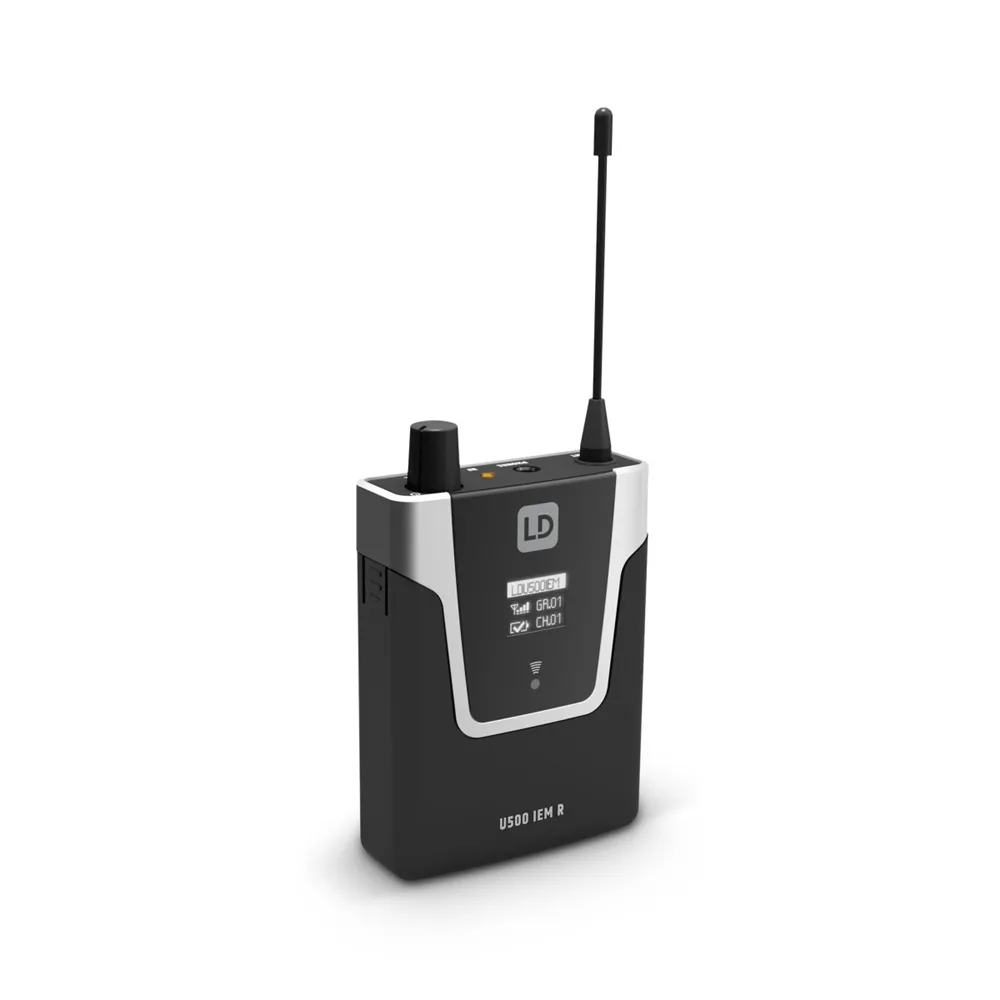

LD Systems U505 IEM R - Receiver - 584 - 608 MHz

Experience the freedom of wireless in-ear monitoring with the LD Systems U505 IEM R Receiver. With a frequency range of 584 to 608 MHz and a range of over 100 meters, this system delivers reliable performance for musicians and technicians. Choose from 96 channels and adjust the transmission power to your needs with options of 2, 10, or 30 mW. The convenient infrared synchronization allows for quick setup, while the high-contrast OLED display provides a clear overview of all functions.

The U505 IEM R Receiver impresses with a frequency response of 40 to 16,000 Hz and a signal-to-noise ratio of over 95 dB, ensuring outstanding sound quality. With a 3-band EQ and a switchable limiter, you can customize the sound to your liking. The bodypack receiver offers a runtime of up to 10 hours with two AA batteries and allows for easy volume control during performances. Thanks to the capability to operate up to 12 systems simultaneously, the U505 IEM R is the ideal choice for professional stage applications.
