Features
- Reliable in-ear monitoring with a range of over 100 meters
- 96 channels available for selection
- Selectable transmission power of 2, 10, or 30 mW ERP
- Convenient infrared synchronization
- User name input and storage for 10 custom presets
- Wide frequency response from 40 to 16,000 Hz
- 3-band EQ with parametric mids
- Switchable limiter
- Operation in stereo or mono mode
- Direct monitoring via headphone output on the transmitter
- Bodypack with three-stage switchable noise filter
- 10 hours of bodypack runtime with two AA batteries
- Up to 12 systems can be used simultaneously
- U500® IEM transmitter compatible with U300® IEM bodypacks
- Signal-to-noise ratio: 93 dB
- Total harmonic distortion (THD): 0.3%
- Dynamic range: 88 dB
- Inputs: 2 (Combo TRS 6.3mm and XLR (balanced))
- Input impedance: 12 kOhm
- Antenna connection: BNC
- Controls: Headphone volume, menu selection knob, power on/off
- Display elements: Multifunctional OLED display
- Power supply: 12 - 18 V DC
- Dimensions: 212 mm (W) x 43 mm (H) x 123 mm (D)
- Weight: 0.641 kg
- Included accessories: 19" rack mount kit, BNC antenna, power adapter

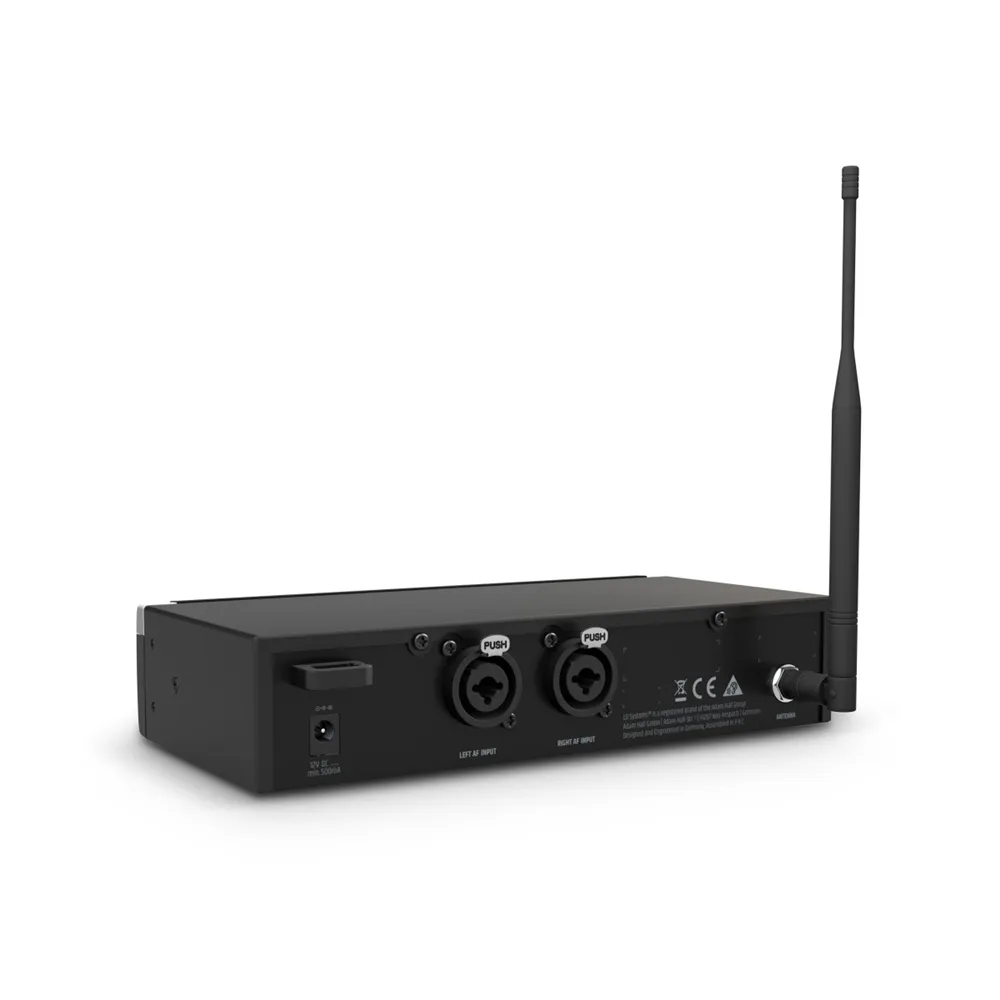

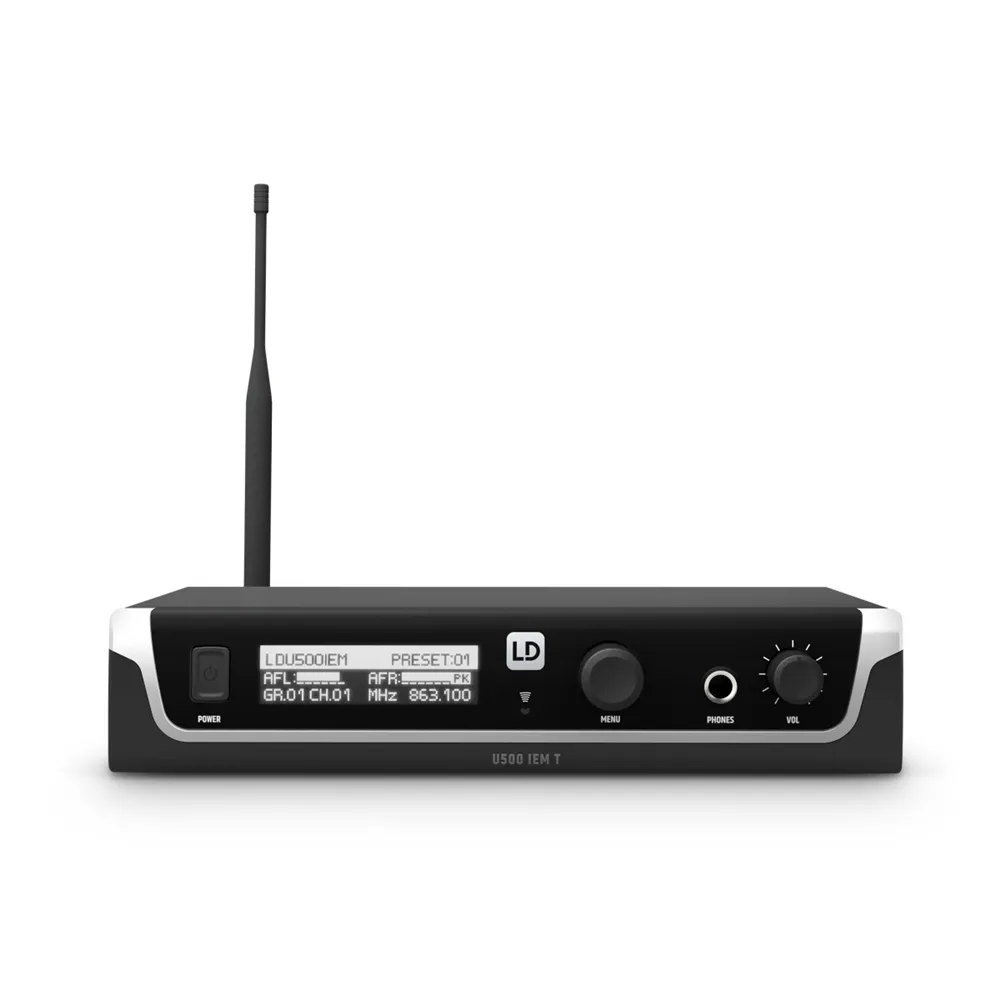

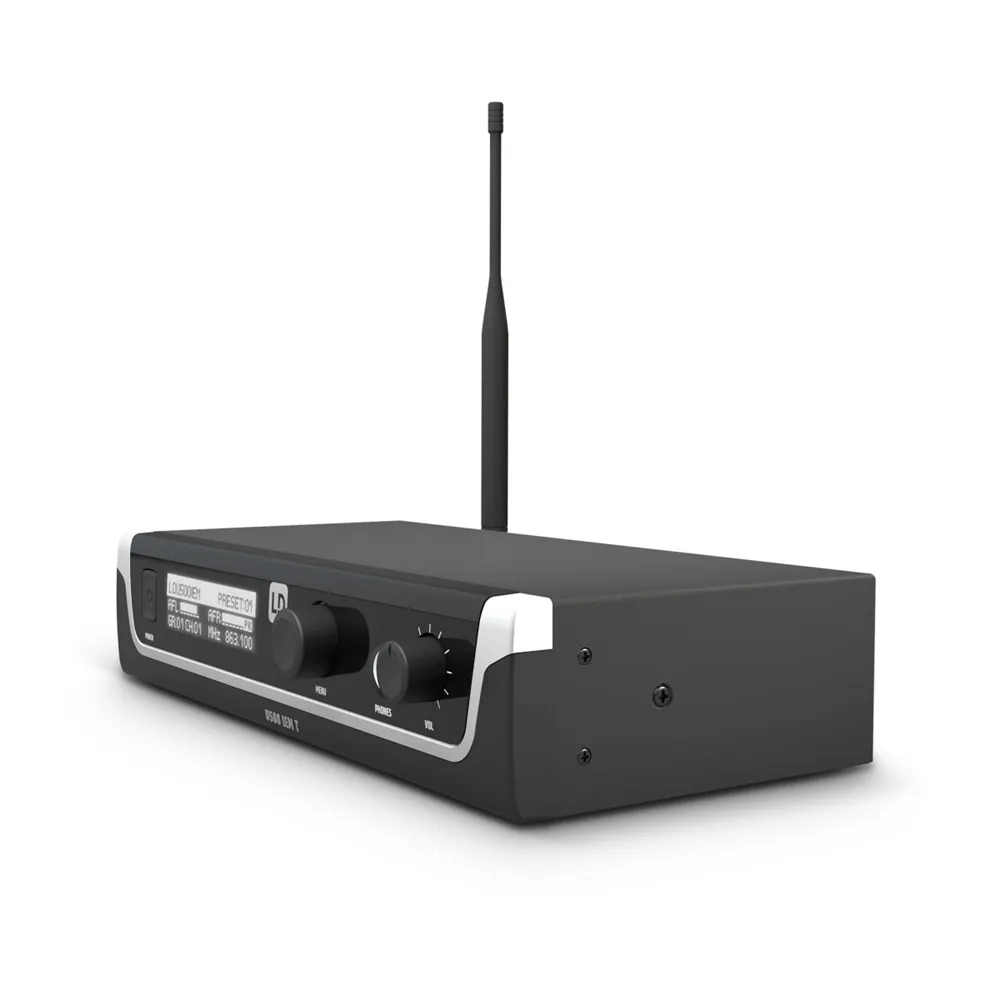

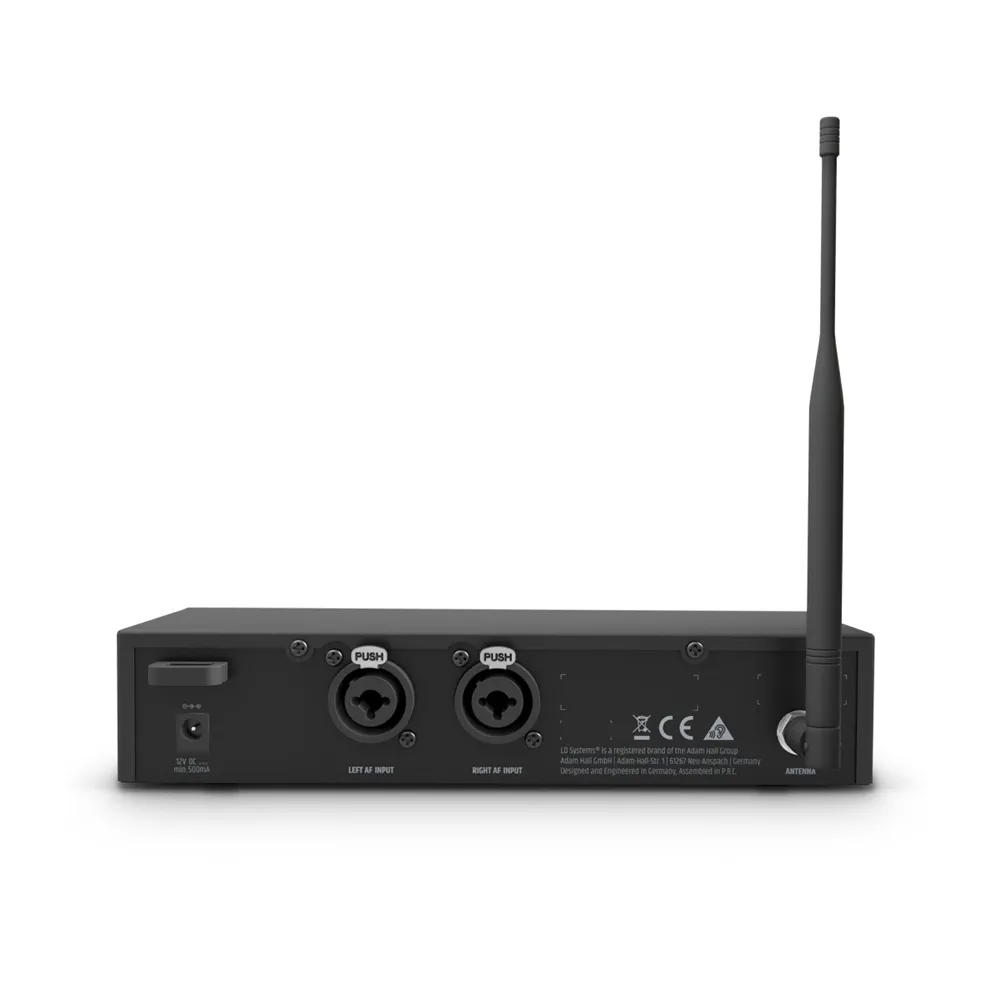

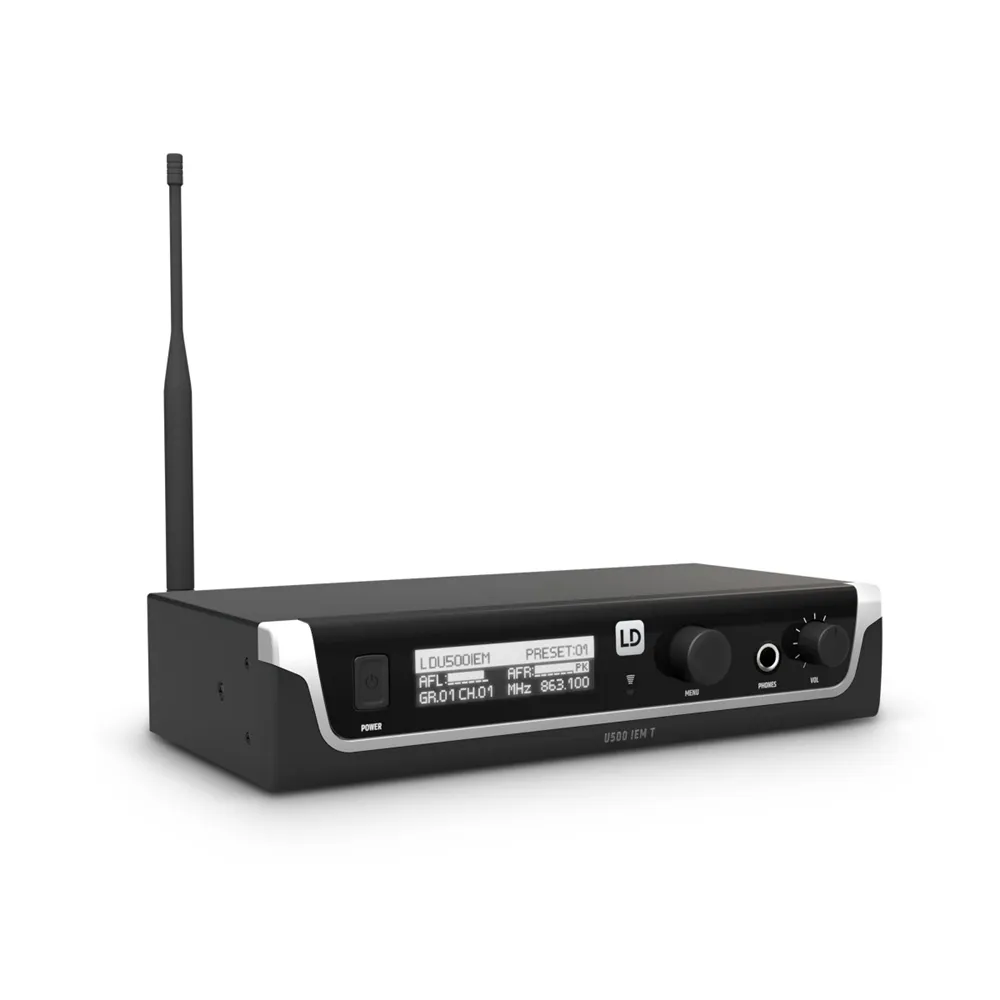

LD Systems U505 IEM T - Transmitter - 584 - 608 MHz
Experience top-notch in-ear monitoring with the LD Systems U505 IEM T transmitter, operating in the frequency range of 584 to 608 MHz. With a range of over 100 meters and 96 selectable channels, this transmitter provides reliable and interference-free transmission, giving you the freedom to move on stage. The transmission power can be flexibly adjusted to 2, 10, or 30 mW to ensure optimal sound in any situation.
The infrared synchronization allows for quick and easy connection between the transmitter and receiver, while the high-contrast OLED display provides a clear overview of all functions. You can enter custom usernames and save up to 10 personal presets for quick access to your settings. The 3-band EQ with parametric mids and switchable limiter ensures clean, precise sound, while the noise gate adds extra clarity.
The U505 IEM T transmitter is compatible with U300 IEM bodypacks and allows for the simultaneous operation of up to 12 systems. With a runtime of up to 10 hours using two AA batteries, it is the ideal companion for professional musicians and technicians.
