Features
- Product Type: Wireless Microphone System Accessory
- Type: Bodypack
- Frequency Range: 823 - 832 MHz
- Frequency Range: 863 - 865 MHz
- Channels: 12
- Groups: 1
- Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
- Frequency Response: 25 - 16,000 Hz
- Signal-to-Noise Ratio: 104 dB
- RF Output Power: 10 mW
- Controls: Gain (3-Position Switch)
- Controls: Power On/Off
- Indicators: ASC IR Sync (Green LED, Yellow Blinking)
- Indicators: Battery (Low Battery: Red)
- Indicators: Power LED (Power ON: Green)
- Power Supply: 2 x AA Batteries
- Operating Time: >10 Hours
- Width: 65 mm
- Height: 91 mm
- Depth: 25 mm
- Weight: 0.085 kg
- Additional Features: Belt Clip
- Additional Features: IR Frequency Synchronization
- Additional Features: Pilot Tone

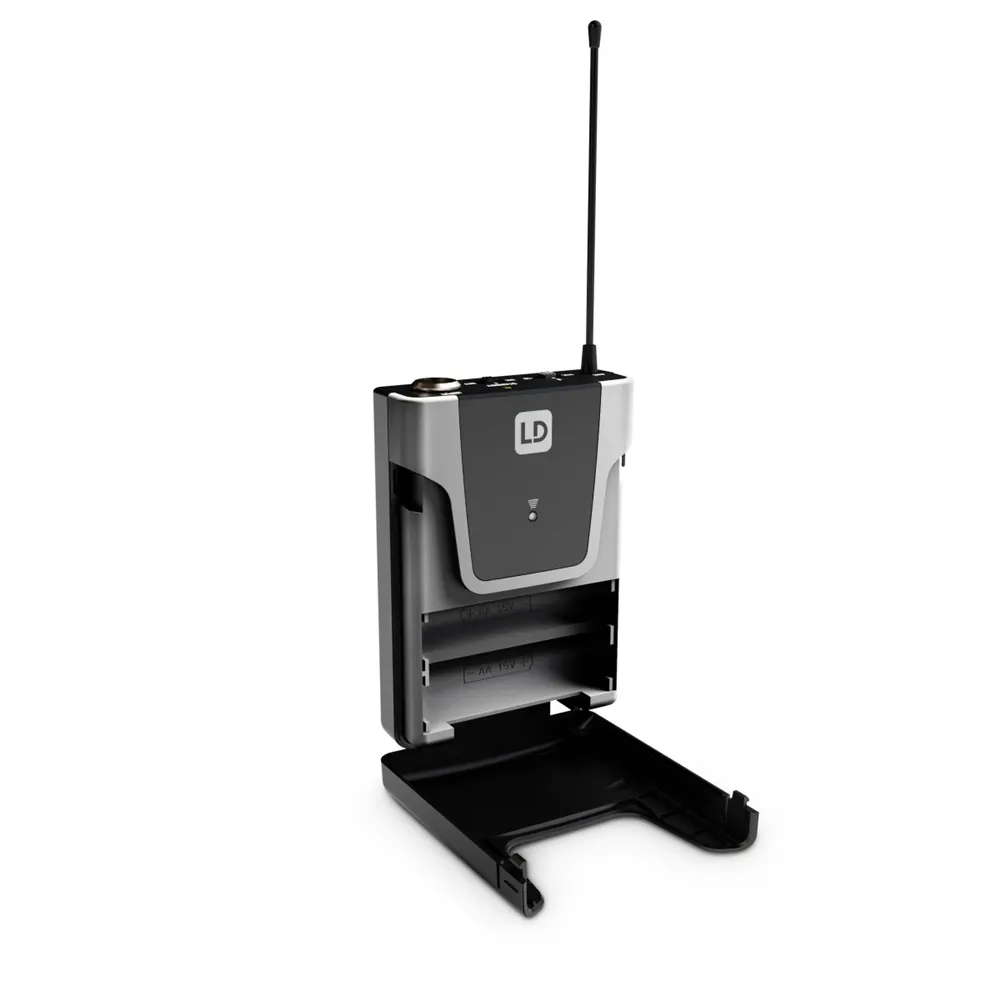

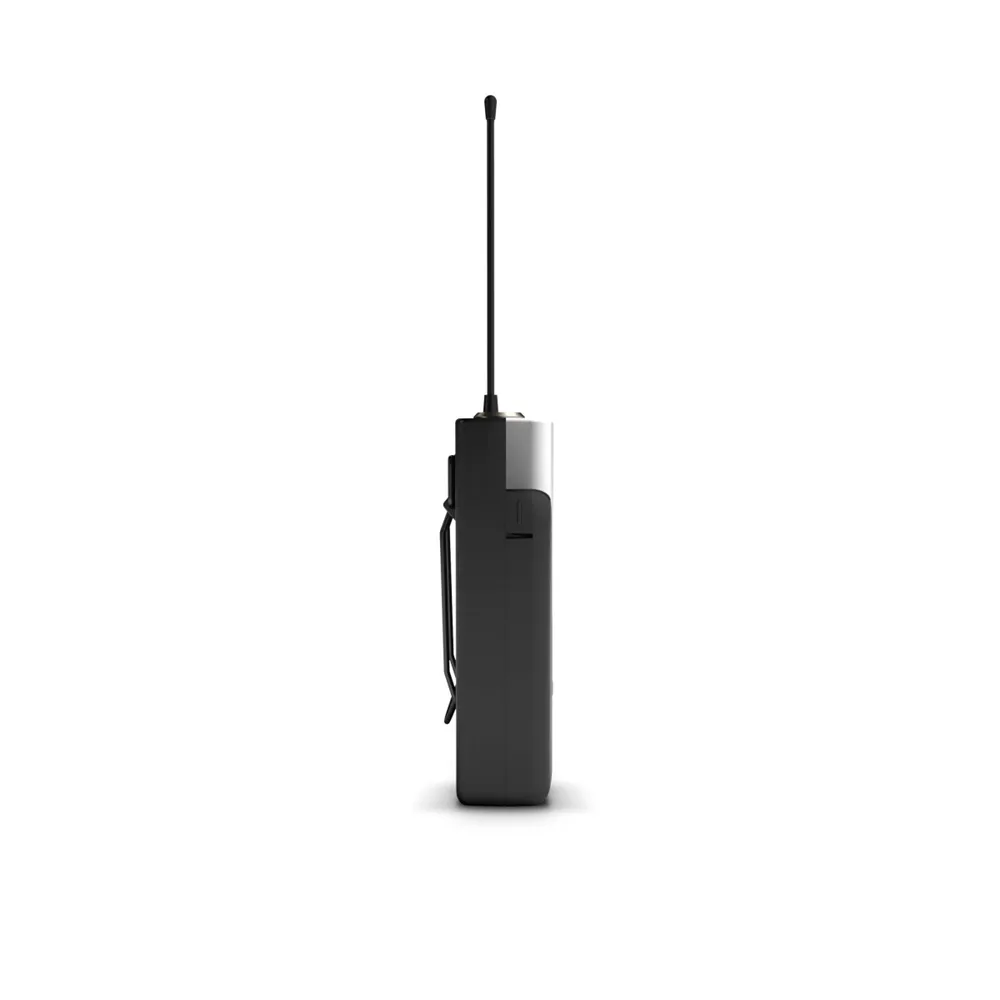

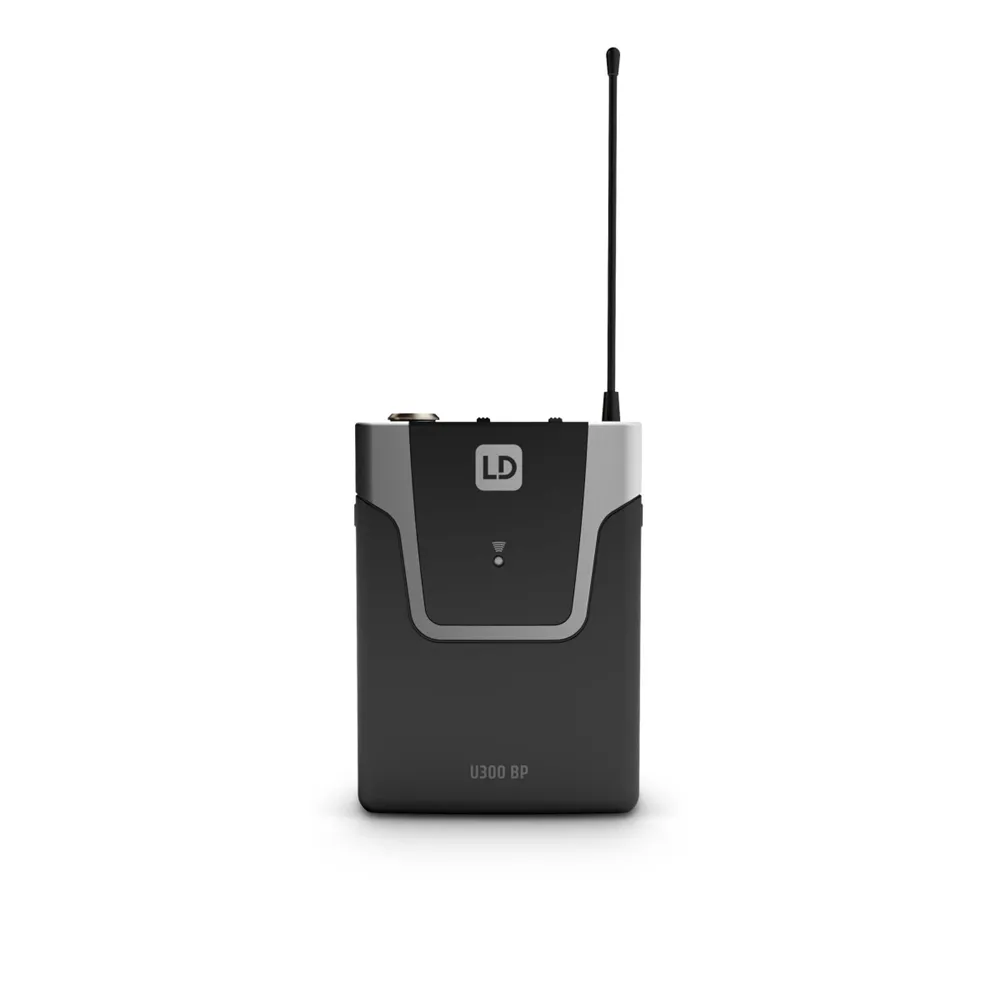

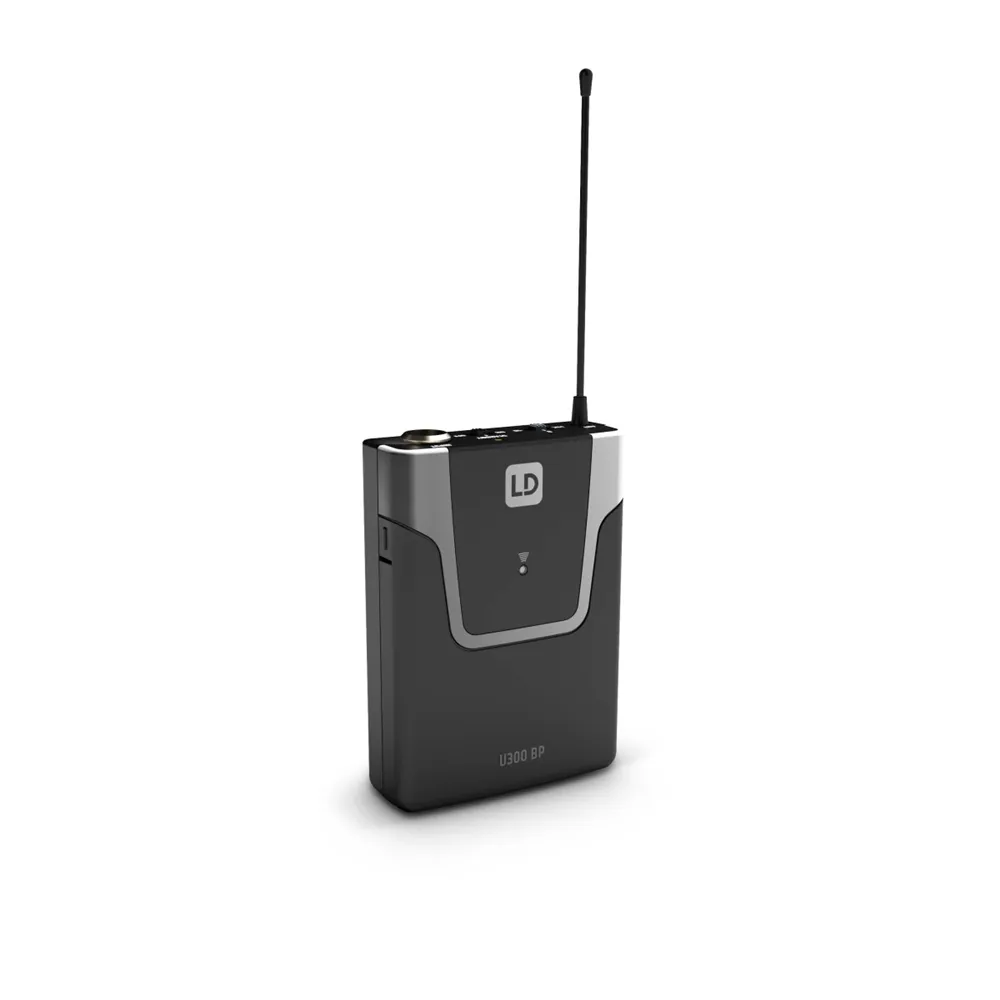

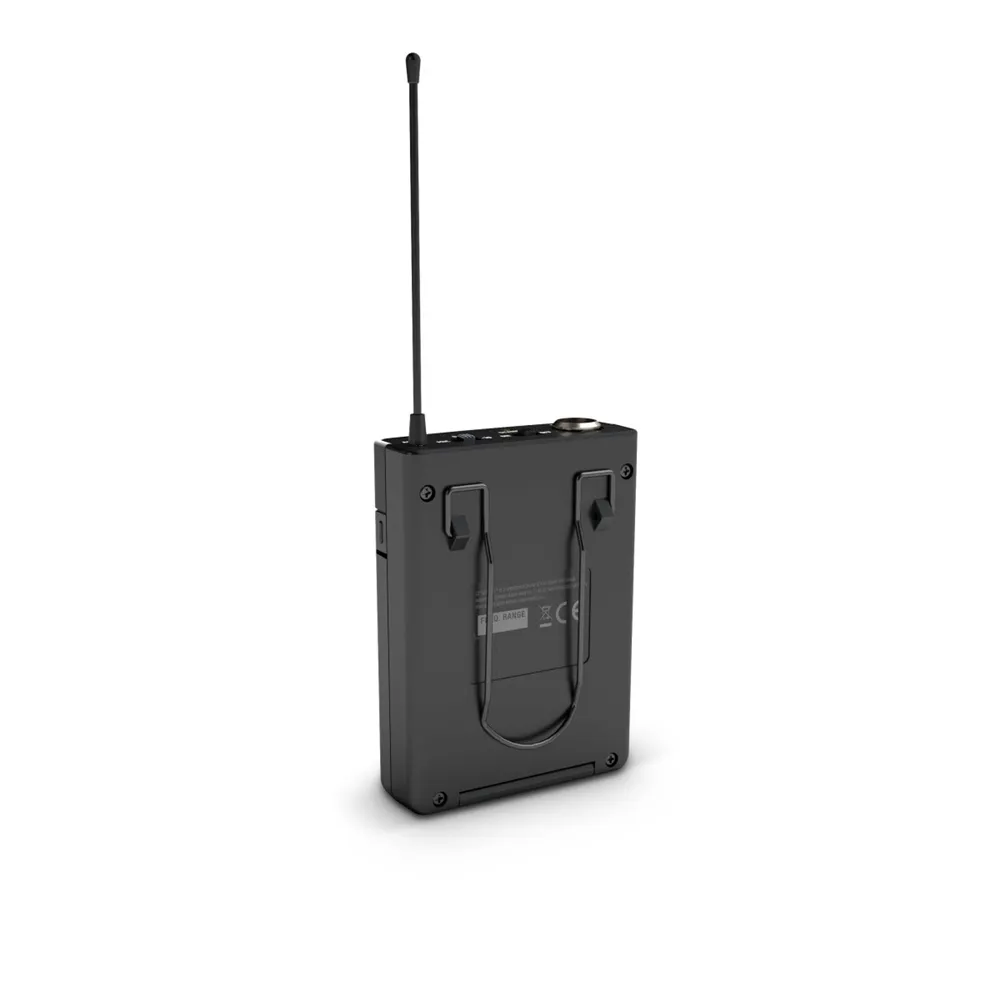

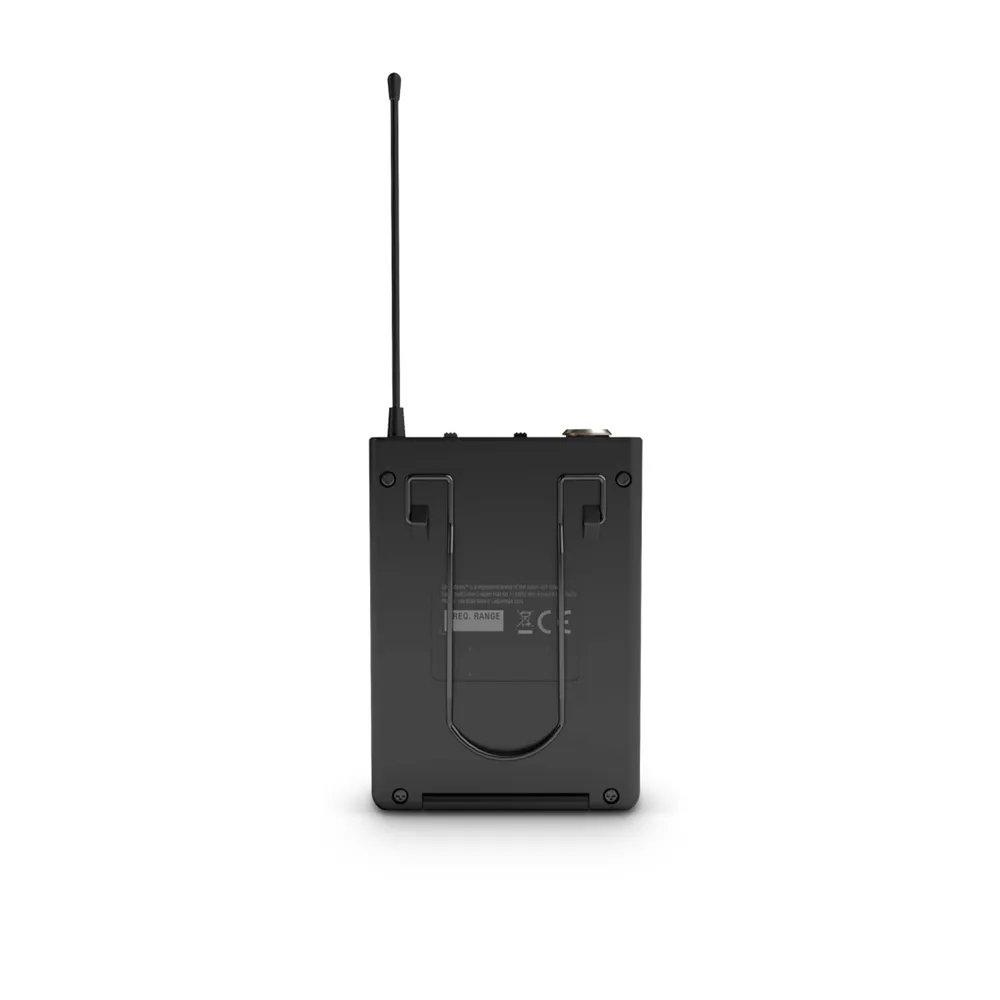

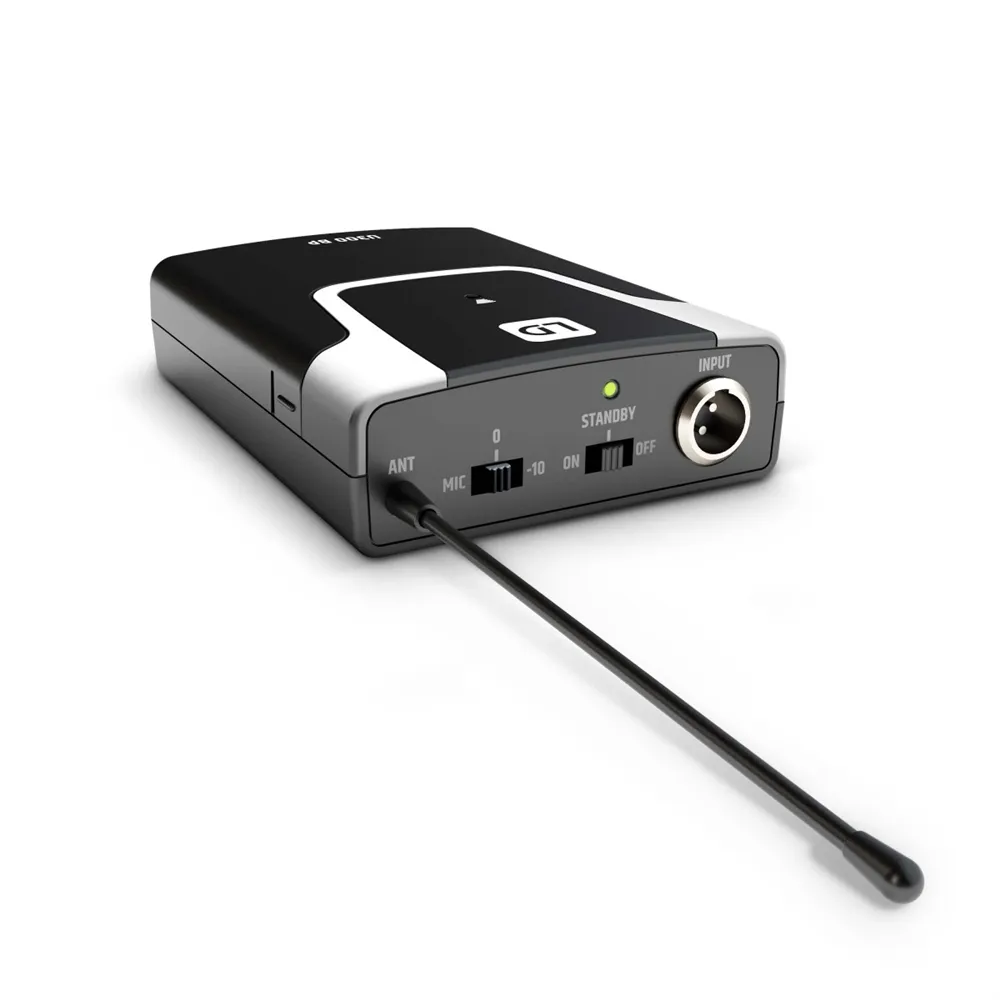

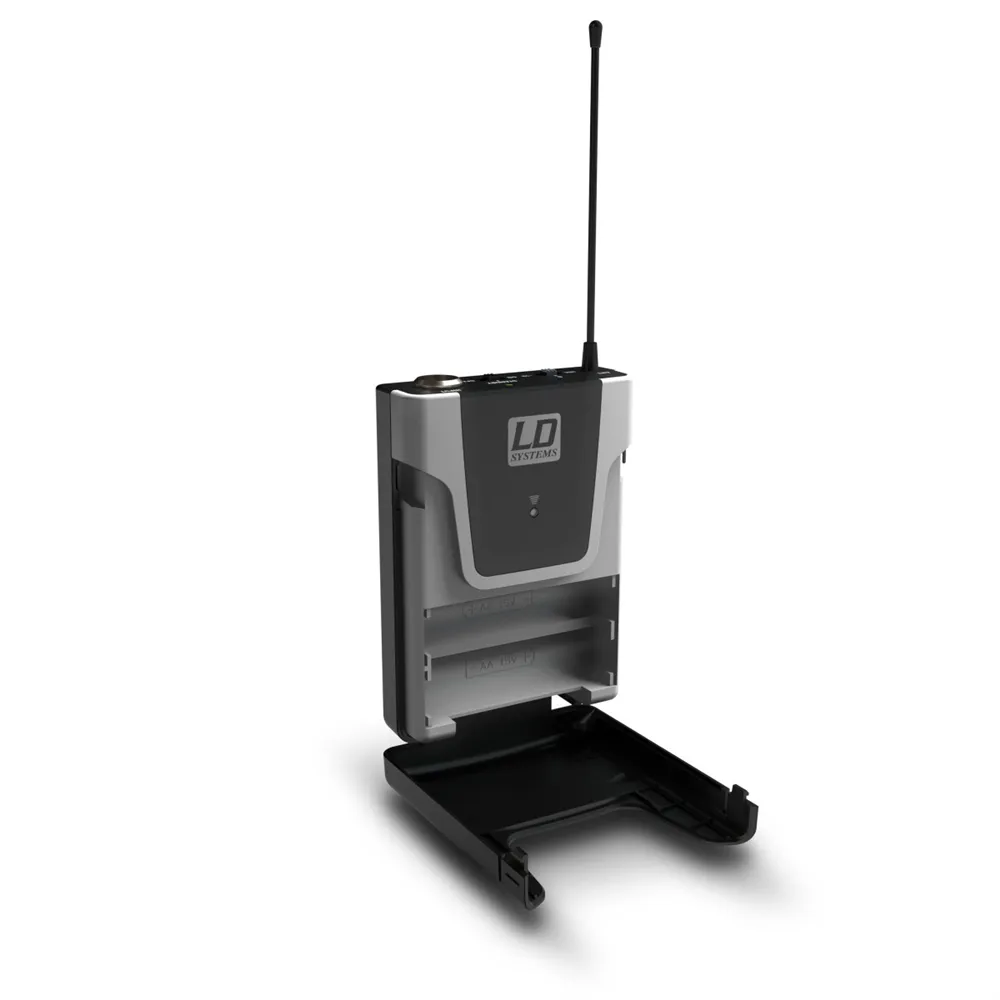

LD Systems U308 BP - Bodypack Transmitter
The LD Systems U308 BP Bodypack Transmitter is a powerful accessory for your wireless microphone system, operating in the frequency bands of 823 - 832 MHz and 863 - 865 MHz. Featuring a mini-XLR input and a three-position level switch, it is ideal for adapting to various microphones as well as active and passive instruments. The transmitter offers an RF output power of 10 mW and a frequency response of 25 Hz to 16 kHz, making it perfect for transmitting five-string bass guitars with a low B string.
With an impressive operating time of over 10 hours using two AA batteries and convenient infrared synchronization with the U308 Receiver, the U308 BP is both reliable and user-friendly. A pilot tone ensures interference-free operation, while the practical standby function of the power switch allows for temporary muting. Weighing only 85 g and equipped with a belt clip, this bodypack transmitter is the perfect choice for musicians and presenters who value mobility and sound quality.
