LD Systems U306 R2 - Dual Empfänger - 655 - 679 MHz

LD Systems U306 R2 - Dual Empfänger - 655 - 679 MHz

Brand:

Features

Product Type: Wireless Microphone System Accessory
Type: Receiver
Modulation Type: FM
Frequency Range: 655 - 679 MHz
Channels: 12
Groups: 1
Antenna Inputs: 2 x Fixed
Frequency Response: 35 - 16,000 Hz
Noise Reduction: Squelch
Transmission Optimization: Pilot Tone
Signal-to-Noise Ratio: 104 dB
Audio Output Balanced: 3 x XLR
Audio Output Unbalanced: 6.3 mm Jack
Audio Output Unbalanced: Switchable Unbalanced Output Level (Line/Instrument)
Max Output Level: +10 dBu (Balanced), +7 dBV (Unbalanced, Line), +2.5 dBV (Unbalanced, Instrument)
Controls: 2 x Volume
Controls: Channel Down
Controls: Channel Up
Controls: Line/Instrument Level
Controls: Power On/Off
Display Elements: 5-LED VU Meter
Display Elements: Antenna A/B
Display Elements: LC Display
Operating Voltage: 12 V DC, 500 mA
Width: 410 mm
Height: 43 mm
Depth: 120 mm
Weight: 1.265 kg
Included Accessories: 2 x AA Batteries
Included Accessories: Power Supply
Additional Features: IR Frequency Synchronization
Additional Features: Pilot Tone

LD Systems U306 R2 - Dual Receiver - 655 - 679 MHz

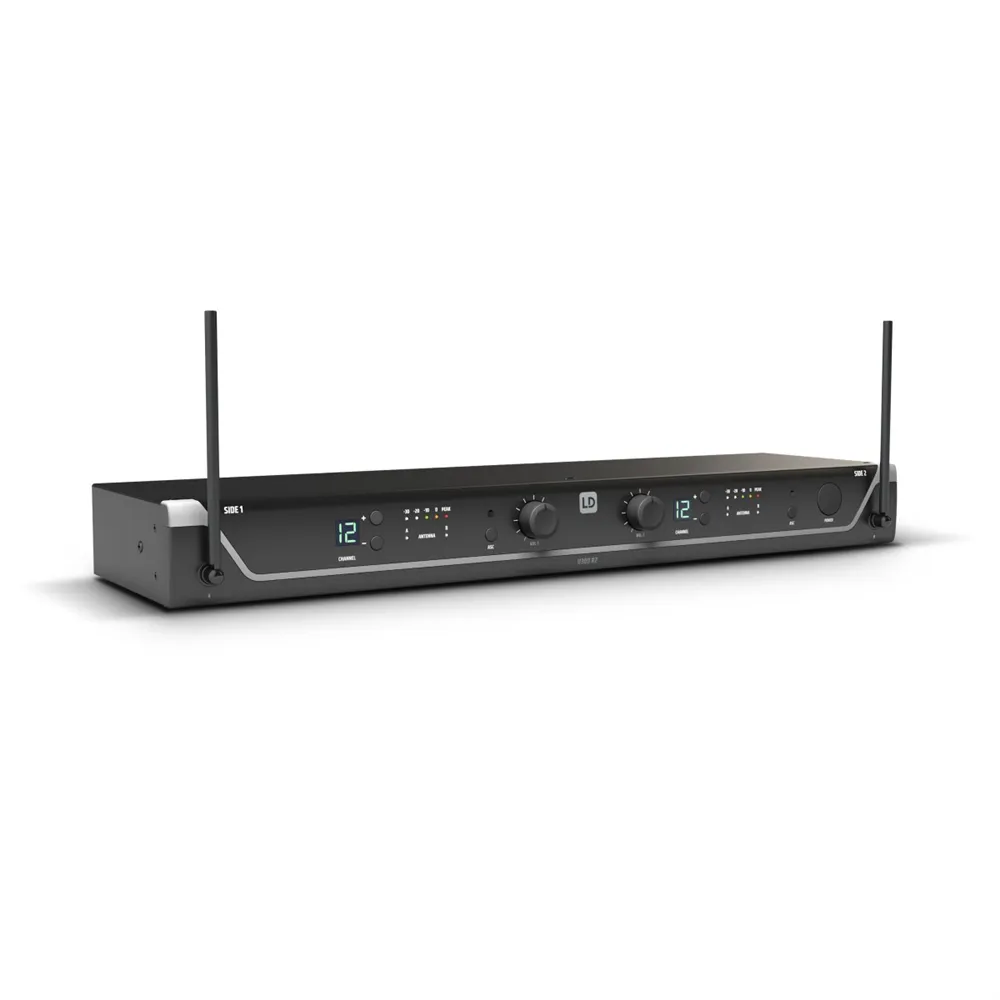

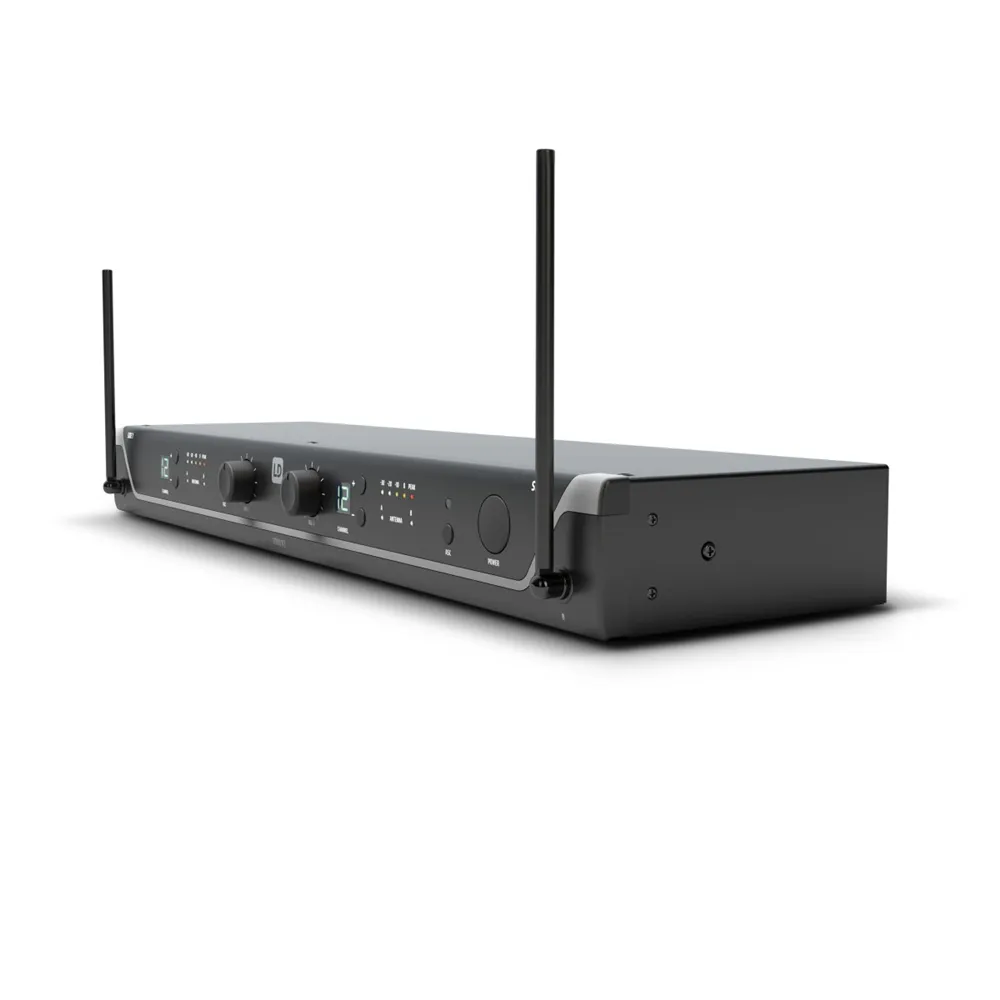

The LD Systems U306 R2 is a powerful dual receiver operating in the frequency range of 655 to 679 MHz. With its 12-channel diversity UHF technology, it delivers outstanding sound quality and a frequency response of 35 Hz to 16 kHz. The innovative one-touch synchronization via infrared allows for quick and easy connection with the handheld microphones or bodypacks from the U300 R2 series. Thanks to the integrated noise gate with pilot tone, uninterrupted operation is guaranteed.

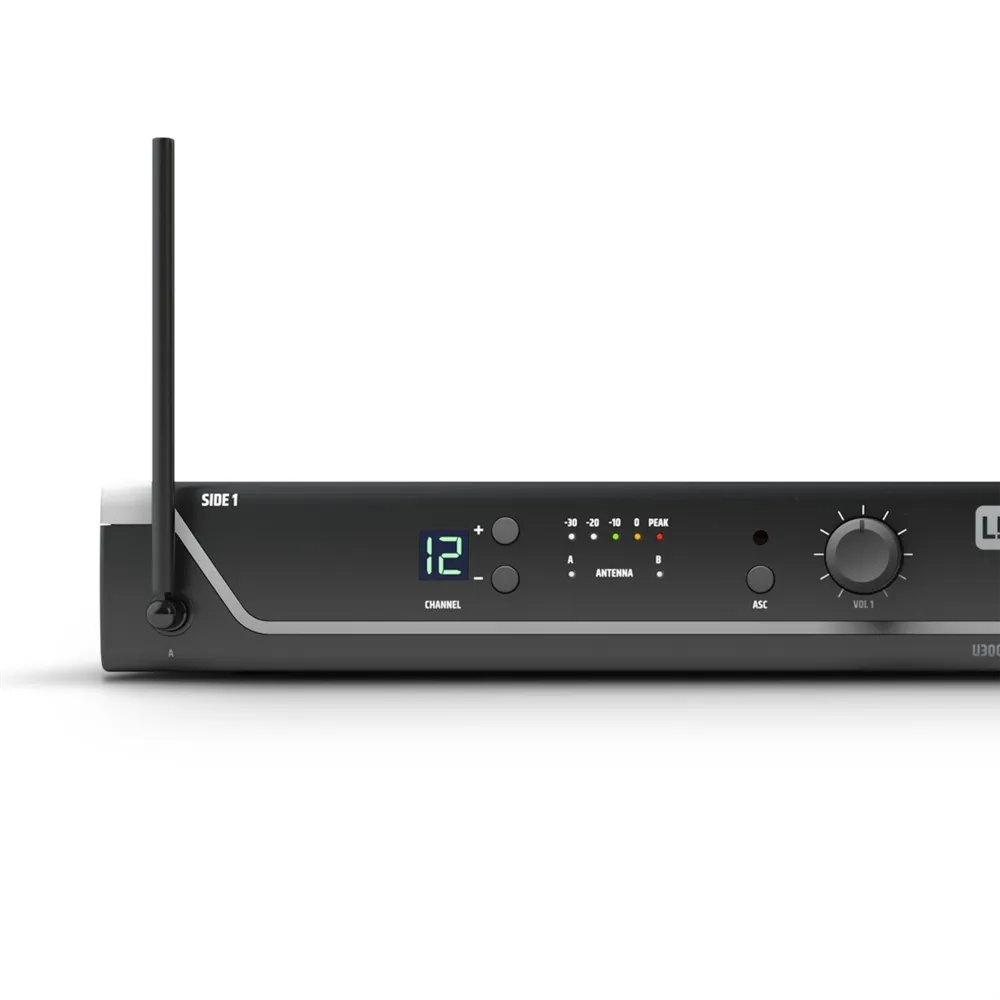

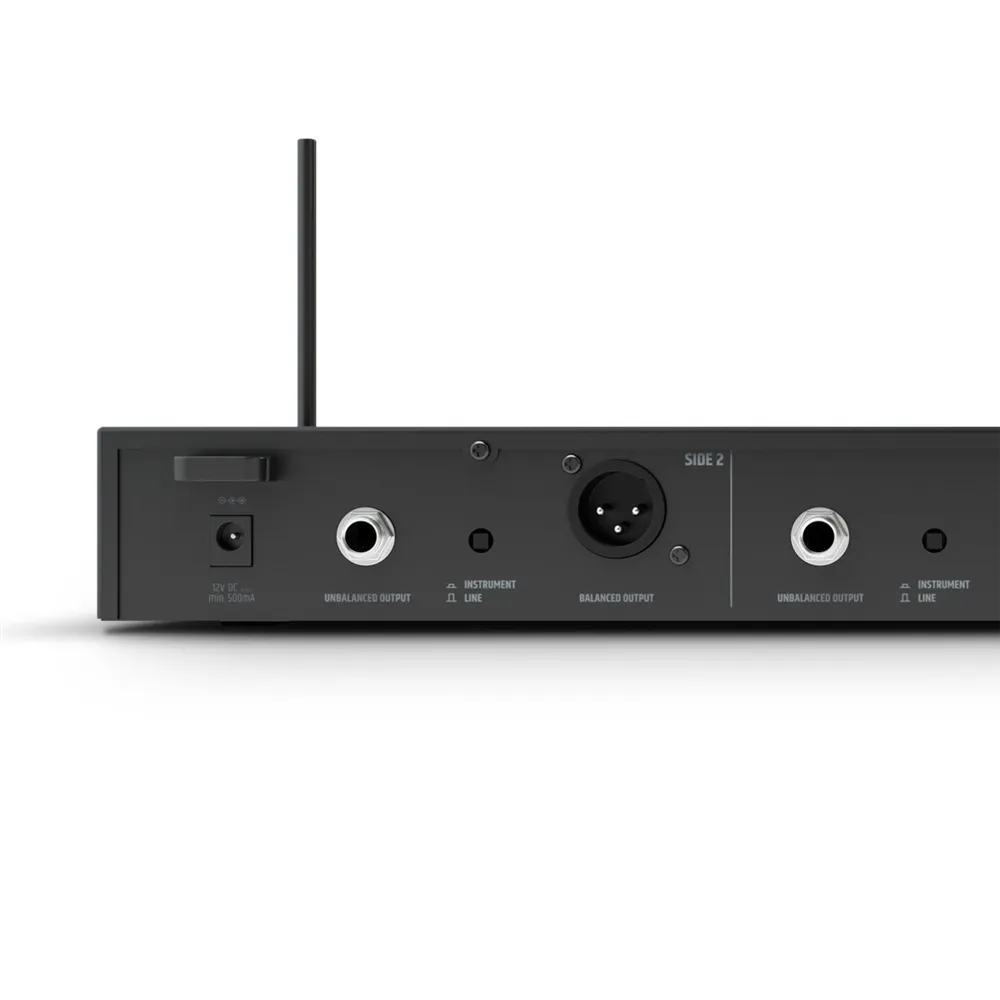

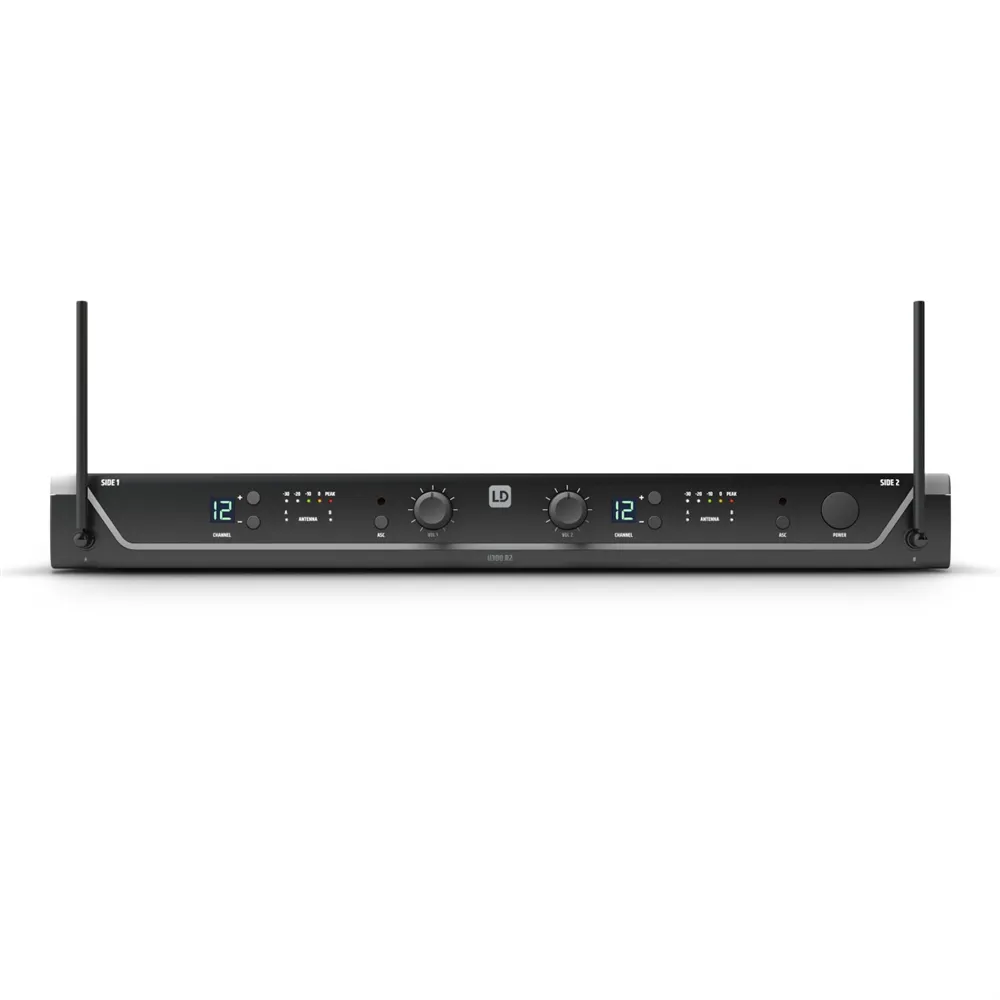

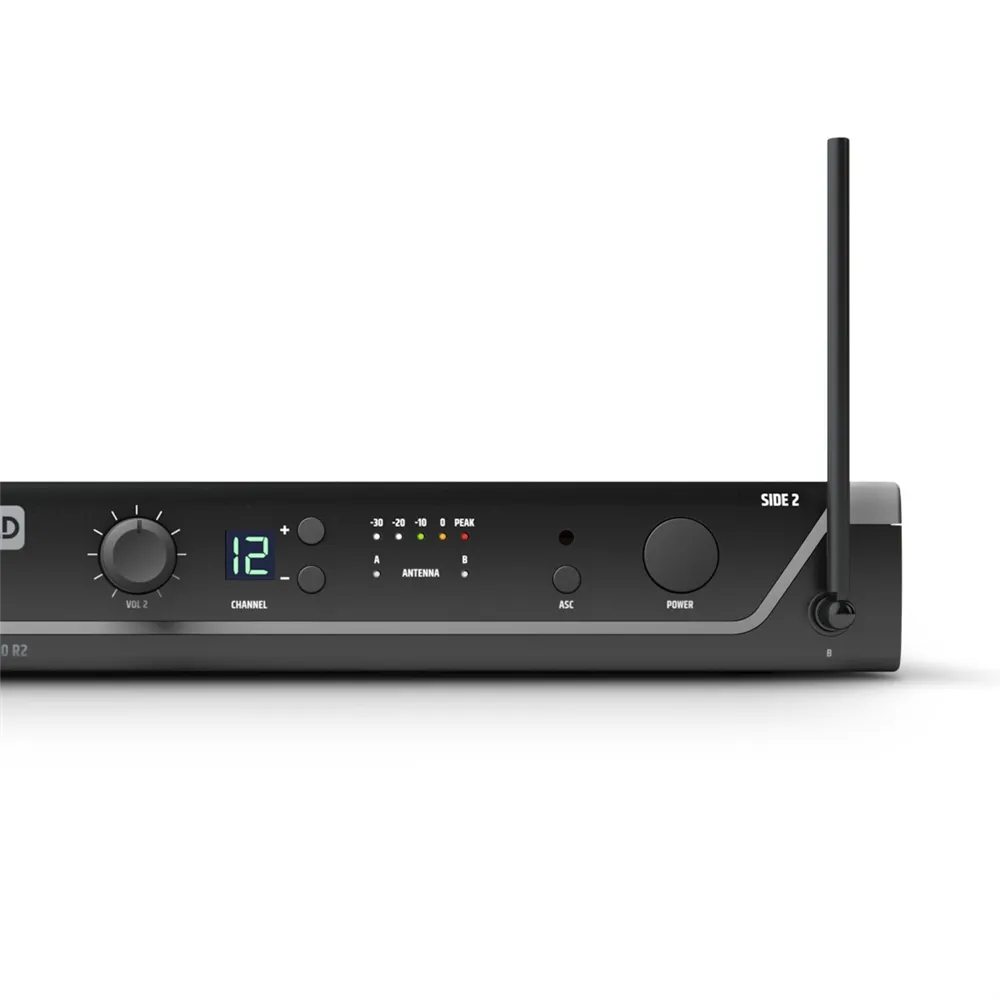

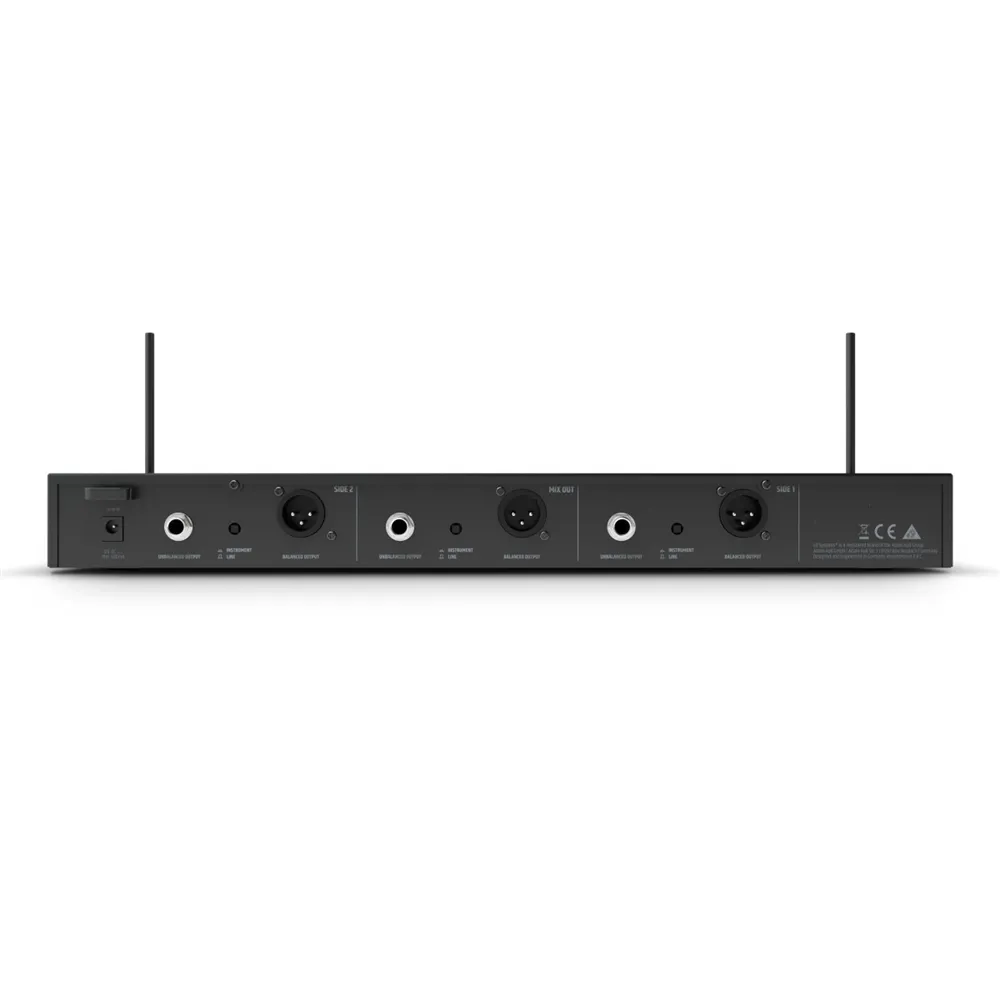

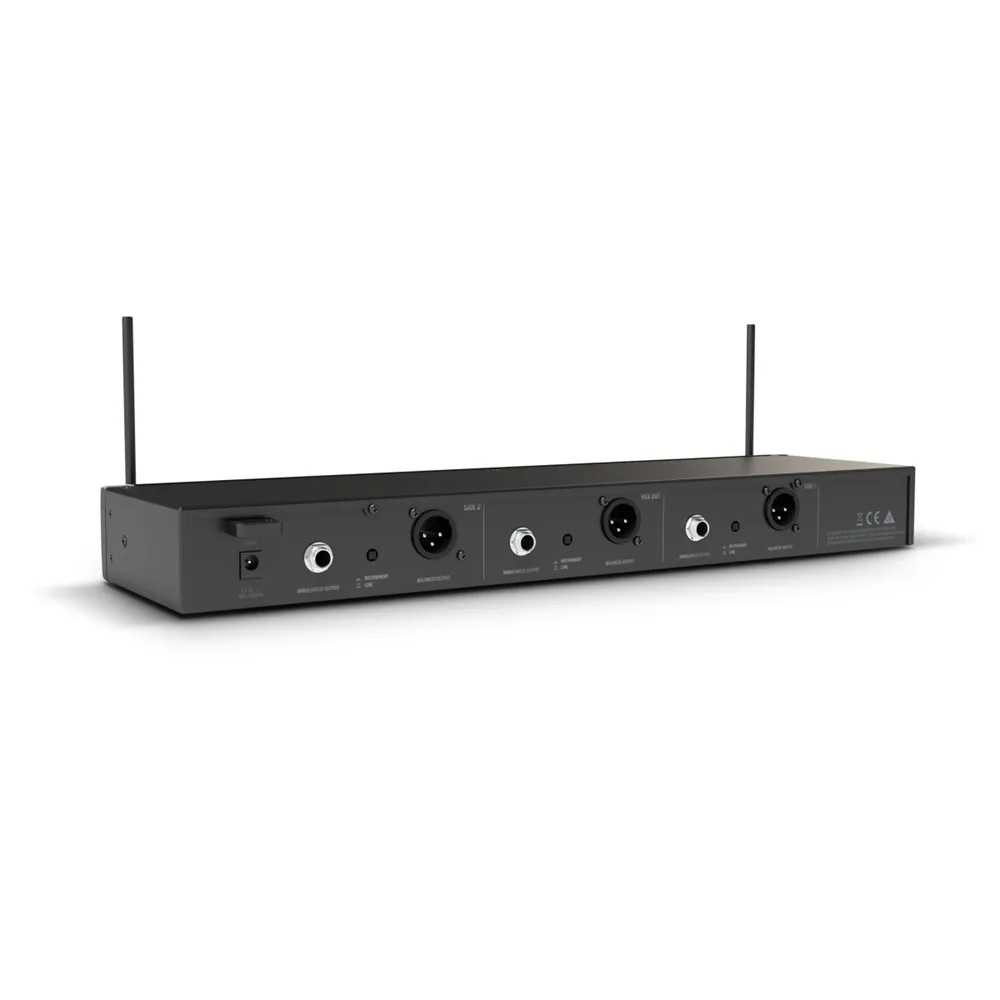

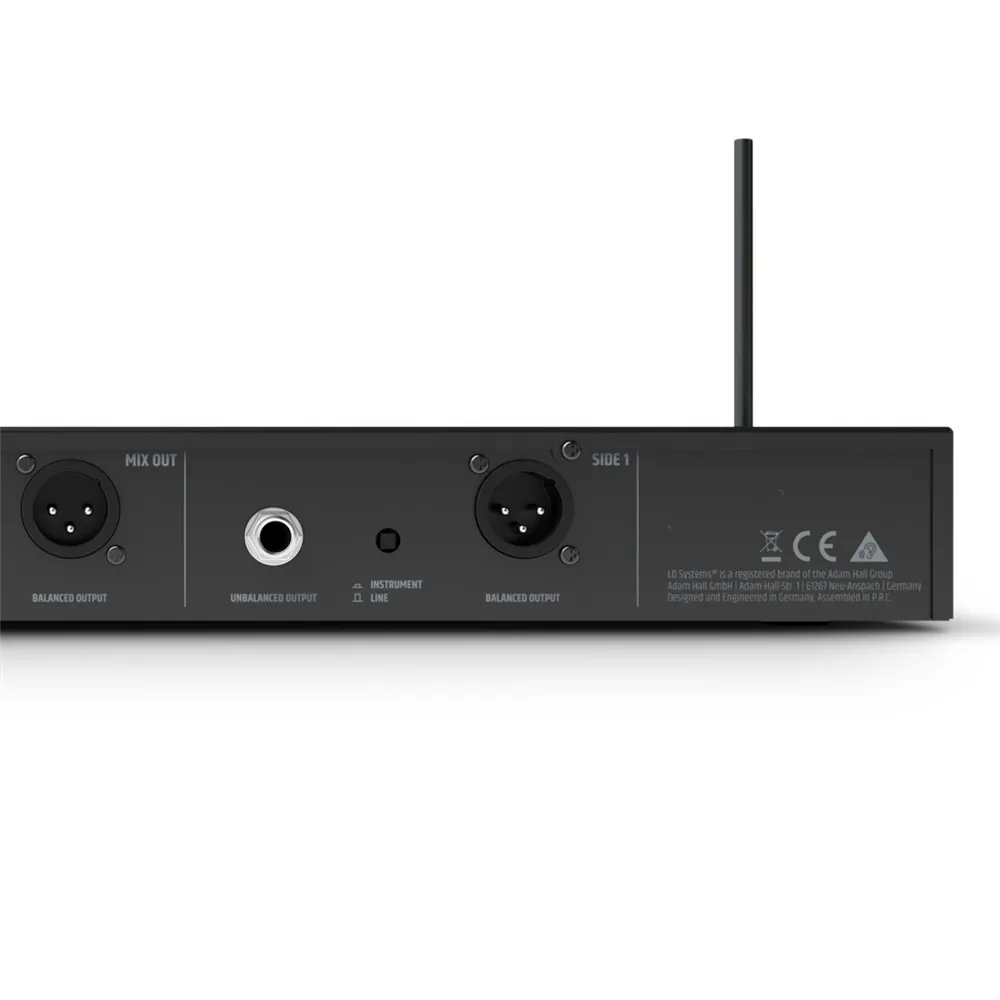

The elegant metal housing of the U306 R2 is not only robust but also functional. The bright LCD channel display and intuitive buttons for channel selection ensure easy operation. On the back, there are two balanced XLR outputs and two unbalanced 6.35 mm jack outputs, making it ideal for direct connection to guitar and bass amplifiers. Included in the package are a power adapter, a balanced XLR cable, and a rackmount kit, making the U306 R2 a perfect choice for professional applications.
