LD Systems U505 R - Empfänger

Brand:

Features

  • Product Type: Wireless Microphone System Accessory
  • Type: Receiver
  • Modulation Type: FM
  • Frequency Range: 584 - 608 MHz
  • Channels: 96 (8 Groups of 12 Channels)
  • Groups: 8
  • Antenna Inputs: 2
  • Antenna Connection: BNC
  • Frequency Response: 30 - 16,000 Hz
  • Noise Suppression: Squelch
  • Signal-to-Noise Ratio: > 100 dB

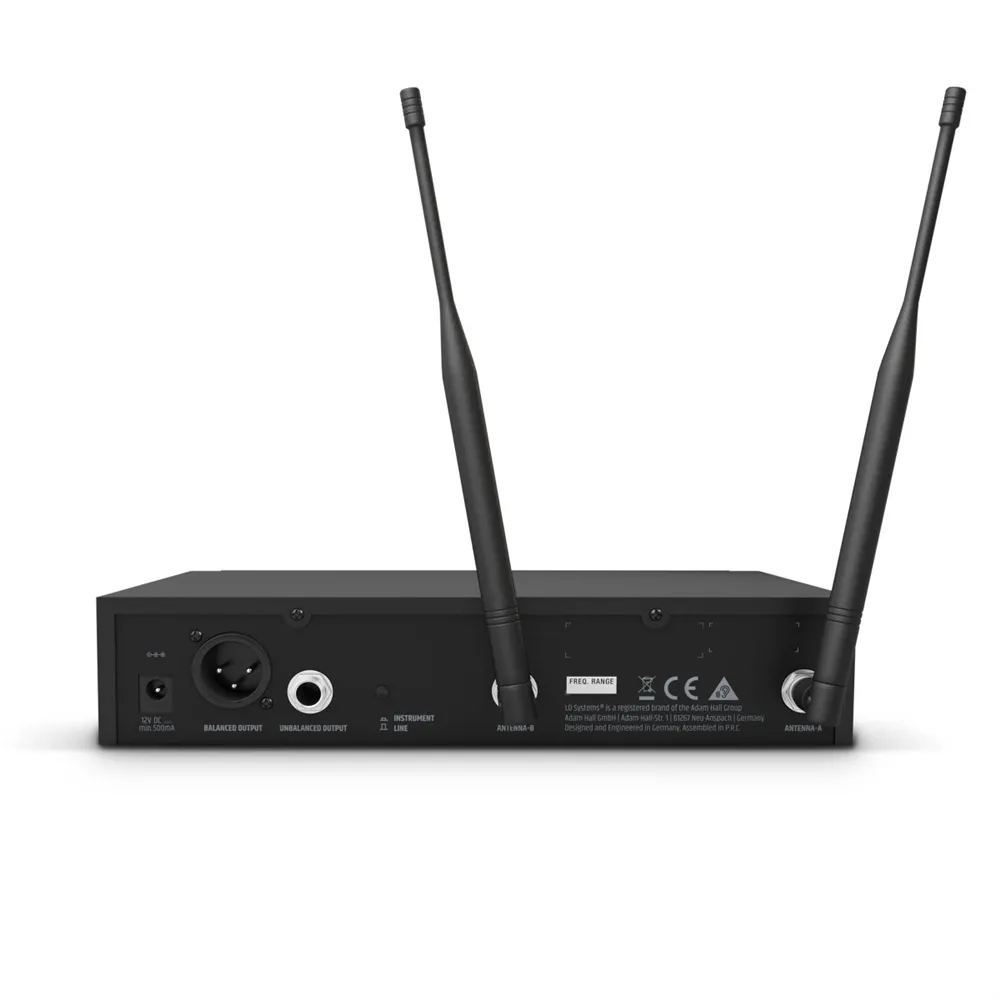

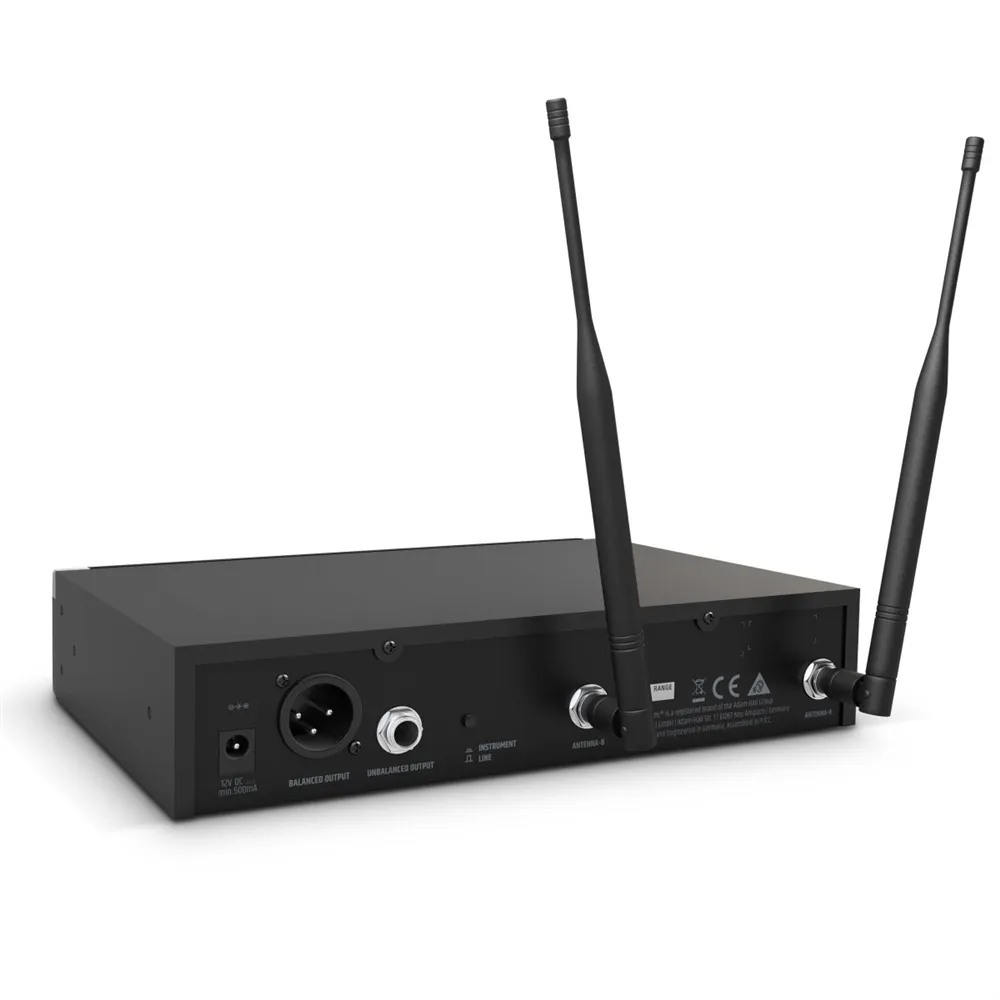

  • Audio Output (Balanced): XLR
  • Audio Output (Unbalanced): 6.3 mm Jack
  • Max Output Level: +10 dBu
  • Controls: Digital Encoder
  • Controls: Power On/Off
  • Controls: Volume
  • Display Elements: OLED Display
  • Power Supply: 12 - 18 V DC
  • Operating Voltage: 12 V DC, 500 mA
  • Width: 212 mm
  • Height: 44 mm
  • Depth: 159 mm
  • Weight: 0.85 kg
  • Included Accessories: 2 x Antenna
  • Included Accessories: Audio Cable
  • Included Accessories: Power Adapter
  • Additional Features: IR Frequency Synchronization
  • Additional Features: Channel Search Function
  • Additional Features: Pilot Tone
Read moreShow less
253.00 (tax incl.)
Reference:
AHLDU505R
Love0
Add to compare0
Description

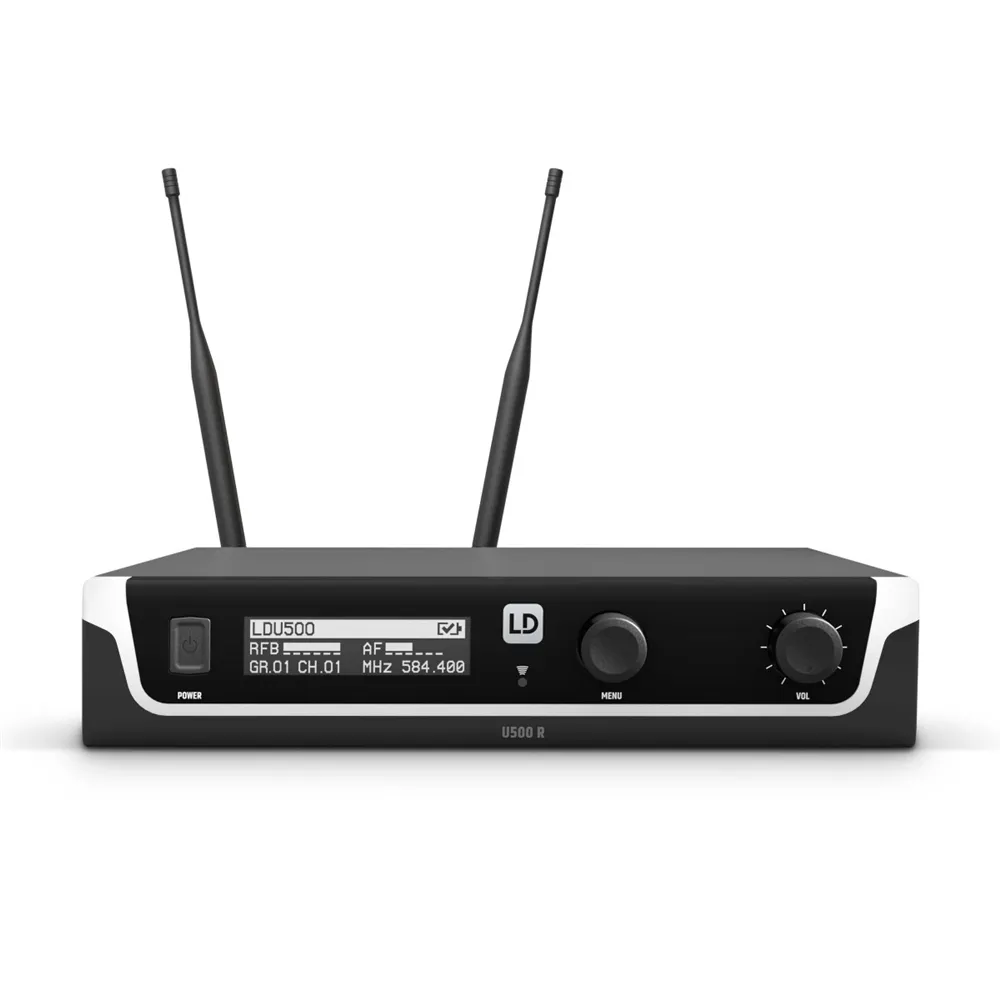

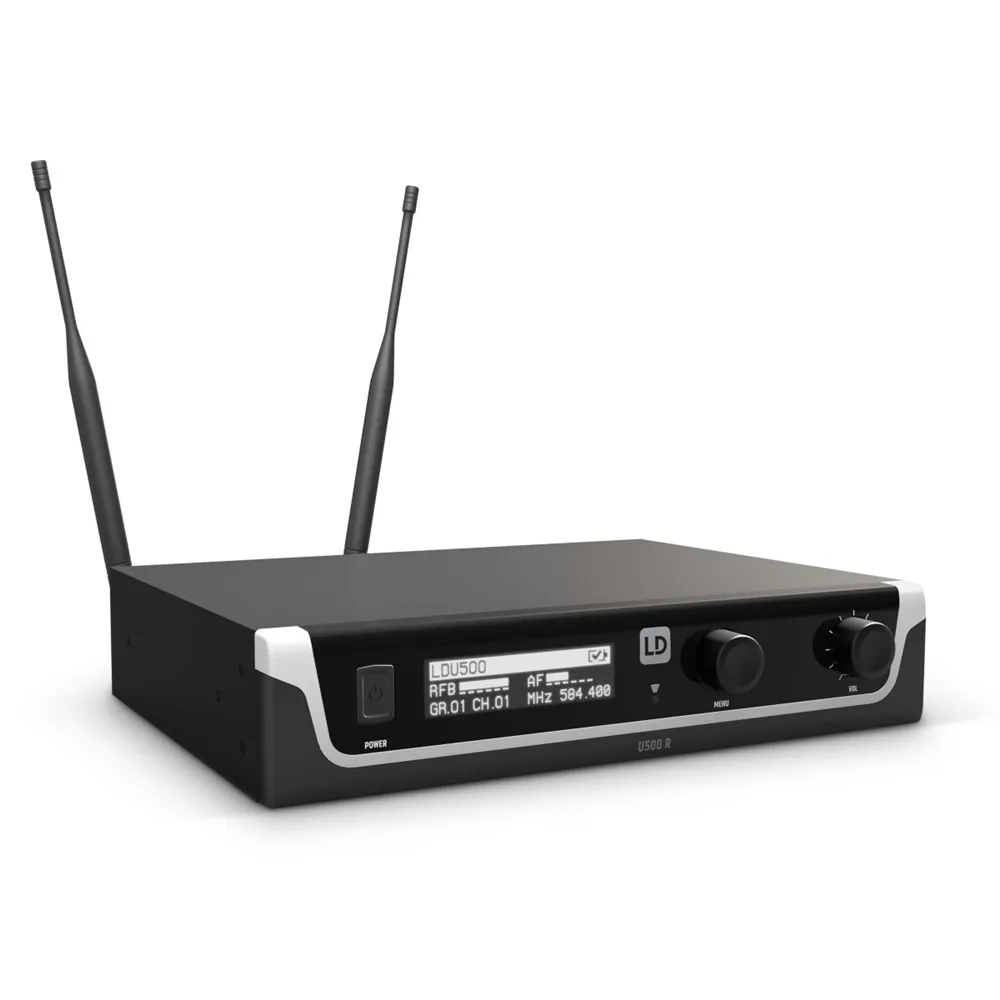

LD Systems U505 R - Receiver

The LD Systems U505 R - Receiver is the perfect solution for professional users seeking a reliable and high-quality wireless system. Developed based on user feedback, the U500® series offers a combination of technical sophistication and affordability. Whether for vocals, instruments, or as a wireless conference system, the U505 R meets all expectations for sound quality and user-friendliness.

With automatic channel scanning, convenient infrared synchronization, and an intuitive menu on a clearly readable OLED display, the receiver is ready for use in no time. The selectable transmission power of up to 30 mW and the noise suppression with pilot tone ensure outstanding audio quality and a range of over 100 meters in open field.

The interchangeable microphone capsules allow for individual adaptation to different voices, while the outputs can be switched to instrument level. The frequency response of 30 to 16,000 Hz ensures that even the lowest tones are reproduced perfectly. With up to 96 channels and the ability to operate multiple systems simultaneously, the U505 R is the ideal choice for any event.

Read moreShow less
