Features
- Product Type: Installation Speaker
- Type: Wall Speaker
- Woofer Size: 6.5" (165 mm)
- Woofer Magnet: Ferrite
- Woofer Brand: Custom Made
- HF Driver Size: 1" (25 mm)
- HF Driver Magnet: Ferrite
- HF Driver Brand: Custom Made
- Dispersion Angle (H x V): 60 x 60 °
- Power Handling (RMS): 80 W
- Frequency Response: 55 - 20,000 Hz
- SPL (1 W/1 m): 89 dB
- Max. SPL: 108 dB
- Impedance: 16 Ohm
- Protection Circuits: HF Driver
- Speaker Inputs: 1
- Speaker Input Connections: Terminal Connection
- Speakers per Amplifier Channel (DSP44/45K): 8
- Cabinet Material: 12 mm MDF
- Cabinet Finish: Textured Paint
- Cabinet Color: White
- Cabinet Design: Bass Reflex
- Width: 200 mm
- Height: 320 mm
- Depth: 200 mm
- Weight: 8.2 kg

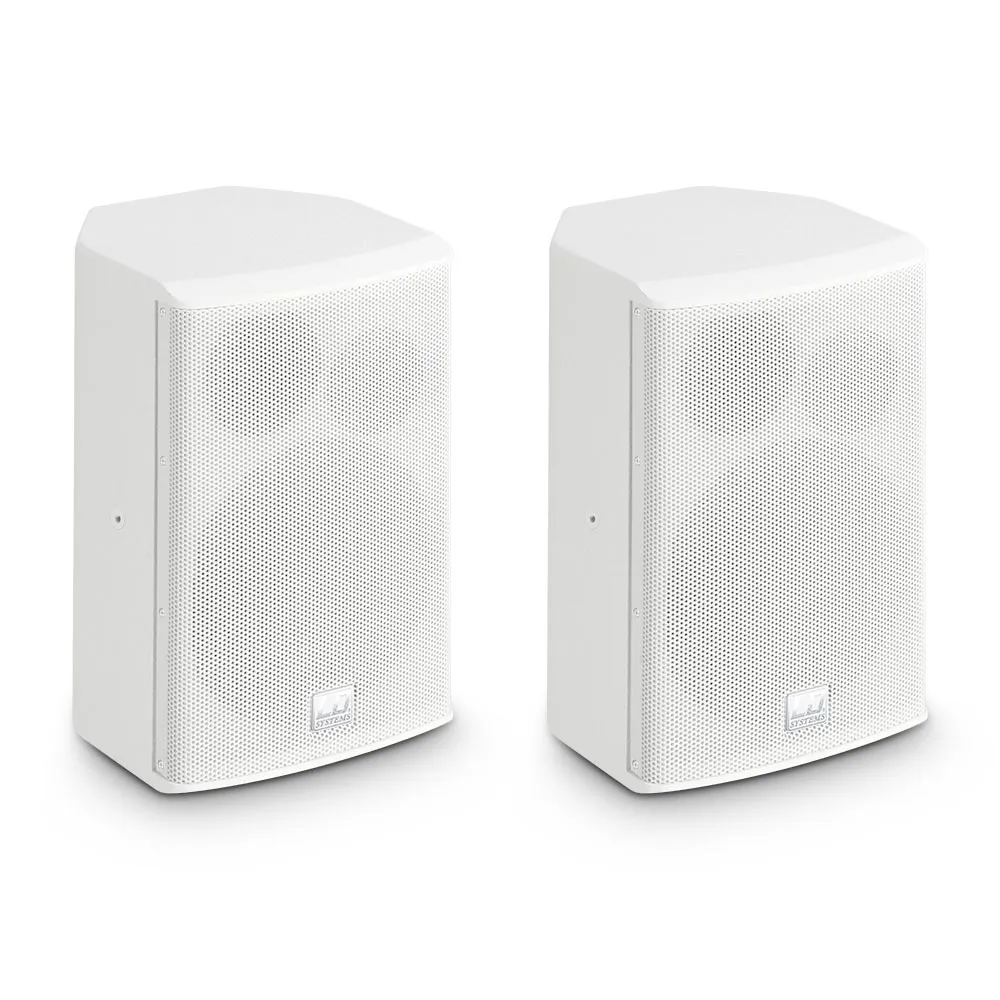

LD Systems SAT 62 G2 W - 6.5" Passive Installation Speaker White (Pair)
The LD Systems SAT 62 G2 W is the ideal passive installation speaker for a wide range of applications. With its compact design, it seamlessly integrates into any environment, whether in hospitality, retail, or residential settings. The speaker features a powerful bass reflex design, equipped with a 6.5" custom woofer and a 1" silk dome tweeter with a waveguide. This allows for impressive sound reproduction across a frequency range of 55 Hz to 20 kHz, achieving a sound pressure level of up to 108 dB.

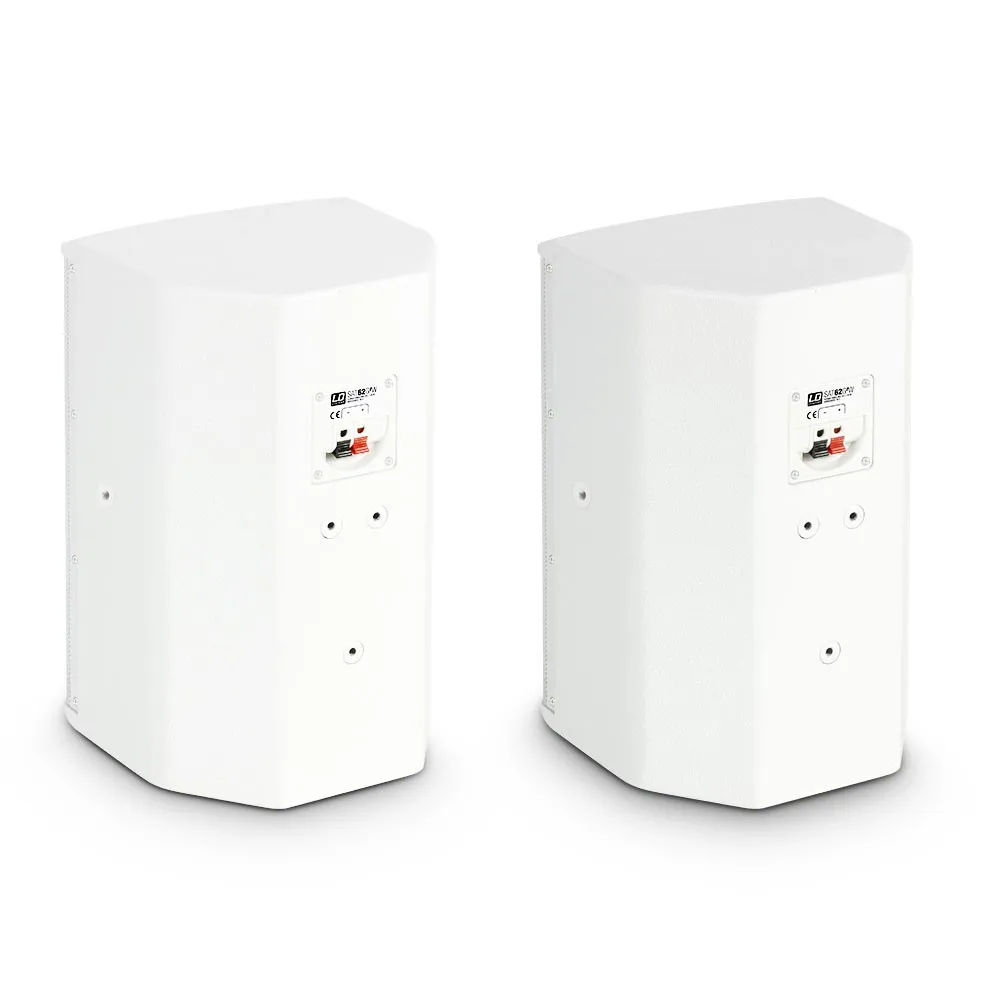

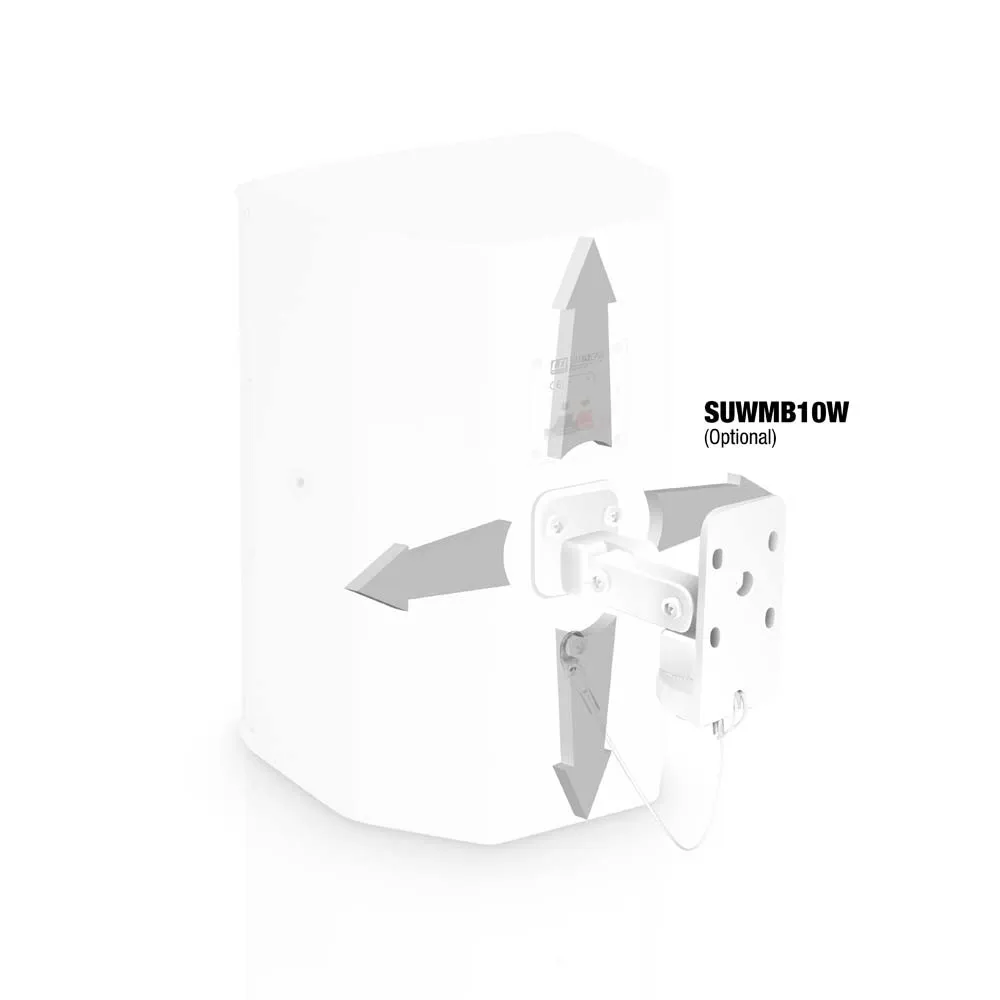

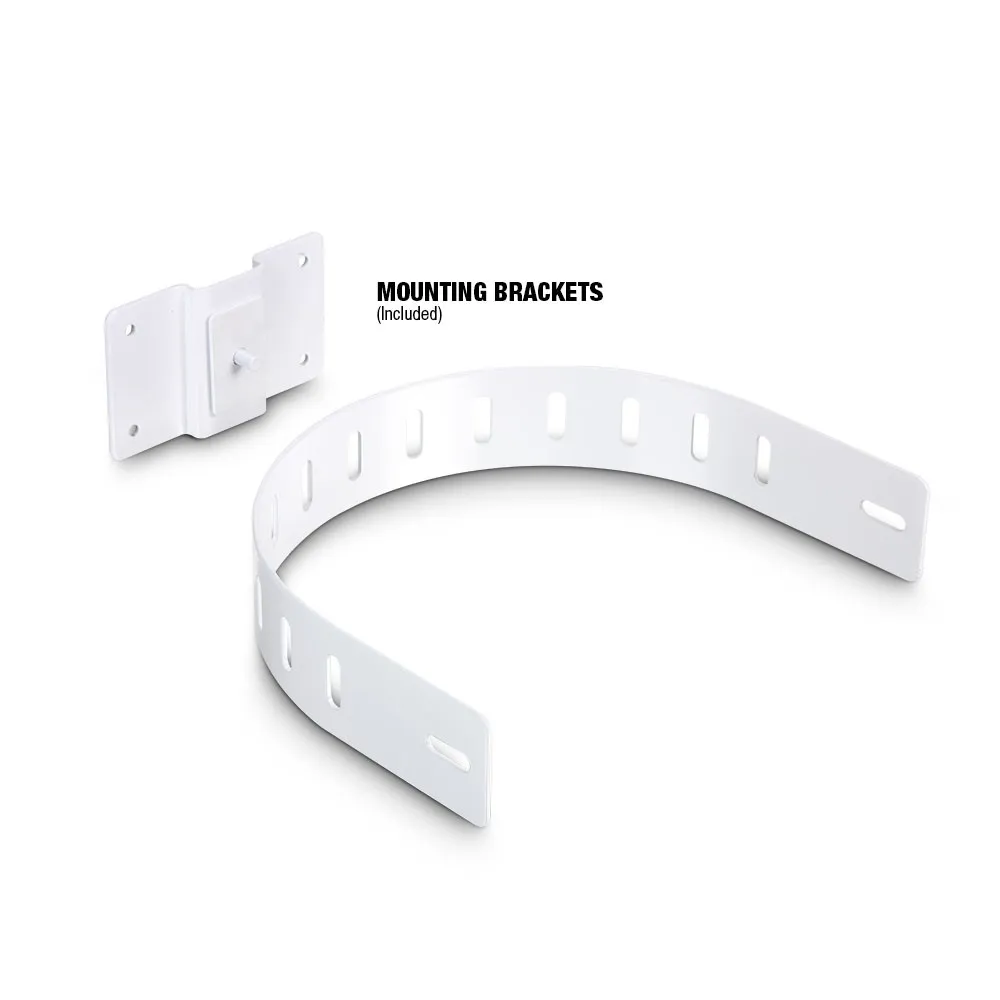

With an RMS power handling of 80 W and an impedance of 16 ohms, the SAT 62 G2 W is suitable for full-range operation as well as functioning as a satellite speaker in combination with a subwoofer from the LD installation series. The robust 12 mm MDF enclosure is elegantly finished in white and offers numerous mounting options thanks to the included mounting bracket and M6 flying points. The speaker can be easily connected via spring clips, ensuring reliable performance in any installation.
