Features
- Product Type: Installation Speaker
- Type: Wall Speaker
- Woofer Size: 6.5" (165 mm)
- Woofer Magnet: Ferrite
- Woofer Brand: Custom Made
- HF Driver Size: 1" (25 mm)
- HF Driver Magnet: Ferrite
- HF Driver Brand: Custom Made
- Dispersion Angle (H x V): 60 x 60 °
- Power Handling (RMS): 80 W
- Frequency Response: 55 - 20,000 Hz
- SPL (1 W/1 m): 89 dB
- Max. SPL: 108 dB
- Impedance: 16 Ohm
- Protection Circuits: HF Driver
- Speaker Inputs: 1
- Speaker Input Connections: Terminal Connection
- Speakers per Amplifier Channel (DSP44/45K): 8
- Enclosure Material: 12 mm MDF
- Enclosure Finish: Textured Paint
- Enclosure Color: Black
- Enclosure Design: Bass Reflex
- Width: 200 mm
- Height: 320 mm
- Depth: 200 mm
- Weight: 8.2 kg

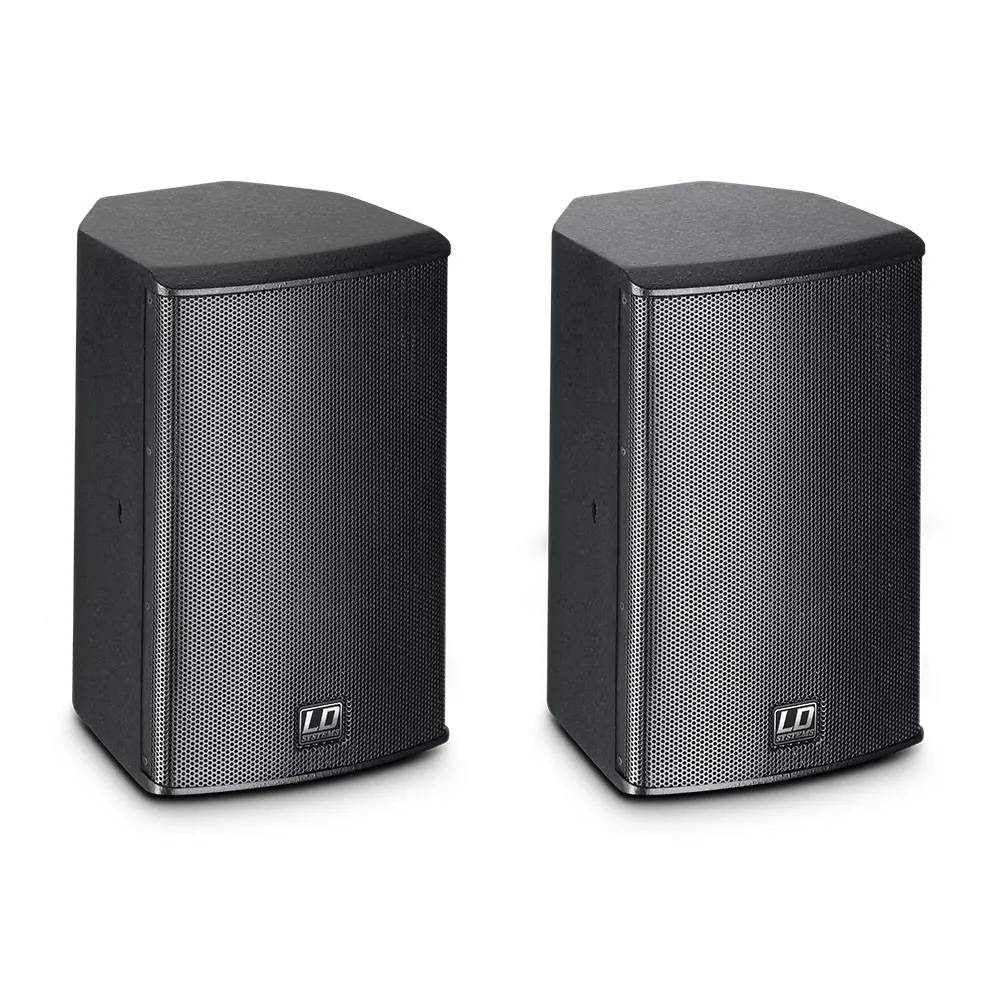

LD Systems SAT 62 G2 - 6.5" Passive Installation Speaker Black (Pair)
The LD Systems SAT 62 G2 is the ideal passive installation speaker for a wide range of applications, seamlessly integrating into any environment—be it in hospitality, retail, or your own home. With a compact and elegant design, this 2-way speaker delivers impressive sound quality.

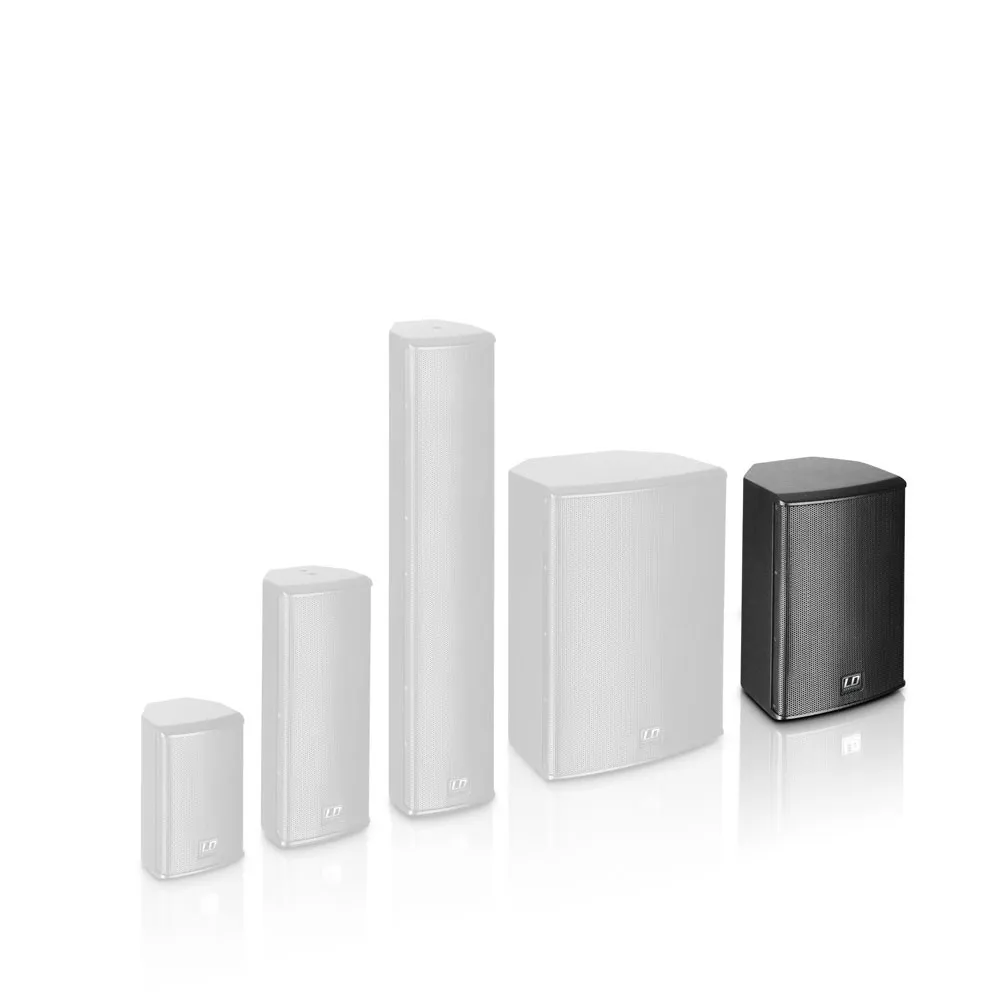

The thoughtfully designed bass reflex system features a 6.5" custom woofer and a 1" silk dome tweeter with a waveguide, ensuring powerful and clear sound reproduction across a frequency range of 55 Hz to 20 kHz. With a maximum sound pressure level of up to 108 dB, the SAT 62 G2 is suitable for full-range operation as well as functioning as a satellite speaker in combination with a subwoofer from the LD installation series. With a power handling capacity of 80 W (RMS) and an impedance of 16 ohms, it allows for the parallel operation of up to eight speakers on a single amplifier.

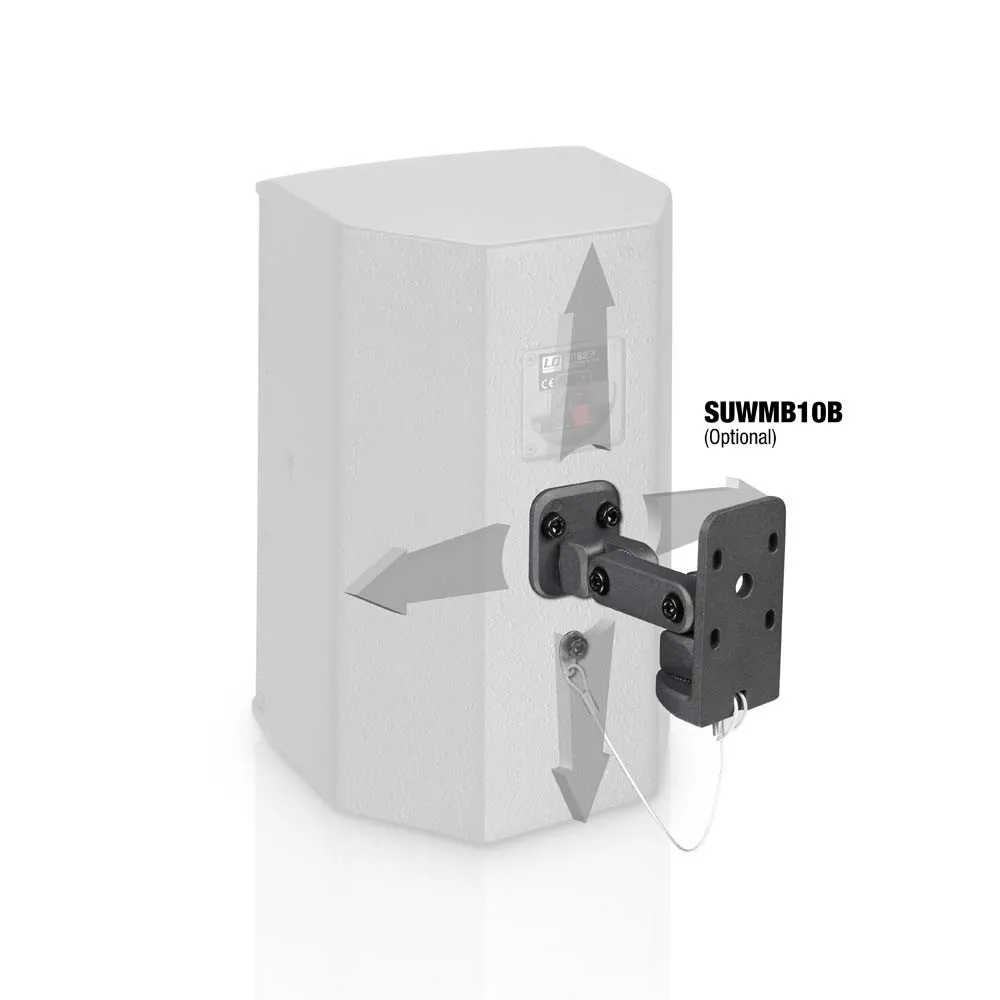

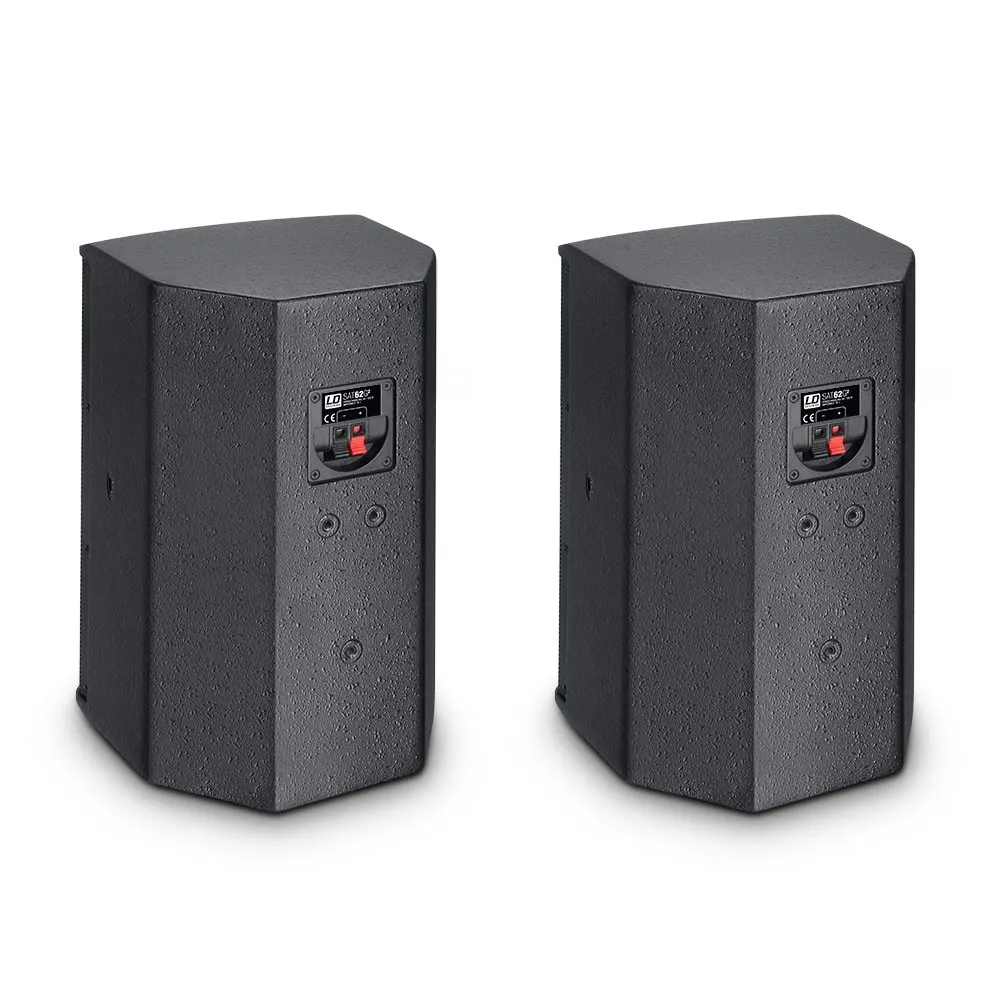

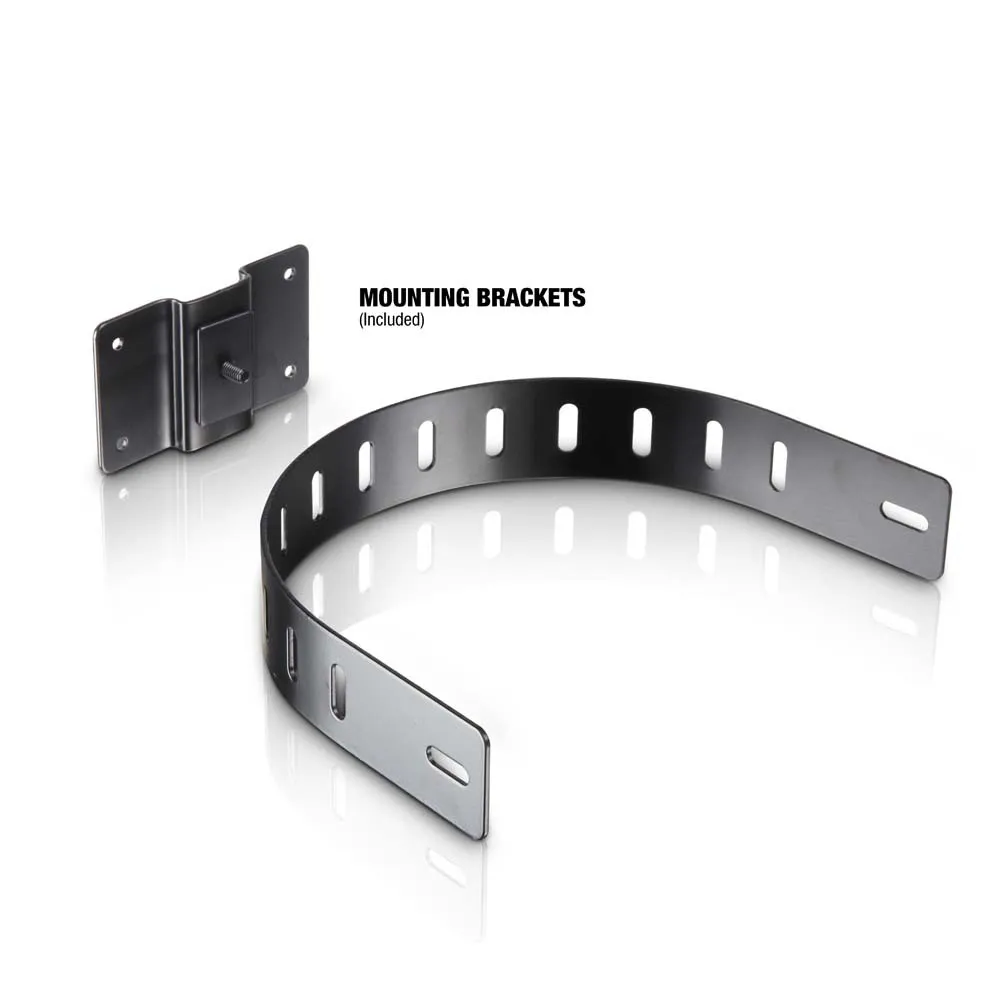

The robust enclosure, made from 12 mm thick MDF, is available in elegant black and offers numerous mounting options thanks to the included mounting bracket and M6 flying points. Connection is made via practical spring clips, simplifying the installation process. Experience top-notch sound with the LD Systems SAT 62 G2 in any setting!
