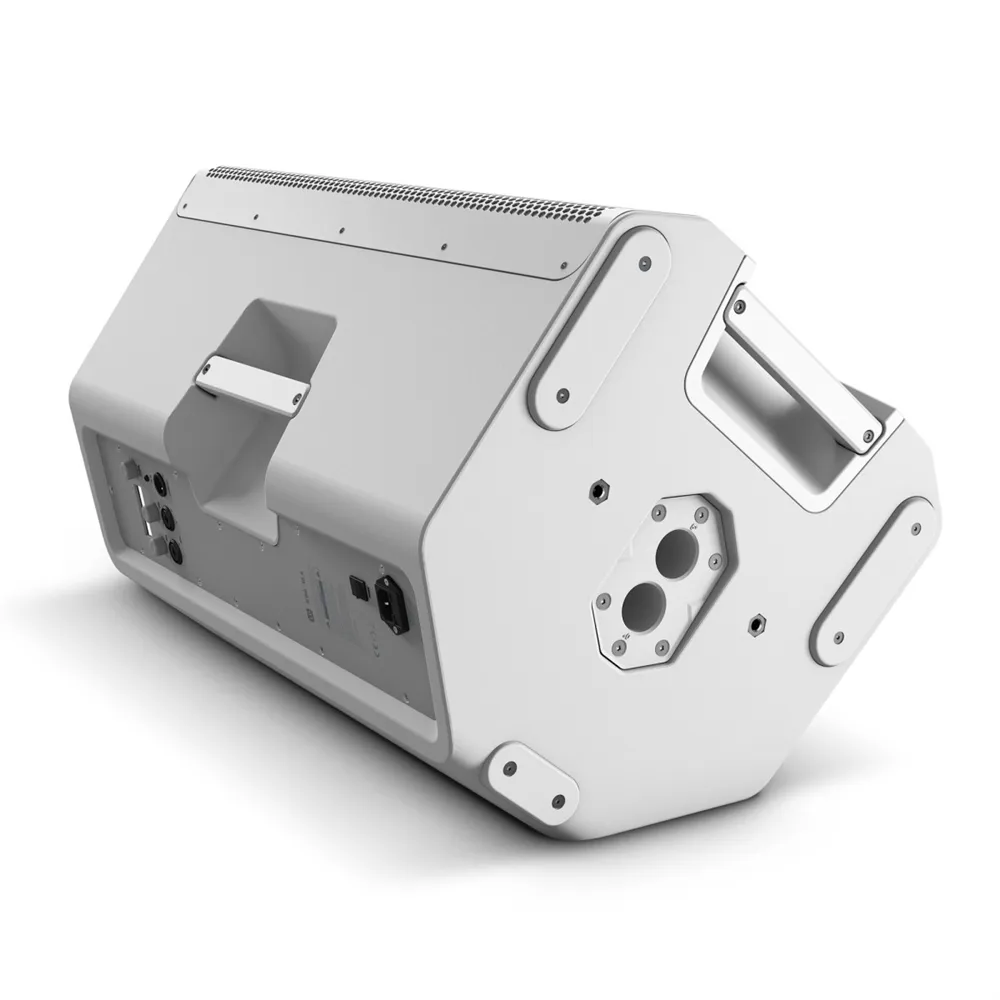

LD Systems ICOA 15 A W - 15" Aktiver koaxialer PA-Lautsprecher, weiß

LD Systems ICOA 15 A W - 15" Active Coaxial PA Speaker, White

Brand:

LD Systems ICOA 15 A BT W - 15" Active Coaxial PA Speaker with Bluetooth, White

LD Systems ICOA 15 PC - Padded Protective Cover for ICOA 15

Features

True all-rounder for full-range, satellite, and monitor applications
128 dB max SPL and 1200 W peak power

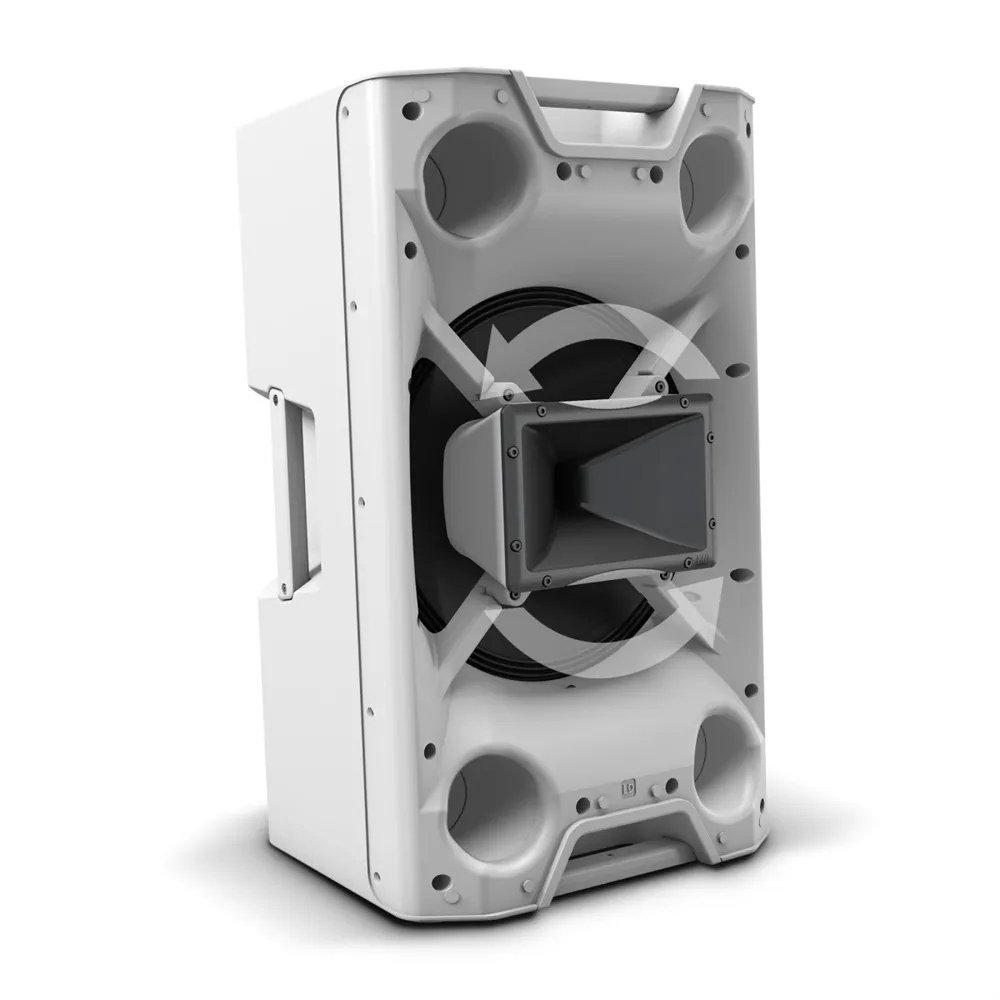

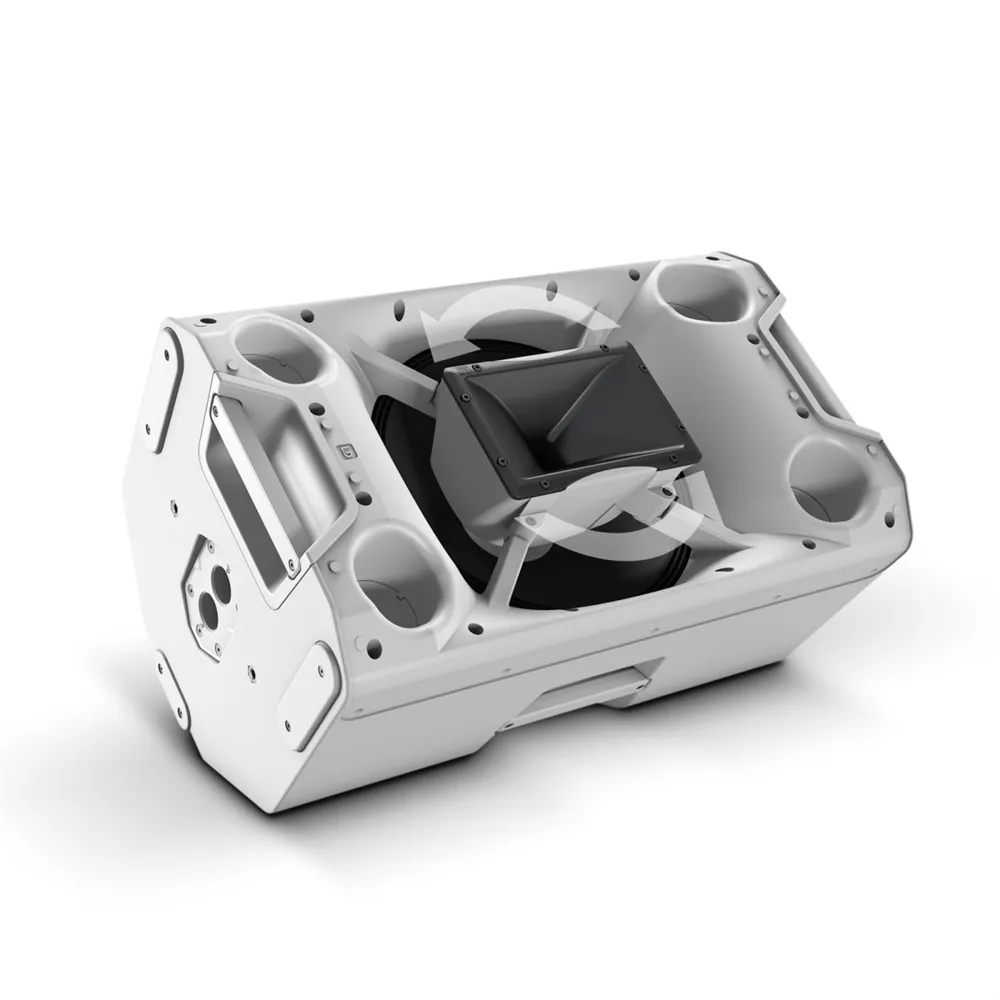

Vertical and horizontal application through coaxial design with rotatable, BEM-optimized CD horn (patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ, and delay function

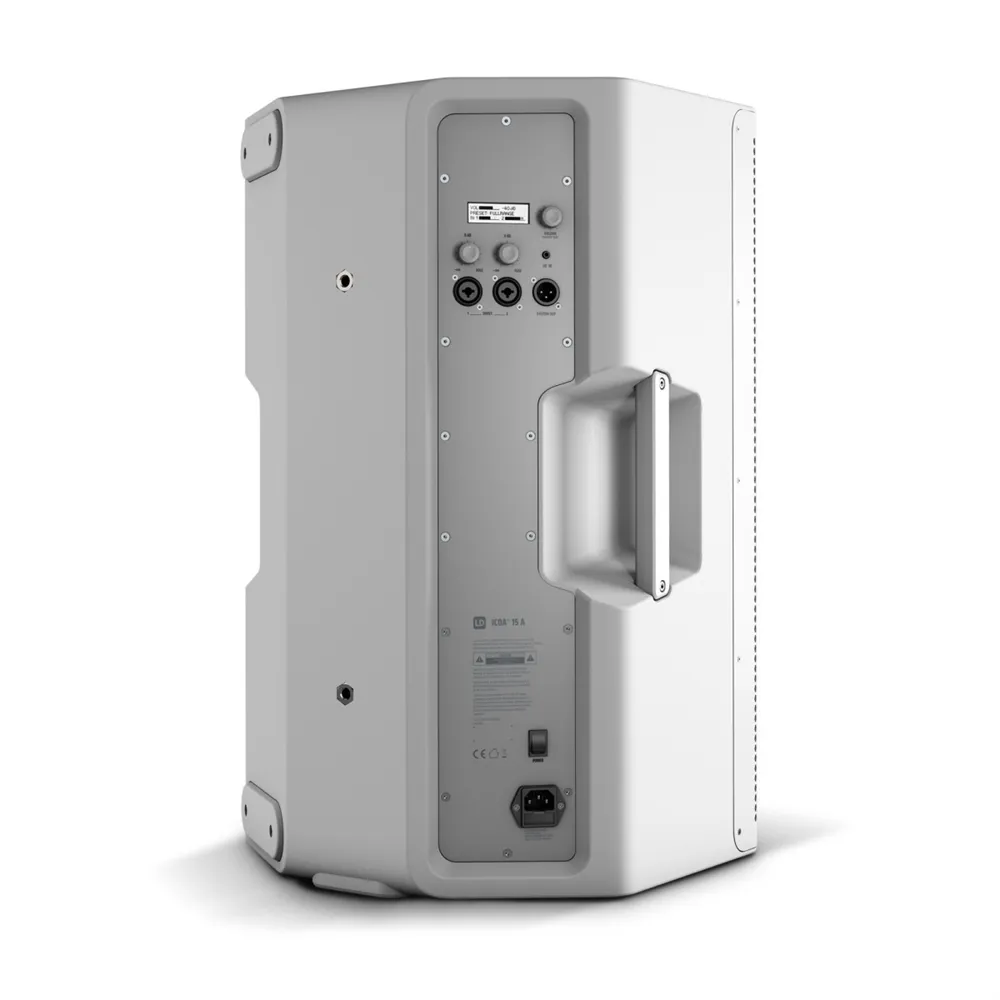

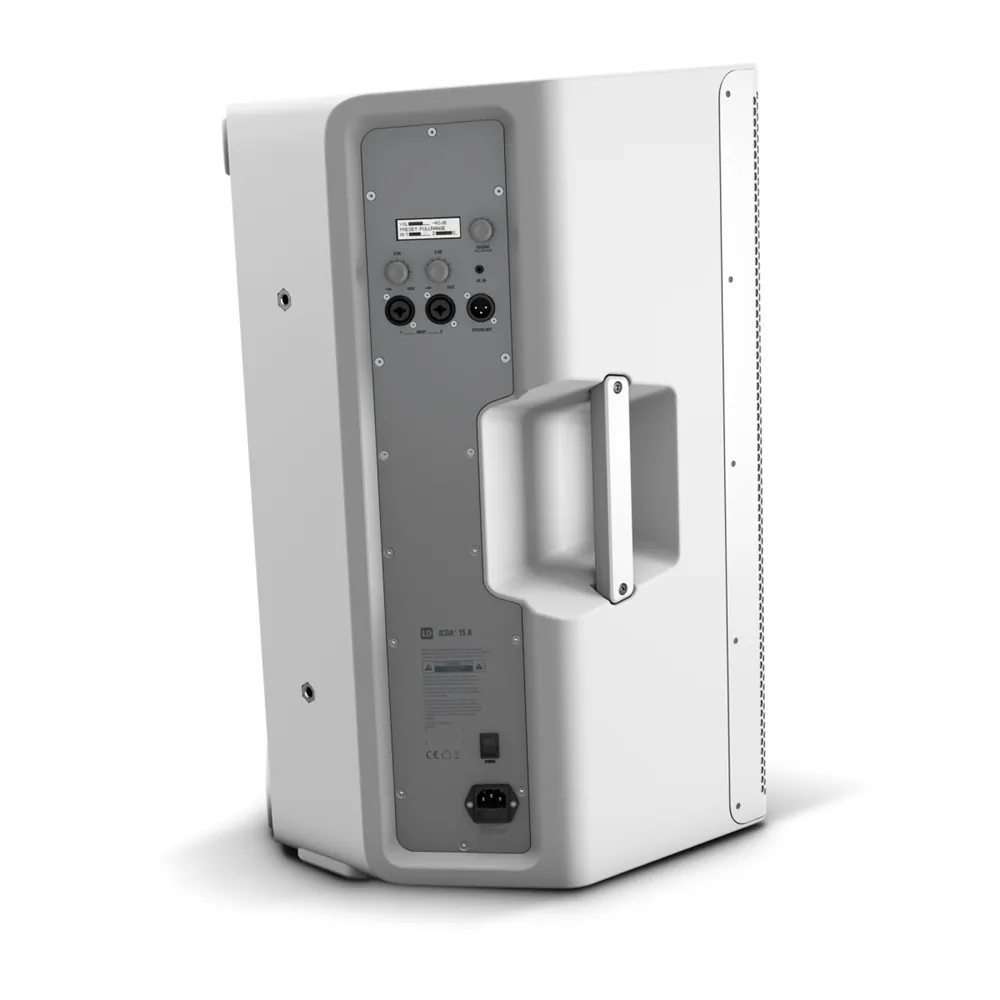

2 line/mic input channels with individual gain controls plus mono mix output
Bluetooth® streaming available in the BT model

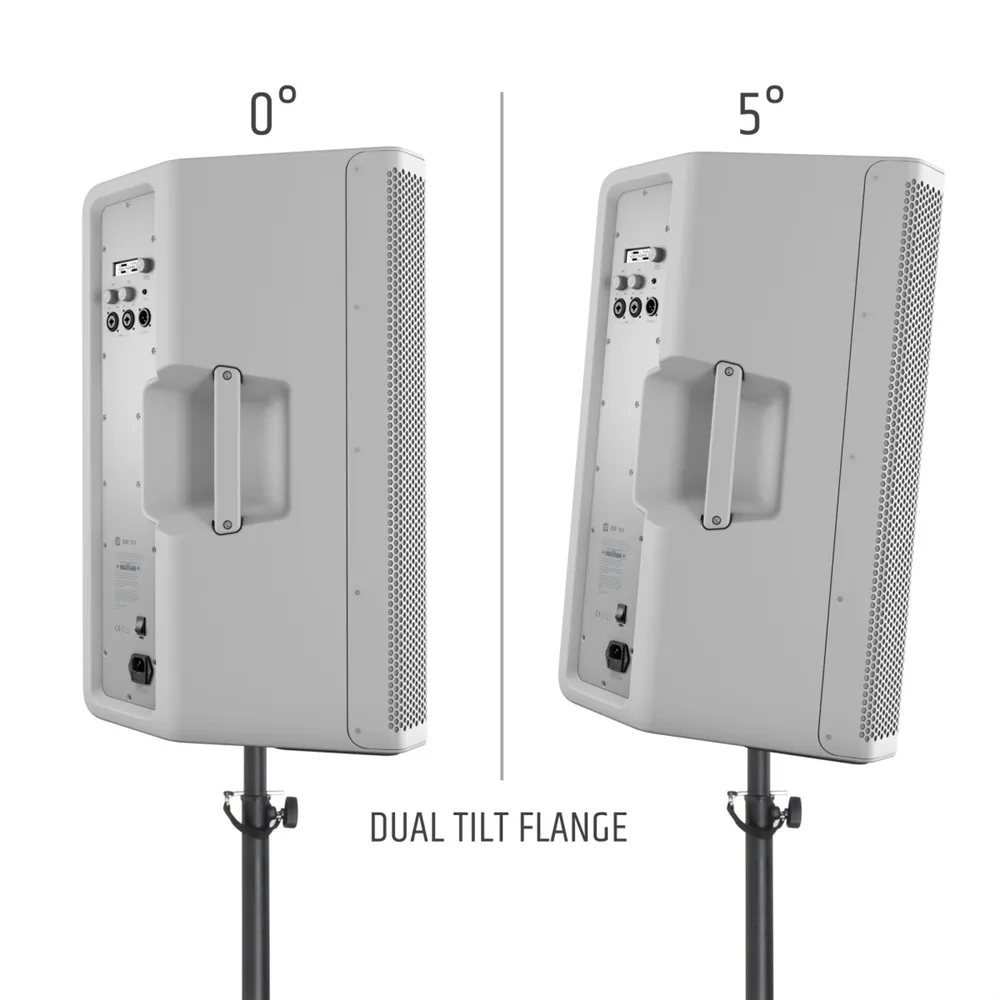

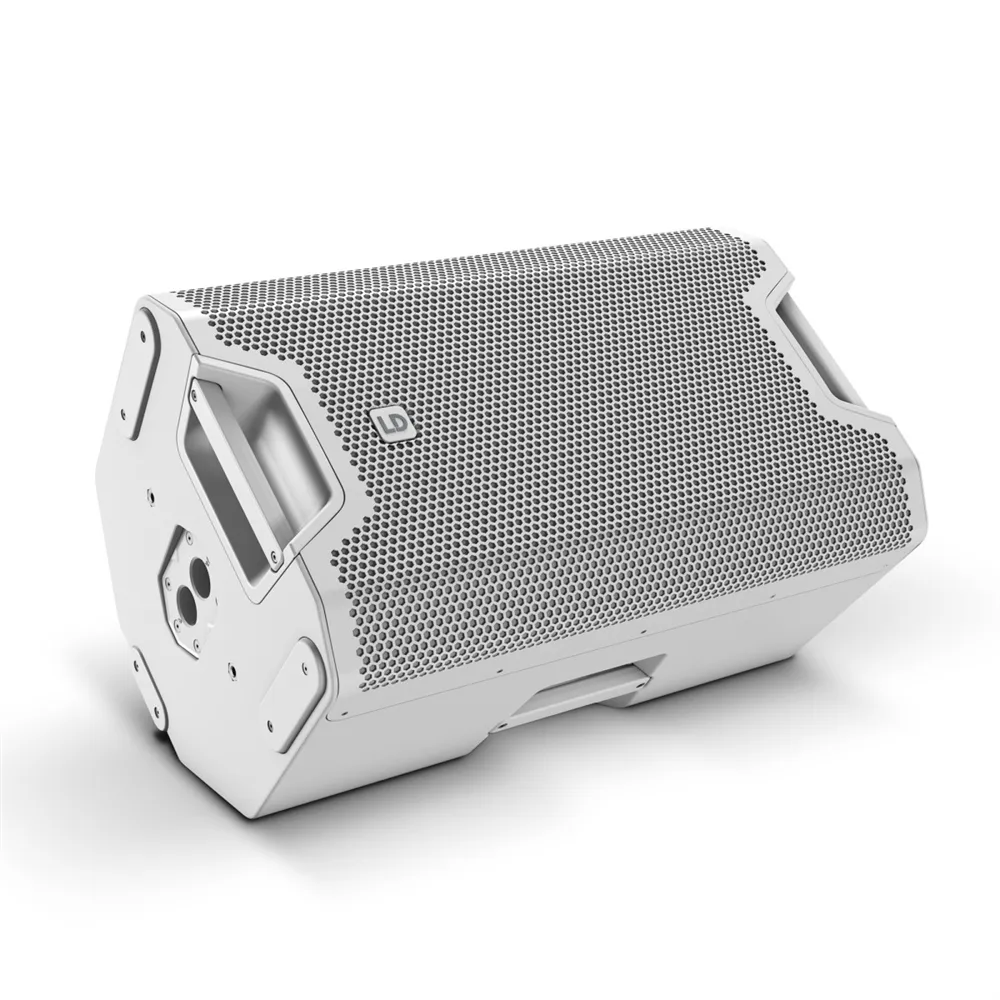

36 mm dual-tilt tripod mount with 0° and 5° tilt angles, 55° monitor angle with stable base
6 x M10 flying points

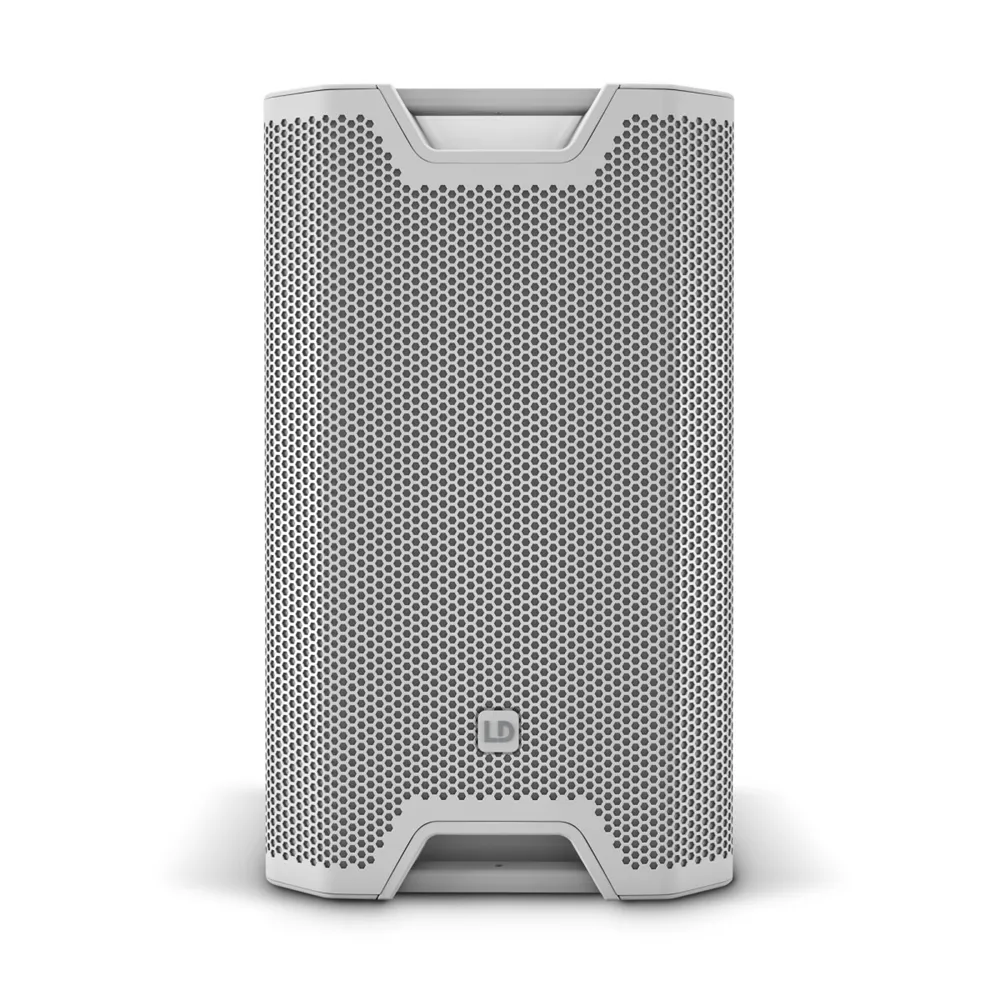

Impact-resistant front grille for optimal speaker protection
4 aluminum handles with ergonomic, rubberized surface
Extensive optional accessories for installation and transport
Product type: PA speaker
Type: Active
Color: White (RAL 9003)
Woofer size: 15 "
Woofer size: 381 mm
Woofer magnet: Ferrite
Woofer brand: Custom Made
Horn: BEM optimized CD horn
HF driver size: 1 "
HF driver size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: Custom Made
HF driver voice coil: 1.4 "
HF driver voice coil: 35 mm
Amplifier: Class D
Dispersion angle (H x V): 90° x 50°
Power (RMS): 300 W
Power (Peak): 1200 W
Frequency response: 48 - 20000 Hz
Crossover frequency kHz: 2 kHz
Max. SPL (Peak): 2 dB
Protection circuits: Multiband limiter
Protection circuits: Overheating
Protection circuits: Overvoltage
Protection circuits: Overcurrent
Controls: 2 x Gain
Controls: Rotary push encoder
Controls: Power switch
Display elements: LC display
Mic/Line inputs: 2
Mic/Line input connectors: 6.3 mm combo jacks (balanced)
Mic/Line input connectors: XLR
Line inputs: 1
Line input connectors: 3.5 mm stereo jack
Line outputs: 1
Line output connectors: XLR
Power supply: SMPS
Power consumption: 150 W
Operating temperature (in use): 0 - 40 °C
Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Fuse: T4AL 250 V
Enclosure material: Polypropylene
Enclosure design: Bass reflex
Mounting: 36 mm flange (0°, 5°)
Mounting: 6 x M10 flying points
Monitor angle: 55 °
Width: 416 mm
Height: 695 mm
Depth: 415 mm
Weight: 24.3 kg
Accessories (included): Power cable

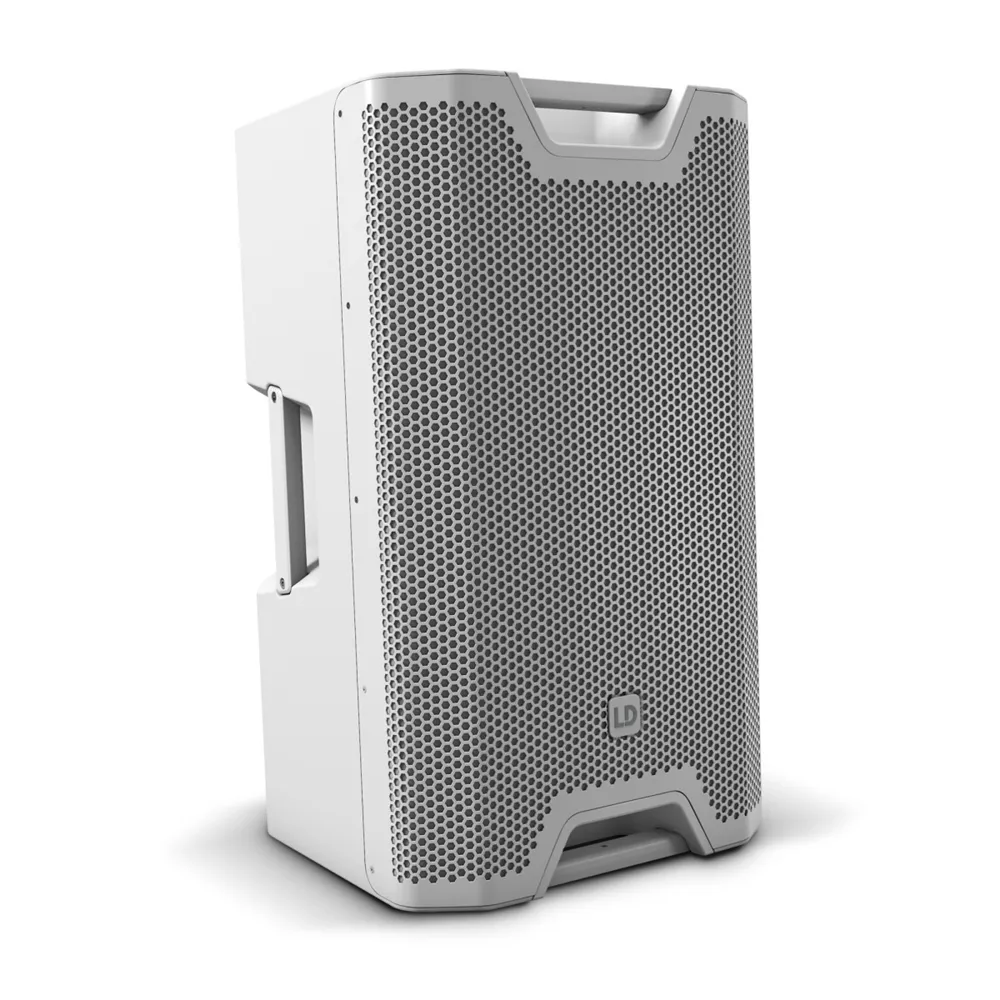

LD Systems ICOA 15 A W - 15" Active Coaxial PA Speaker, White

The LD Systems ICOA 15 A W is a powerful active coaxial PA speaker that stands out for its versatility and excellent sound quality. With a maximum sound pressure level of 128 dB and a peak power of 1200 W, this speaker is the perfect companion for full-range, satellite, and monitor applications. The innovative coaxial design with a rotatable, BEM-optimized CD horn ensures uniform sound distribution, whether used vertically or horizontally.

Thanks to the horn-loaded woofer, the ICOA 15 A W delivers impressive bass reproduction and is ideal for musicians, bands, DJs, and dance schools. The integrated DynX DSP technology features four presets, a 3-band EQ, and a delay function, allowing for precise sound adjustment to any environment. With two line/mic input channels and a mono mix output, various signal sources can be easily connected.

The impact-resistant front grille and ergonomic aluminum handles ensure high durability and ease of handling. The speaker is housed in an elegant white enclosure that seamlessly blends into any setting. With extensive accessories for installation and transport, the LD Systems ICOA 15 A W is the ideal choice for professional audio applications.
