Features
- True all-rounder for full-range, satellite, and monitor applications
- 128 dB max. SPL and 1200 W PEAK power

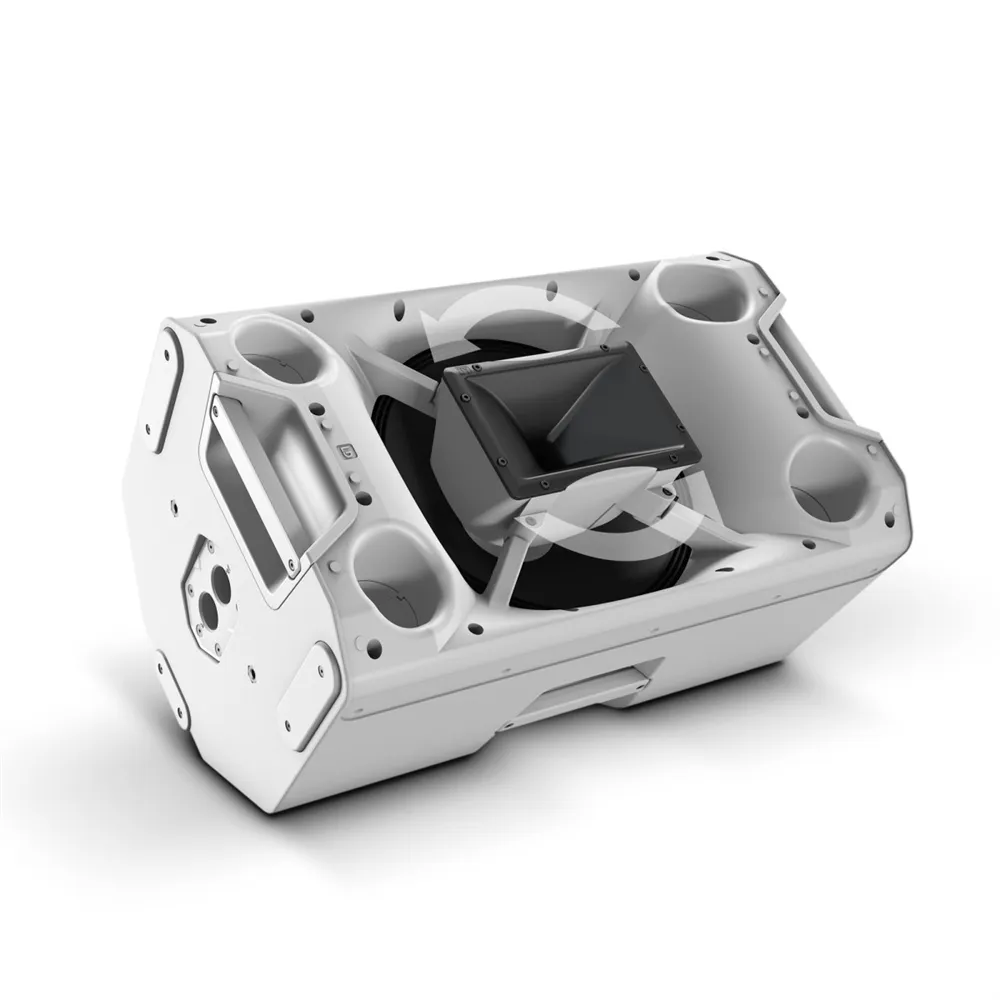

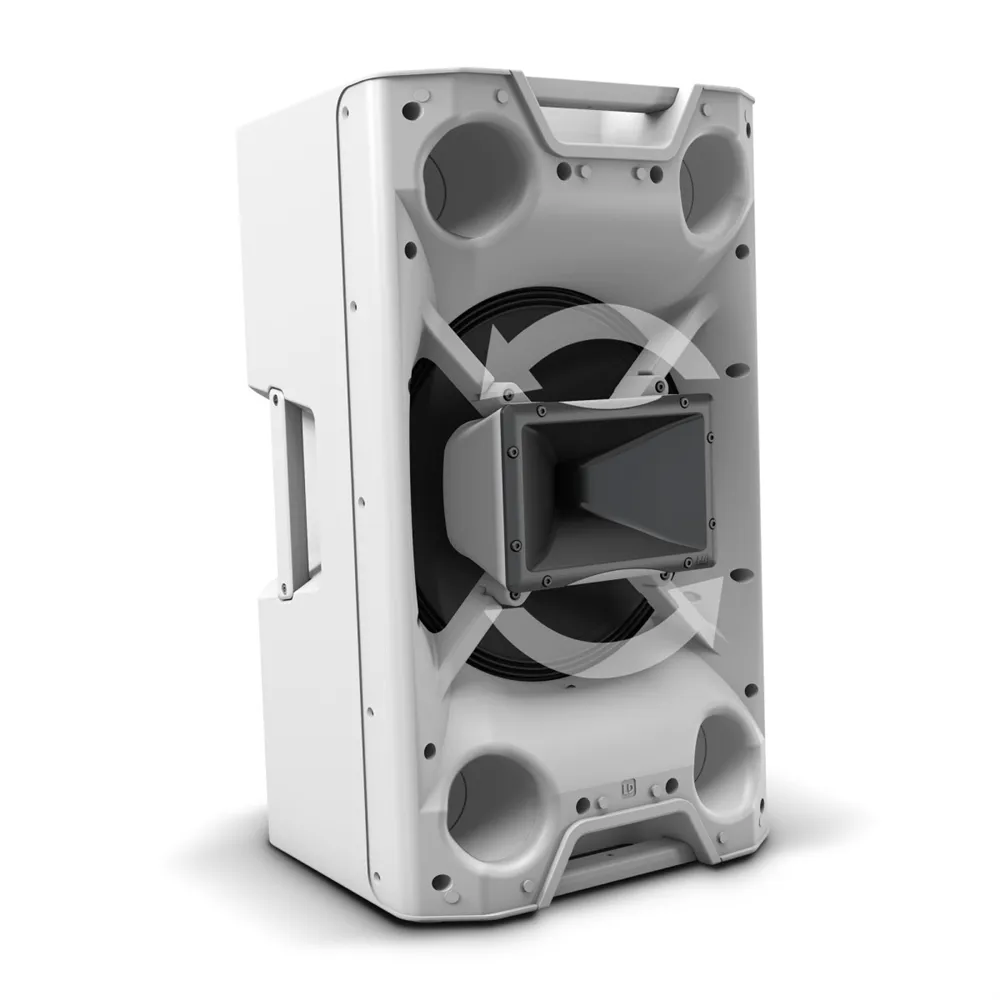

- Vertical and horizontal application through coaxial design with rotatable, BEM-optimized CD horn (patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ, and delay function
- 2 line/mic input channels with individual gain controls plus mono mix output
- Bluetooth® streaming available in the BT model

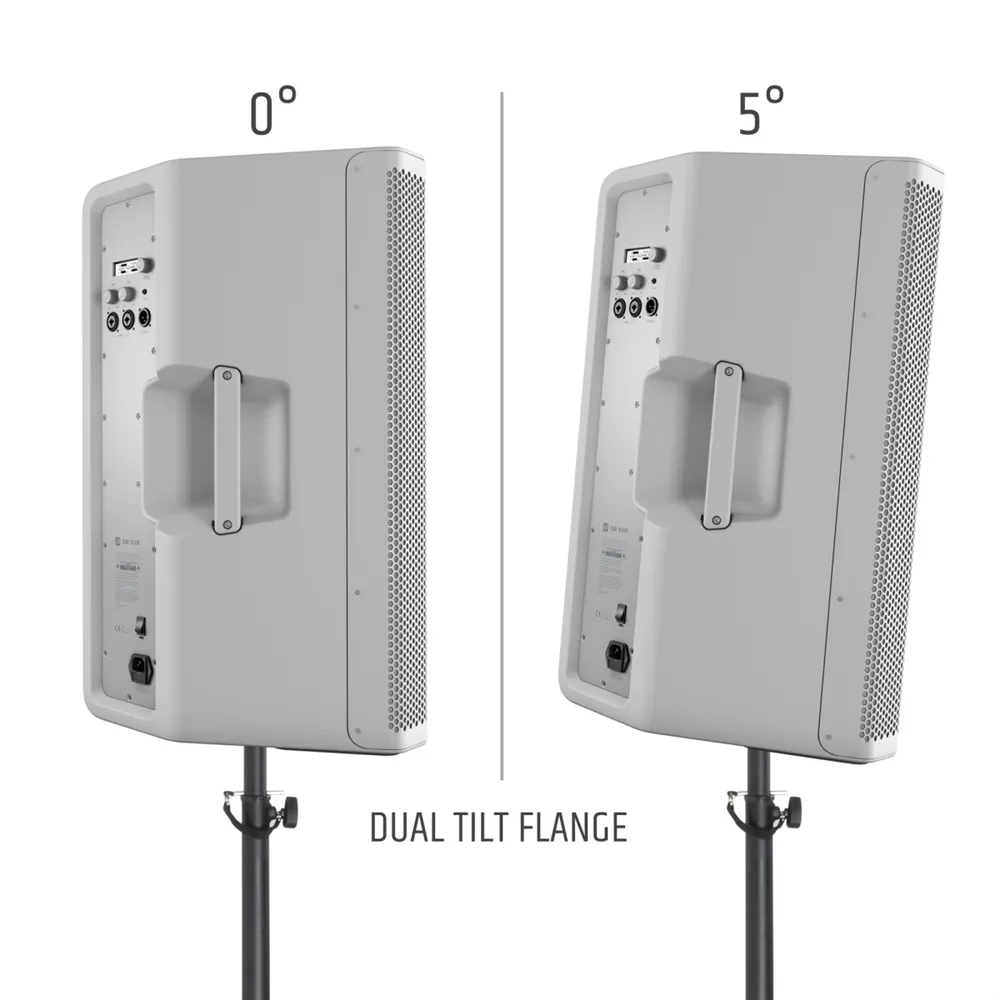

- 36 mm dual-tilt tripod mount with 0° and 5° tilt angles, 55° monitor angle with stable stand
- 6 x M10 flying points

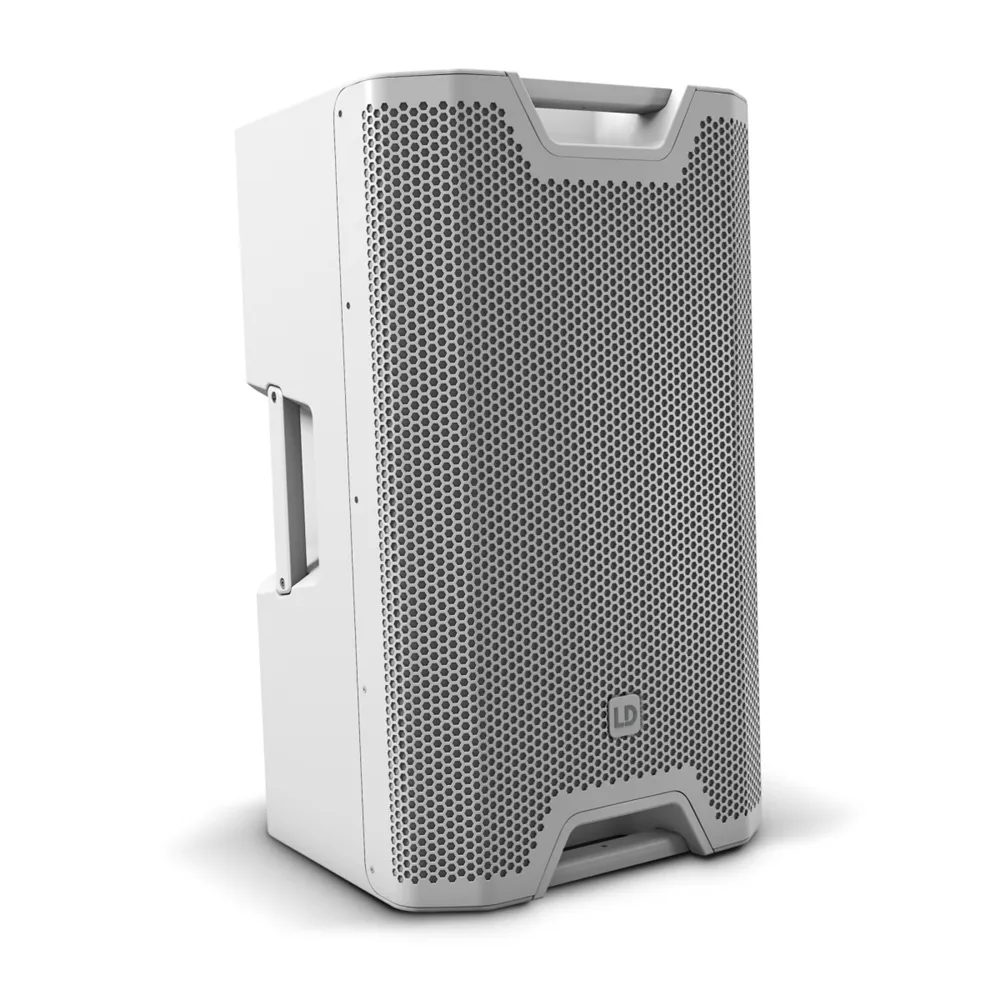

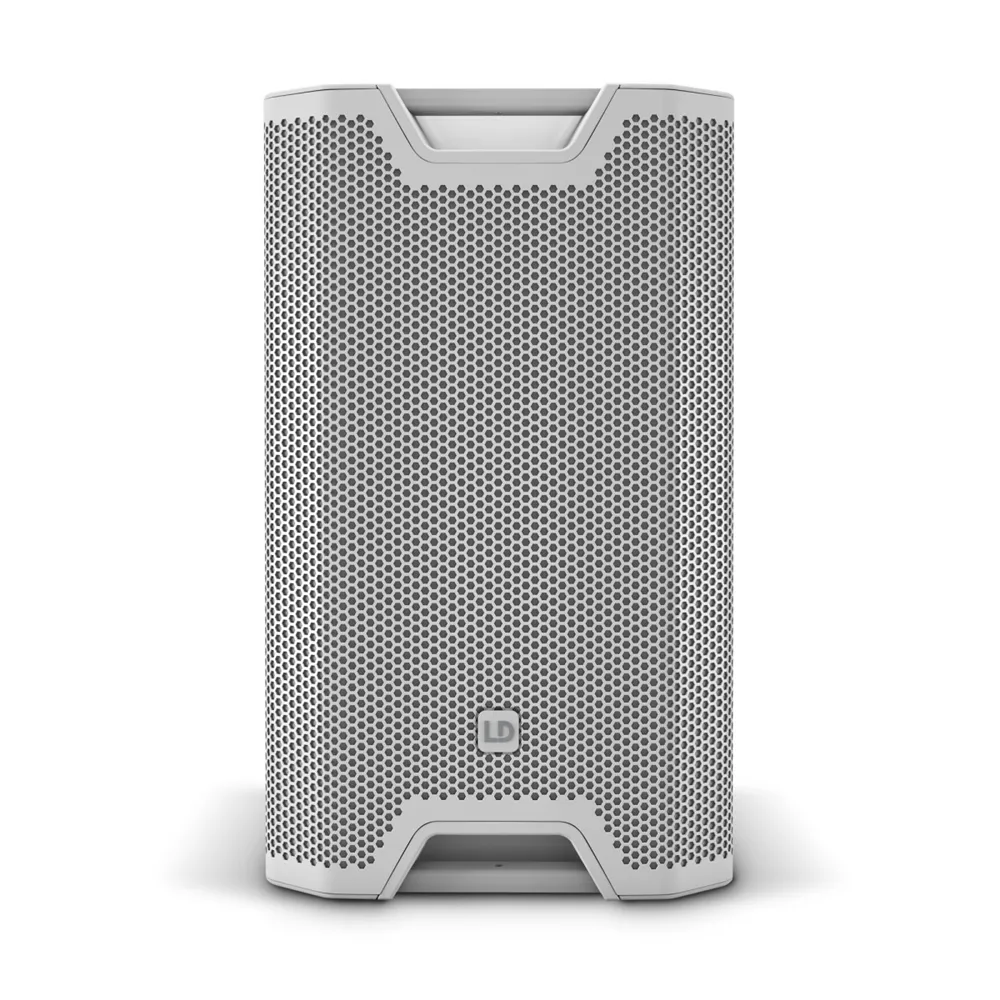

- Impact-resistant front grille for optimal speaker protection
- 4 aluminum handles with ergonomic, rubberized surface
- Comprehensive optional accessories for installation and transport
- Product type: PA speaker
- Type: Active
- Color: White (RAL 9003)
- Bluetooth audio decoder: Bluetooth 4.0
- Woofer size: 15" (381 mm)
- Woofer magnet: Ferrite
- Woofer brand: Custom Made
- Horn: BEM optimized CD horn
- HF driver size: 1" (25.4 mm)
- HF driver magnet: Ferrite
- HF driver brand: Custom Made
- HF driver voice coil: 1.4" (34 mm)
- Amplifier: Class D
- Dispersion angle (H x V): 90° x 50°
- Power (RMS): 300 W
- Power (Peak): 1200 W
- Frequency response: 48 - 20000 Hz
- Crossover frequency: 2 kHz
- Max. SPL (Peak): 128 dB
- Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent

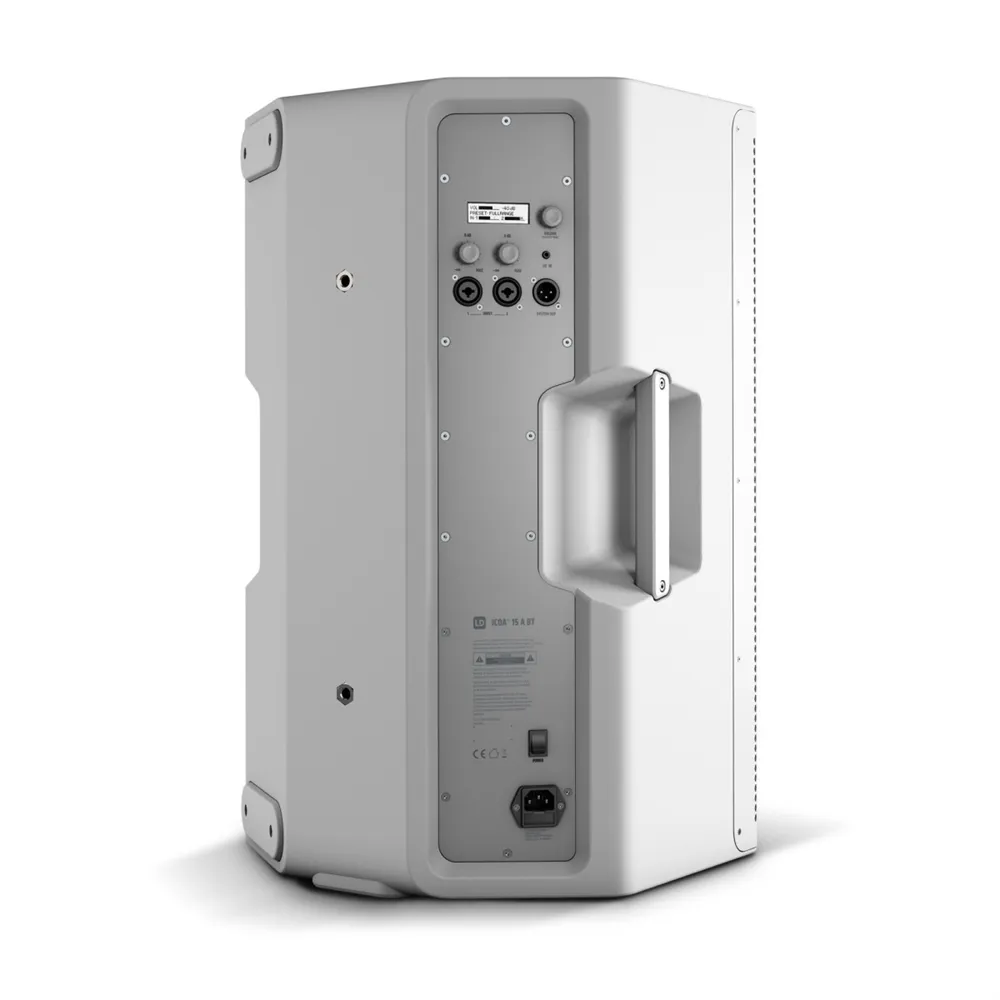

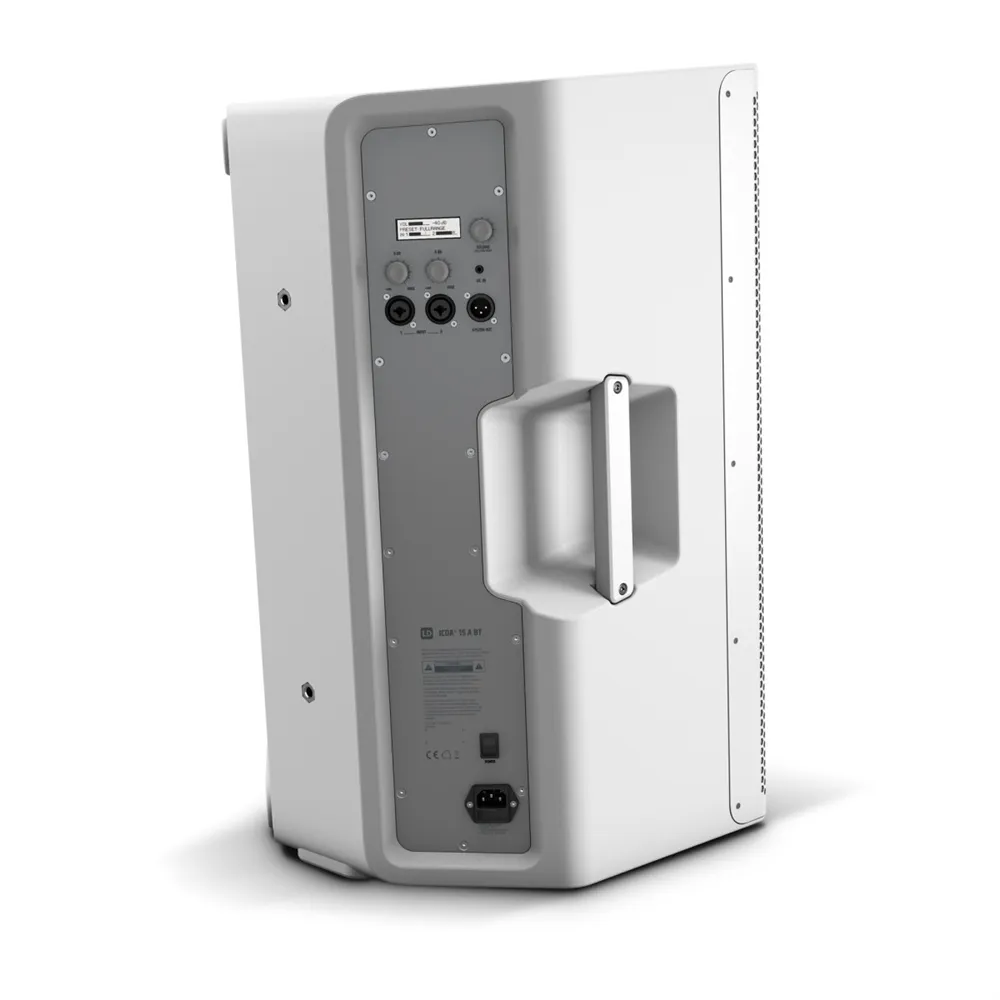

- Controls: 2 x Gain, rotary-push encoder, power switch
- Display elements: LC display
- Mic/Line inputs: 2
- Mic/Line input connectors: 6.3 mm combo jacks (balanced), XLR
- Line inputs: 1 (3.5 mm stereo jack)
- Line outputs: 1 (XLR)
- Power supply: SMPS
- Power consumption: 150 W
- Operating temperature (in use): 0 - 40 °C
- Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
- Fuse: T4AL 250 V
- Enclosure material: Polypropylene
- Enclosure design: Bass reflex
- Mounting: 36 mm flange (0°, 5°), 6 x M10 flying points
- Monitor angle: 55 °
- Width: 416 mm
- Height: 695 mm
- Depth: 415 mm
- Weight: 24.3 kg
- Accessories (included): Power cable

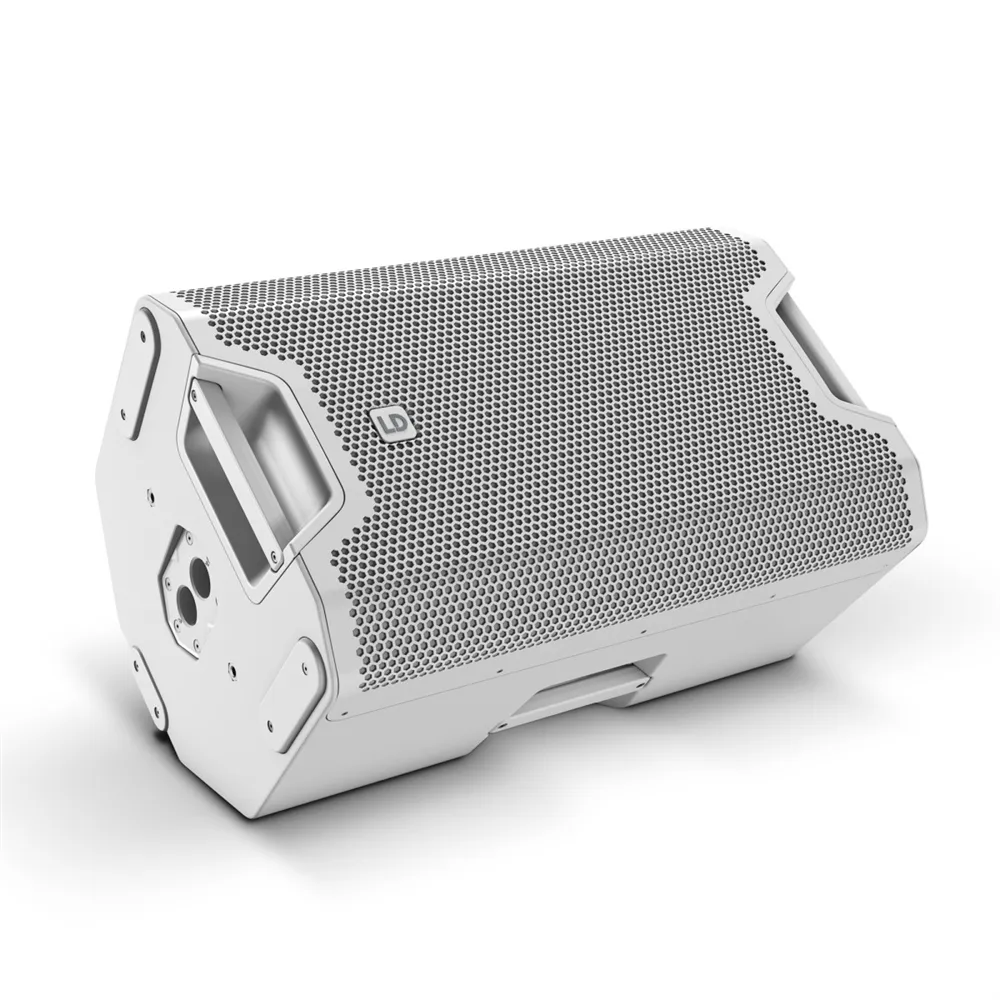

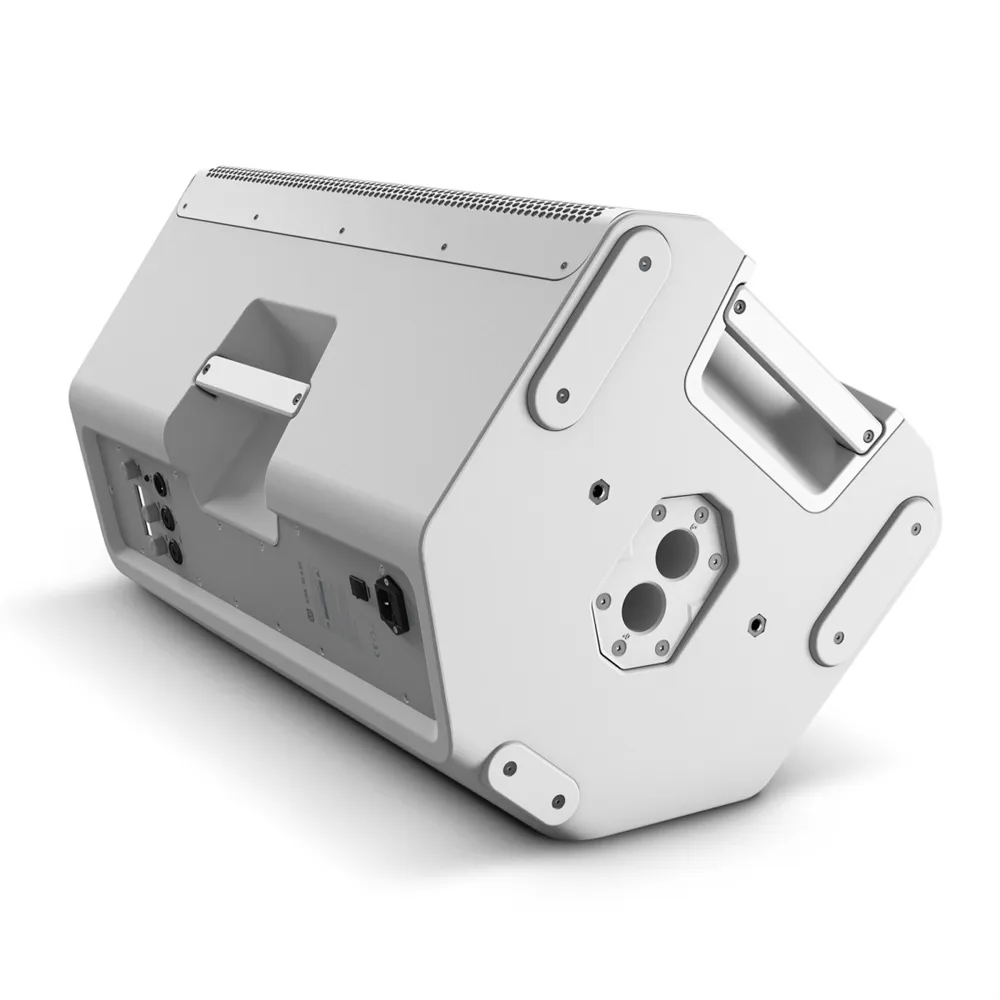

LD Systems ICOA 15 A BT W - 15" Active Coaxial PA Speaker with Bluetooth, White
The LD Systems ICOA 15 A BT W is the perfect active coaxial PA speaker for those seeking a powerful and versatile audio tool. With an impressive maximum sound pressure level of 128 dB and a peak power of 1200 W, this speaker delivers outstanding sound quality suitable for both full-range and monitor applications.
Thanks to its innovative coaxial design featuring a rotatable, BEM-optimized CD horn, the speaker effortlessly adapts to various usage scenarios. The DynX DSP technology ensures precise sound tuning with four presets, a 3-band EQ, and a delay function, allowing you to optimally adjust the sound to your environment.
With Bluetooth® streaming functionality, you can play your music wirelessly, while the robust aluminum handles and impact-resistant front grille provide ease of handling and durability. The 36 mm dual-tilt stand mount allows for flexible installation, and the extensive range of accessories facilitates setup and transport. The ICOA 15 A BT W is the ideal choice for musicians, DJs, and event organizers who value quality and versatility.
