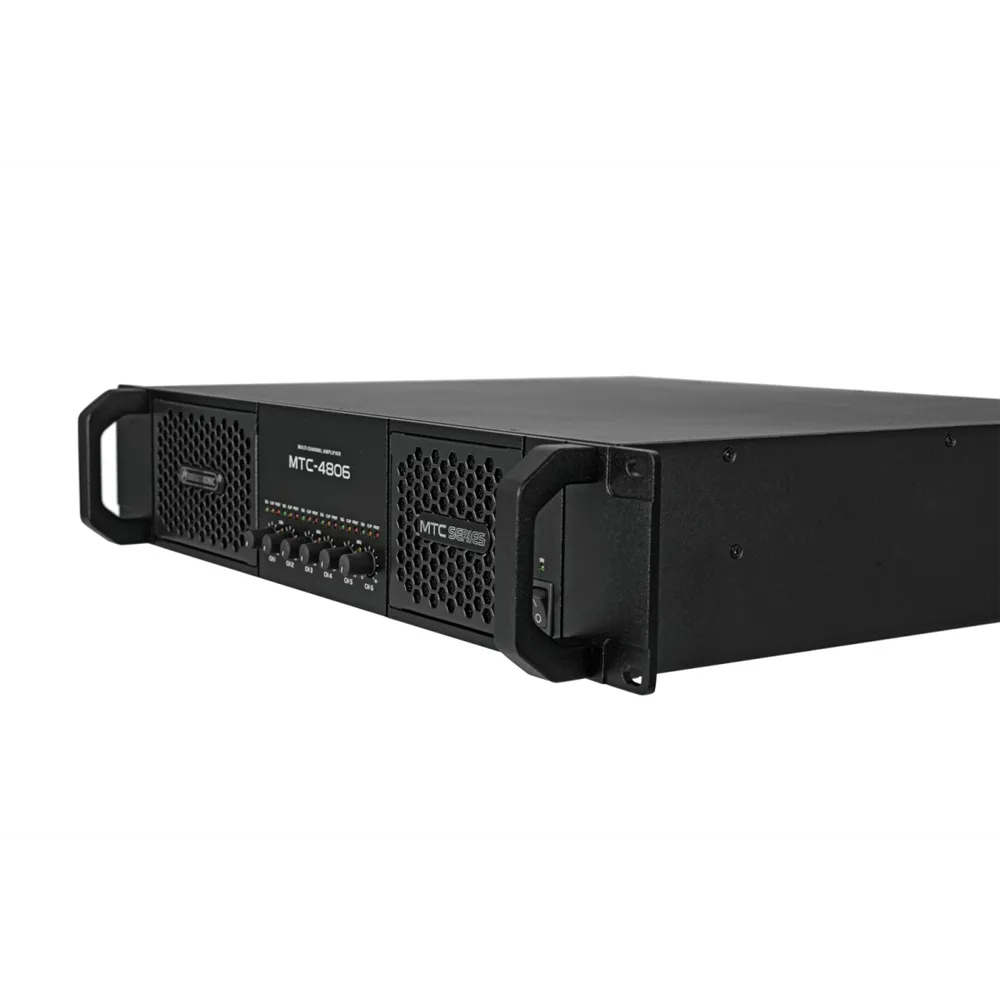

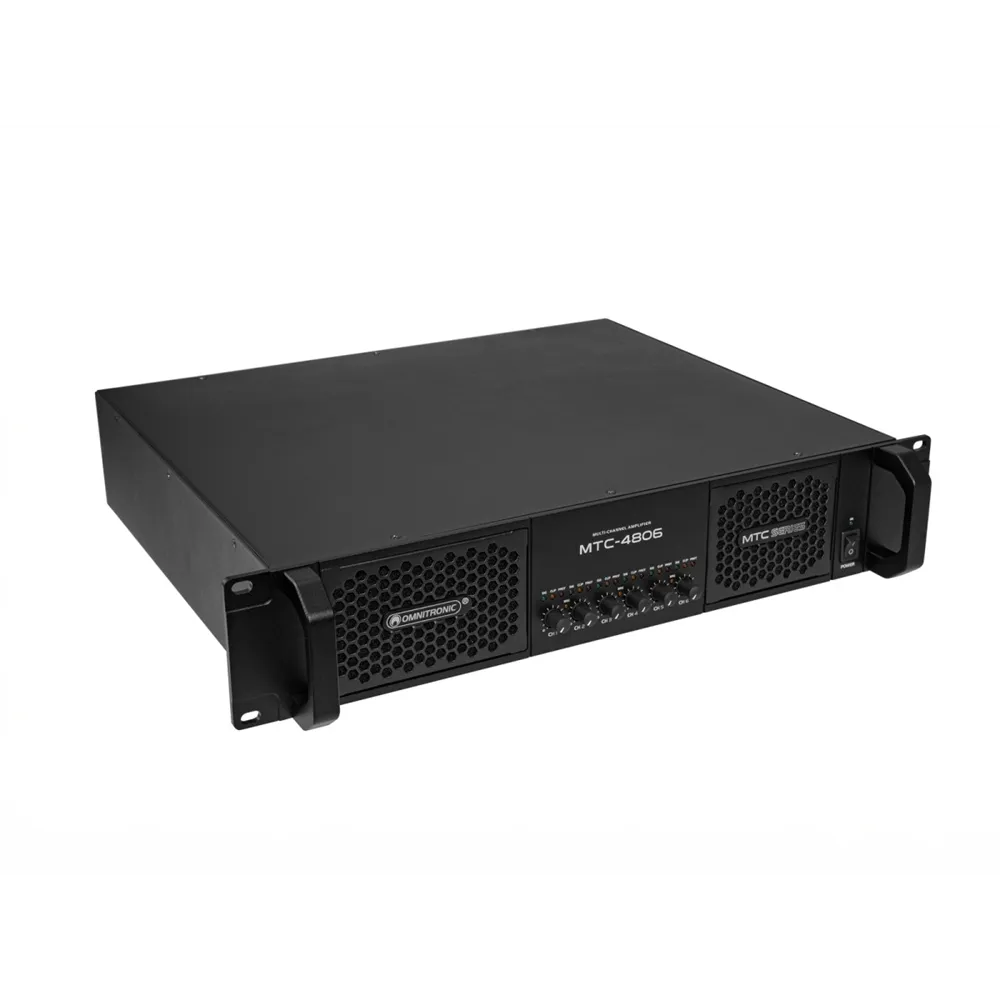

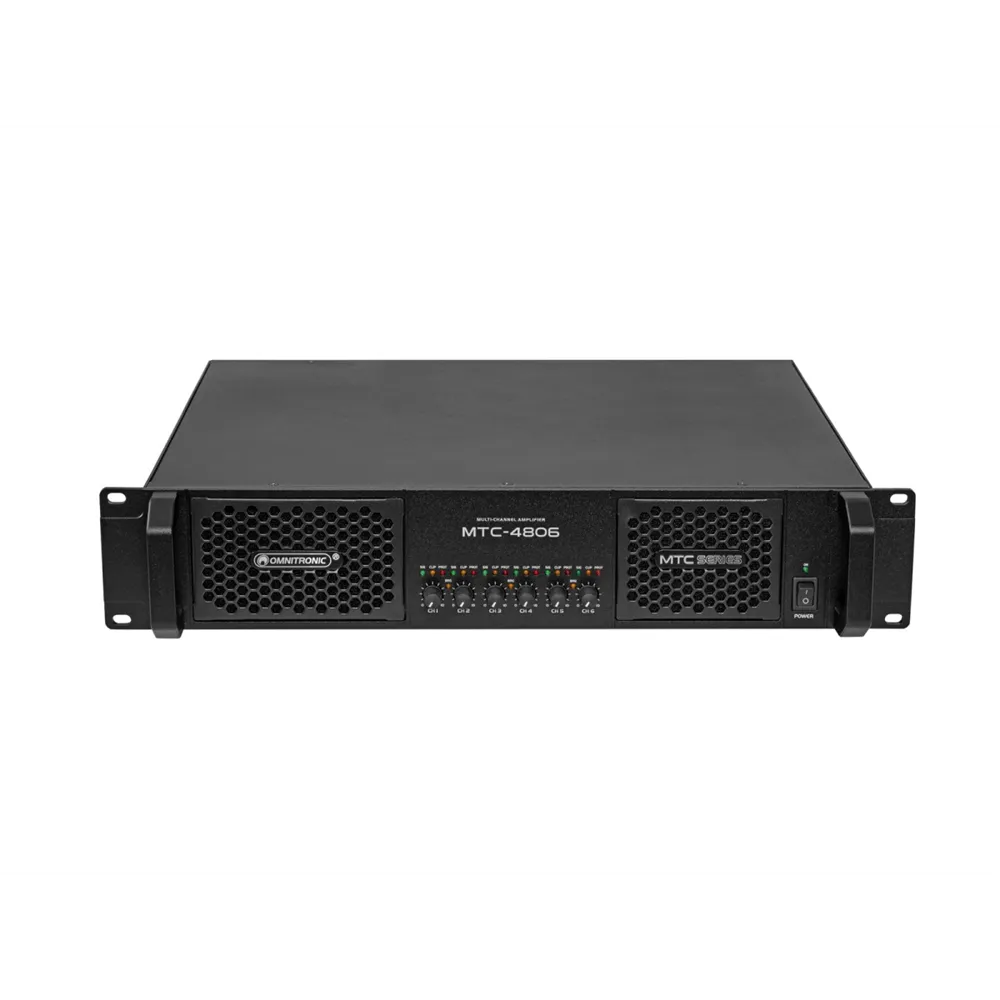

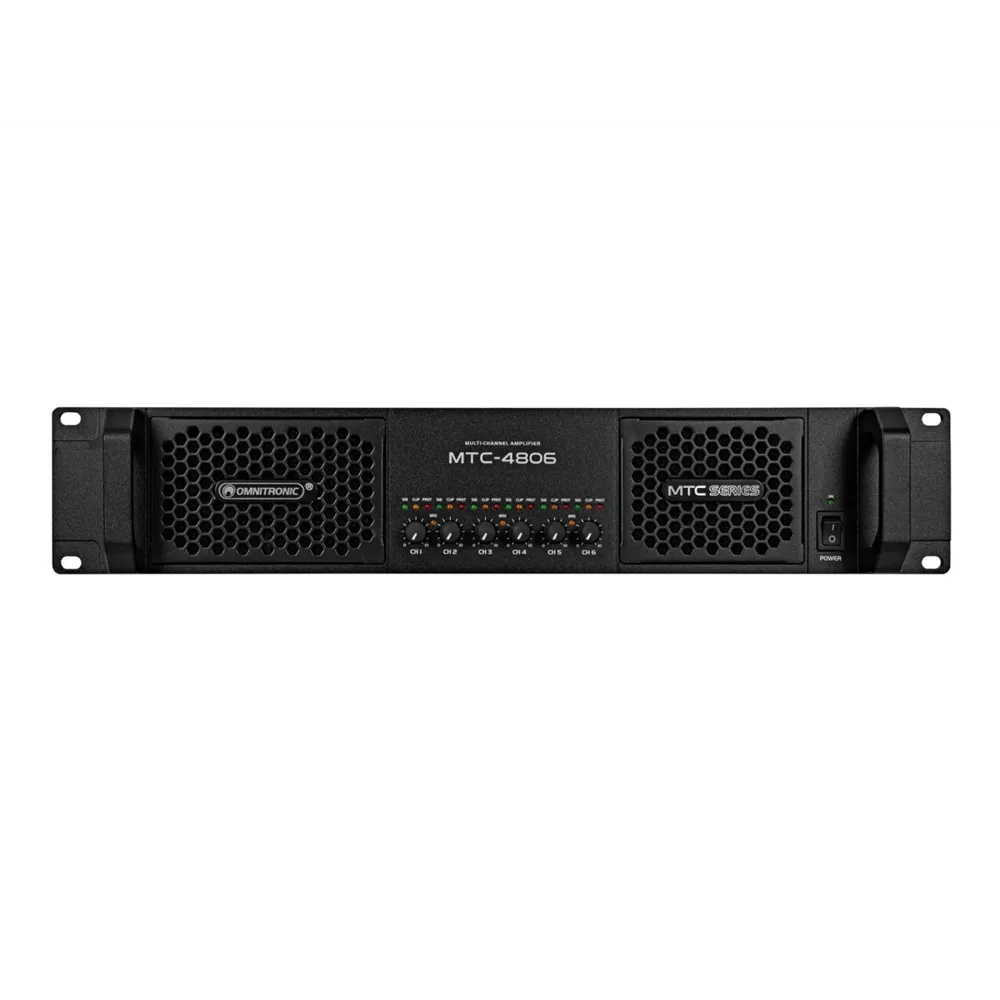

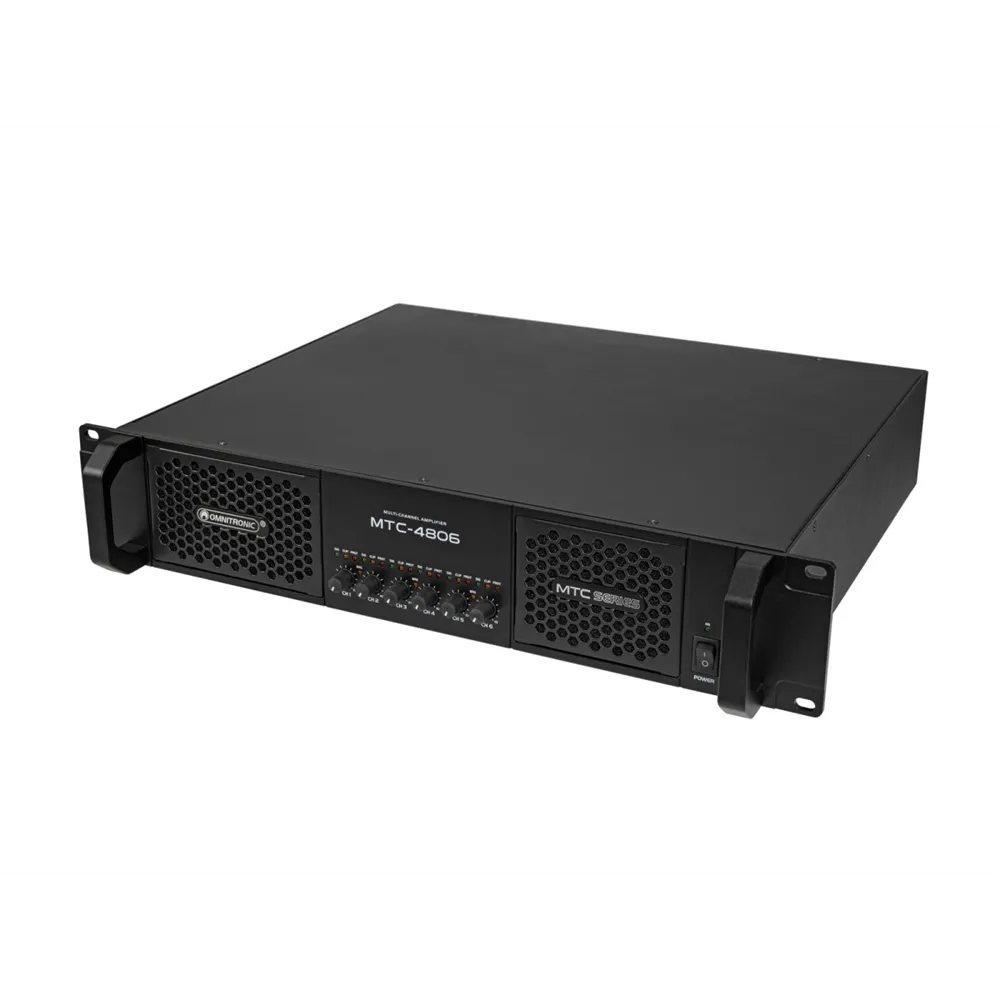

OMNITRONIC MTC-4806 6-Channel Power Amplifier

Features

• Class D Multi-Channel PA Amplifier with Switching Power Supply, 6 x 800 W RMS (4 Ohm), 6 x 400 W RMS (8 Ohm)
• Very lightweight and compact height due to integrated switching power supply
• 2 operating modes adjustable (Stereo or Bridge/100V)
• Level control per channel
• (19") 48.3 cm rack mountable, 2 HE
• High-efficiency airflow from front to rear
• Device cooling via temperature-controlled fans
• Suitable for applications such as: clubs/dance schools; installations; mobile use; mobile DJs/entertainers; restaurants, bars, and hotels; rental services; sports centers/fitness studios
• Power supply: 100-240 V AC, 50/60 Hz
• Total connection value: 900 W 1/8 Power
• Protection class: Class I
• Output power: 6 x 800 W RMS (4 Ohm), 6 x 400 W RMS (8 Ohm), 3 x 1500 W RMS bridged (8 Ohm), 6 x 200 W RMS (100 V), 3 x 1500 W RMS bridged (100 V)
• Power connection: Power input via P-Con (blue), installation version power connection cable with protective contact plug (included)
• Cable length: 1 m detachable
• Device fuse: 5 x 20 mm, T 10 A fuse fixed (e.g., soldered on the circuit board)
• Frequency range: 20 - 20000 Hz
• Signal-to-noise ratio: >119 dB
• Cooling: 2 x temperature-controlled fans, airflow from front to rear
• Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
• Gain: 28.2 dB, Bridged 34.2 dB
• Housing color: Black
• Circuitry: Class D
• Damping factor: 350
• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Bridge)
• Protection circuitry: Soft start; Overheating; Overload; Short circuit; DC protection
• Status LEDs: Power, Signal, Clip, Bridged, Protect

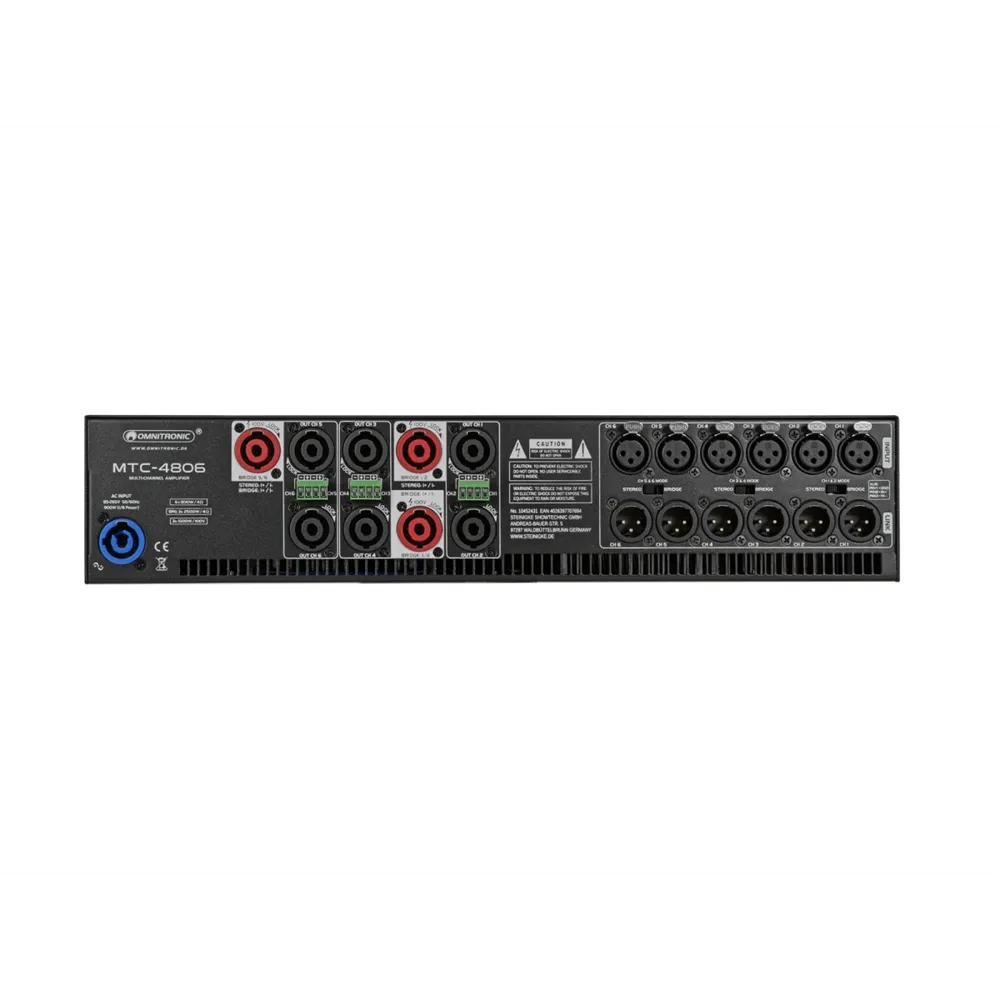

• Connections: Input: Line via 6 x 3-pin XLR, Link: Line via 6 x 3-pin XLR, Output: Speaker via screw terminal, Output: 6 x Speaker mounting socket (W), Output: Speaker (Bridge) via 3 x Speaker mounting socket (W)
• Housing design: (19") 48.3 cm rack mountable, 2 HE
• Dimensions: Width: 48.3 cm, Depth: 40.8 cm, Height: 8.8 cm
• Weight: 8.72 kg
