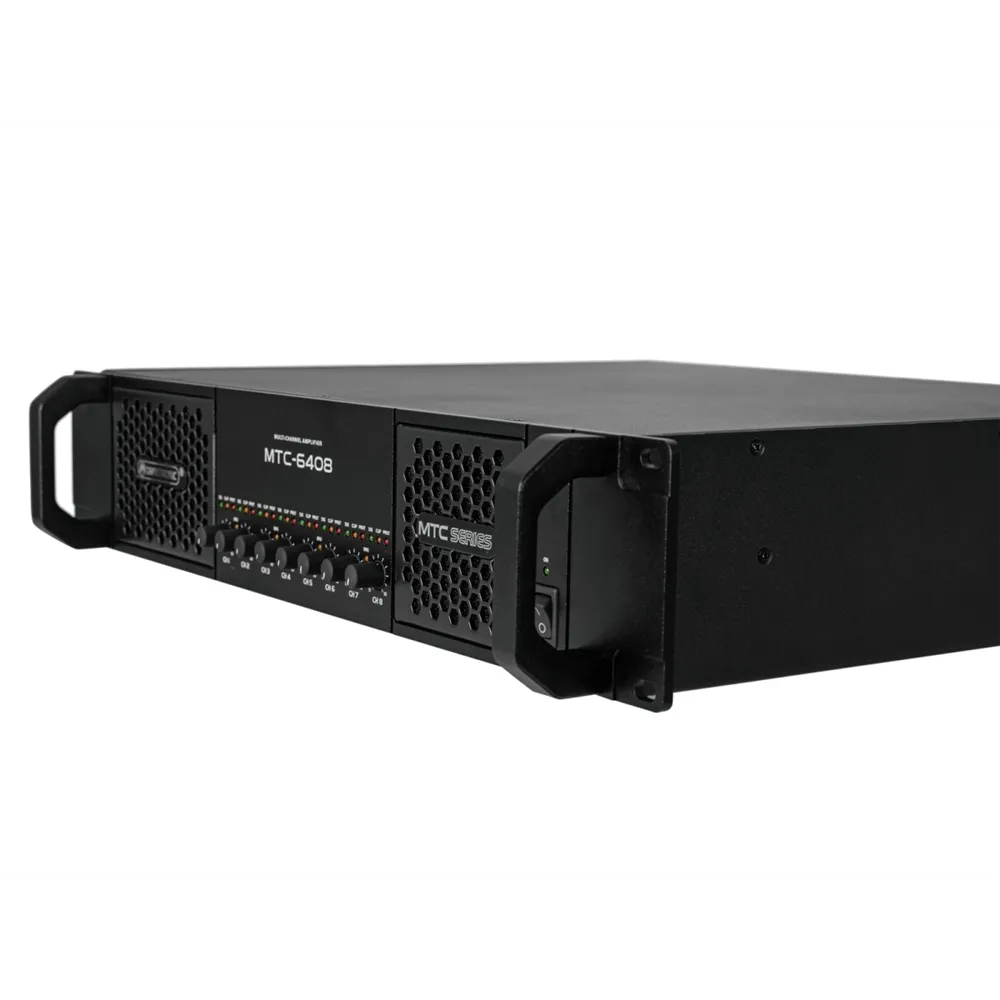

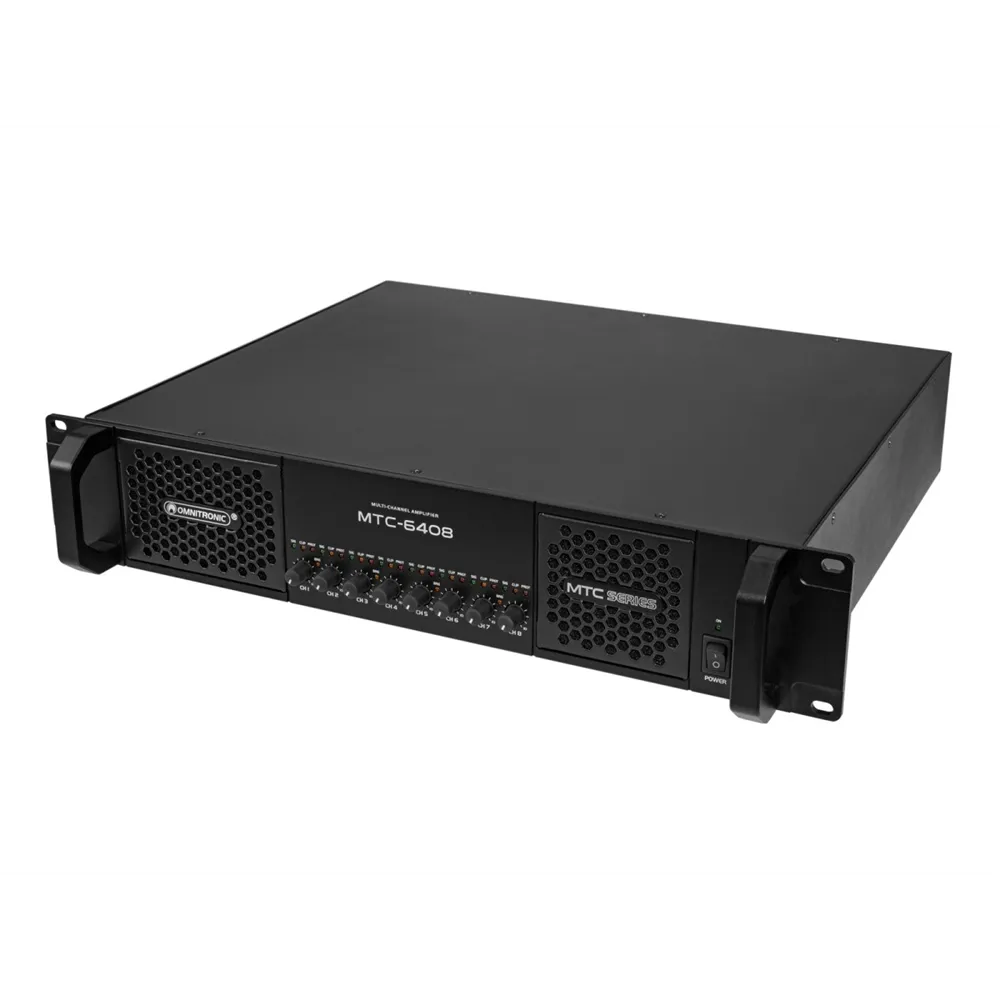

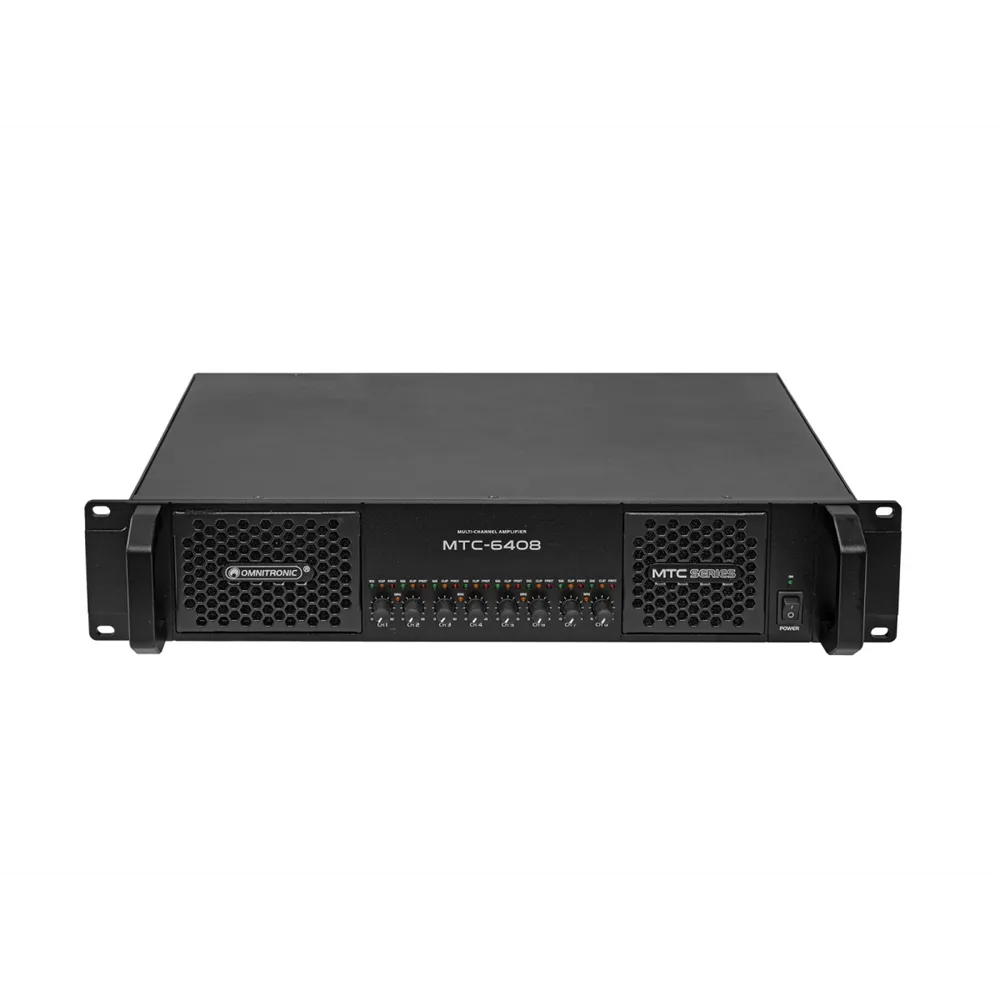

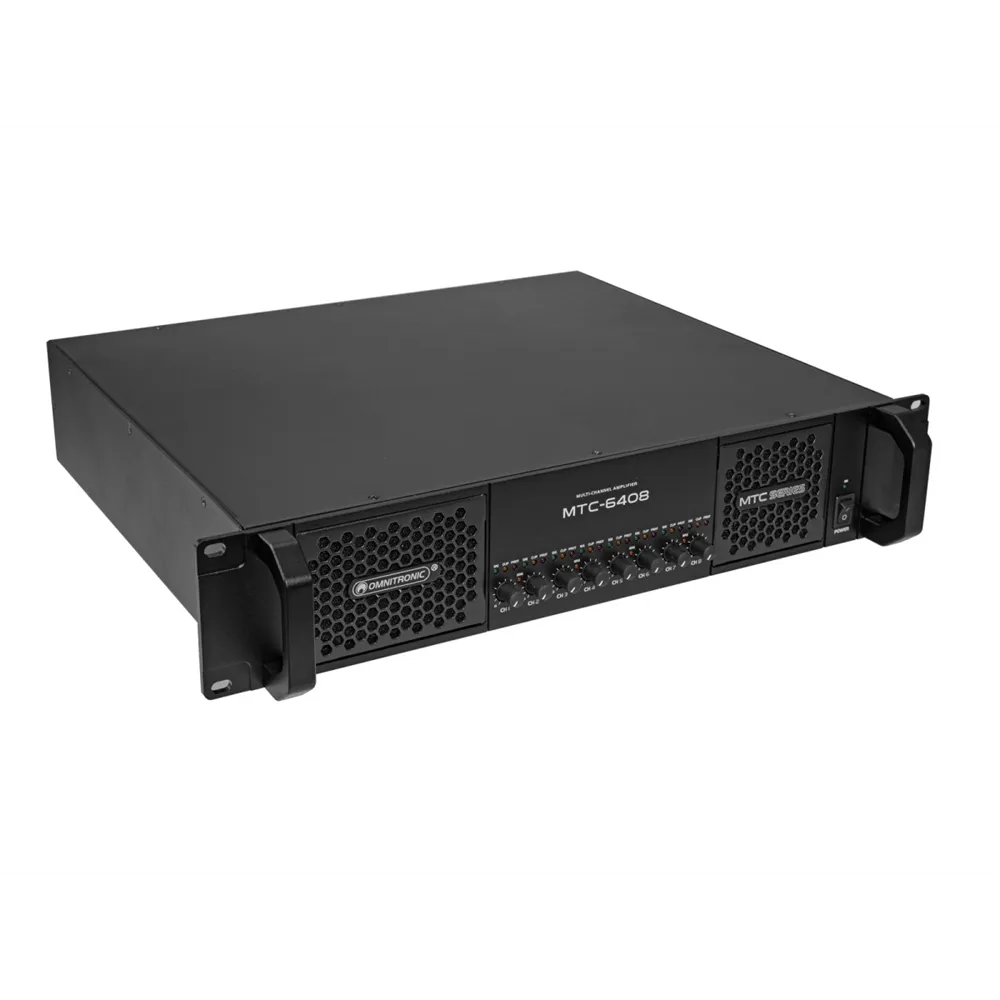

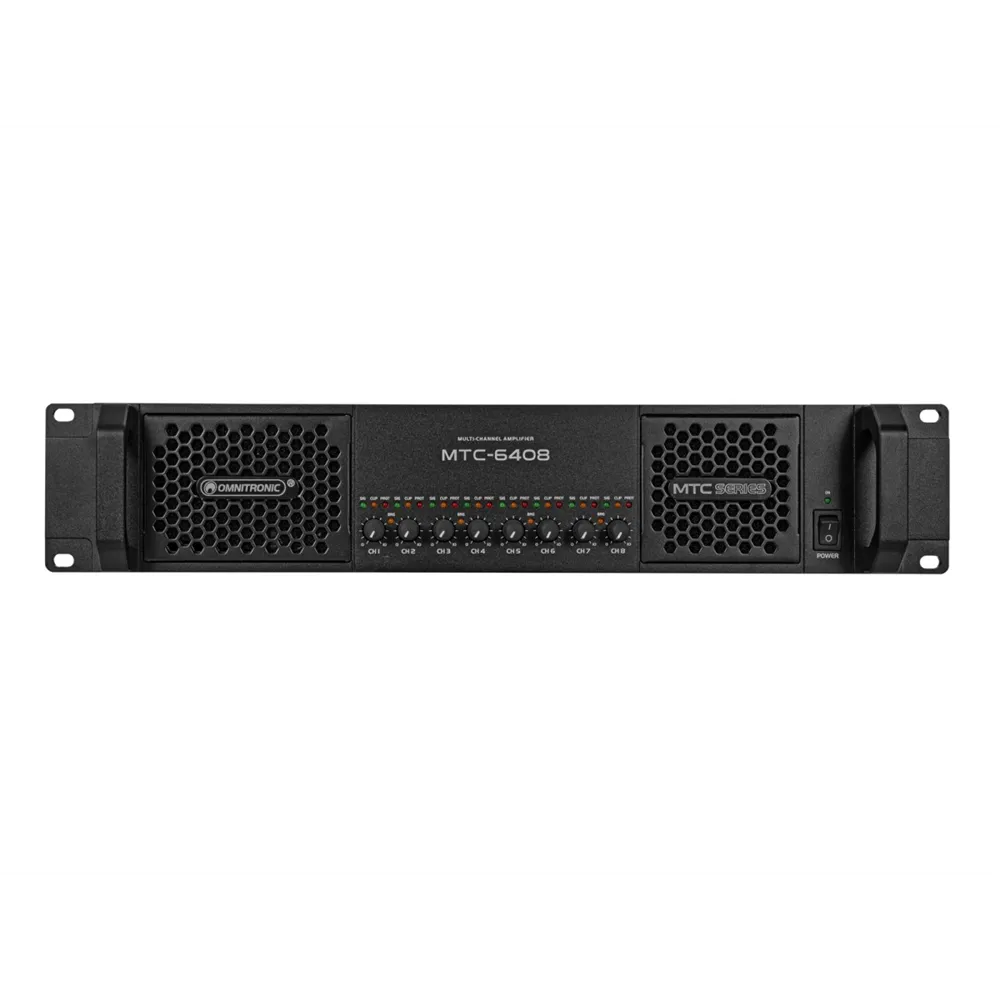

OMNITRONIC MTC-6408 8-Channel Power Amplifier

Features

• Class D Multi-Channel PA Amplifier with Switching Power Supply, 8 x 800 W RMS (4 Ohm), 8 x 400 W RMS (8 Ohm)
• Very lightweight and compact height due to integrated switching power supply
• 2 selectable operating modes (Stereo or Bridge/100V)
• Level control for each channel
• (19") 48.3 cm rack mountable, 2 HE
• High-efficiency airflow from front to rear
• Device cooling via temperature-controlled fans
• Suitable for applications such as clubs, dance schools, installations, mobile use, mobile DJs, solo entertainers, restaurants, bars, hotels, rental services, sports centers, and fitness studios
• Power supply: 100-240 V AC, 50/60 Hz
• Total connection value: 1200 W at 1/8 Power
• Protection class: Class I
• Output power: 8 x 800 W RMS (4 Ohm), 8 x 400 W RMS (8 Ohm), 4 x 1500 W RMS bridged (8 Ohm), 8 x 200 W RMS (100 V), 4 x 1500 W RMS bridged (100 V)
• Power connection: Power input via P-Con (blue), installation version power connection cable with protective contact plug (included)
• Cable length: 1 m
• Device fuse: 5 x 20 mm, T 10 A fuse fixed installed
• Frequency range: 20 - 20000 Hz
• Signal-to-noise ratio: >119 dB
• Cooling: 2 x temperature-controlled fans, airflow from front to rear
• Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
• Gain: 28.2 dB; Bridged 34.2 dB
• Housing color: Black
• Circuitry: Class D
• Damping factor: 350
• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Bridge)
• Protection circuitry: Soft start, overheating, overload, short circuit, DC
• Status LED: Power, Signal, Clip, Bridged, Protect

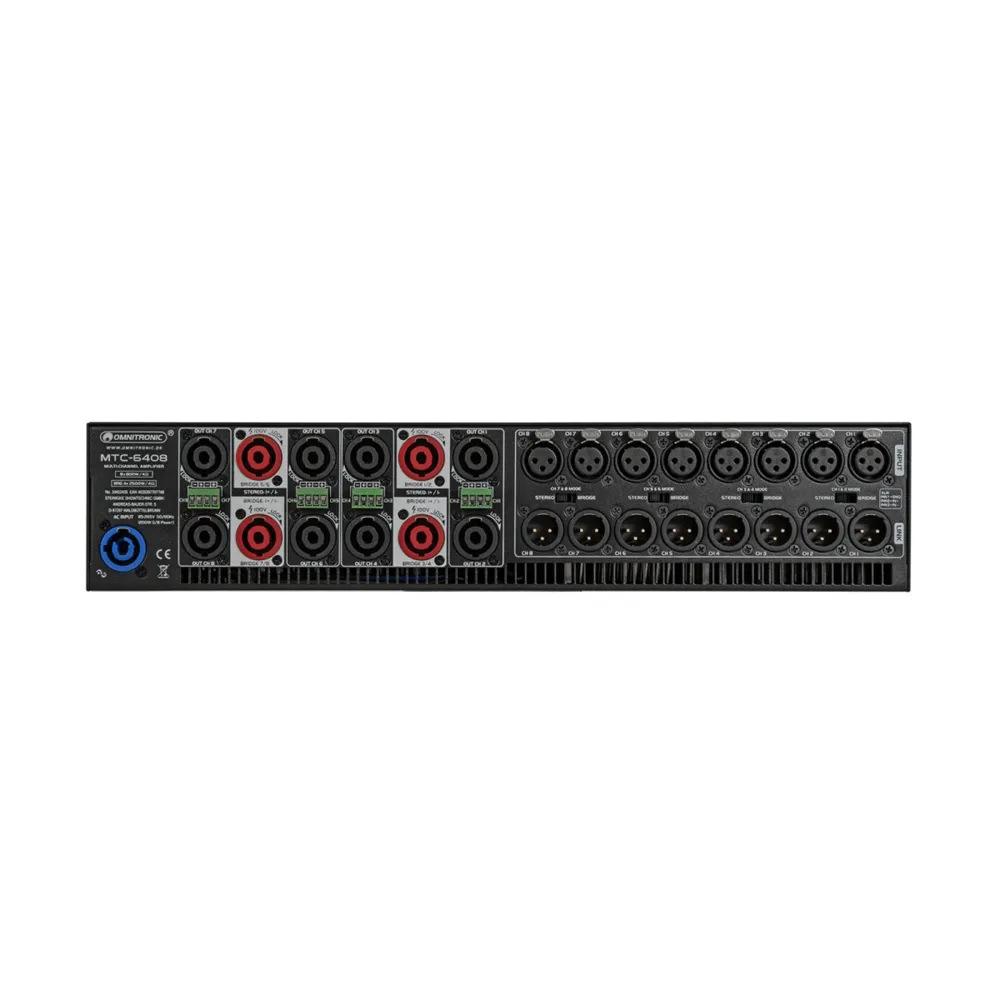

• Connections: Input: Line via 8 x 3-pin XLR; Link: Line via 8 x 3-pin XLR; Output: Speaker via screw terminal; Output: 8 x Speaker mounting socket (W); Output: Speaker (Bridge) via 4 x Speaker mounting socket (W)
• Housing design: (19") 48.3 cm rack mountable, 2 HE
• Dimensions: Width: 48.3 cm, Depth: 40.8 cm, Height: 8.8 cm
• Weight: 9.42 kg
