OMNITRONIC MTC-3204DSP 4-Kanal Endstufe mit DSP

OMNITRONIC MTC-3204DSP 4-Channel Power Amplifier with DSP

Brand:

OMNITRONIC A-3603 Class-D 2.1 Power Amplifier

OMNITRONIC MTC-4806 6-Channel Power Amplifier

Features

4-channel PA amplifier with DSP & switch-mode power supply, 4 x 800 W, 4 x 400 W
Efficient Class-D technology
Integrated Ethernet interface for network connection and real-time communication
Intelligent software for convenient control from a computer
Storage, transfer, and management of presets
Up to 100 user presets can be stored via the software
Digital signal processor with FIR filter
Sampling rate: 96 kHz
2 adjustable operating modes (Stereo or Bridge/100V)
Lightweight and compact height due to integrated switch-mode power supply
Level control per channel
Parametric 10-band equalizer per input and output
Selectable filter types per equalizer: Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
Additionally, up to 48 dB/octave on outputs with Linkwitz-Riley filter
Output limiter with adjustable limits and automatic attack and release settings
LCD display
2 Ethernet interfaces for easy cabling
Connection via RJ-45 (W) installation version with PC, firmware upgradable
Temperature-controlled fan cooling
Highly efficient airflow from front to back
(19") 48.3 cm rack mountable, 2 HE
Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
Suitable for clubs, dance schools, installations, mobile use, mobile DJs, restaurants, bars, hotels, rental services, sports centers/gyms
Power supply: 100-240 V AC, 50/60 Hz
Total connection value: 600 W 1/8 Power
Protection class: Class I
Output power: 4 x 800 W RMS (4 Ohm), 4 x 400 W RMS (8 Ohm), 2 x 1500 W RMS bridged (8 Ohm), 4 x 200 W RMS (100 V), 2 x 1500 W RMS bridged (100 V)
Cable length: 1.2 m detachable
Frequency range: 20 - 20,000 Hz
Signal-to-noise ratio: >119 dB
Network connection: Ethernet TCP/IP via 2x RJ-45 (W) installation version
Cooling: 1 x temperature-controlled fan, airflow from front to back
Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
Gain: 28.2 dB, bridged 34.2 dB
Filters: Linkwitz-Riley; Butterworth; Bessel; 6dB/oct; 12dB/oct; 18dB/oct; 24dB/oct; 48dB/oct
Delay: Input: 0 - 2000 ms
Housing color: Black
Damping factor: 350
Display type: LCD display
Controls: Power switch, encoder, volume control per channel, operating mode switch (Stereo / Bridge/100V), menu
Protection circuitry: Soft start; Overheating; Overload; Short circuit; DC
Status LEDs: Power, Signal, Clip, Bridged, Protect

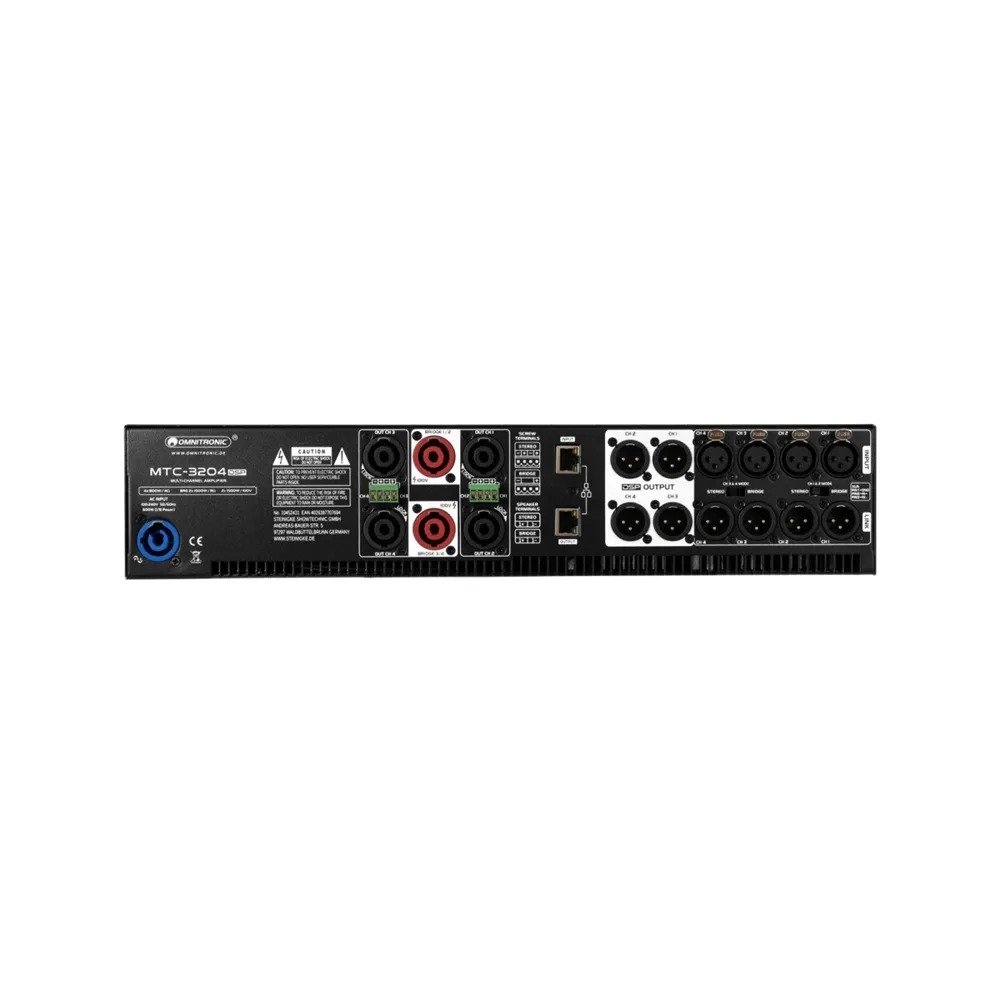

Connections: Input: Line via 4 x 3-pin XLR; Link: Line via 4 x 3-pin XLR; Output: DSP via 4 x 3-pin XLR (W) installation version; Output: Speaker via screw terminal; Output: 4 x Speaker-mounted

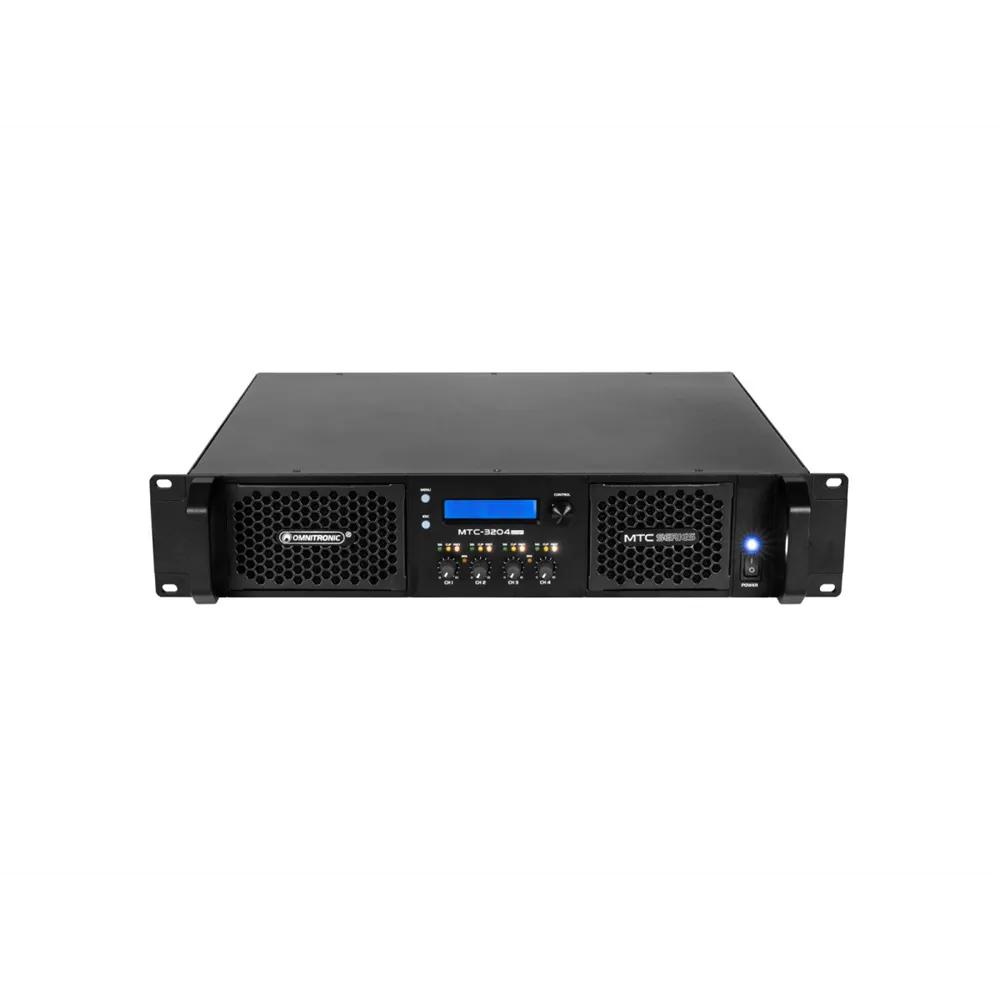

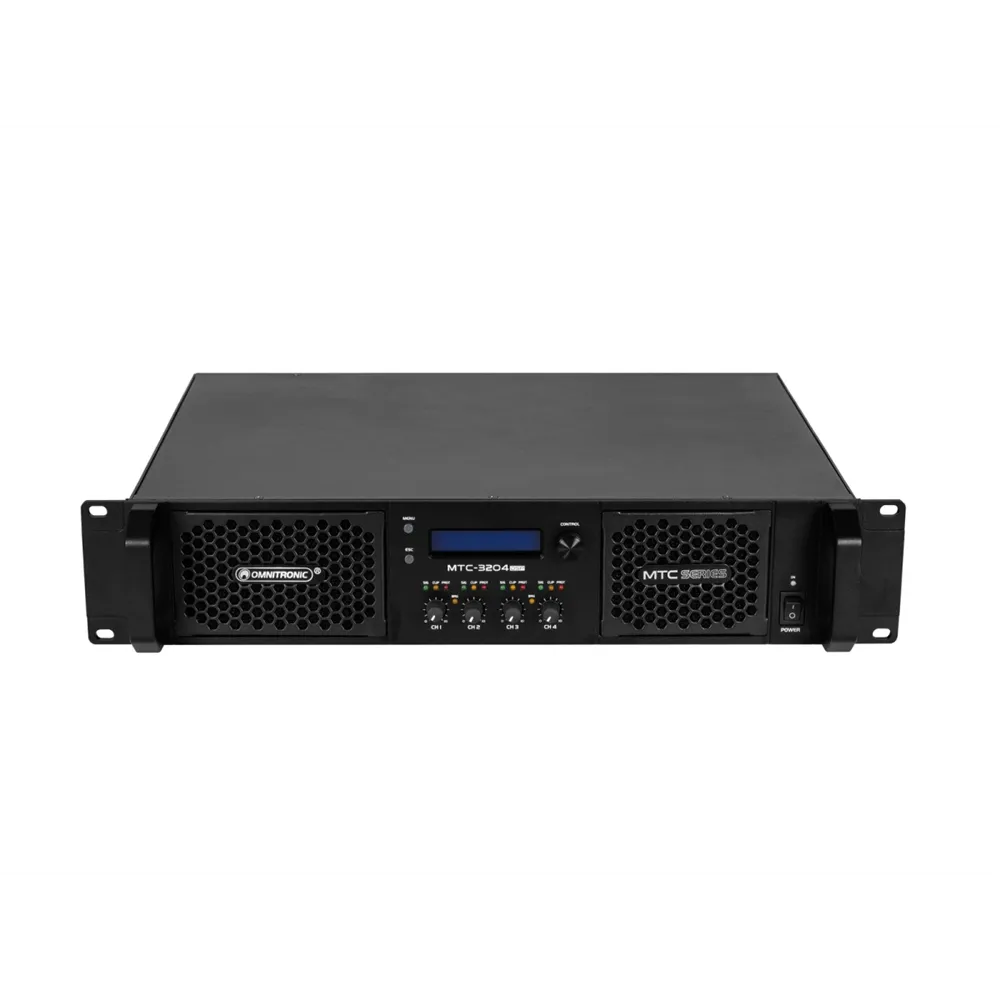

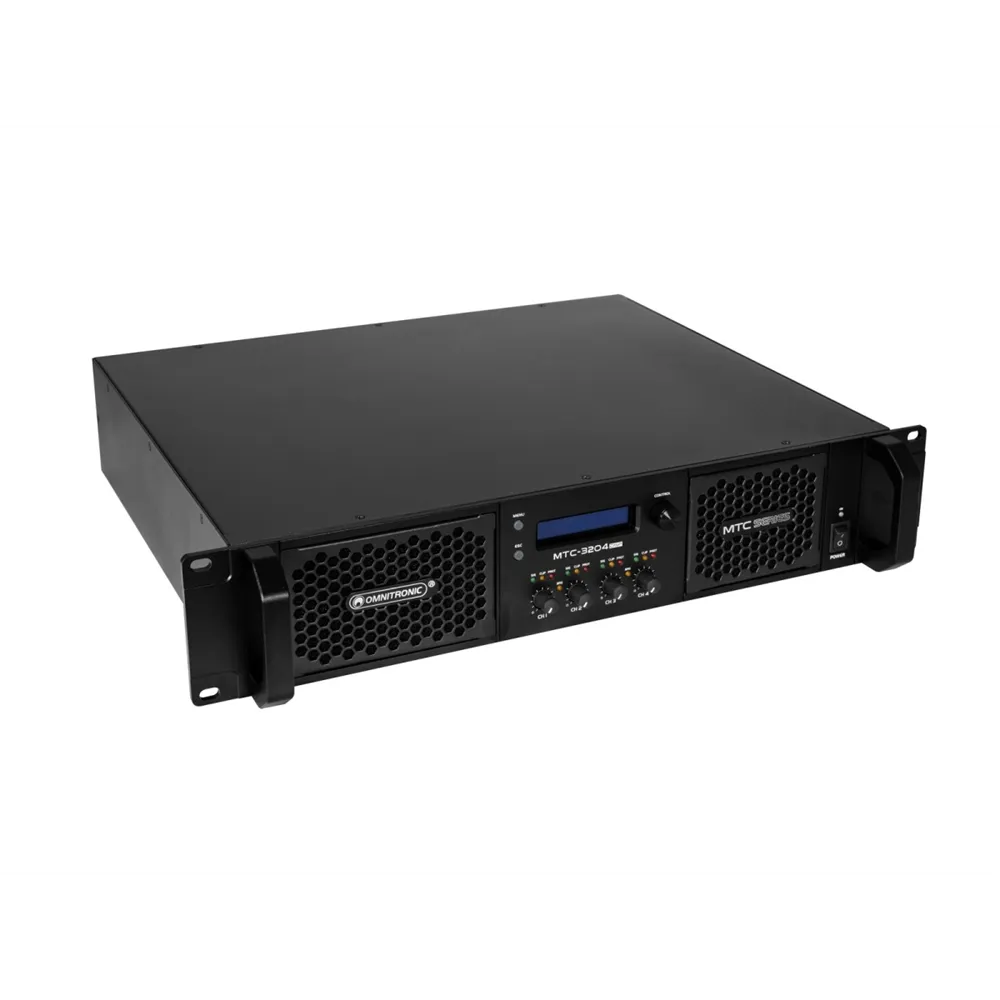

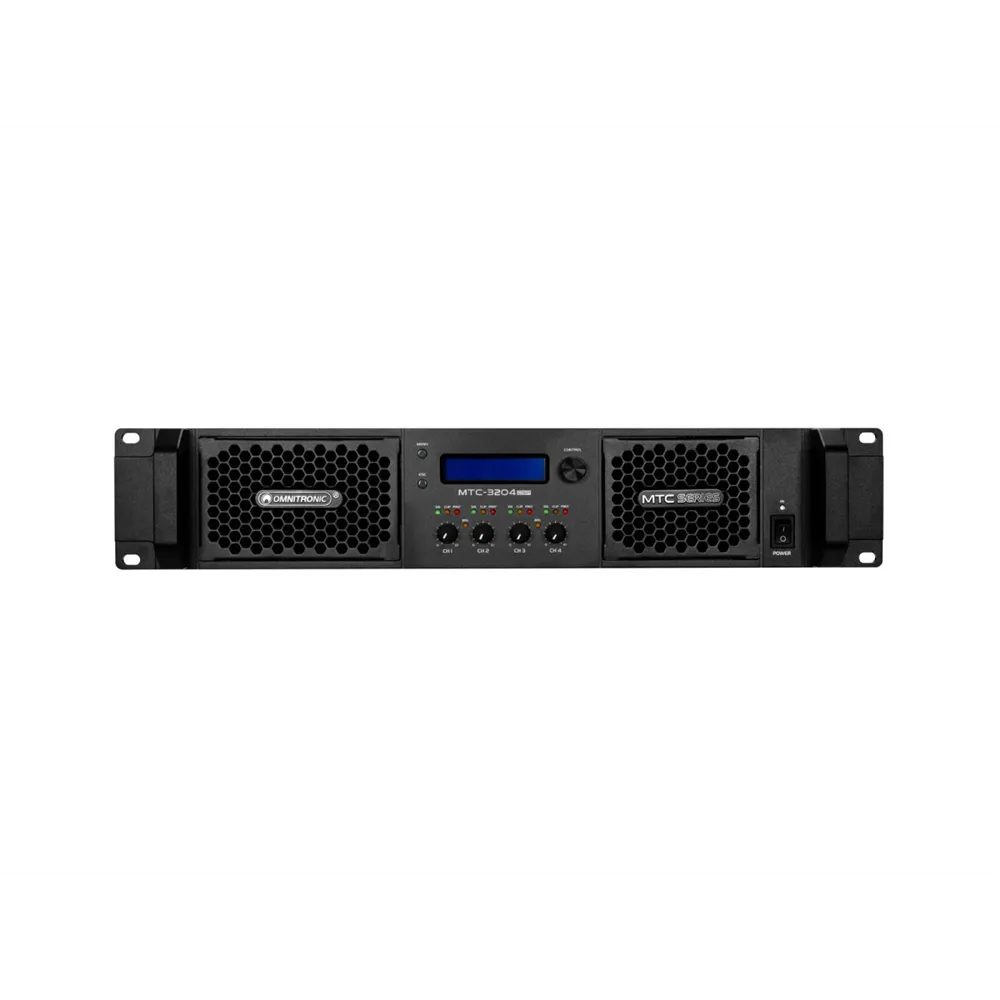

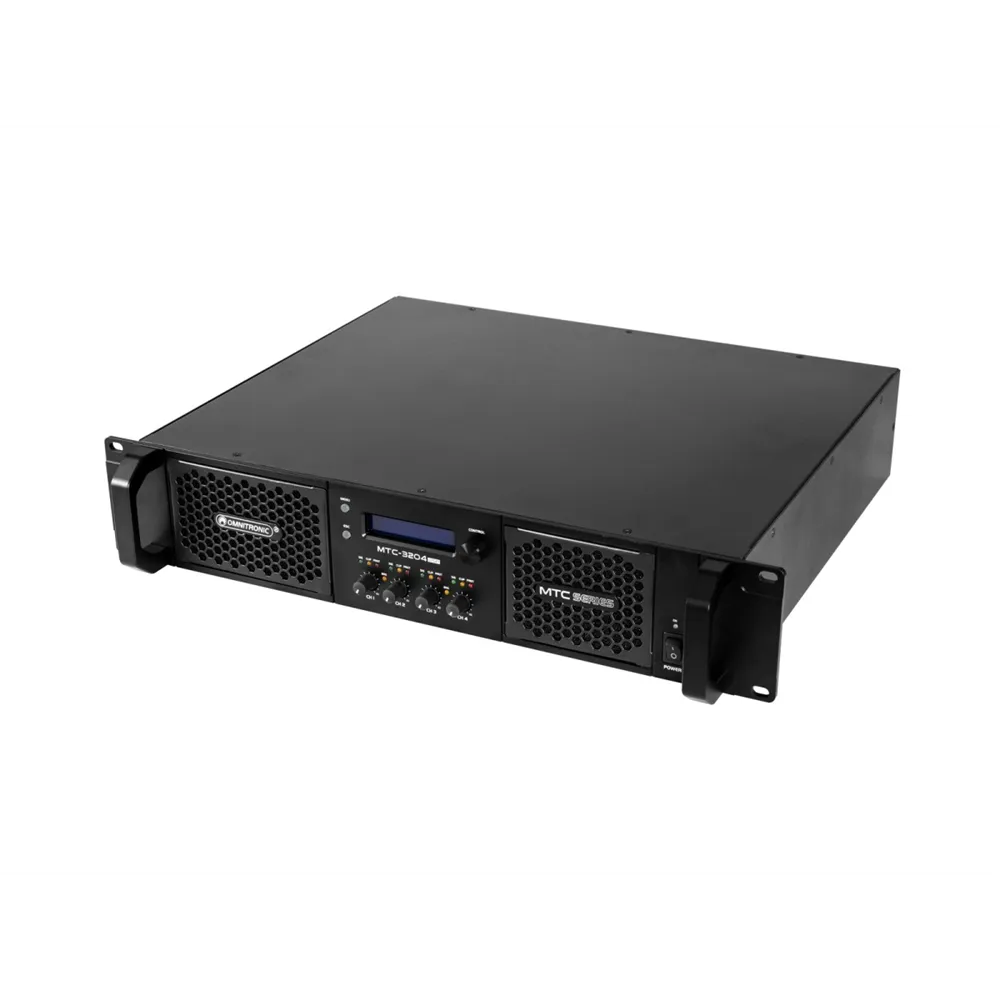

OMNITRONIC MTC-3204DSP 4-Channel Power Amplifier with DSP

The OMNITRONIC MTC-3204DSP is a powerful 4-channel PA amplifier equipped with state-of-the-art DSP technology. With an output power of up to 4 x 800 W RMS at 4 ohms and 4 x 400 W RMS at 8 ohms, it delivers impressive performance for any event. Thanks to its efficient Class-D technology and integrated switch-mode power supply, the weight remains low and the height compact, making it ideal for rack mounting.

The integrated Ethernet interface allows for easy network connectivity and control via user-friendly software. Up to 100 user presets can be saved and managed, while the parametric 10-band equalizer per input and output ensures precise sound shaping. With various filter types and a digital signal processor (FIR filter), you can customize the sound to your preferences.

The MTC-3204DSP is perfect for clubs, dance schools, mobile DJs, restaurants, and many other applications. With a robust housing, temperature-controlled fan cooling, and comprehensive protection circuits, this amplifier is both powerful and reliable. Experience top-notch sound and control with the OMNITRONIC MTC-3204DSP!
