OMNITRONIC XDA-2402 Class-D Amplifier

Brand:

OMNITRONIC XDA-1204 4-Channel Class-D Amplifier

Features

Class D Stereo PA Amplifier with Switching Power Supply
2 x 1200 W RMS (4 Ohm), 2 x 880 W RMS (8 Ohm)
Lightweight and low profile due to integrated switching power supply
2 Level Controls
Electronically balanced inputs via XLR connectors with XLR loop-through outputs
Speaker outputs via lockable speaker connectors
Device cooling via fan
(19") 48.3 cm Rack Mountable, 1 U
Applications: Clubs/Dance Schools, Installations, Mobile Use, Mobile DJs/Entertainers, Restaurants, Bars and Hotels, Rental Services, Sports Centers/Fitness Studios
Power Supply: 100-240 V AC, 50/60 Hz
Total Power Consumption: 465 W at 1/8 Power
Protection Class: Class I
Frequency Range: 30 - 20,000 Hz
Signal-to-Noise Ratio: >100 dB
Cooling: Fan
Input Impedance: 20 kOhm (balanced), 10 kOhm (unbalanced)
Housing Color: Matte Black
Circuitry: Class D
Controls: Power Switch, Volume Control per Channel, Ground Lift Switch
Protection Circuit: Short Circuit, Overheating, DC, Inrush Transients, Soft Start, Power-On Delay, Limiter
Status LEDs: Power, Signal, Limit, Protect

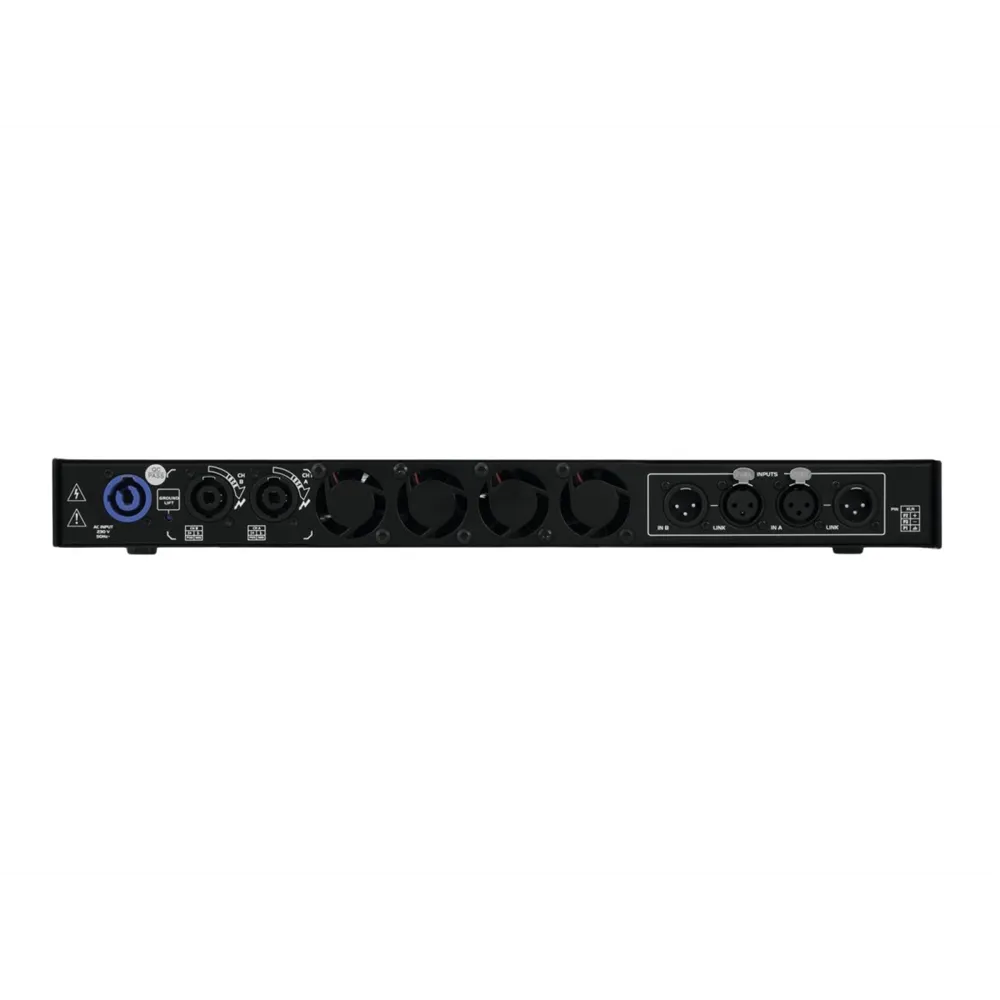

Connections: Input: Line via 2 x 3-pin XLR, Link: Line via 2 x 3-pin XLR, Output: Speaker via 2 x Speaker Connector (W)
Input Sensitivity: 1.25 V
Dimensions: Width: 48.3 cm, Depth: 35.5 cm, Height: 4.45 cm
Weight: 6.40 kg

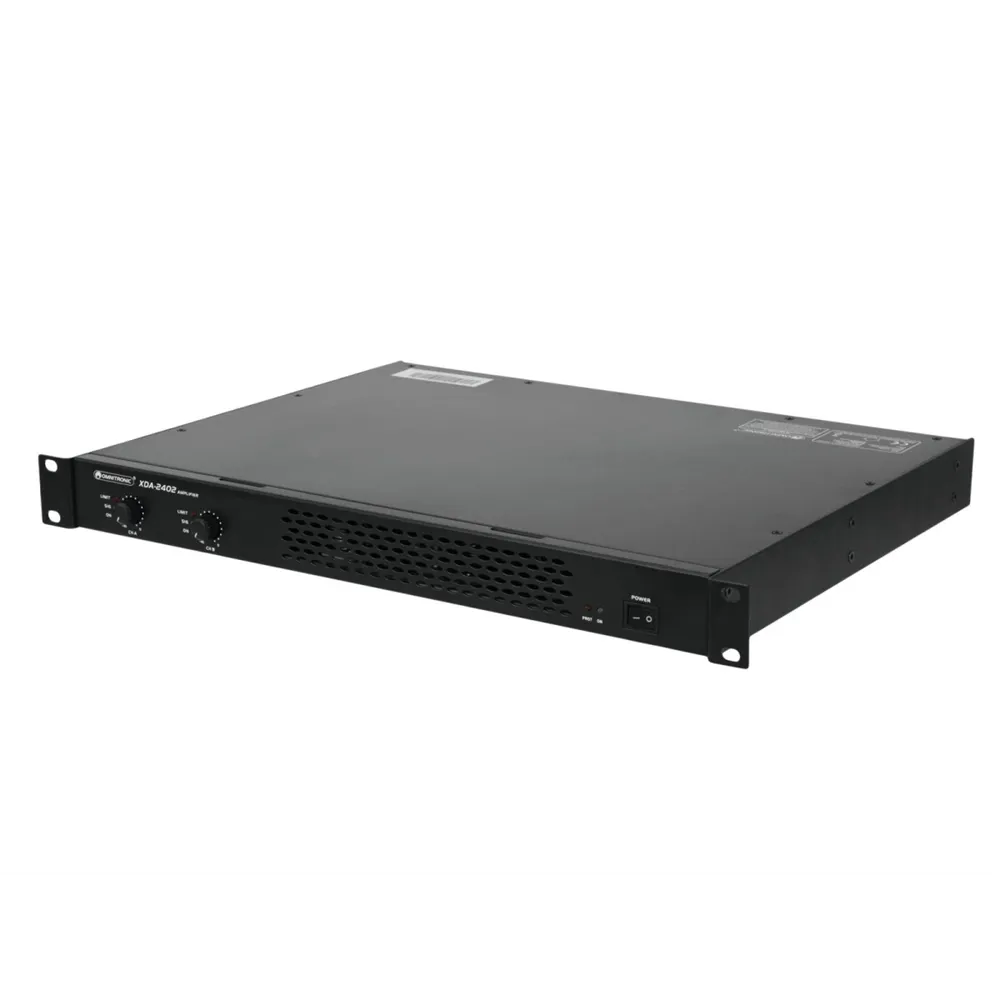

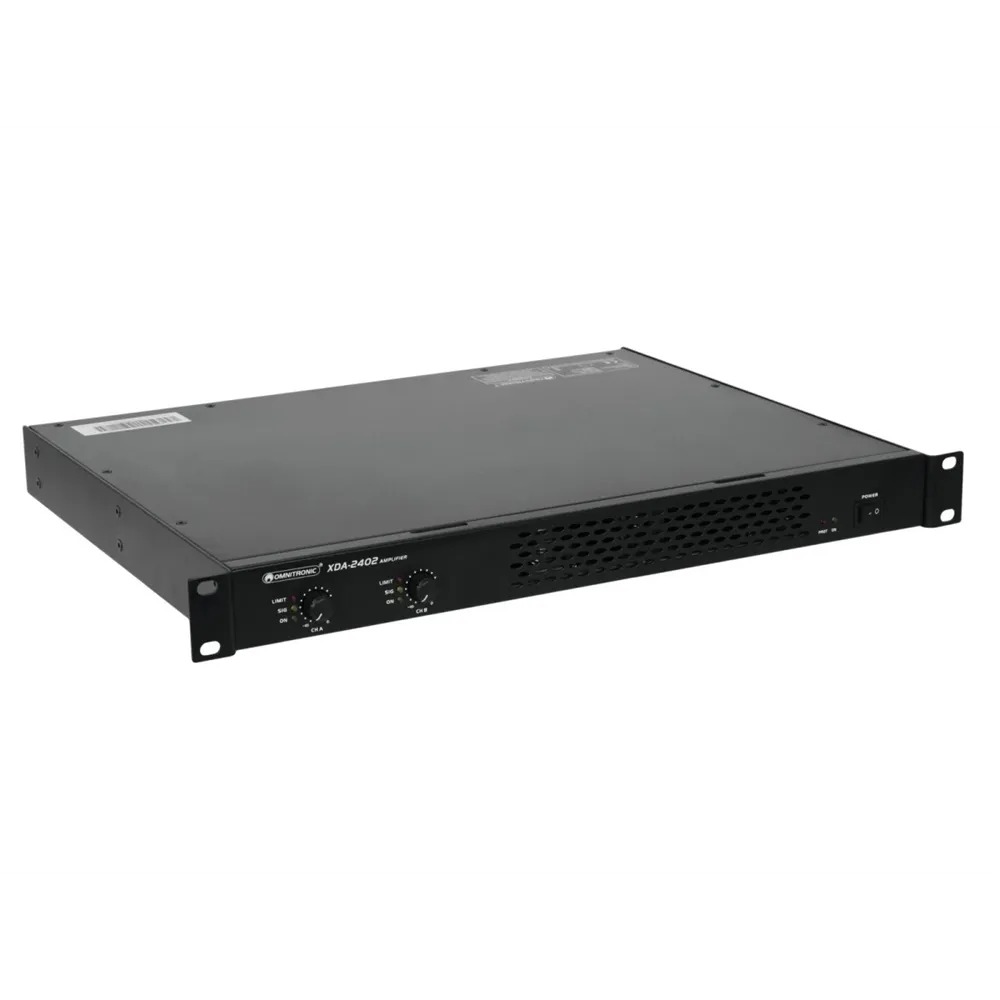

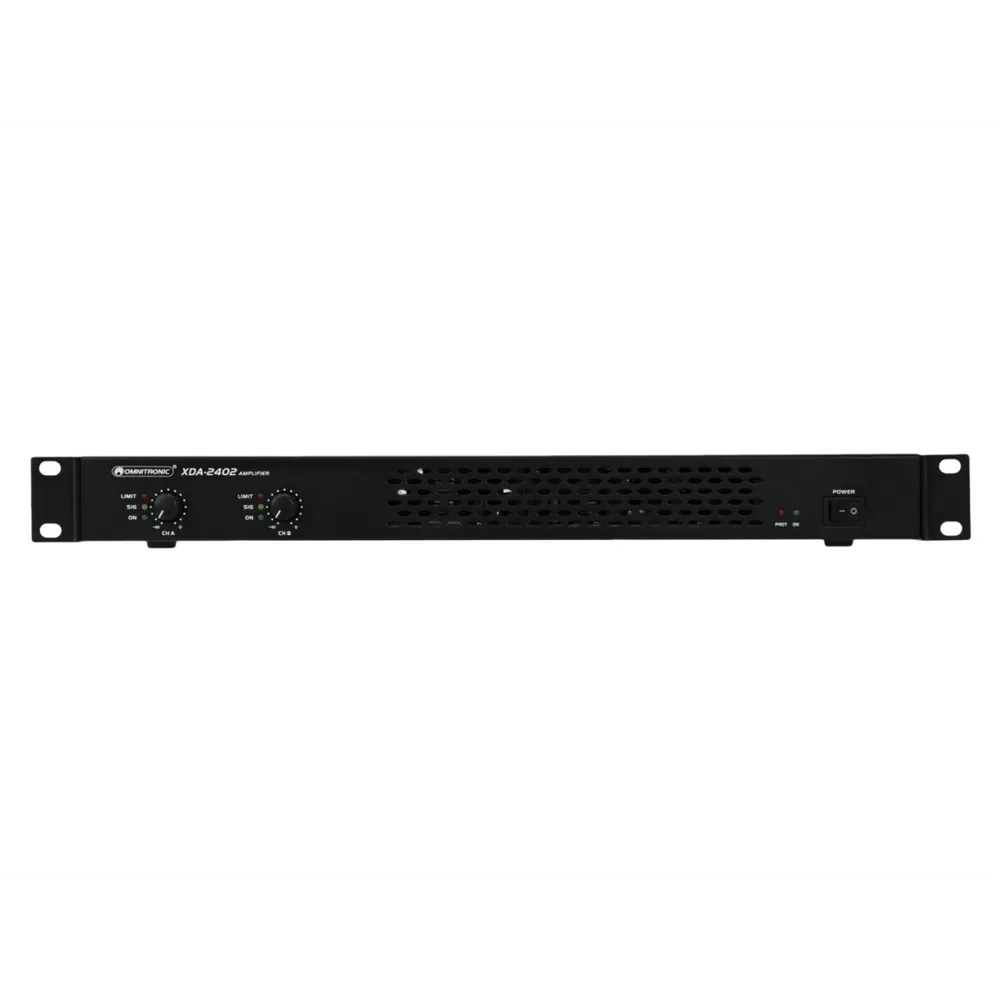

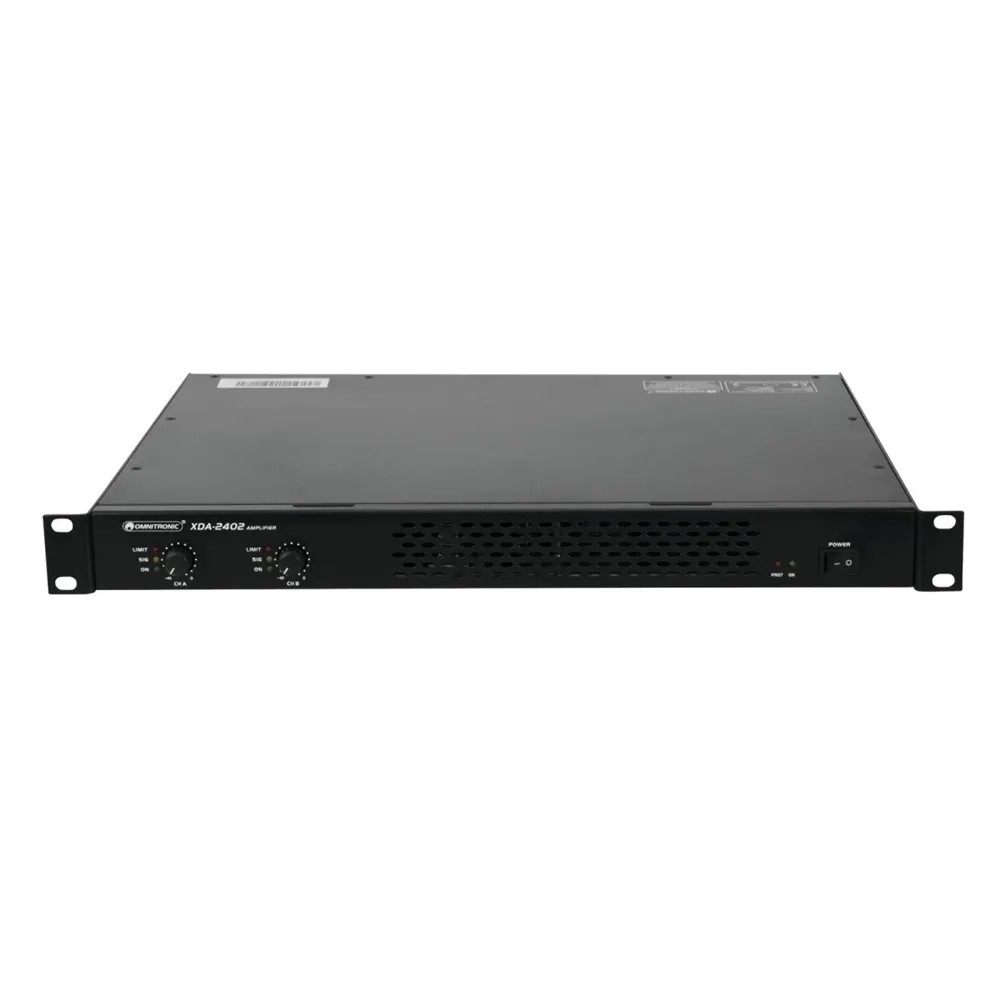

OMNITRONIC XDA-2402 Class-D Amplifier

The OMNITRONIC XDA-2402 is a powerful Class-D stereo PA amplifier equipped with a modern switch-mode power supply, delivering an impressive 2 x 1200 W RMS at 4 Ohms and 2 x 880 W RMS at 8 Ohms. With its lightweight design and compact height, it is ideal for mobile applications, clubs, dance schools, and installations in restaurants, bars, and hotels.

High-quality Class-D technology for efficient performance
2 level controls for individual volume adjustment
Electronically balanced inputs via XLR connectors with loop-through outputs
Robust, lockable speaker outputs
Efficient cooling through integrated fan
19" rack mountable (1U) for easy integration into existing systems

The amplifier offers a wide frequency response from 30 to 20,000 Hz and a signal-to-noise ratio of over 100 dB, making it the perfect choice for professional applications. The protection circuits ensure safety and longevity, while the status LEDs allow for easy monitoring of operational status. Included in the package are the amplifier, a user manual, and a power cable.
