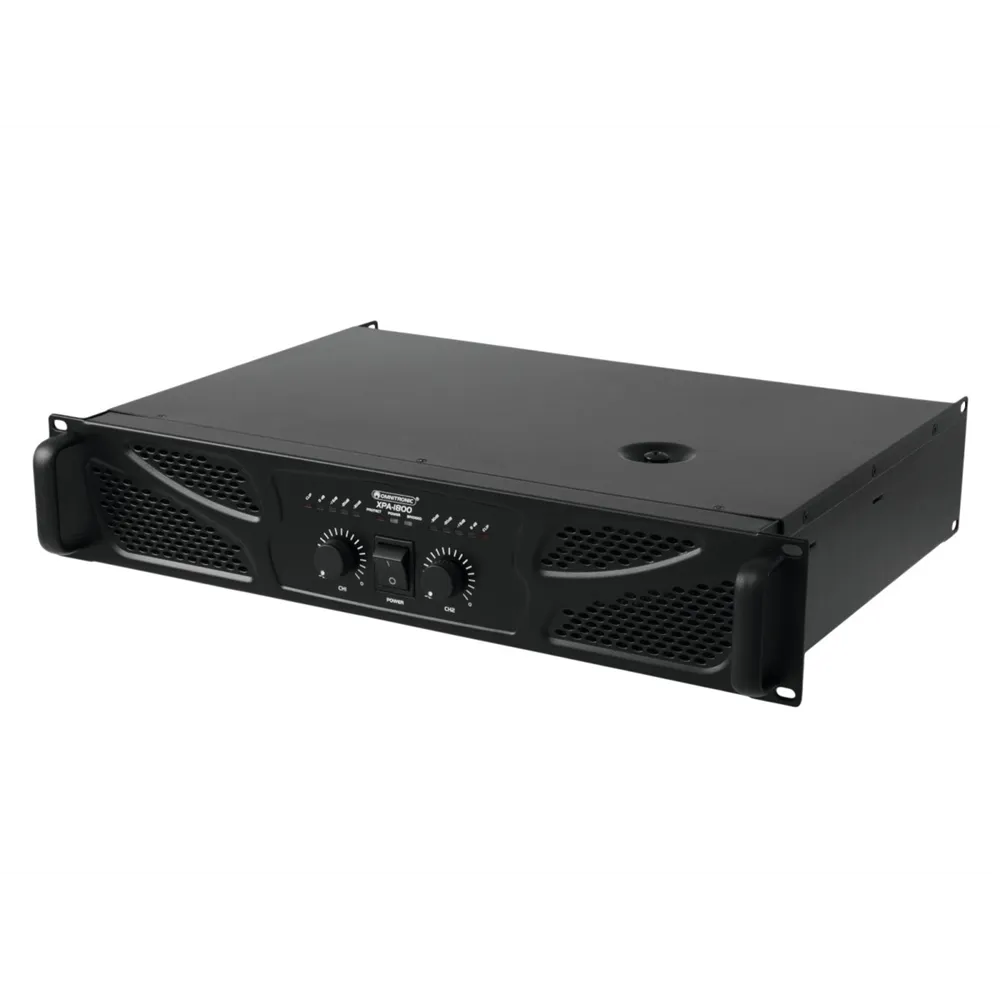

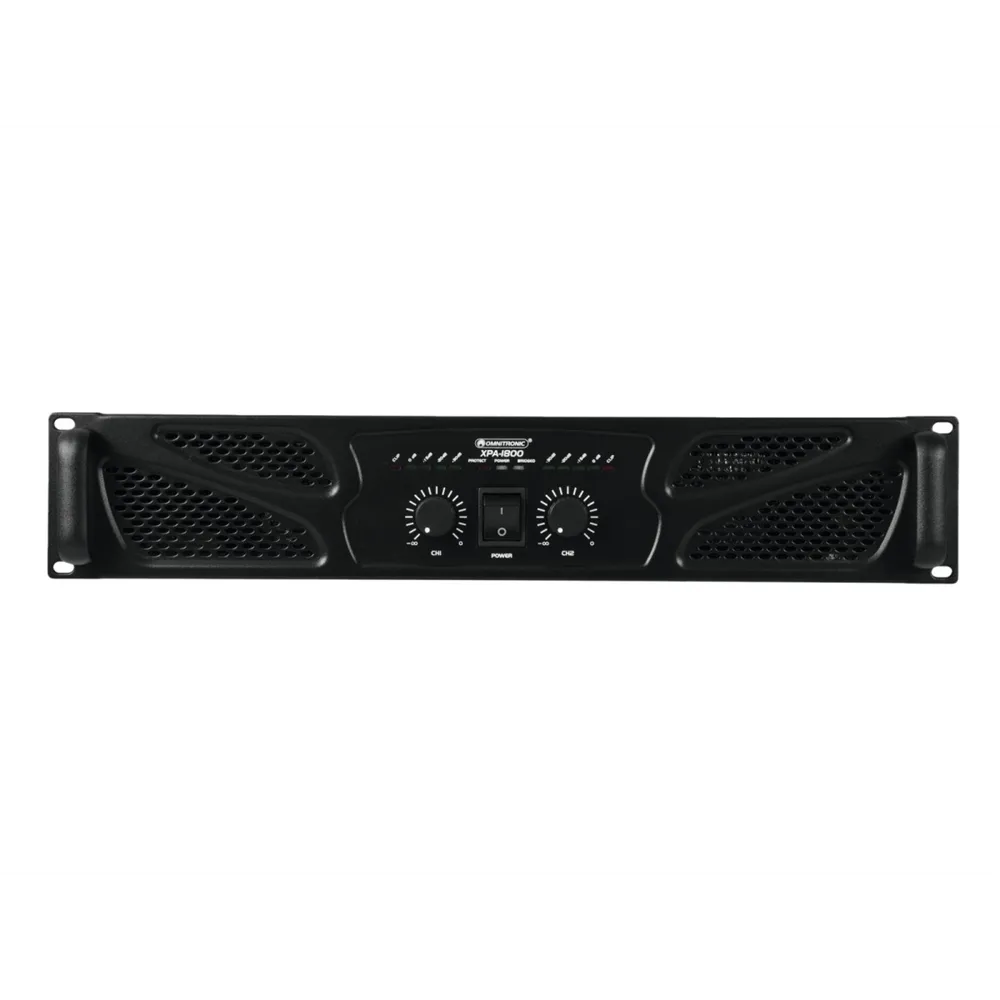

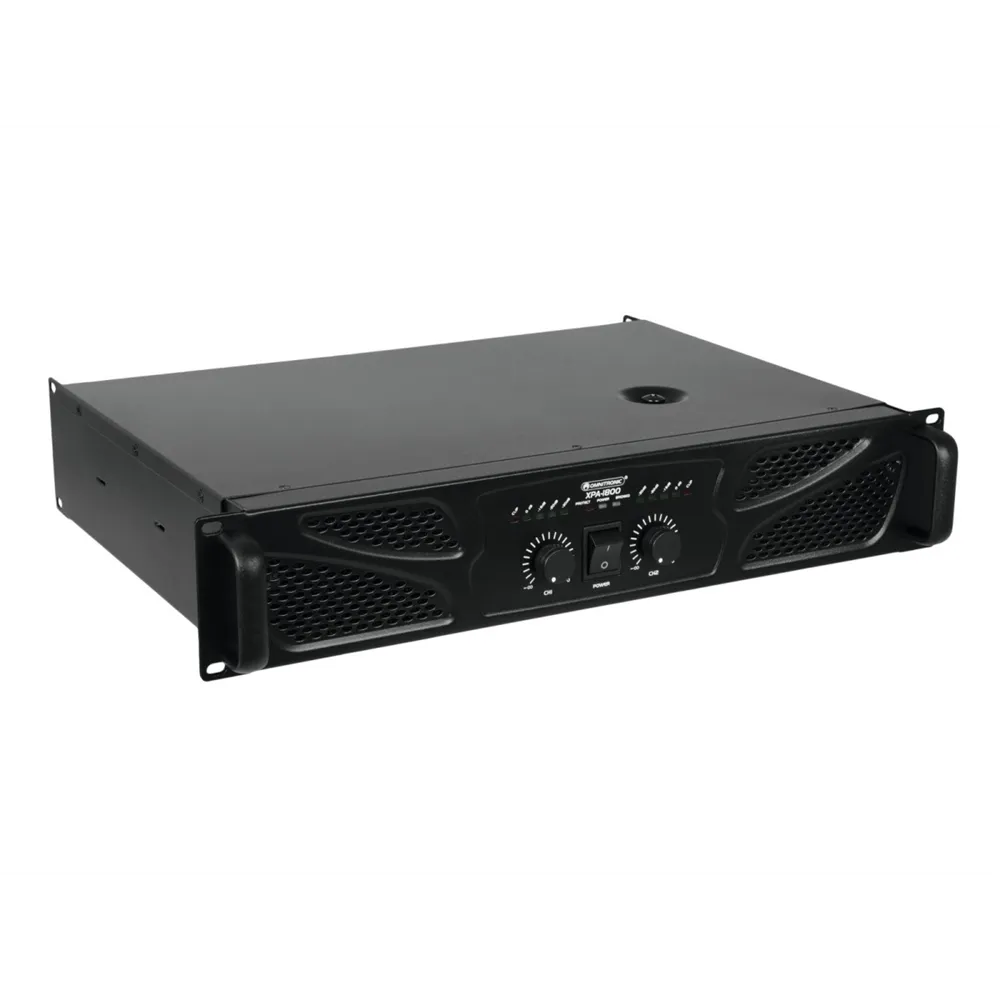

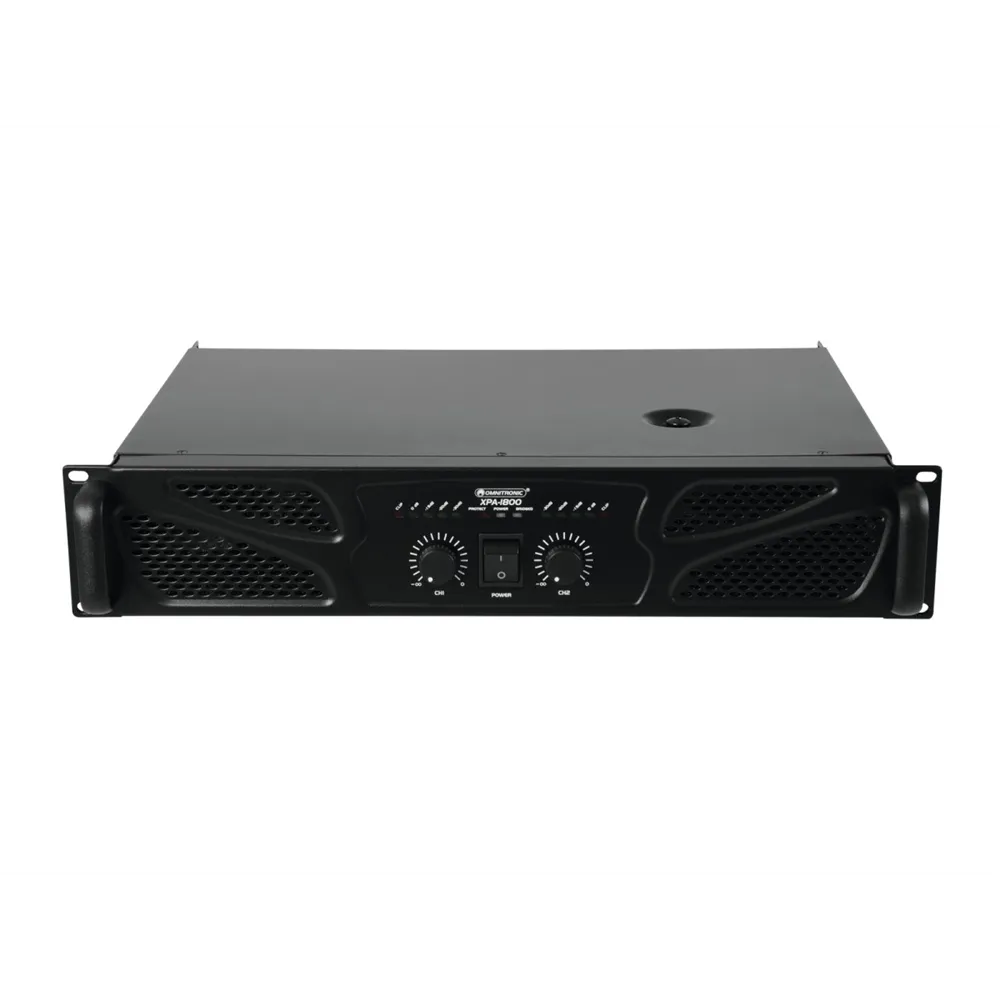

OMNITRONIC XPA-1800 Power Amplifier

Features

• Class H Stereo PA Amplifier with Limiter, 2 x 900 W RMS (4 Ohm), 2 x 650 W RMS (8 Ohm)
• 3 selectable operating modes (Stereo, Parallel, or Bridged)
• Adjustable input sensitivity
• 2 level controls
• Per channel LED indicators for activated protection circuit (Protect) and 5-level output display with clip LED
• Signal inputs via XLR and RCA connectors
• Speaker outputs via lockable speaker sockets and screw terminal pairs
• Class H architecture
• High-efficiency airflow from front to back
• Device cooling via temperature-controlled fans
• (19") 48.3 cm rack mountable, 2 HE
• Suitable for applications such as clubs/dance schools, installations, mobile use, mobile DJs/entertainers, restaurants, bars, hotels, rental services, sports centers/gyms
• Power supply: 230 V AC, 50 Hz
• Total power consumption: 765 W at 1/8 power
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >100 dB
• Cooling: 2 x temperature-controlled fans, airflow from front to back
• Impedance: Input: 20 kOhm, balanced / Input: 10 kOhm, unbalanced
• Circuitry: Class H
• Rise times: >10 V/µs
• Damping factor: >200
• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Parallel/Bridged), input sensitivity switch
• Protection circuitry: Short circuit, overheating, DC, inrush transients, soft start, turn-on delay
• Status LEDs: Power, level display, clip, bridged, protect

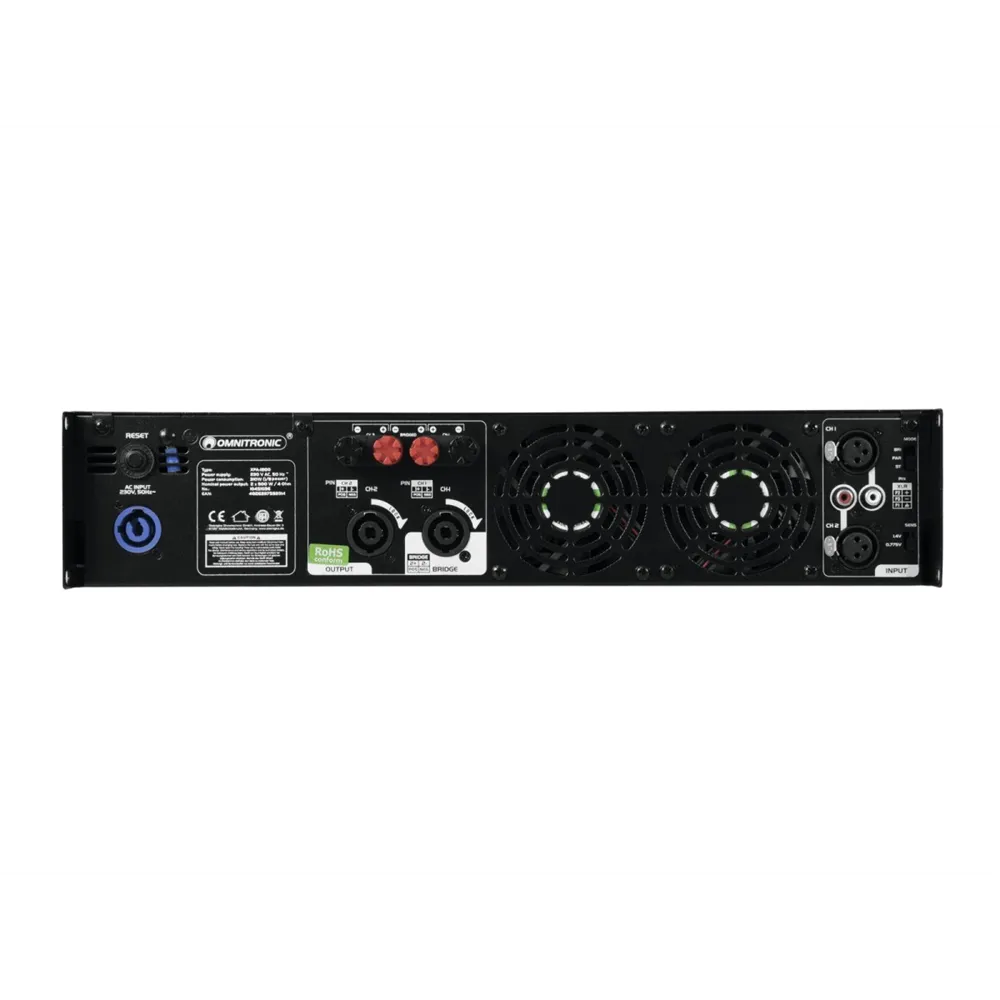

• Connections: Input: Line via 2 x 3-pin XLR, Input: Line via 1 x stereo RCA, Output: Speaker via 2 x speaker mounting socket (W), Output: Speaker via screw terminal
• Input sensitivity: 0.775 V; 1.4 V, switchable
• Dimensions: Width: 48.3 cm, Depth: 35.4 cm, Height: 8.9 cm
• Weight: 14.65 kg
