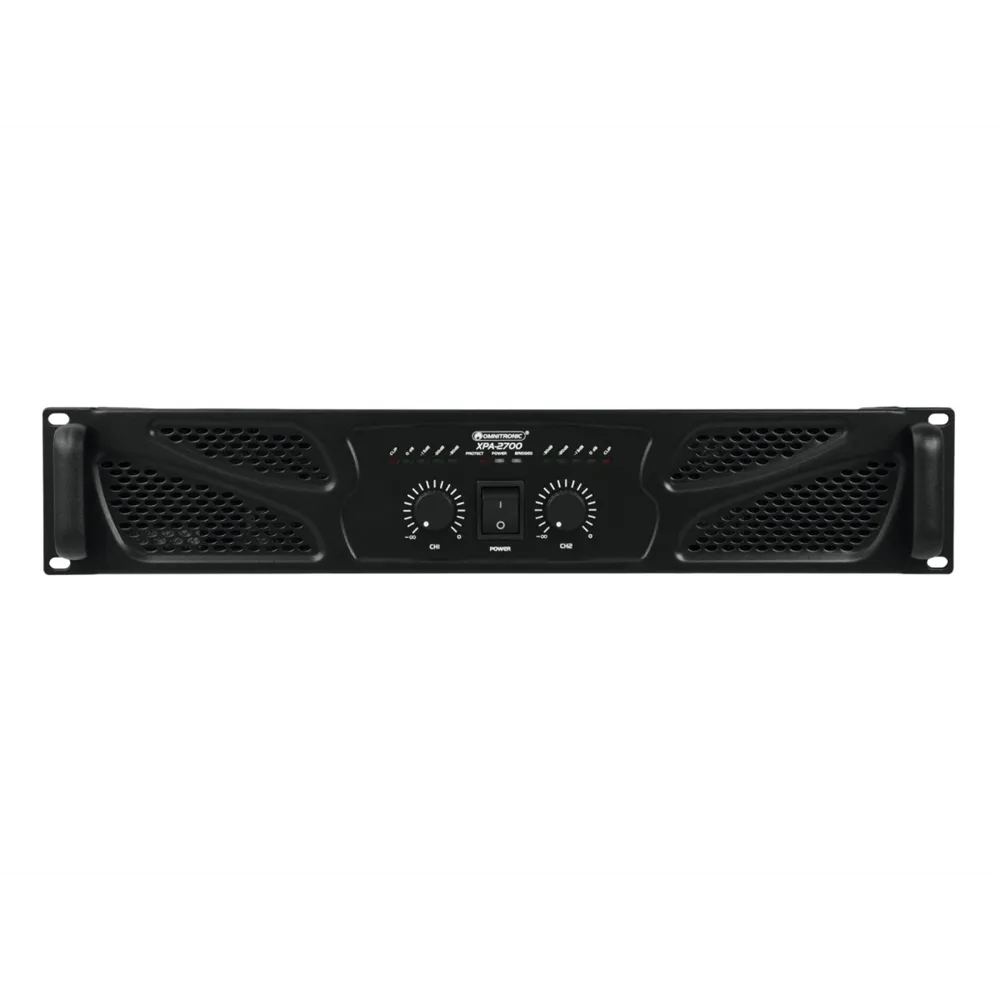

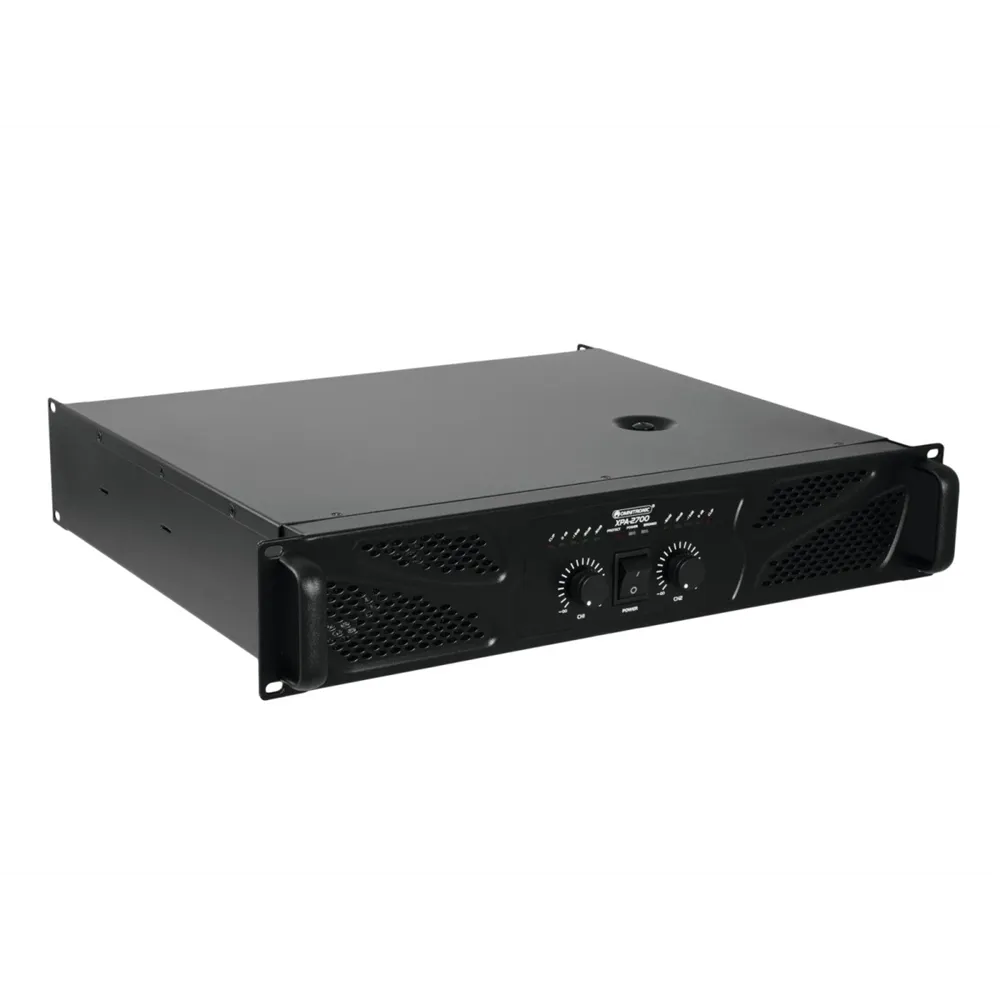

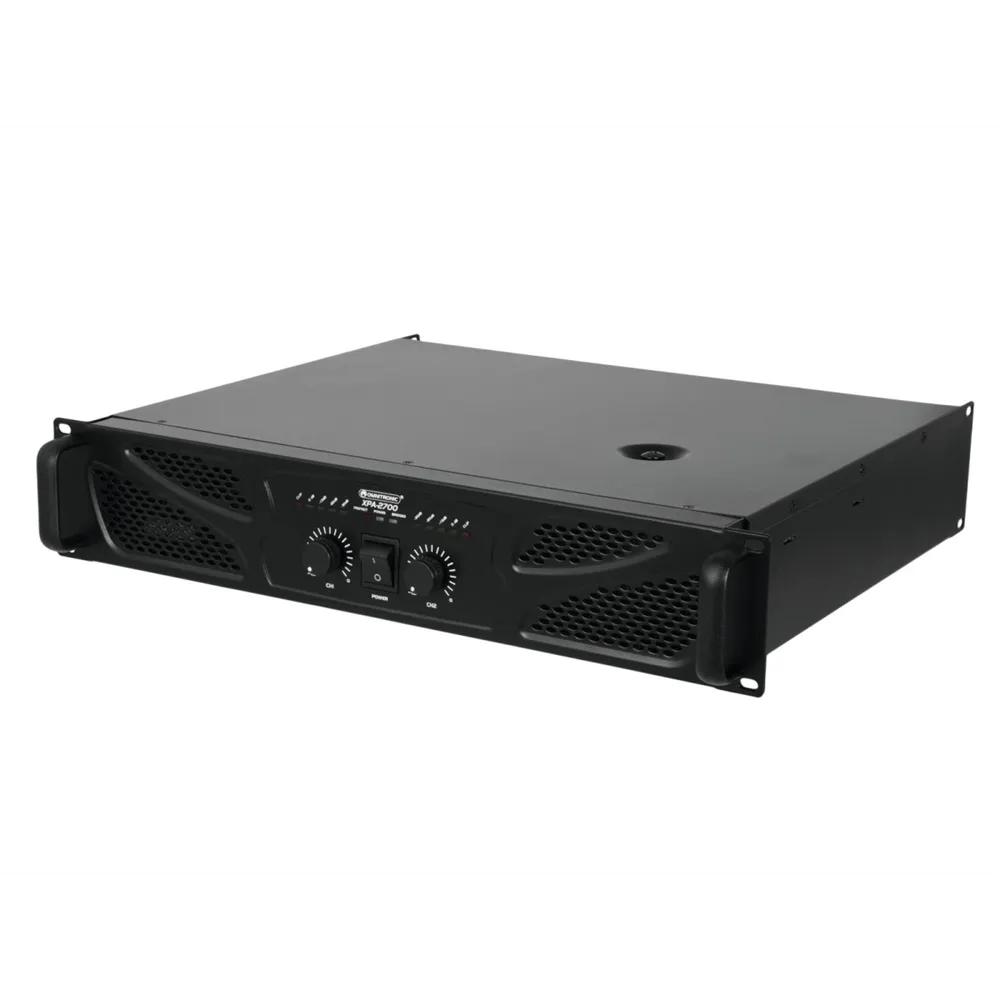

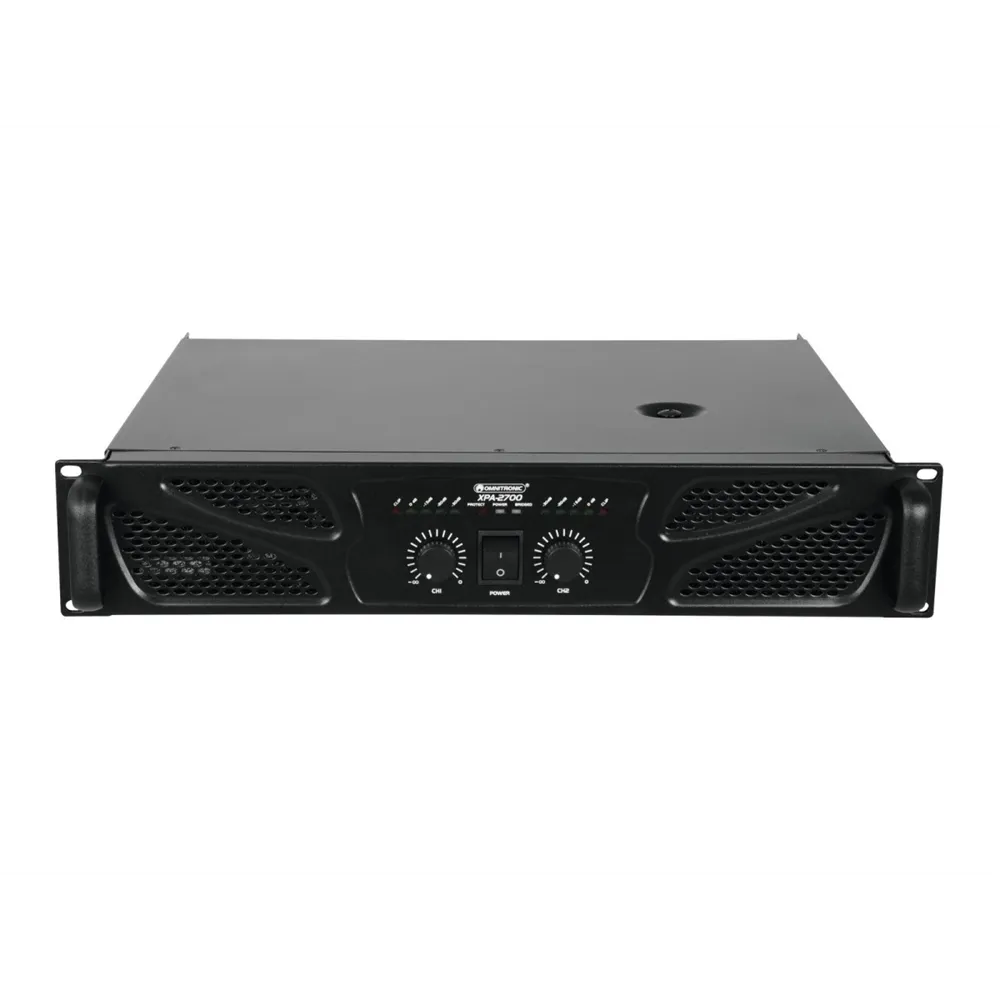

OMNITRONIC XPA-2700 Power Amplifier

Features

• Class H Stereo PA Amplifier with Limiter, 2 x 1350 W RMS (4 Ohm), 2 x 1080 W RMS (8 Ohm)
• 3 selectable operating modes (Stereo, Parallel, or Bridged)
• Adjustable input sensitivity
• 2 level controls
• Per channel LED indicators for activated protection circuit (Protect) and 5-level output level display with Clip LED
• Signal inputs via XLR and RCA connectors
• Speaker outputs via lockable speaker sockets and screw terminal pairs
• Class H architecture
• Device cooling via fan
• (19") 48.3 cm rack mountable, 2 HE
• Applications: Clubs/Dance Schools; Installations; Mobile Use; Mobile DJs/Entertainers; Restaurants, Bars, and Hotels; Rental Services; Sports Centers/Fitness Studios
• Power Supply: 230 V AC, 50 Hz
• Total connection value: 700 W at 1/8 Power
• Frequency Range: 20 - 20,000 Hz
• Signal-to-noise ratio: >100 dB
• Cooling: Fan
• Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
• Circuitry: Class H
• Rise times: >10 V/µs
• Damping factor: >200
• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Parallel/Bridged), input sensitivity switch
• Protection circuitry: Short circuit; Overheating; DC; Inrush transients; Soft start; Power-on delay
• Status LEDs: Power, Level Indicator, Clip, Bridged, Protect

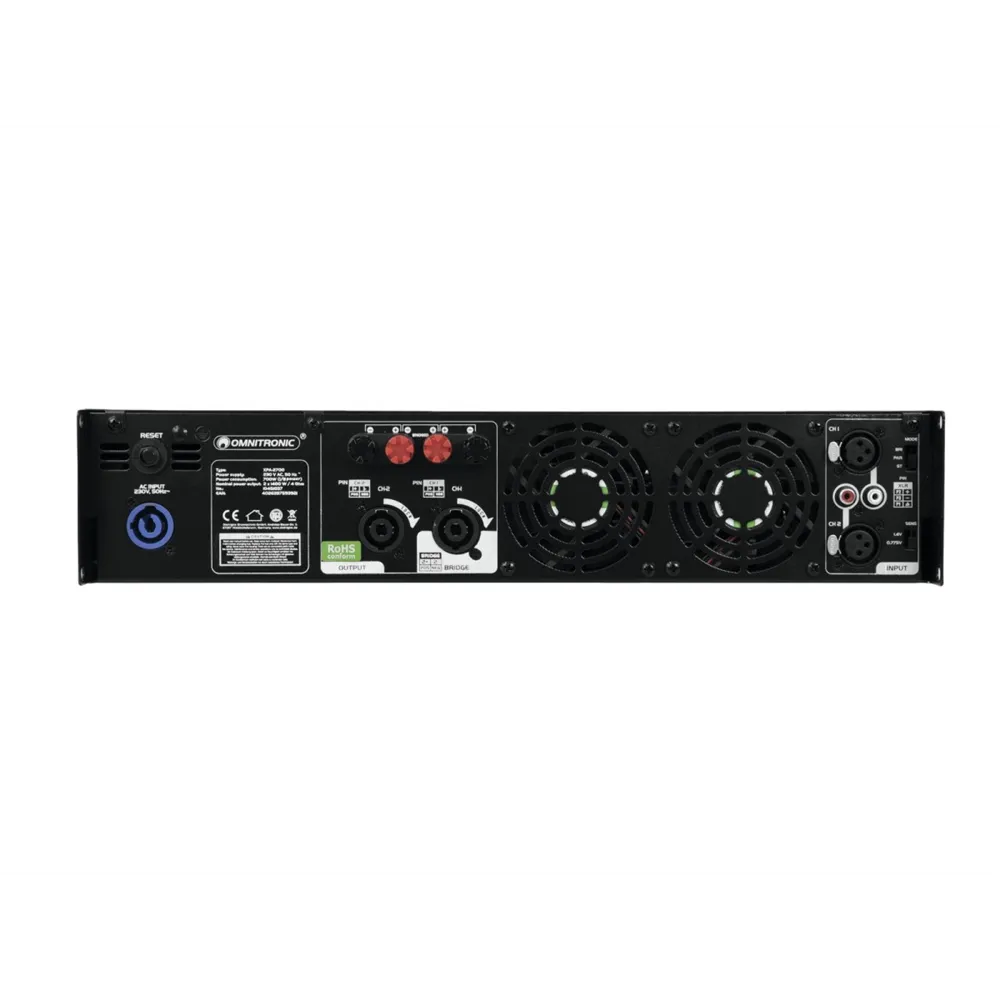

• Connections: Input: Line via 2 x 3-pin XLR; Input: Line via 1 x Stereo RCA; Output: Speaker via 2 x Speaker mounting socket (W); Output: Speaker via screw terminal
• Input sensitivity: 0.775 V; 1.4 V, switchable
• Dimensions: Width: 48.3 cm; Depth: 41.5 cm; Height: 8.9 cm
• Weight: 15.70 kg
