OMNITRONIC XPA-1200 Power Amplifier

Features

• Class AB Stereo PA Amplifier with Limiter, 2 x 610 W RMS (4 Ohm), 2 x 420 W RMS (8 Ohm)
• 2 selectable operating modes (Stereo or Bridge)
• 2 level controls
• Per channel LED indicators for activated protection circuit (Protect) and 5-level output level display with Clip LED
• Signal inputs via XLR or 1/4" TRS connectors

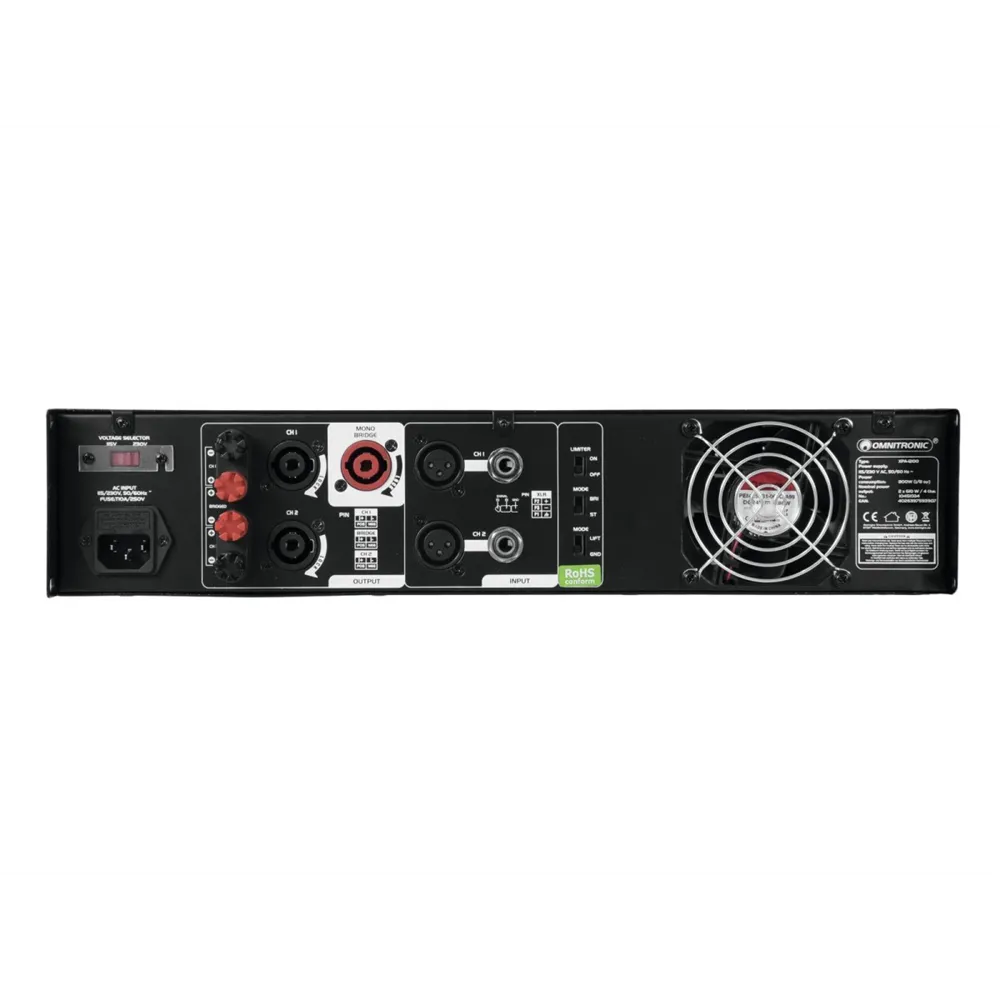

• Speaker outputs via locking speaker connectors and screw terminal pairs
• Additional speaker connector for 8-ohm bridge operation
• Class AB architecture
• High-efficiency airflow from front to back
• Device cooling via temperature-controlled fan
• (19") 48.3 cm rack mountable, 2U
• Suitable for applications such as clubs/dance schools, installations, mobile use, mobile DJs/entertainers, restaurants, bars, hotels, rental services, sports centers/gyms
• Power supply: 115/230 V AC, 50/60 Hz
• Total power consumption: 800 W at 1/8 power
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >95 dB
• Cooling: 1 x temperature-controlled fan, airflow from front to back
• Impedance: Input: 20 kOhm, balanced / Input: 10 kOhm, unbalanced
• Rise times: >20 V/µs
• Damping factor: >350
• Controls: Power switch, volume control per channel, ground lift switch, limiter switch, operating mode switch (Stereo/Bridge)
• Protection circuitry: Short circuit, overheating, DC, turn-on transients, soft start
• Status LEDs: Power, level display, clip, bridged, protect
• Input sensitivity: 1.4 V
• Max level: Input: +21 dBV / Input: +9 V
• Enclosure type: (19") 48.3 cm rack mountable, 2U
• Dimensions: Width: 48.3 cm, Depth: 35.4 cm, Height: 8.9 cm
• Weight: 11.90 kg
