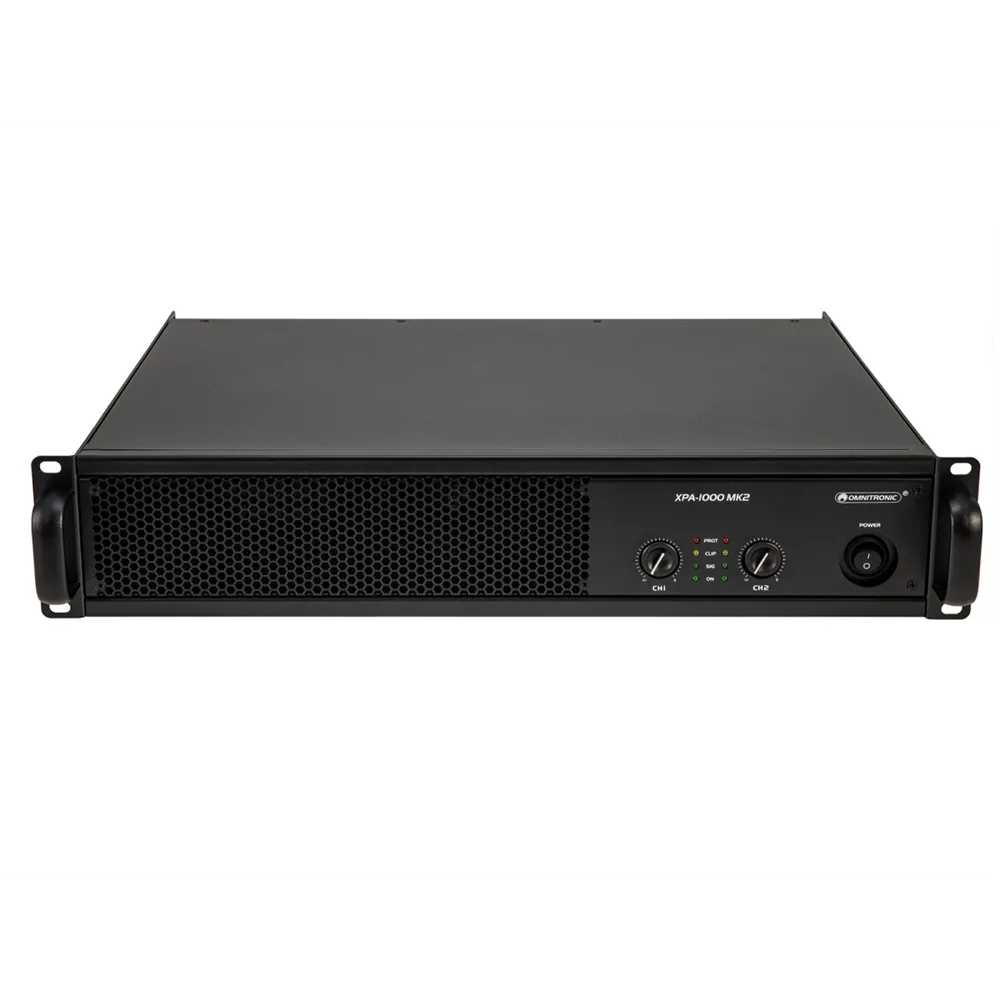

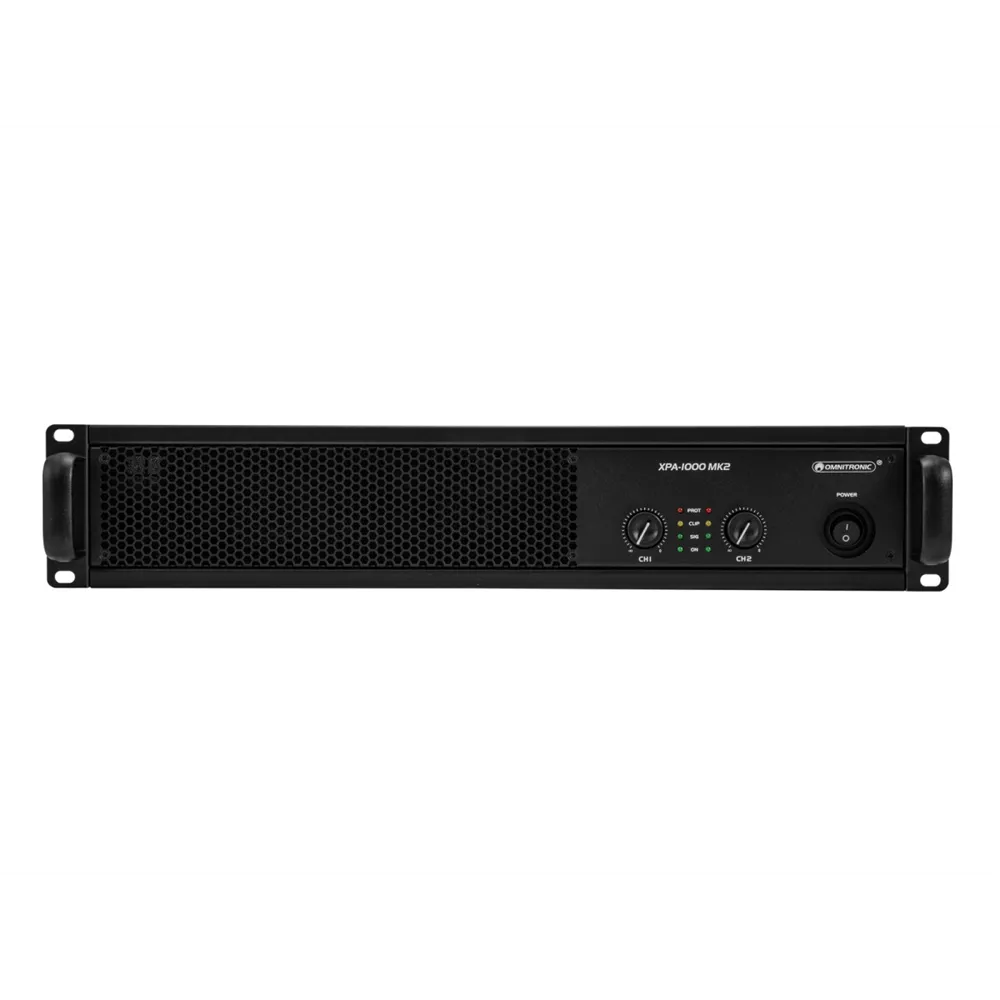

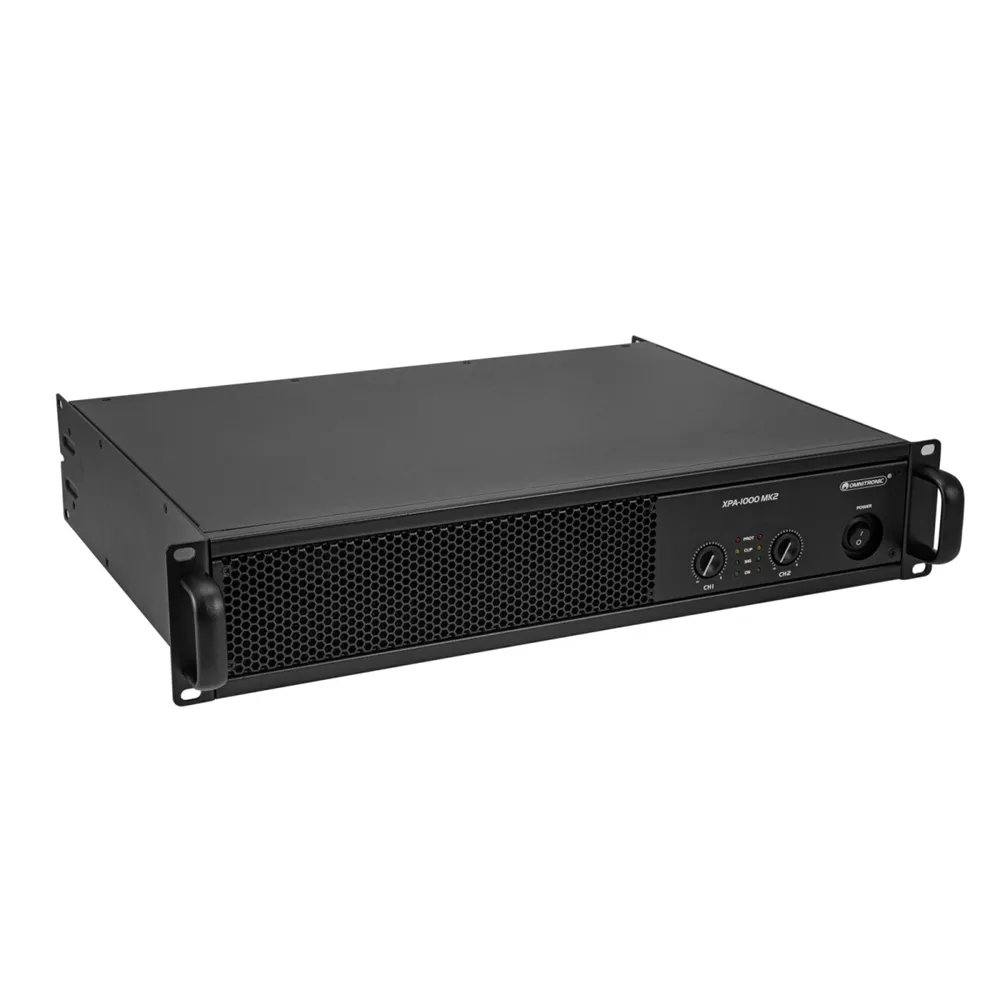

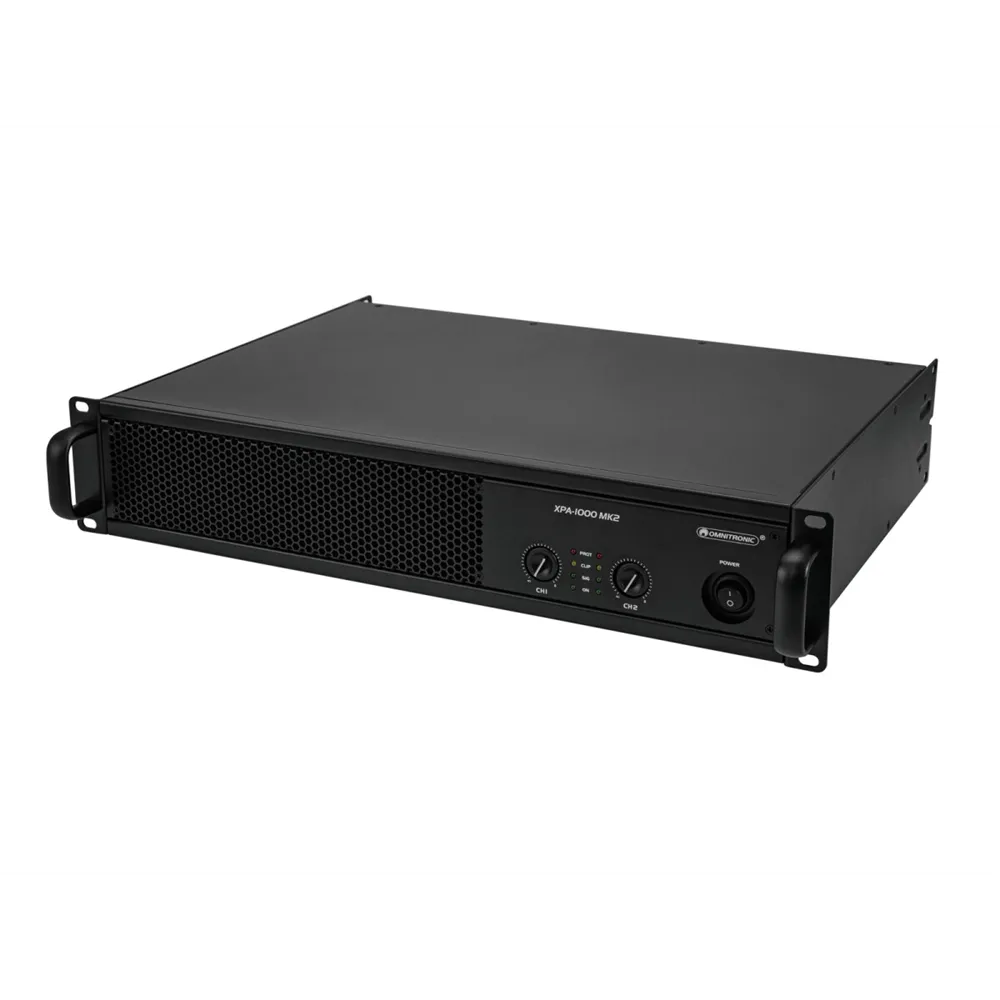

OMNITRONIC XPA-1000 MK2 Power Amplifier

Features

• Class AB Stereo PA Amplifier with Limiter, 2 x 500 W RMS (4 Ohm), 2 x 300 W RMS (8 Ohm)
• 2 Level Controls
• Signal Inputs via XLR and RCA Connectors
• Speaker Outputs via Lockable Speaker Connectors and Screw Terminal Pairs
• Class AB Architecture
• High-Efficiency Airflow from Front to Back
• Temperature-Controlled Fans for Device Cooling
• (19") 48.3 cm Rack Mountable, 2 HE
• Power Supply: 230 V AC, 50 Hz
• Total Power Consumption: 710 W at 1/8 Power
• Protection Class: IP20
• Safety Class: Class I
• Output Power: 2 x 500 W RMS (4 Ohm), 2 x 300 W RMS (8 Ohm), 1000 W RMS Bridged (8 Ohm)
• Power Connection via IEC Connector (M), Mounting Version with Protective Contact Plug Included
• Device Fuse: 5 x 20 mm, F 8 A, Service Replaceable
• Frequency Range: 20 - 20,000 Hz
• Signal-to-Noise Ratio: >95 dB
• Cooling: 2 x Temperature-Controlled Fans, Airflow from Front to Back
• Impedance: Input: 10 kOhm, Unbalanced; Input: 20 kOhm, Balanced
• Chassis Color: Black
• Circuit Type: Class AB
• Rise Times: >20 V/µs
• Damping Factor: >200
• Controls: Power Switch, Volume Control per Channel, Operating Mode Selector (Stereo/Parallel/Bridged)
• Protection Circuit: Soft Start; DC; VHF; Short Circuit; Limiter; Overheating
• Status LEDs: Power, Signal, Clip, Protect

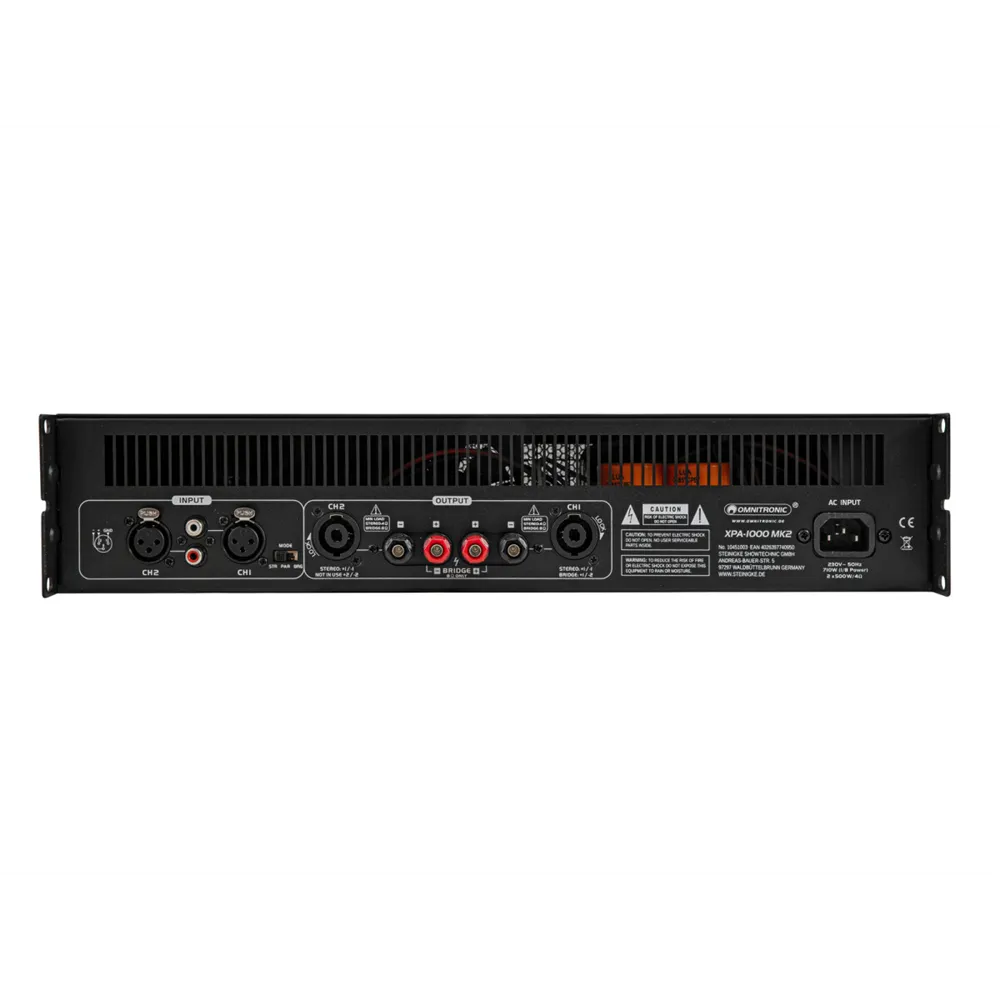

• Connections: Input: Line via 2 x 3-Pin XLR (F), Input: Line via Stereo RCA, Output: Speaker via 2 x Speaker Mounting Socket (F), Output: Speaker via Screw Terminal
• Input Sensitivity: 1 V
• Chassis Design: (19") 48.3 cm Rack Mountable, 2 HE
• Mounting Depth: 33.2 cm
• Dimensions: Width: 48.3 cm, Depth: 36.8 cm, Height: 8.8 cm
• Weight: 10.40 kg
