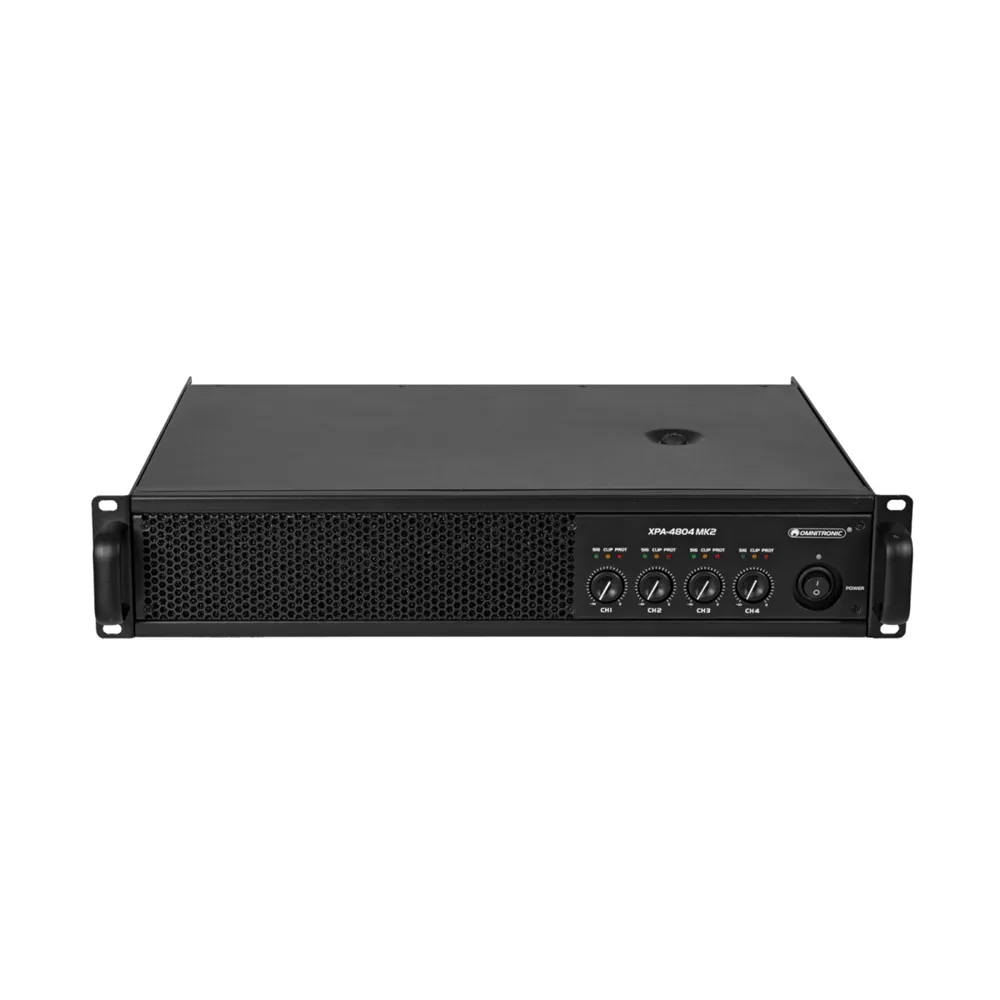

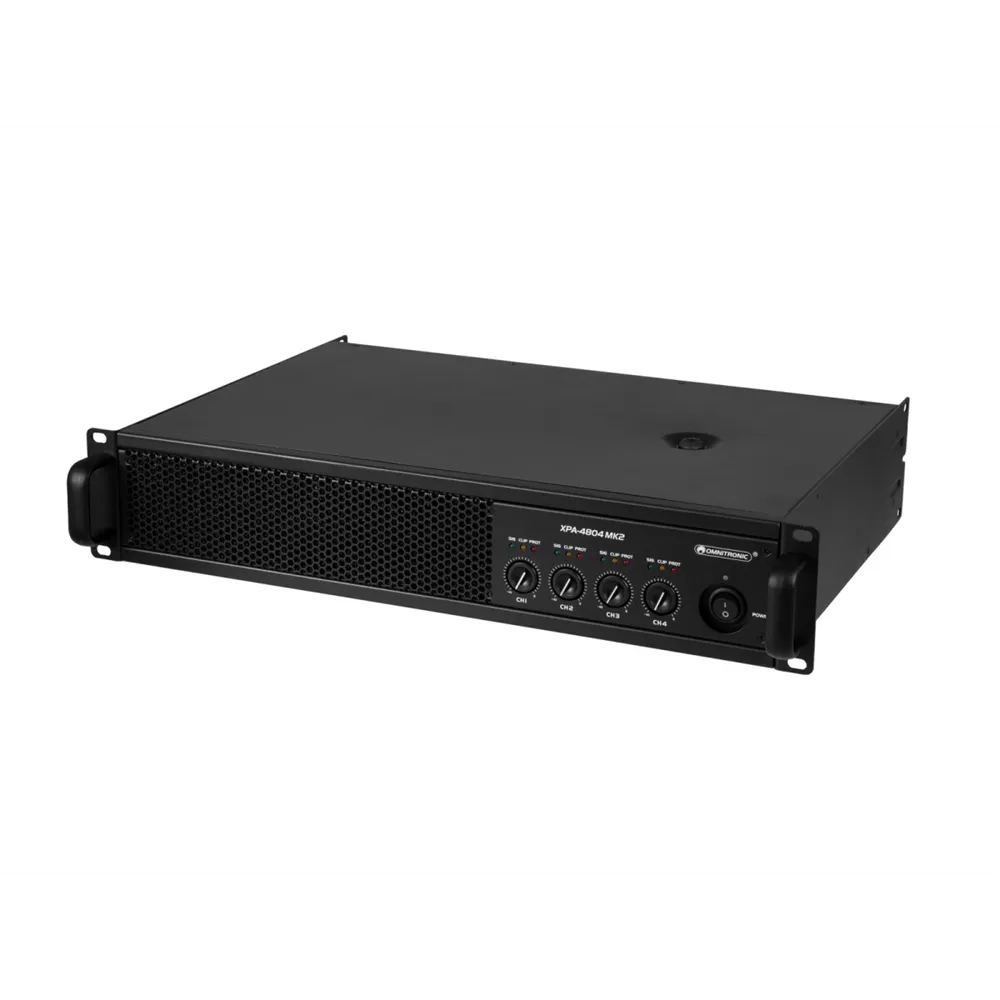

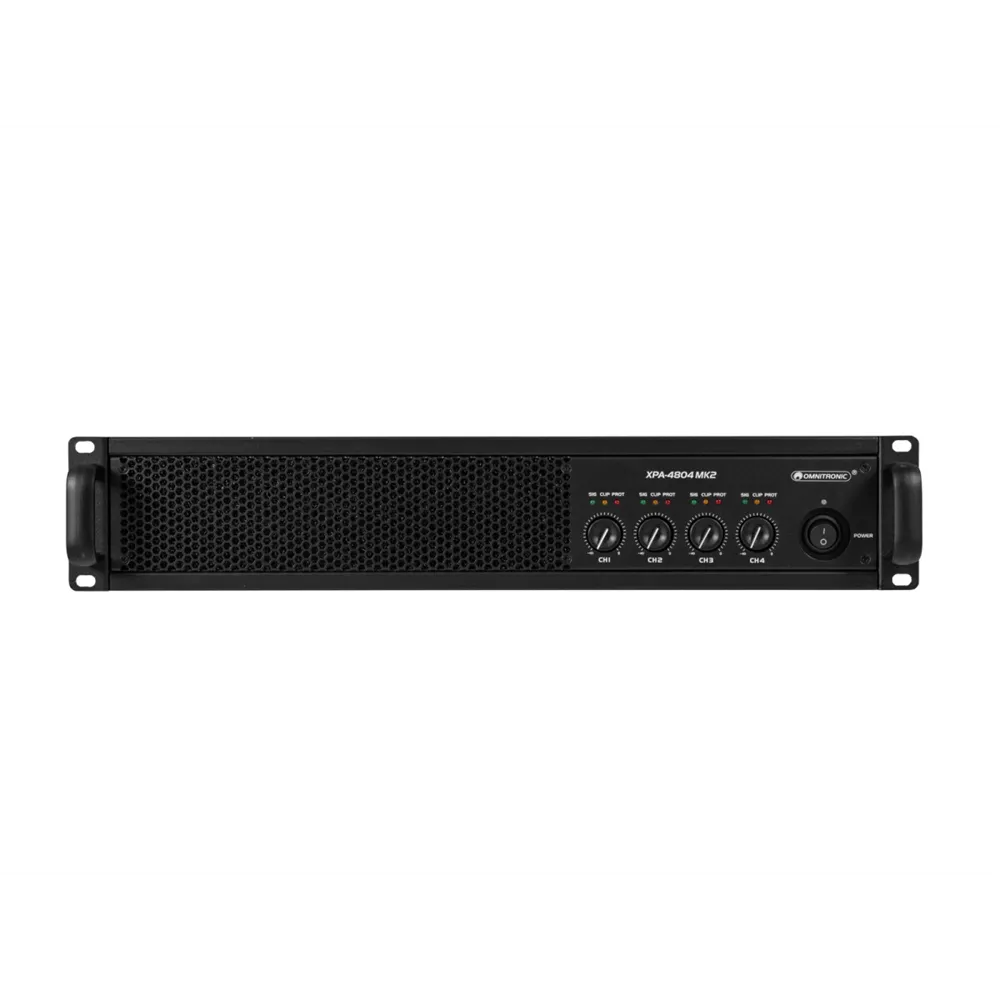

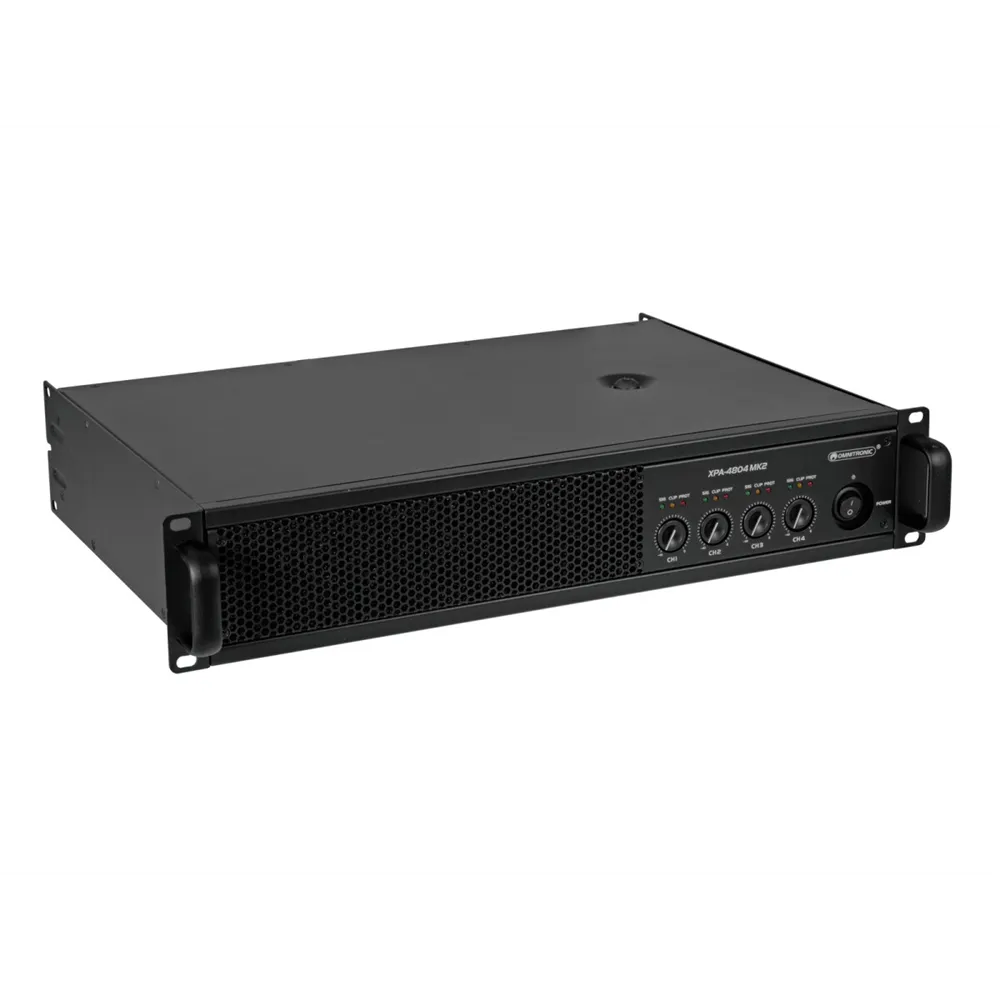

OMNITRONIC XPA-4804 MK2 Power Amplifier

Features

• Class D Stereo PA Amplifier with Limiter, 4 x 1800 W RMS (2 Ohm), 4 x 1200 W RMS (4 Ohm)
• Adjustable operating modes (Stereo, Parallel, or Bridged)
• Adjustable input sensitivity
• Level control per channel
• Electronically balanced inputs via XLR connectors with XLR loop-through outputs
• Speaker outputs via lockable speaker connectors
• High-efficiency airflow from front to rear
• Device cooling via fans
• (19") 48.3 cm rack mountable, 2 HE
• Suitable for applications such as clubs/dance schools, installations, mobile use, mobile DJs/entertainers, restaurants, bars, hotels, rental services, sports centers/gyms
• Power supply: 230 V AC, 50 Hz
• Total power consumption: 1380 W at 1/8 power
• Protection class: Class I
• Output power: 4 x 1800 W RMS (2 Ohm), 4 x 1200 W RMS (4 Ohm), 4 x 800 W RMS (8 Ohm), 2 x 2500 W RMS bridged (4 Ohm), 2 x 2400 W RMS bridged (8 Ohm)
• Power connection: Power input via IEC (C14) connector, includes power cable with protective contact plug
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >102 dB
• Cooling: 2 x fans, airflow from front to rear
• Impedance: Input: 20 kOhm balanced, Input: 10 kOhm unbalanced
• Gain: 40 dB/0.775 V, 38 dB/1 V, 32 dB/2 V
• Chassis color: Black
• Circuitry: Class D
• Rise times: >30 V/µs
• Damping factor: >500
• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Parallel/Bridged), input sensitivity switch
• Protection circuitry: Overheating, overload, short circuit, soft start, DC, VHF, current limiting, limiter
• Status LEDs: Power, Signal, Clip, Protect

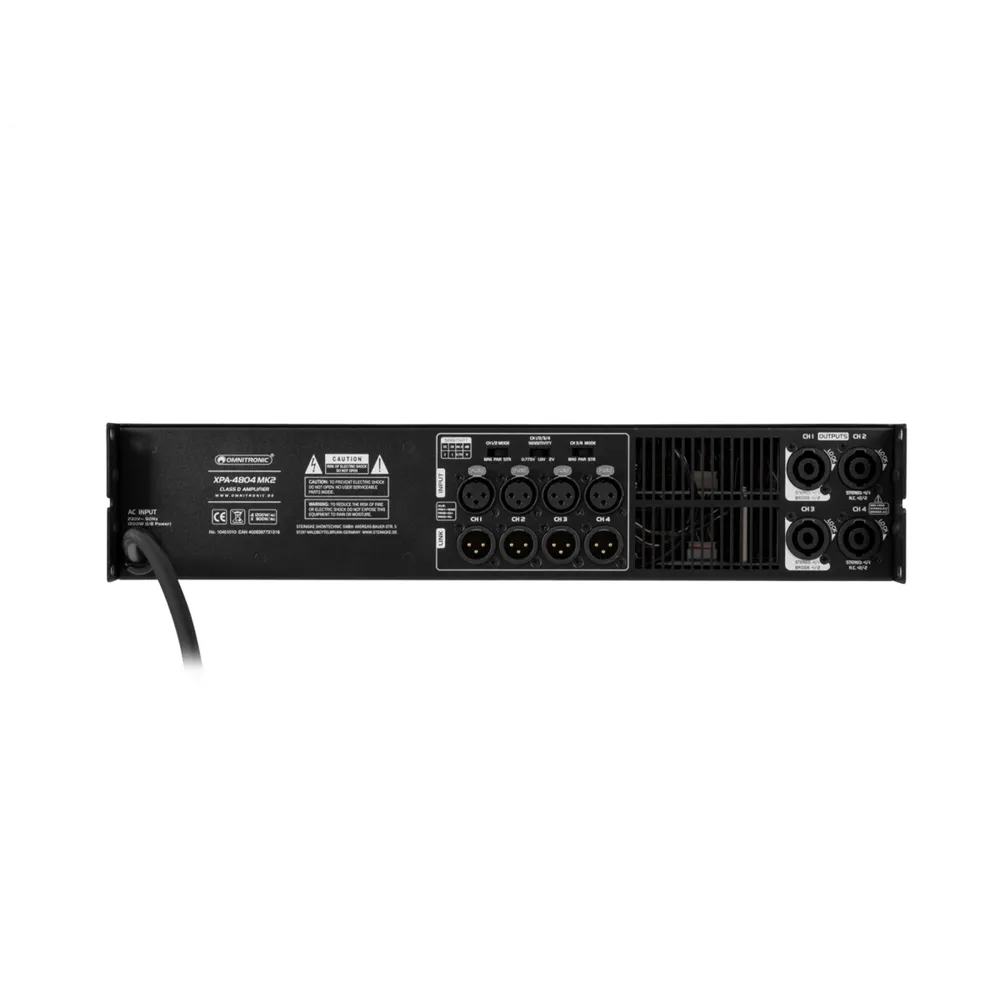

• Connections: Input: Line via 4 x 3-pin XLR (female) connectors, Link: Line via 4 x 3-pin XLR (male) connectors, Output: Speaker via 4 x speaker binding posts (female)
• Input sensitivity: 0.775 V, 1 V, 2 V, switchable
• Chassis design: (19") 48.3 cm rack mountable, 2 HE
• Dimensions: Width: 48.3 cm, Depth: 33.0 cm, Height: 8.8 cm
• Weight: 14.20 kg
