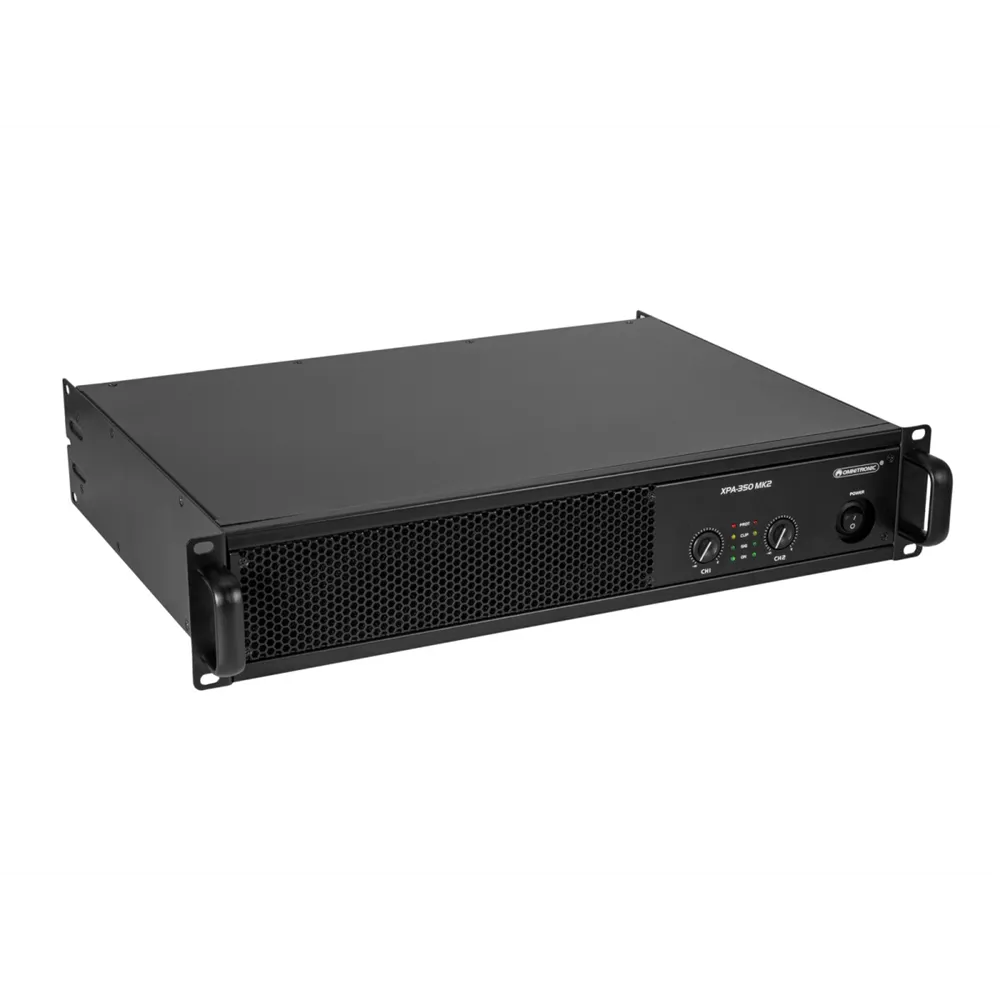

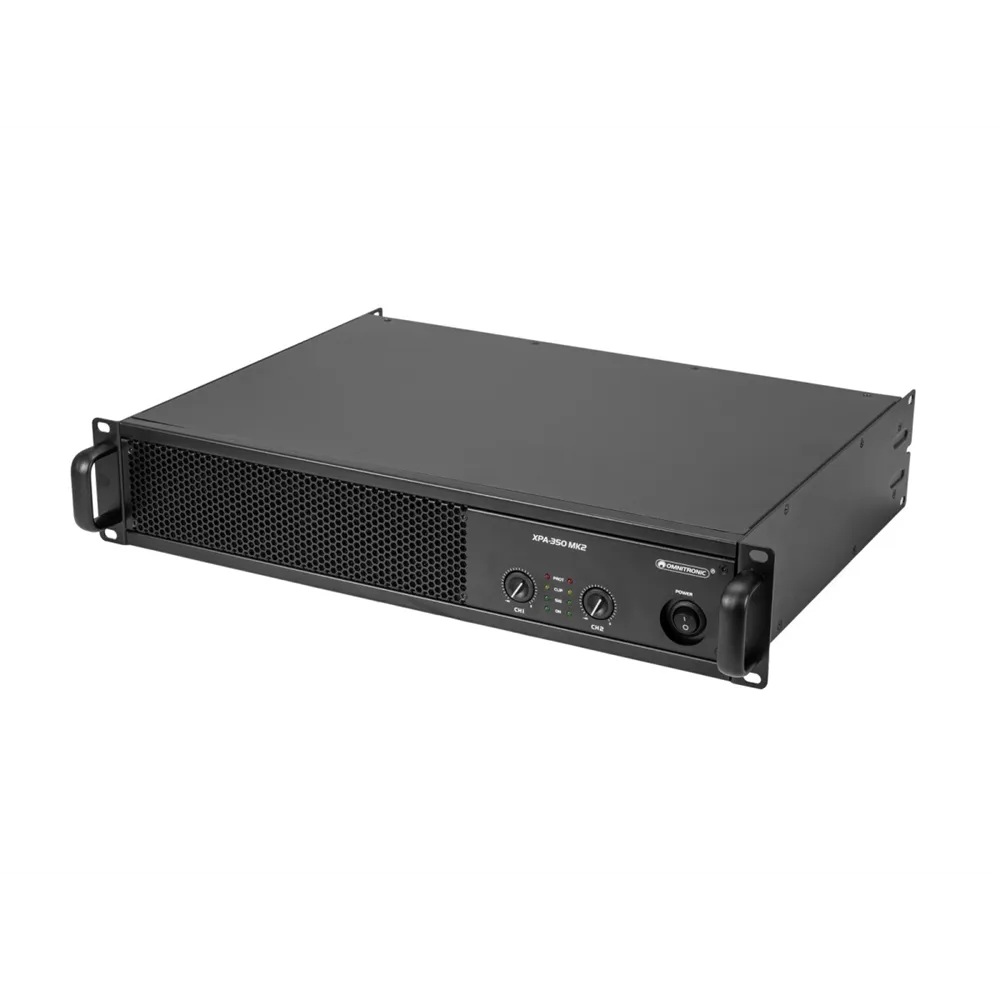

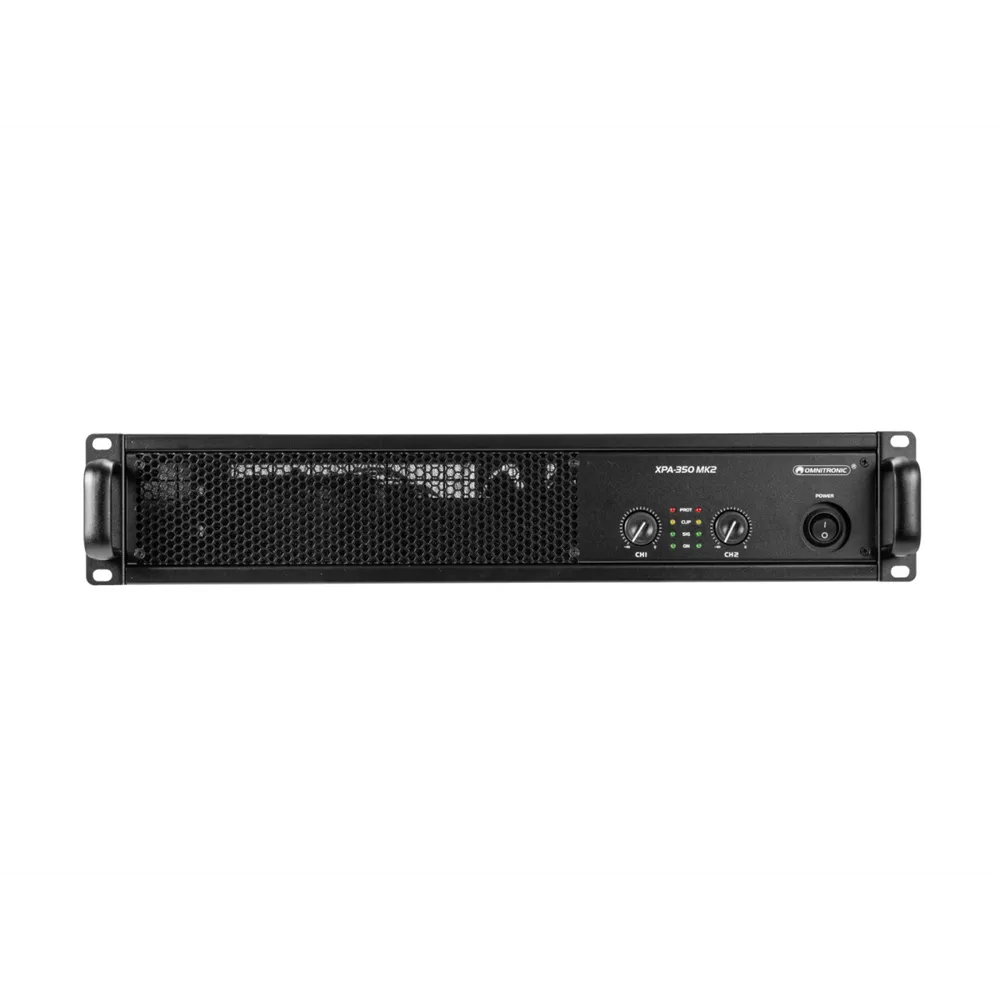

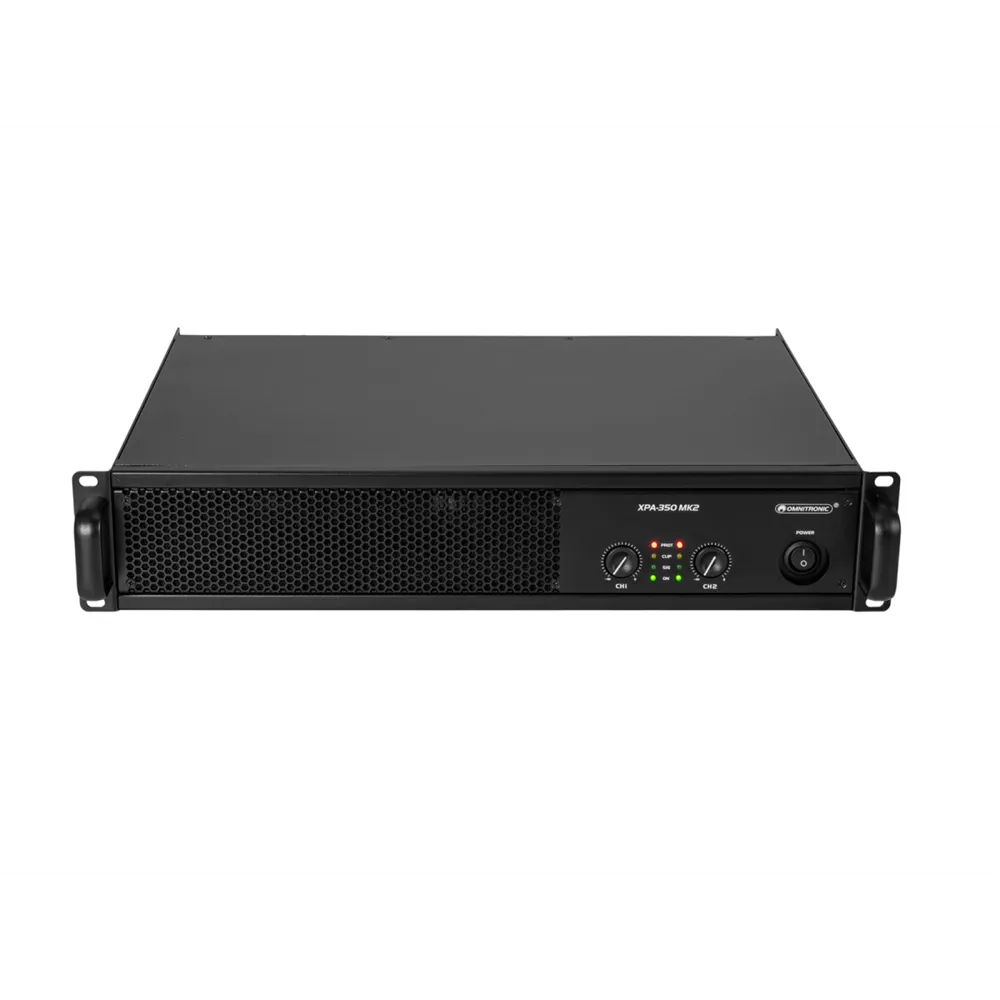

OMNITRONIC XPA-350 MK2 Power Amplifier

Features

• Class AB Stereo PA Amplifier with Limiter, 2 x 175 W RMS (4 Ohm), 2 x 130 W RMS (8 Ohm)
• 2 Level Controls
• Signal Inputs via XLR and RCA Connectors
• Speaker Outputs via Locking Speaker Connectors and Screw Terminal Pairs
• Class AB Architecture
• High-Efficiency Airflow from Front to Back
• Temperature-Controlled Fan Cooling
• (19") 48.3 cm Rack Mountable, 2 HE
• Suitable for Clubs/Dance Schools; Installation; Mobile Use; Mobile DJs/Entertainers; Restaurants, Bars, and Hotels; Rental Services; Sports Centers/Fitness Studios; Bands/Rehearsal Spaces
• Power Supply: 230 V AC, 50 Hz
• Total Power Consumption: 245 W at 1/8 Power
• Protection Class: Class I
• Output Power: 2 x 175 W RMS (4 Ohm), 2 x 130 W RMS (8 Ohm), 350 W RMS Bridged (8 Ohm)
• Power Connection via IEC Connector (M) with Protective Earth Plug (included)
• Cable Length: 1 m, detachable
• Fuse: 5 x 20 mm, T 3.15 A, user-replaceable
• Frequency Range: 20 - 20,000 Hz
• Signal-to-Noise Ratio: >95 dB
• Cooling: 2 x Temperature-Controlled Fans, Airflow from Front to Back
• Impedance: Input: 20 kOhm, Balanced; Input: 10 kOhm, Unbalanced
• Gain: 30 dB/1 V
• Chassis Color: Black
• Circuit Type: Class AB
• Rise Times: >20 V/µs
• Damping Factor: >200
• Controls: Power Switch, Volume Control per Channel, Operating Mode Switch (Stereo/Parallel/Bridged)
• Protection Circuitry: Short Circuit; Overheating; DC; Soft Start; Inrush Transients; VHF; Current Limiting; Limiter
• Status LEDs: Power, Signal, Clip, Protect

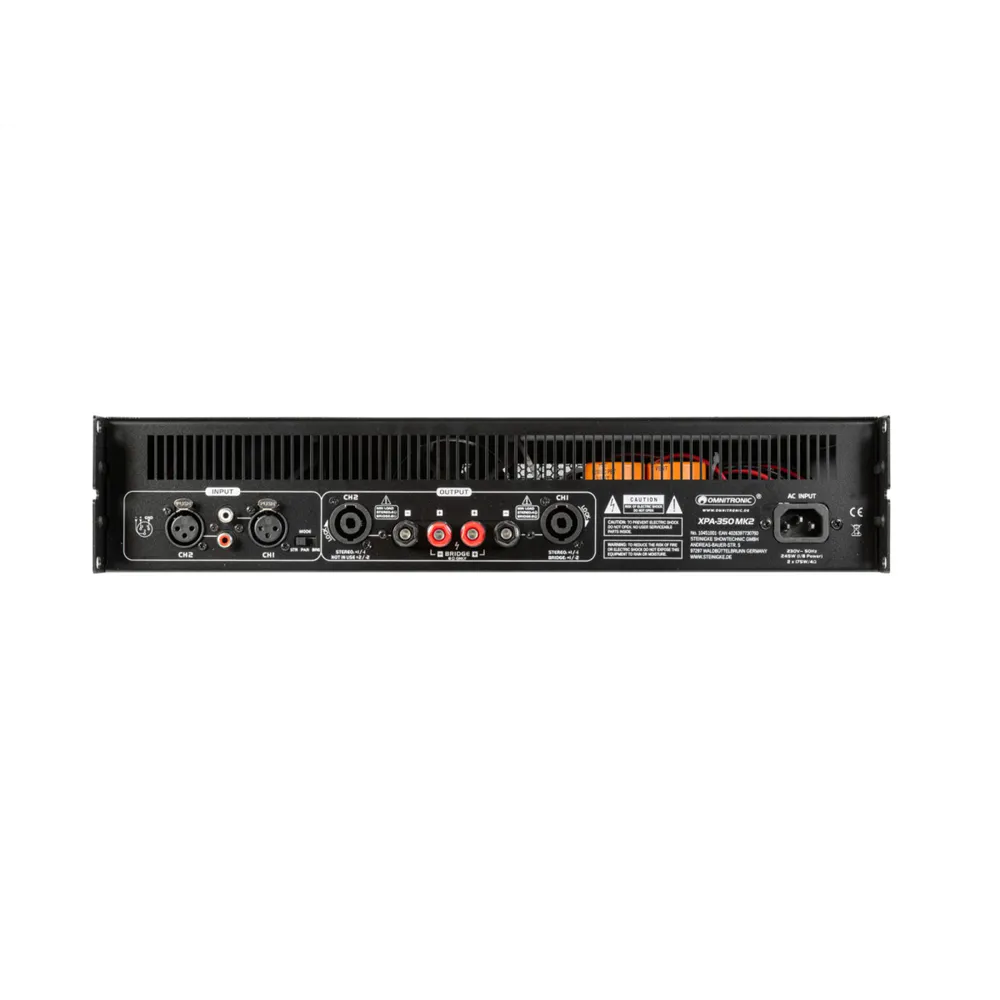

• Connections: Input: Line via 2 x 3-Pin XLR; Input: Line via Stereo RCA; Output: Speaker via 2 x Speaker Mounting Socket (W); Output: Speaker via Screw Terminal; Output: Speaker (Bridge) via 1 x Speaker Mounting Socket (W); Output: Speaker (Bridge) via Screw Terminal
• Input Sensitivity: 1 V
• Chassis Design: (19") 48.3 cm Rack Mountable, 2 HE
• Dimensions: Width: 48.3 cm, Depth: 36.8 cm, Height: 9.1 cm
• Weight: 7.65 kg
