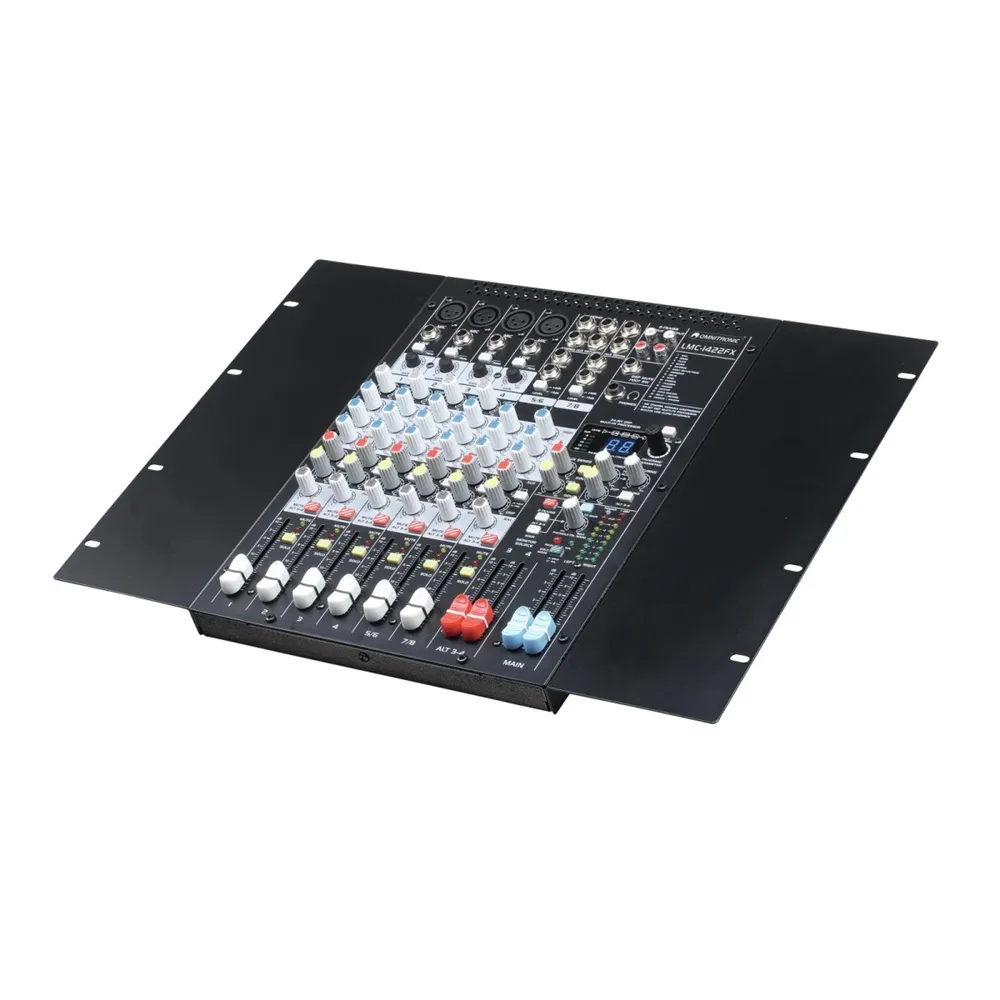

OMNITRONIC LMC-1422FX USB Mixer

Features

• 4 mono input channels with gain control, 3-band EQ, low cut, and pan control
• 2 stereo input channels with 3-band EQ, level adjustment, and balance control
• High-quality, low-noise microphone preamps with 130 dB dynamic range and high headroom
• Excellent equalizers with British EQ circuitry for a warm and musical sound
• Easy-to-use one-knob studio-quality compressors with control LED in all mono channel strips
• 24-bit DSP effects unit with 16 editable effects, tap function, and saveable user settings
• Integrated USB audio interface for recording and playback with a computer (PC and Mac)
• 2 AUX sends per channel: AUX 1 switchable pre-fader/post-fader for external effects or monitoring, AUX 2 post-fader for internal effects
• ALT 3-4 stereo bus with separate faders and outputs for additional routing options
• 2 stereo AUX returns usable as additional line inputs
• Clip LEDs and routing switches for mute and solo/PFL in all channel strips

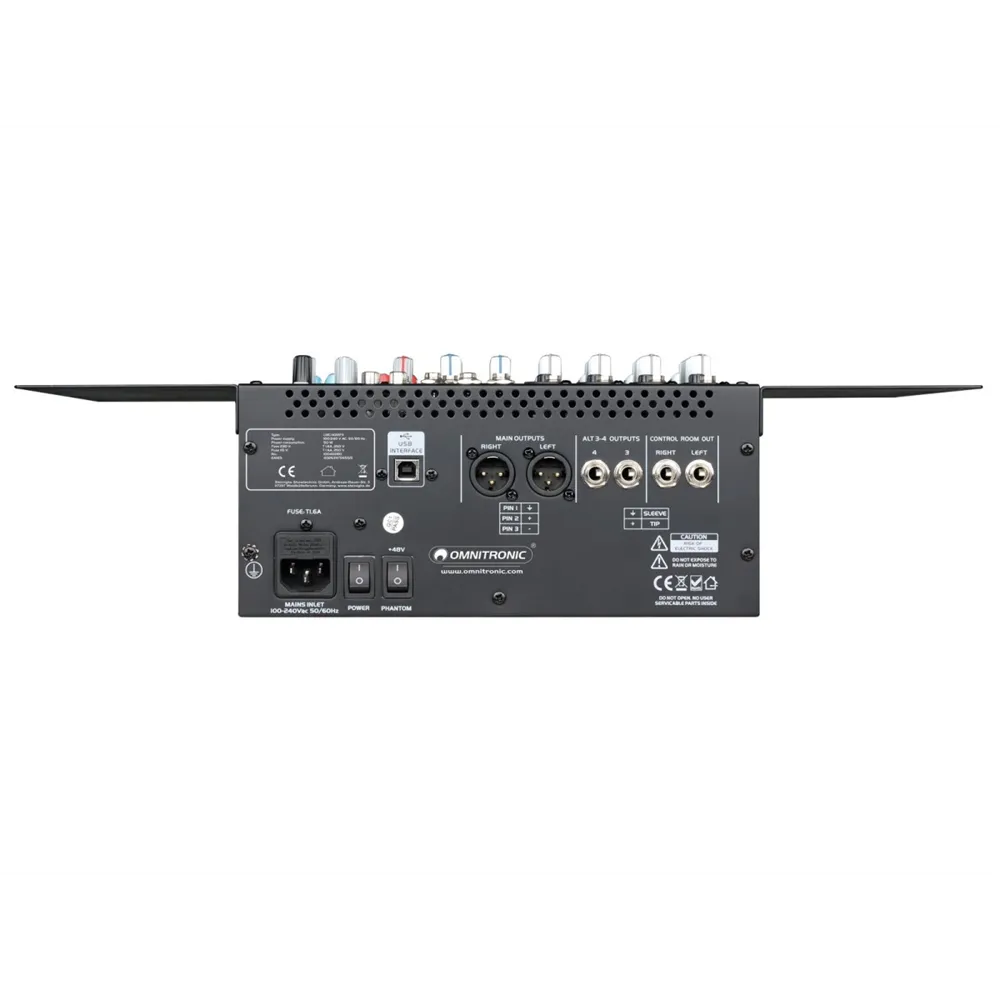

• Balanced main outputs via gold-plated XLR connectors
• Monitor and headphone outputs with flexible input routing
• CD/Tape input with routing options to main or monitor/headphone outputs, CD/Tape output
• Precise 8-segment LED level meter
• Effect processor remotely controllable via external footswitch
• +48 V phantom power, centrally switchable
• Single-color 2-digit 7-segment LED display

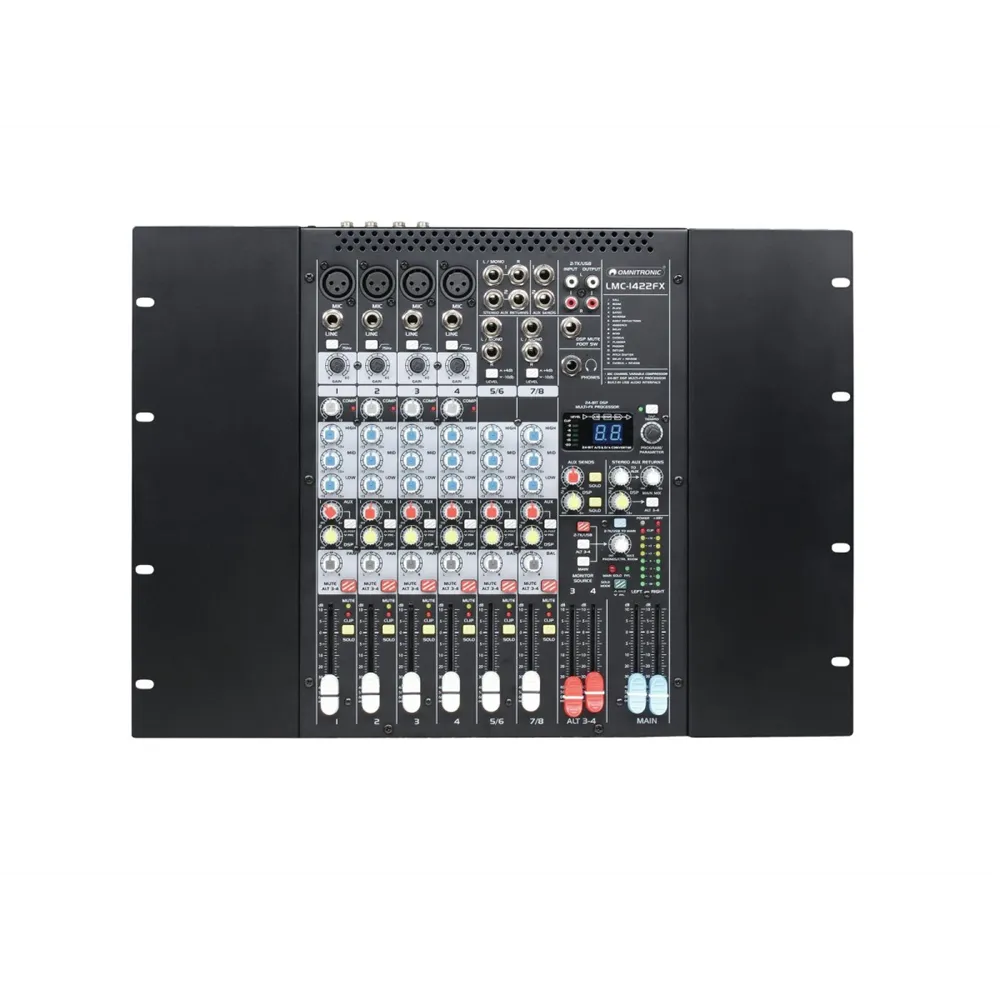

• (19") 48.3 cm rack mountable
• Suitable for applications such as clubs/dance schools, stage, theater, concerts/FOH, rental companies
• Power supply: 100-240 V AC, 50/60 Hz
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >110 dB
• DSP: 24-bit digital signal processor with 16 effects
• Phantom power: 48 V DC
• Chassis color: Black
• Dimensions: Width: 48.3 cm, Depth: 40 cm, Height: 12.7 cm
• Weight: 4.70 kg
