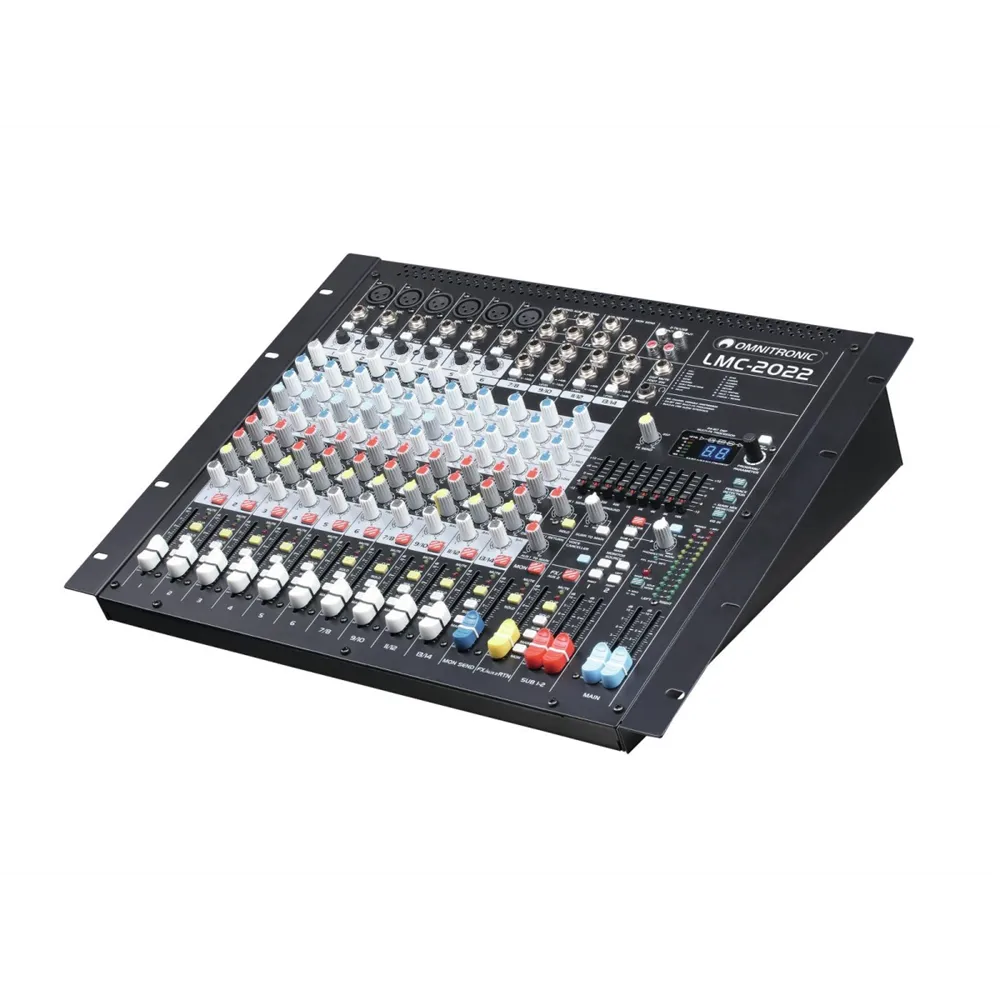

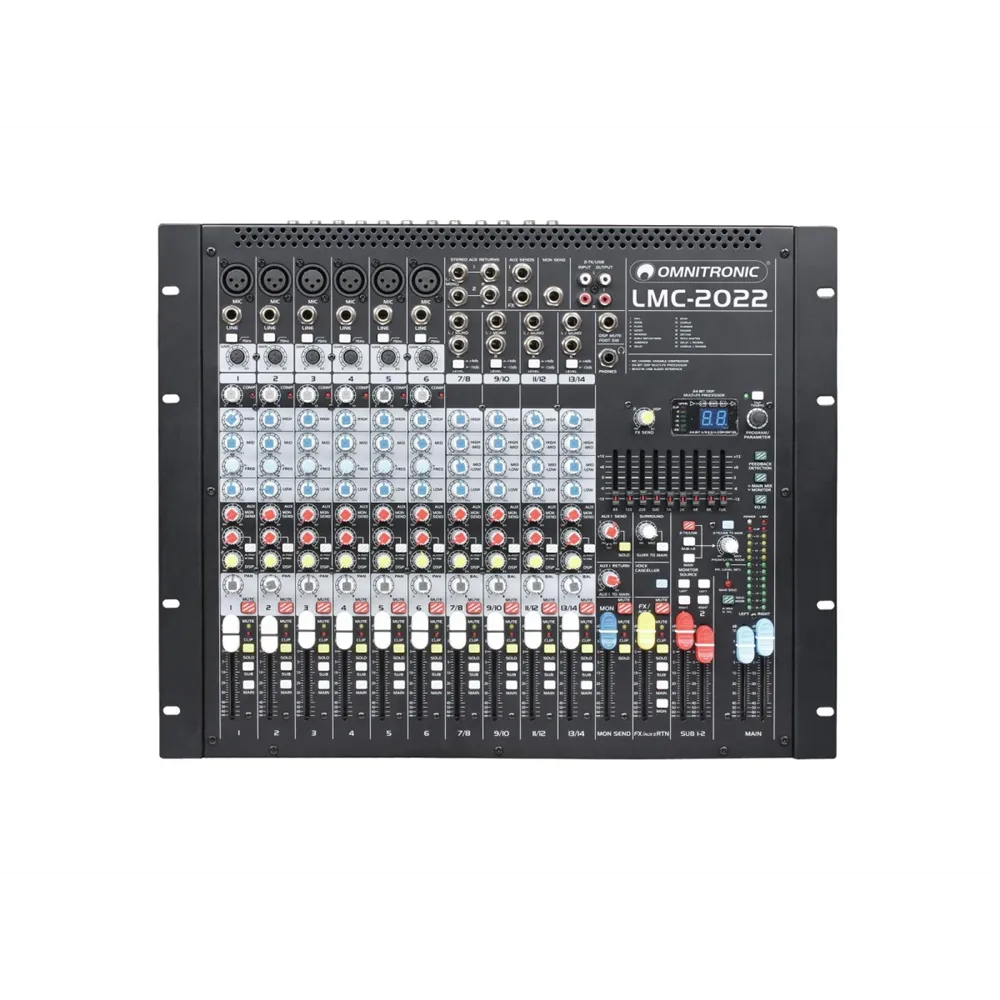

OMNITRONIC LMC-2022FX USB Mixer

Features

• 6 mono input channels with gain control, 3-band EQ with semi-parametric mid control, low cut, and pan control
• 6 inserts for connecting external signal processors in the mono channel strips
• 4 stereo input channels with 4-band EQ, level adjustment, and balance control
• High-quality, low-noise microphone preamps with 130 dB dynamic range and high headroom
• Excellent equalizers with British EQ circuitry for a warm and musical sound
• Easy-to-use one-knob studio-quality compressors with control LED in all mono channel strips
• 24-bit DSP effects unit with 16 editable effects, tap function, and saveable user settings
• Integrated USB audio interface for recording and playback with a computer (PC and Mac)
• Intelligent feedback detection for effortless removal of feedback
• Voice canceller for easy filtering of vocal parts for karaoke applications
• Impressive 3D stereo surround effect for a vibrant sound experience
• Graphical 9-band equalizer with illuminated faders for main mix and monitor output
• 3 AUX sends per channel: AUX 1 pre-fader for monitoring, AUX 2 switchable pre-fader/post-fader for external effects or monitoring, AUX 3 post-fader for internal effects
• 2 subgroups with separate outputs for additional routing options
• 2 stereo AUX returns usable as additional line inputs
• Clip LEDs in all channel strips
• Routing switches for mute, main mix, subgroup, and solo/PFL in all channel strips

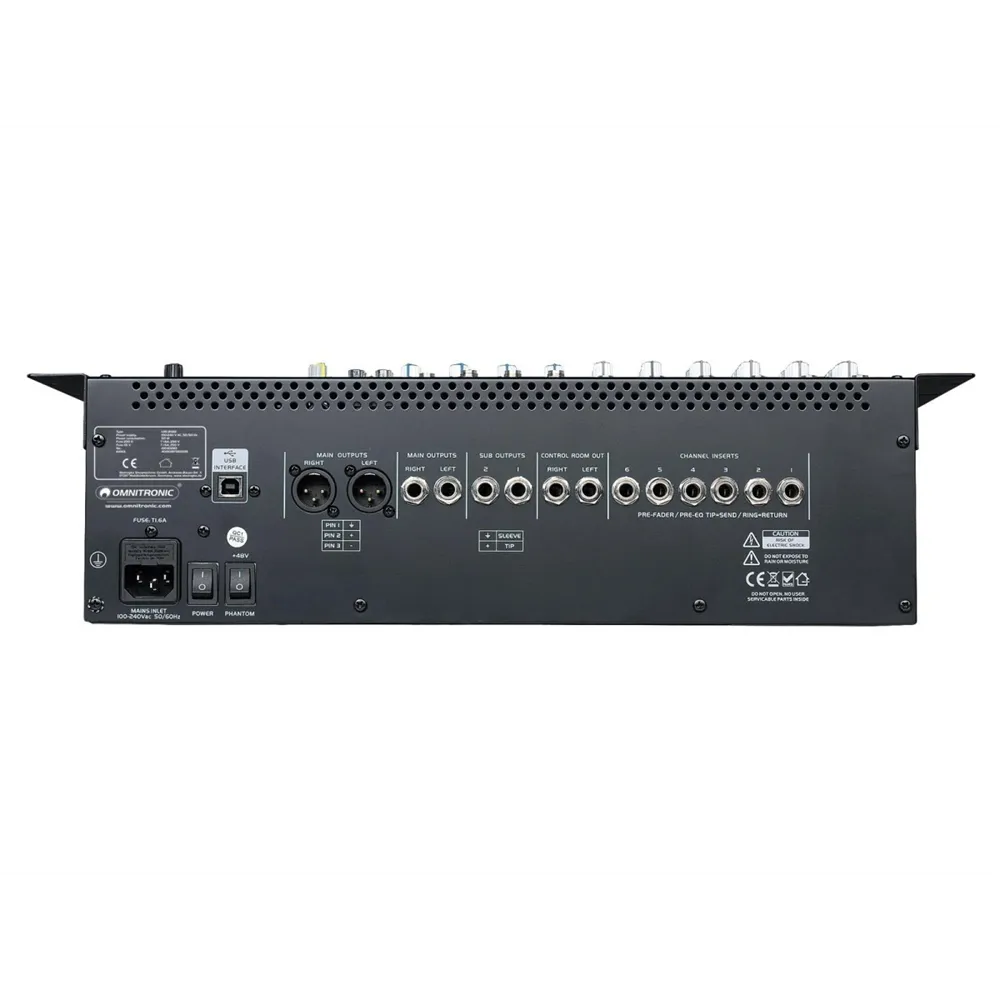

• Balanced main outputs via 6.3 mm jack sockets and gold-plated XLR connectors
• Monitor and headphone outputs with flexible input routing
• CD/Tape input with routing options to main or monitor/headphone outputs, CD/Tape output
• Precise 12-segment LED level meter
• Desk lamp connection via BNC socket
• Effect processor remotely controllable via external footswitch
• +48 V phantom power, centrally switchable
• Single-color 2-digit 7-segment LED display
• (19") 48.3 cm rack mountable
• Power supply: 100-240 V AC, 50/60 Hz
• Total power consumption: 50 W
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >110 dB
• DSP: 24-bit digital signal processor with 16 effects
• Phantom power: 48 V DC
• Dimensions: Width: 48.3 cm, Depth: 40 cm, Height: 12.7 cm
• Weight: 6.25 kg
