Features
- Combines 2 DMX controllers into a single DMX line
- HTP / LTP functionality
- Selectable modes: Backup or Merge
- 4 modes: HTP, Backup, Merge, LTP
- Power supply: 9 VDC
- Power consumption: 4.5 W
- Power input connector: Low Voltage DC plug
- DMX connectors: XLR 3P In/Out
- DMX Input connector: XLR 3P
- DMX Output connector: XLR 3P
- Dimensions: Length: 483 mm, Width: 73 mm, Height: 44.5 mm
- Weight: 1.15 kg
- Housing material: Aluminum die-cast
- Color: Gray
- Control mode: DMX
- DMX channels: 512
- Protocols: DMX

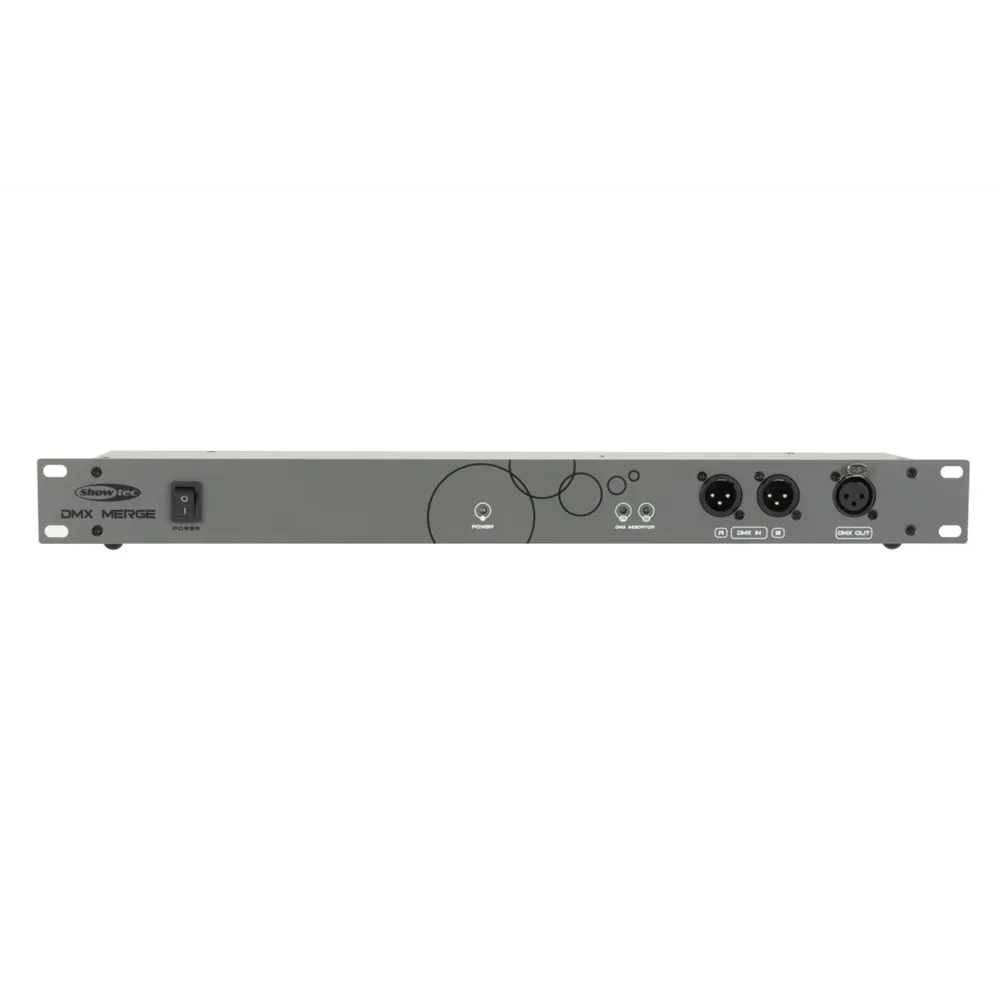

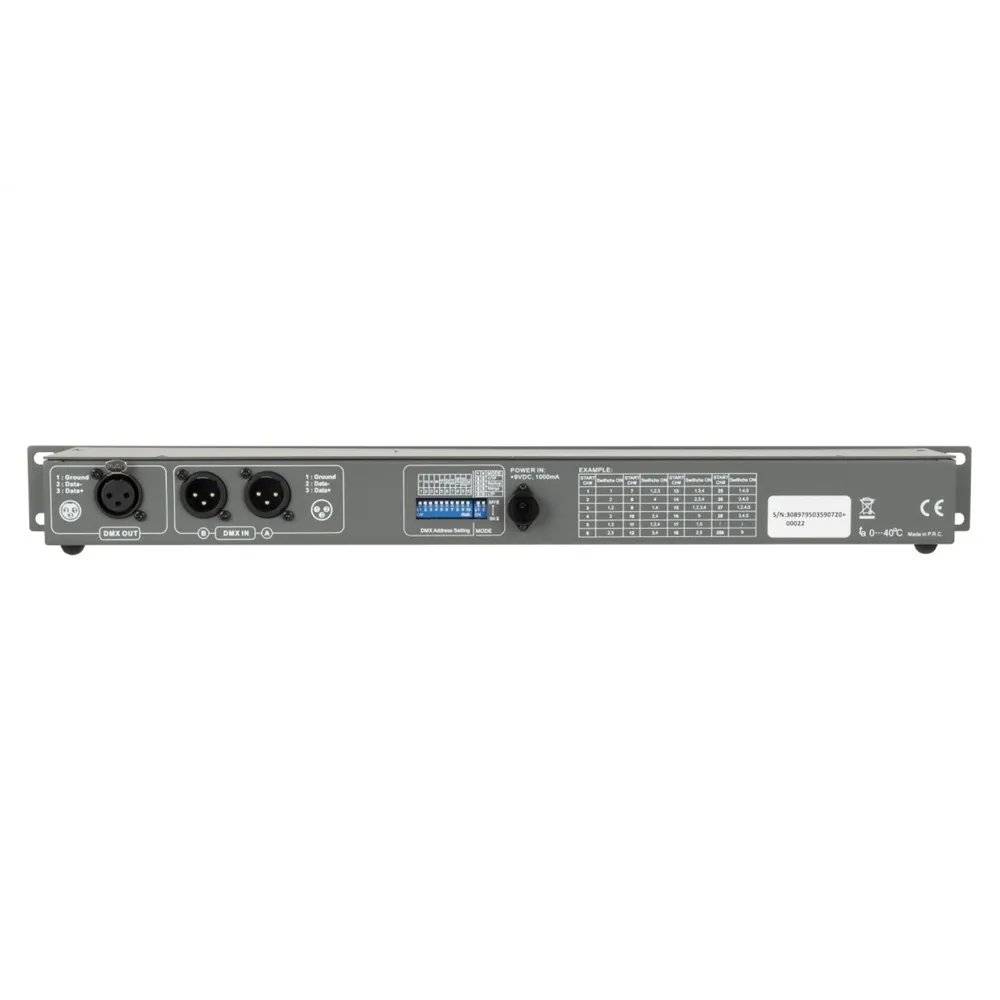

Showtec - DMX Merge, DMX Splitter 2 x In and 1 x Out
Experience the flexibility and efficiency of the Showtec DMX Merge, an innovative DMX splitter that allows you to combine two DMX controllers into a single DMX line. With the option to choose between HTP (High Take Precedence) and LTP (Latest Take Precedence), you can ensure that your light show is always optimally controlled. The DMX Merge also features a convenient backup mode that seamlessly switches from one controller to another in the event of a primary controller failure.
The device offers four different modes, providing you with maximum control over your lighting technology. In Merge mode, for example, you can operate a scene setter and DMX simultaneously on one line, with channels that can be flexibly addressed. With a robust aluminum housing and compact dimensions, the DMX Merge is perfectly suited for both professional use and mobile applications. Trust in the quality of Showtec and elevate your light shows to the next level!
