Features
- Product Type: Wireless Microphone System Accessory
- Type: Bodypack
- Frequency Range: 584 - 608 MHz
- Channels: 12
- Groups: 1
- Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
- Frequency Response: 25 - 16,000 Hz
- Signal-to-Noise Ratio: 104 dB
- RF Output Power: 10 mW

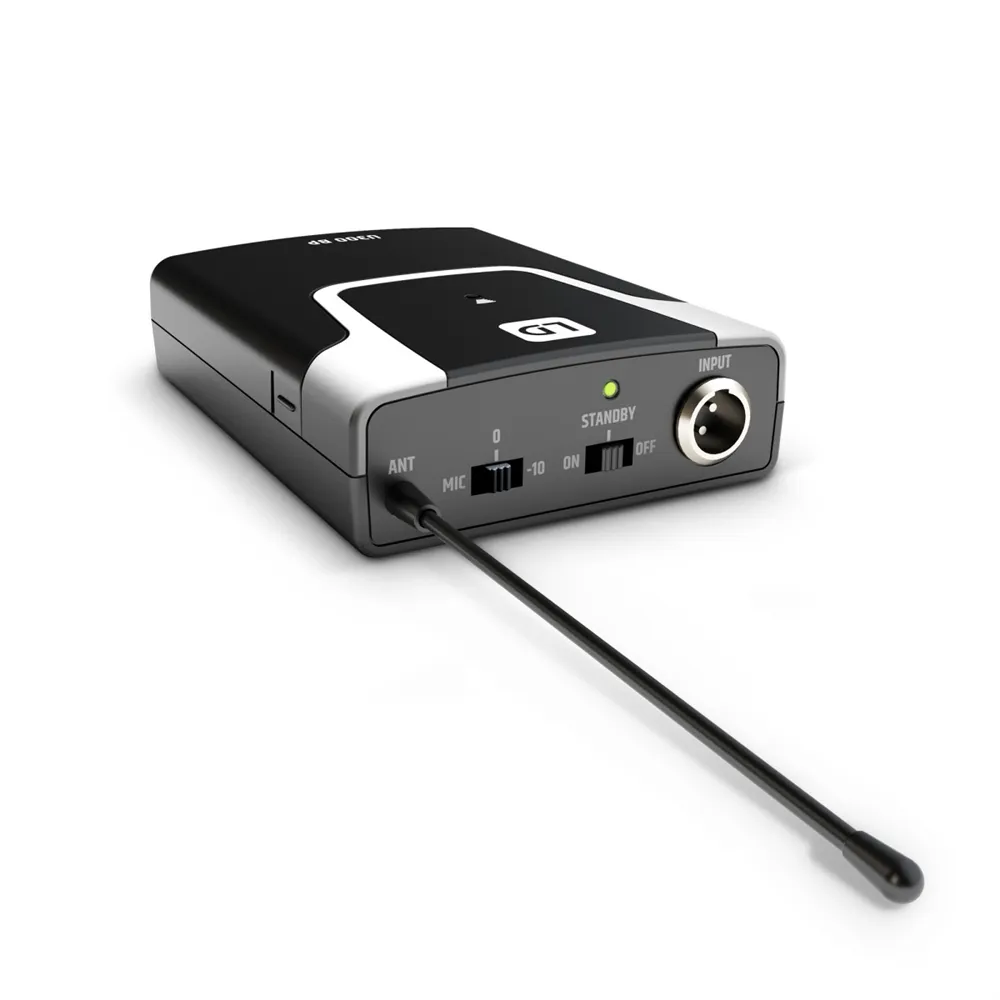

- Controls: Gain (3-Position Switch)
- Controls: Power On/Off
- Indicators: ASC IR Sync (Green LED, Yellow Blinking)
- Indicators: Battery (Low Battery: Red)
- Indicators: Power LED (Power ON: Green)
- Power Supply: 2 x AA Battery
- Operating Time: >10 hours
- Width: 65 mm
- Height: 91 mm
- Depth: 25 mm
- Weight: 0.085 kg
- Additional Features: Belt Clip
- Additional Features: IR Frequency Synchronization
- Additional Features: Pilot Tone

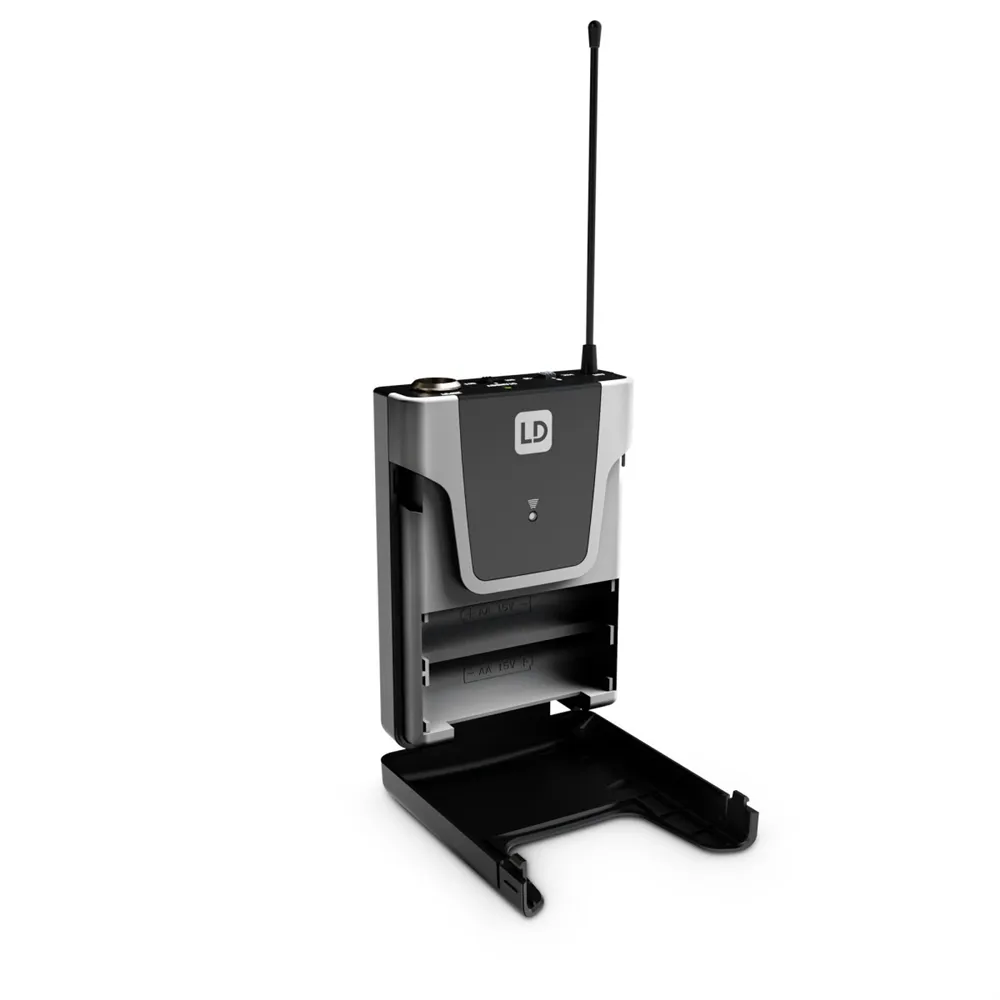

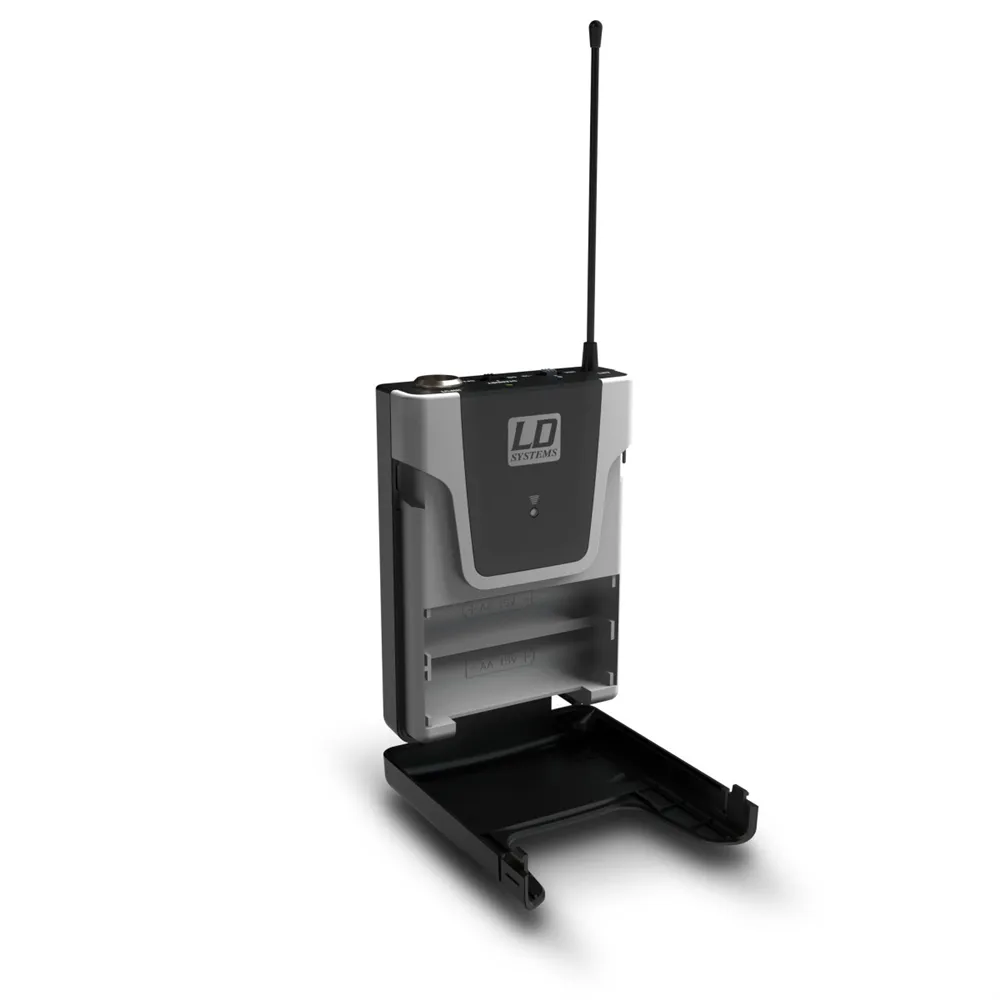

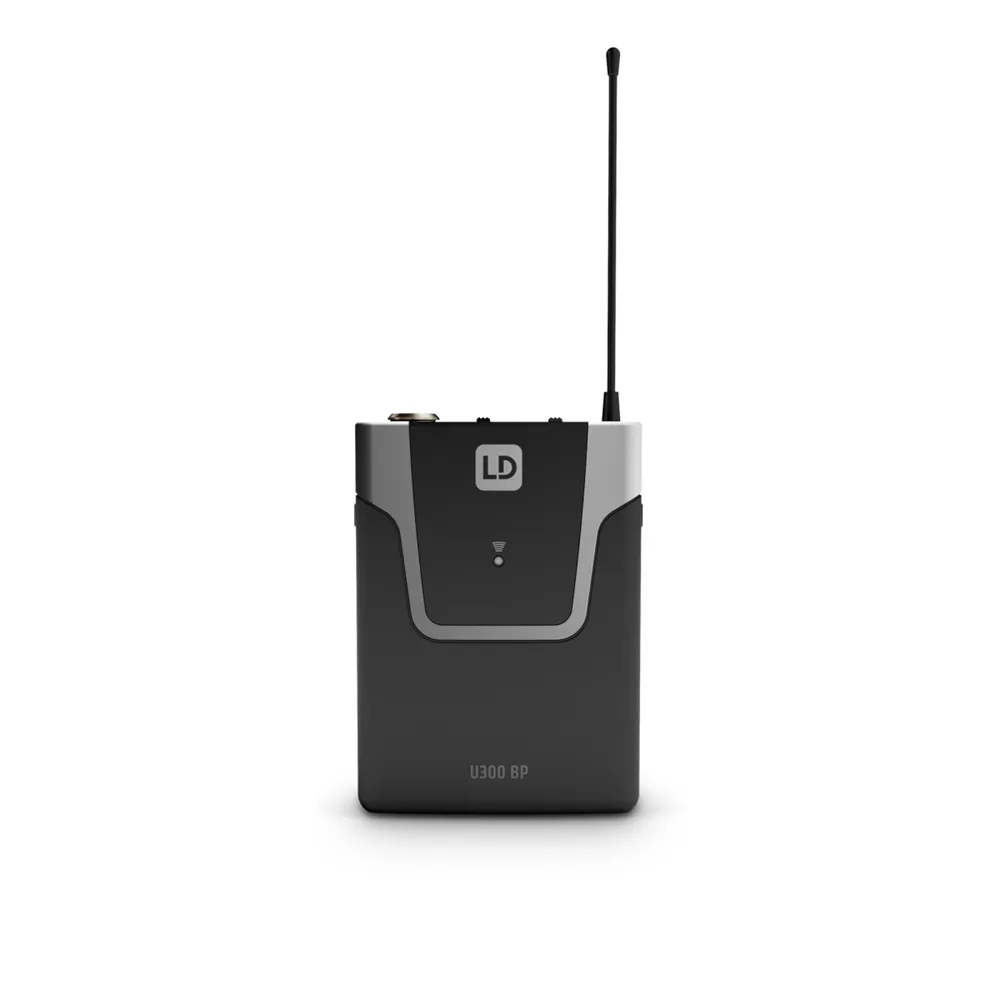

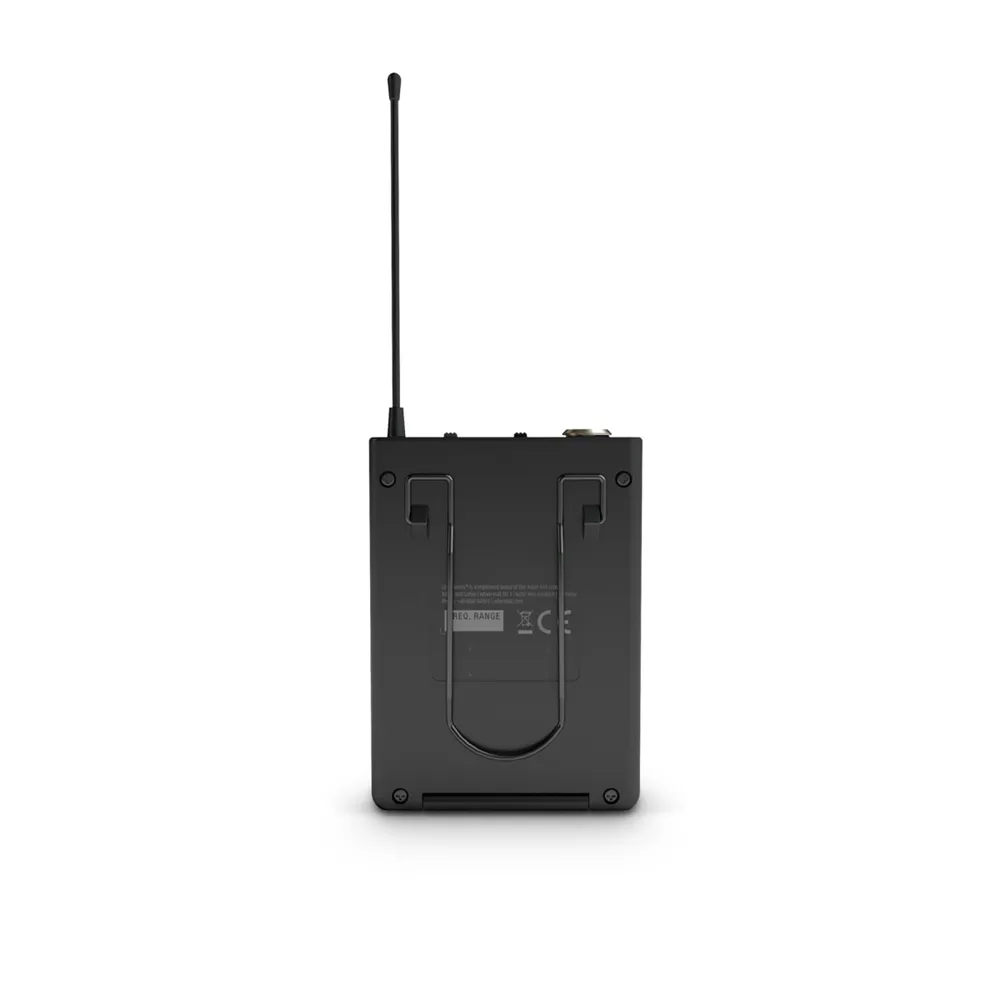

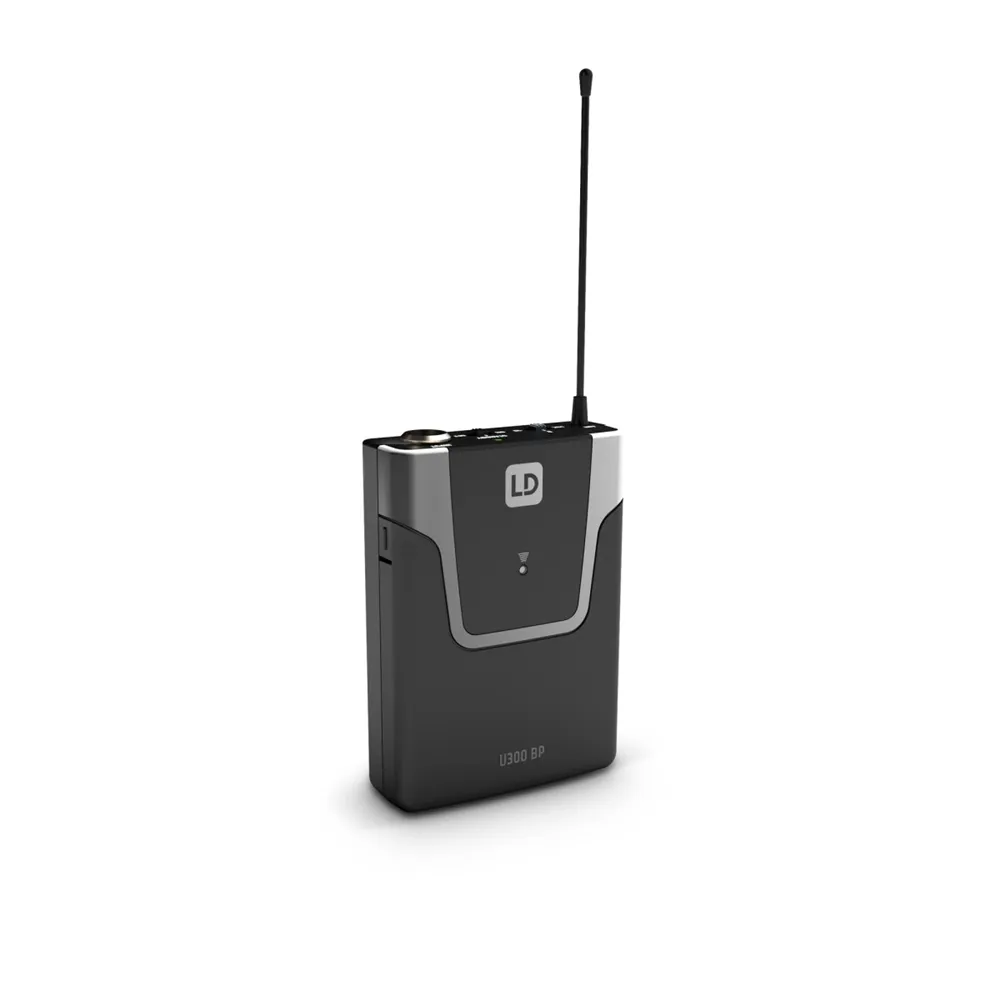

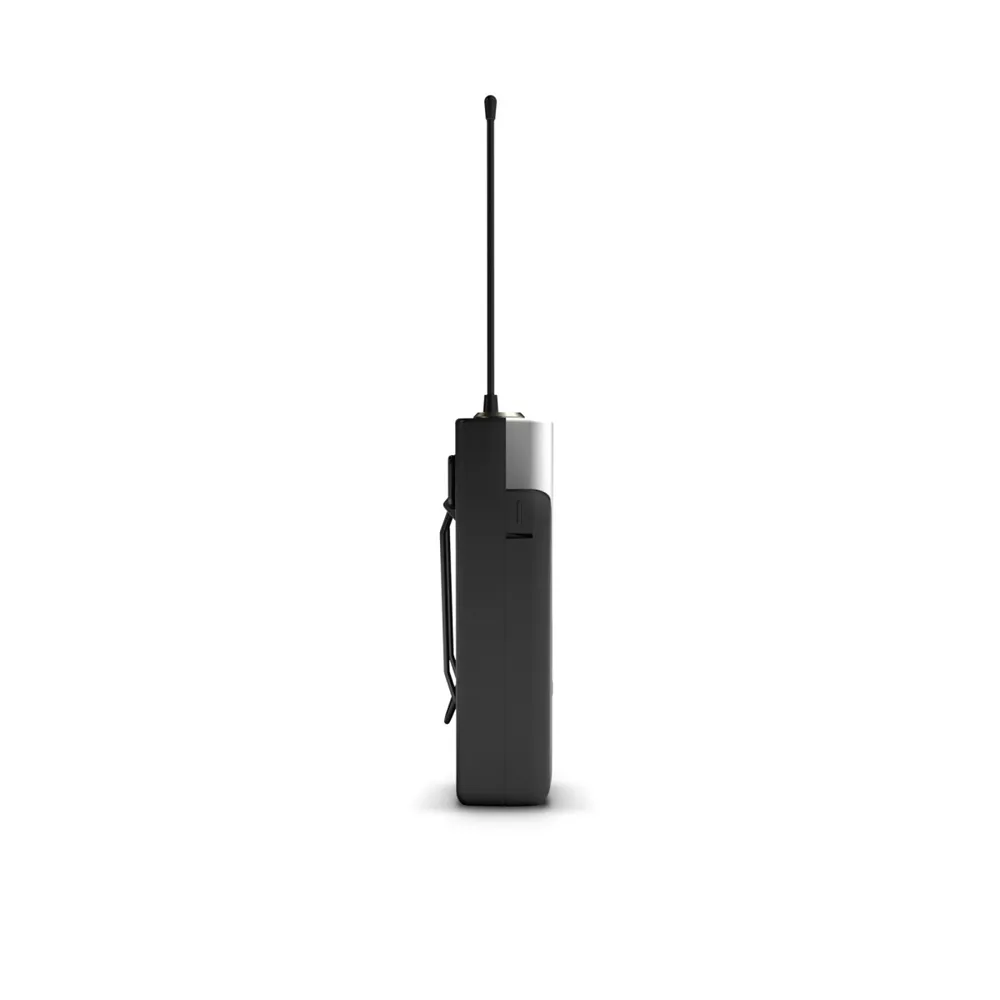

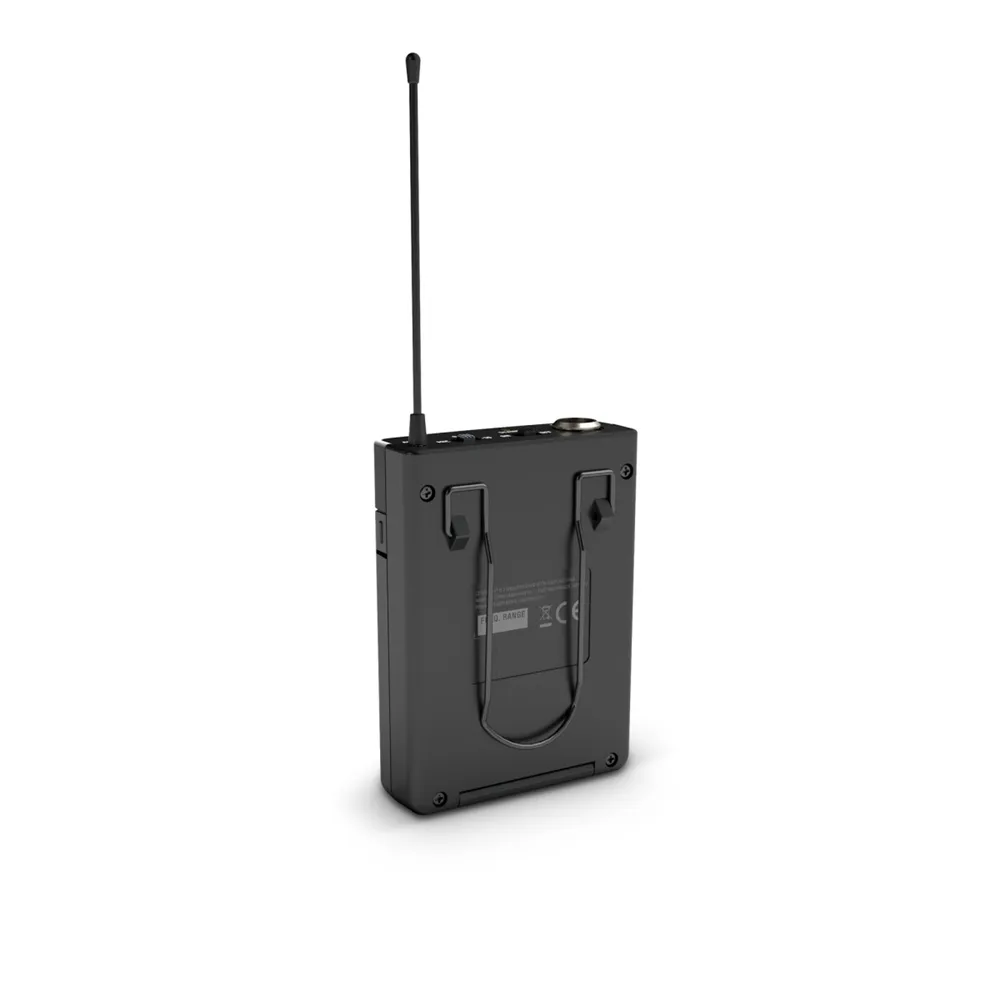

LD Systems U305 BP - Bodypack Transmitter
The LD Systems U305 BP is a powerful bodypack transmitter from the U300 series, operating in the frequency range of 584 to 608 MHz. Featuring a mini-XLR input and a three-position level switch, it is ideal for adapting to various microphones as well as active and passive instruments. With an output power of 10 mW and a frequency response of 25 Hz to 16 kHz, the transmitter is also excellent for transmitting 5-string bass guitars with a low B string.
The U305 BP offers over 10 hours of runtime with two AA batteries and can be conveniently synchronized with the U305 receiver via infrared. A pilot tone ensures interference-free operation, while the practical standby function of the power switch allows for temporary muting. Weighing only 85 g and equipped with a belt clip, the bodypack transmitter is highly portable and user-friendly. It is the perfect choice for musicians and presenters who value mobility and sound quality.
