Features
- Supports Artnet, sACN, and Klingnet
- 1 Gbps data transmission
- 8 universes, DMX input or output
- High-speed network at input and output

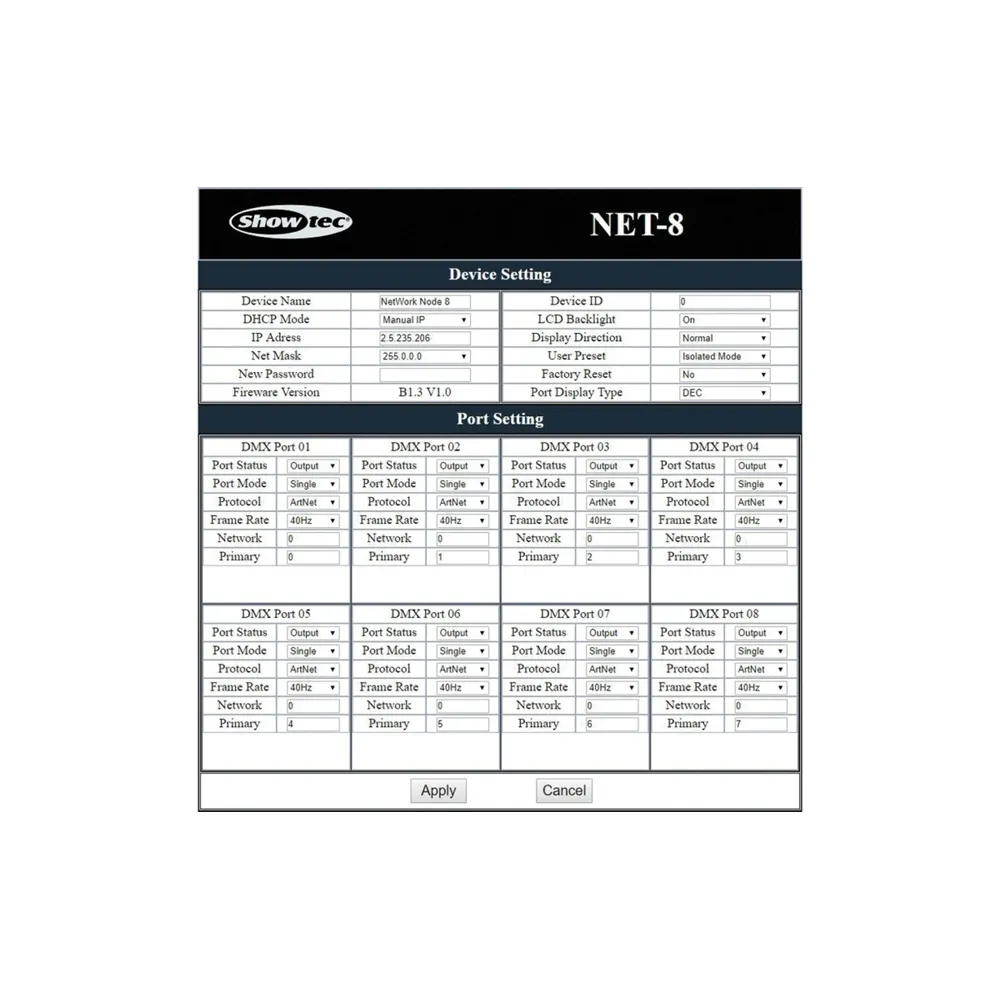

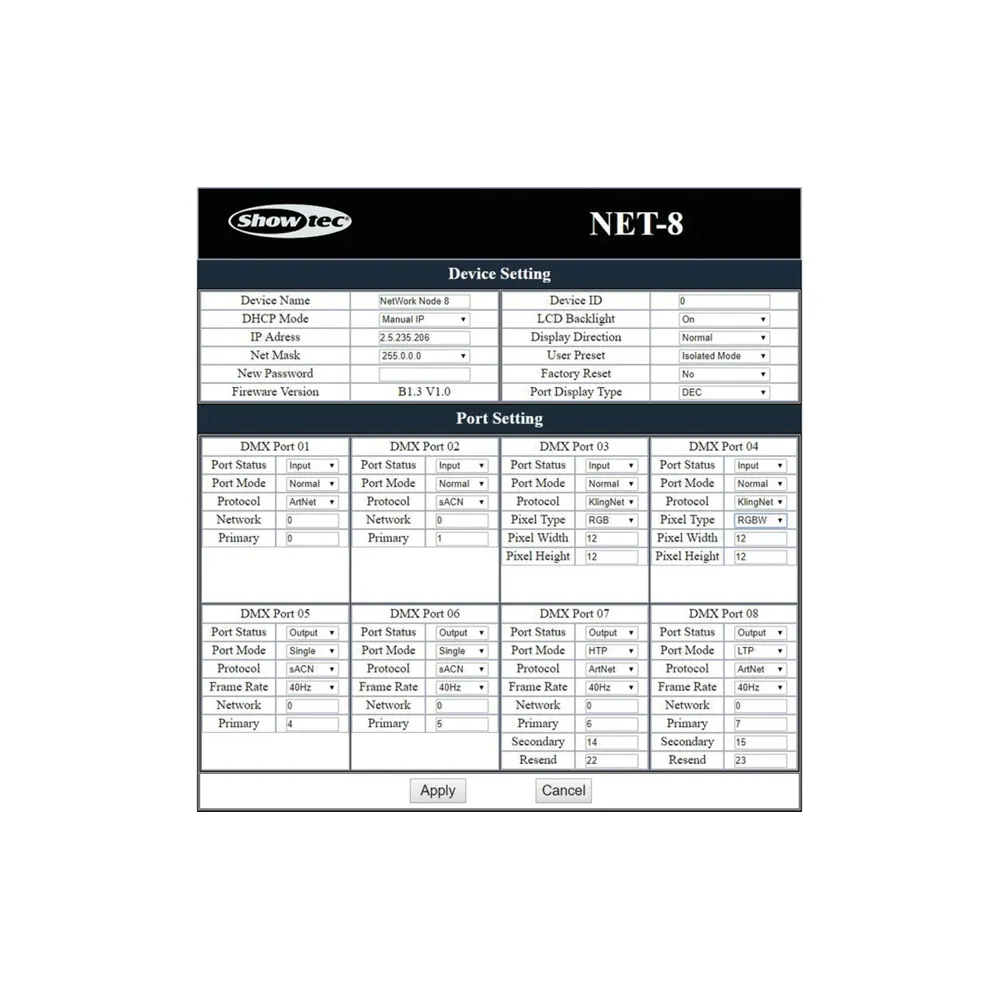

- Configuration via web browser
- Up to 4096 channels over a CAT5 cable
- Integrated network switch for network repeater function

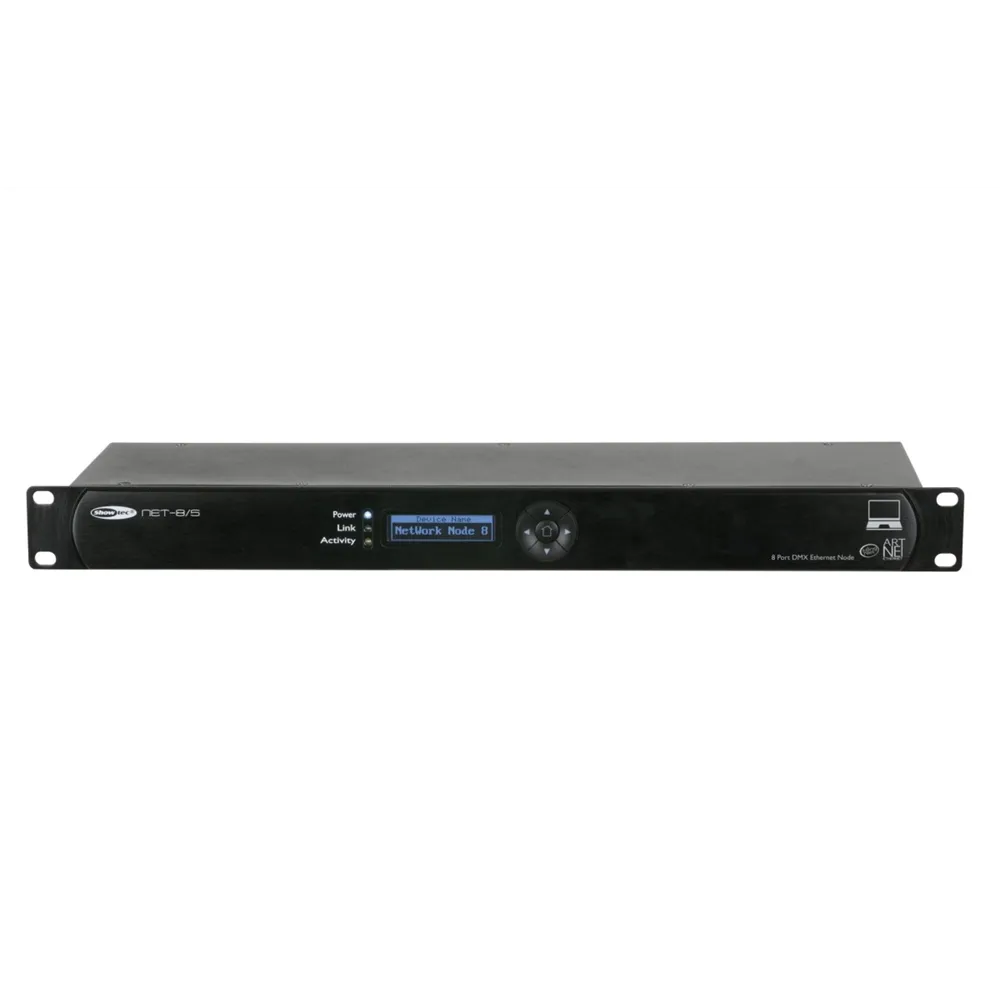

- Graphical display with buttons for settings
- Remote access via computer or laptop
- Power supply: 100-240 VAC 50-60 Hz
- Power consumption: 20 W
- Power input connector: Pro Power Blue
- DMX connector: XLR 5P In/Out
- Data connection input: etherCON
- Data connection output: etherCON
- Dimensions: Length: 483 mm, Width: 143 mm, Height: 46 mm
- Weight: 2.2 kg
- Housing material: Metal / Plastic
- Color: Black
- Control mode: Art-Net / DMX / PC Software
- Protocols: Art-Net / DMX / Kling-Net / sACN / TCP-IPv4
- Display: LCD
- Universes: 8

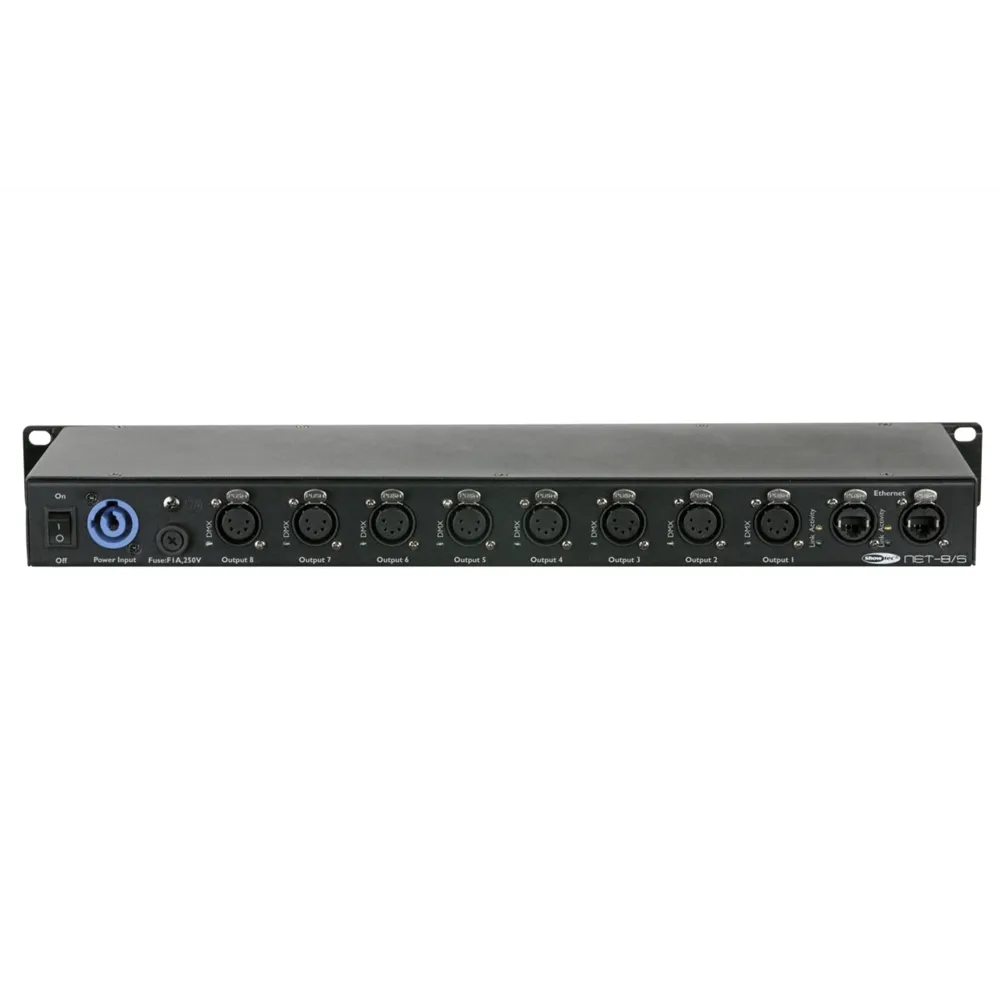

Showtec NET-8/5 - Artnet/Klingnet Node with 8 Channels, XLR, 5-Pin
The Showtec NET-8/5 is the ideal solution for anyone needing a reliable and powerful connection between Artnet, sACN, and Klingnet. With the capability to support up to 8 DMX universes, this node offers an impressive data transmission rate of 1 Gbps, making it suitable for both small and large events. Utilizing a standard CAT5 cable, it can transmit up to 4096 channels, enhancing the flexibility and scalability of your lighting installations.
The NET-8/5 is equipped with an embedded network switch, allowing it to function as a network repeater. The DMX-512 universes can be used as both inputs and outputs, providing you with maximum control over your lighting setup. Intuitive operation is facilitated through a graphical display and buttons on the front panel, or conveniently via a web browser over your network.
With a robust metal and plastic housing, the NET-8/5 is not only functional but also durable. It is the perfect choice for professional lighting technicians who value quality and performance.
