EUROLITE DXT DMX Pixel Converter PRO, Male Connector

EUROLITE DXT DMX Pixel Converter PRO, Male Connector

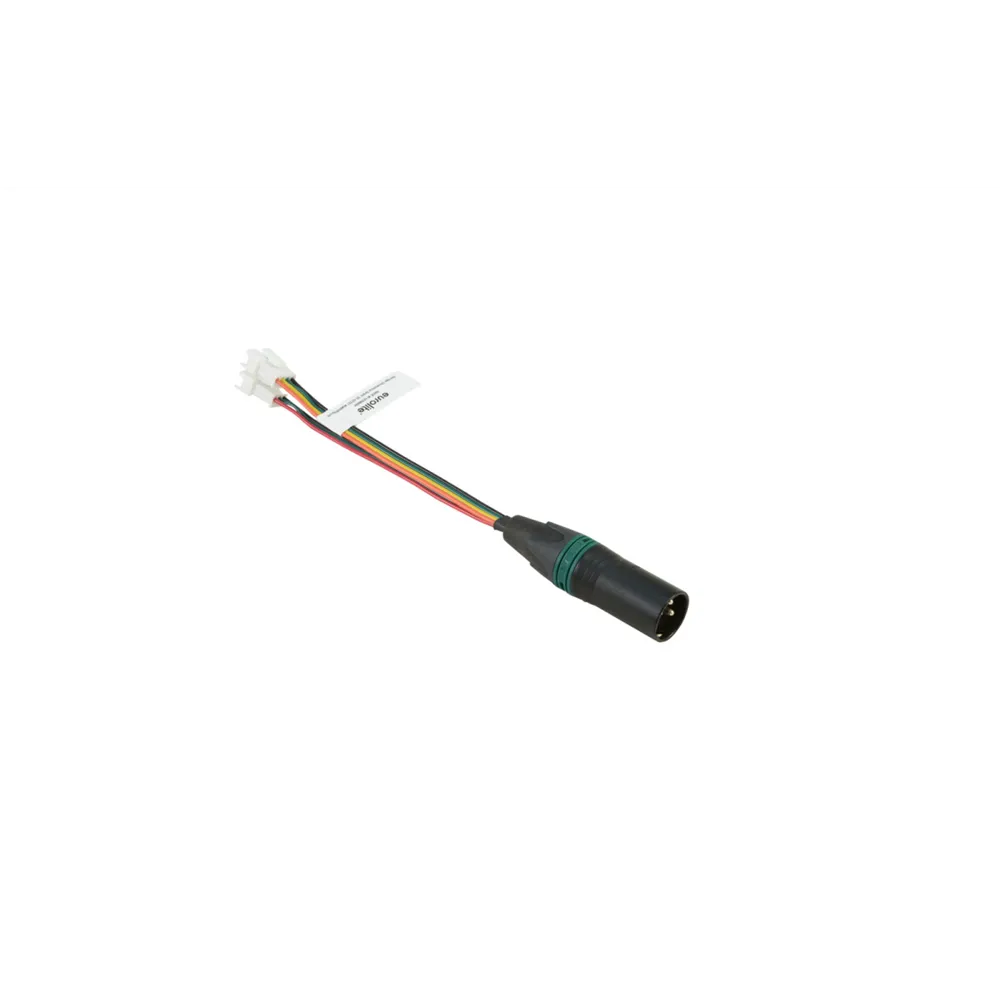

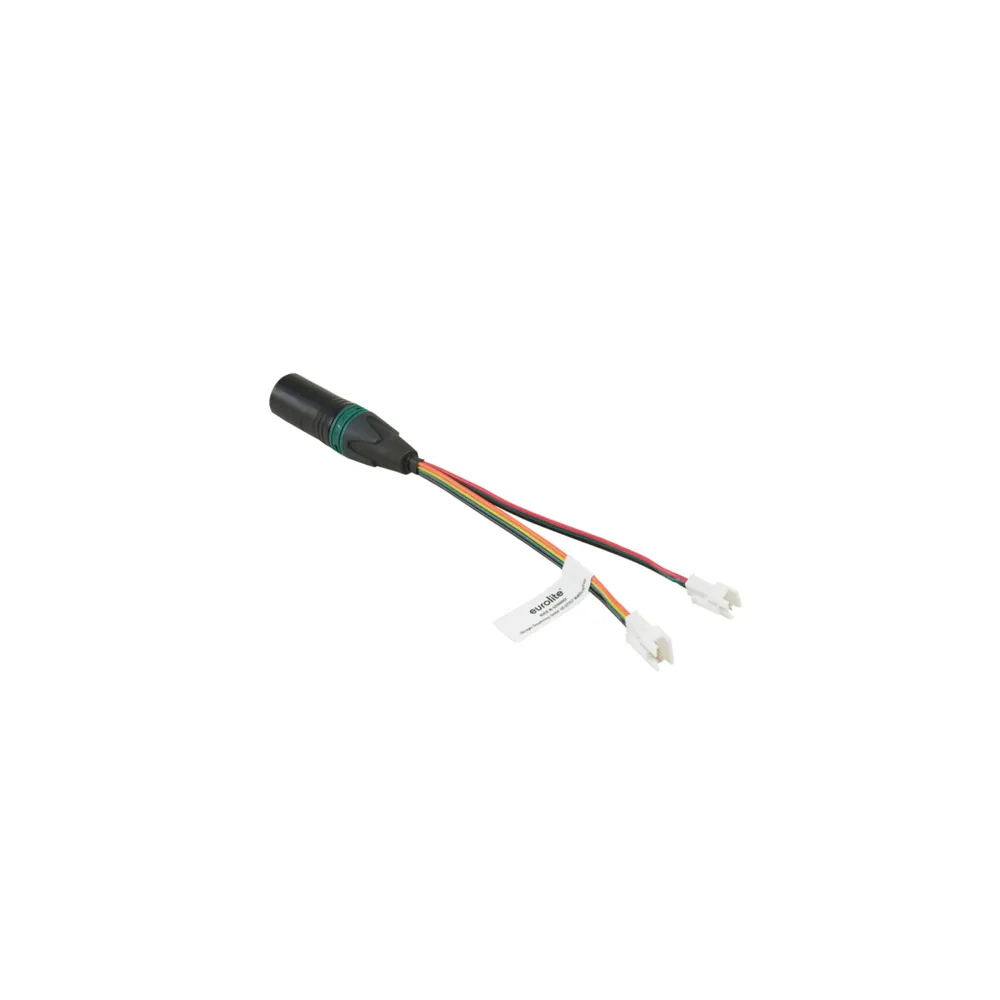

The EUROLITE DXT DMX Pixel Converter PRO is the ideal solution for controlling LED pixel strips. With its compact design in XLR connector format, this powerful DMX converter allows for the control of up to 18,000 digital LED pixels via a DMX512 signal. Equipped with a 4-pin male connector for data and clock outputs, as well as a 3-pin male connector for the data output, it offers maximum flexibility.

A standout feature is the ability to group multiple LEDs into virtual pixels. For example, 300 LEDs can be controlled using just 3 DMX channels, significantly simplifying programming. The converter supports 1 to 6 colors per pixel and provides an output frequency ranging from 40 Hz to 5 Hz.

Power is supplied directly through the LED strips (5-12 V), eliminating the need for a separate power supply. With a convenient plastic clamp for mounting and the option for configuration via a software tool (Windows) in conjunction with the Eurolite USB-DMX adapter, the EUROLITE DXT DMX Pixel Converter PRO is an indispensable tool for any lighting technician. Made in Germany, it guarantees the highest quality and reliability.
