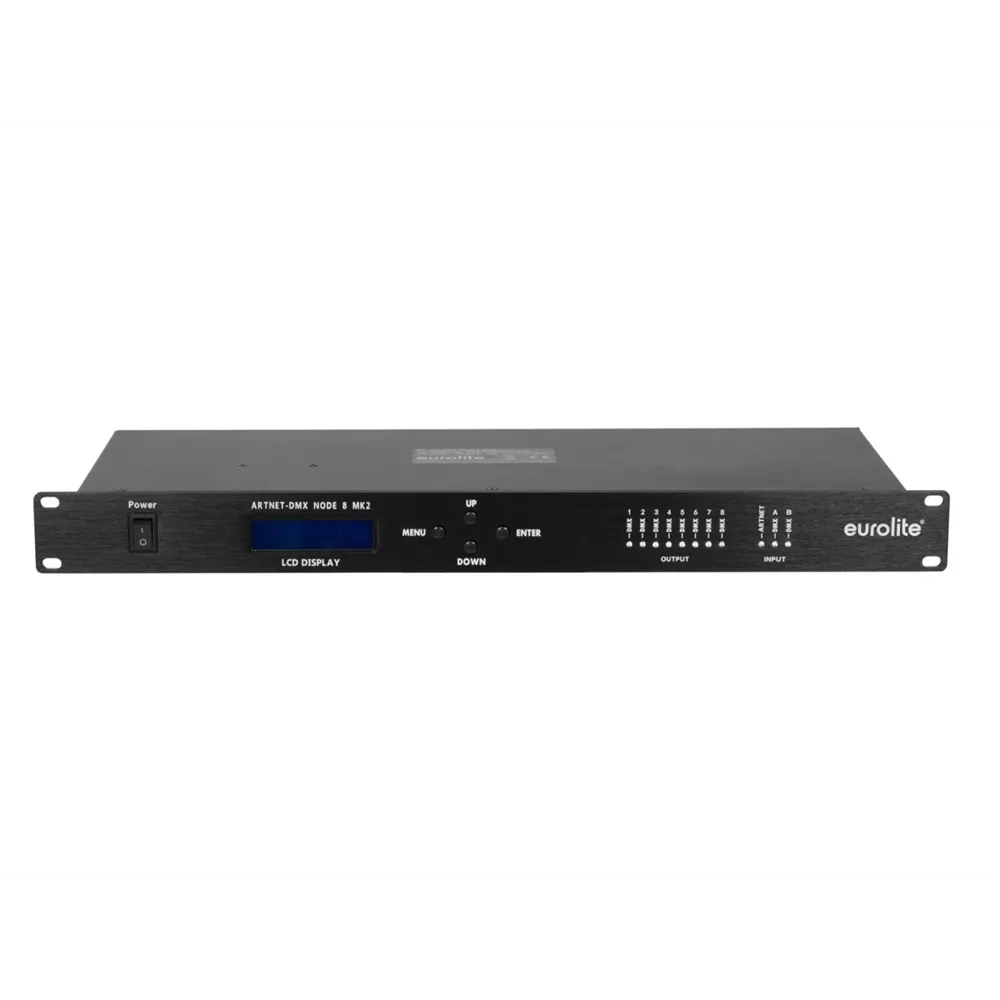

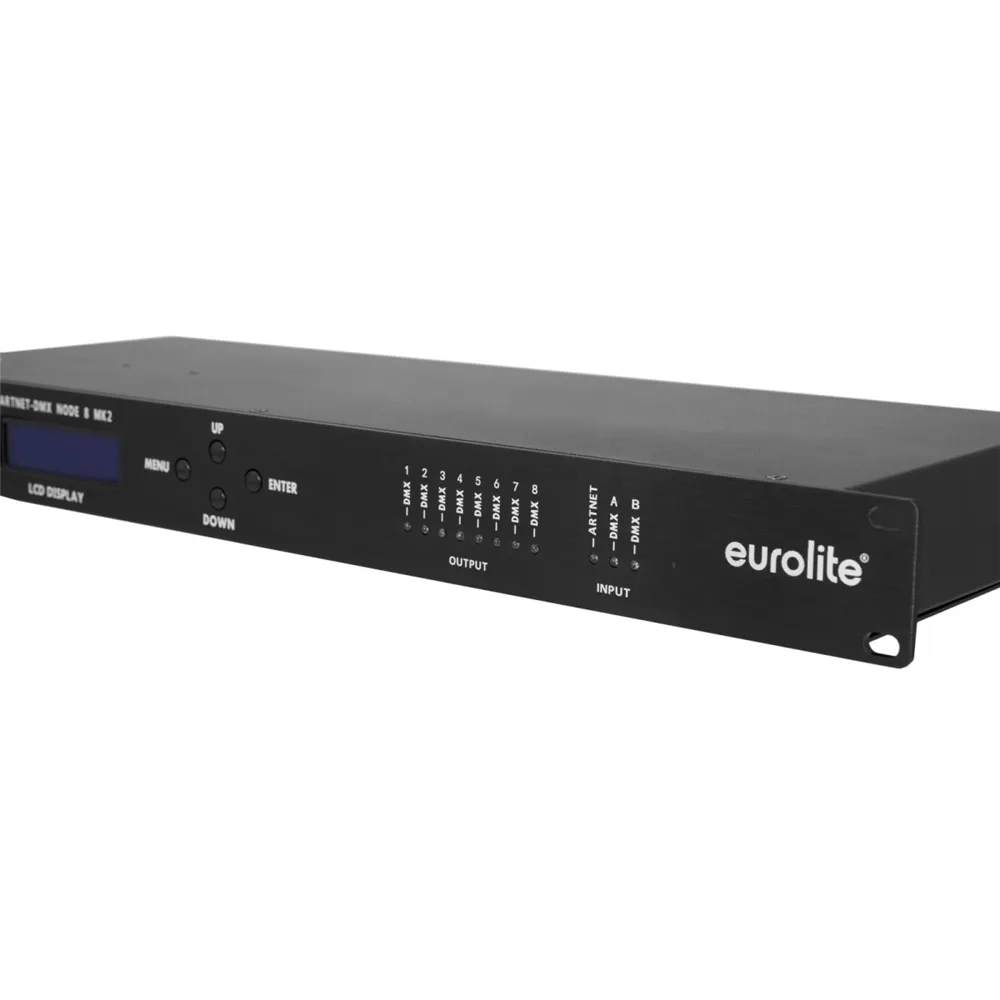

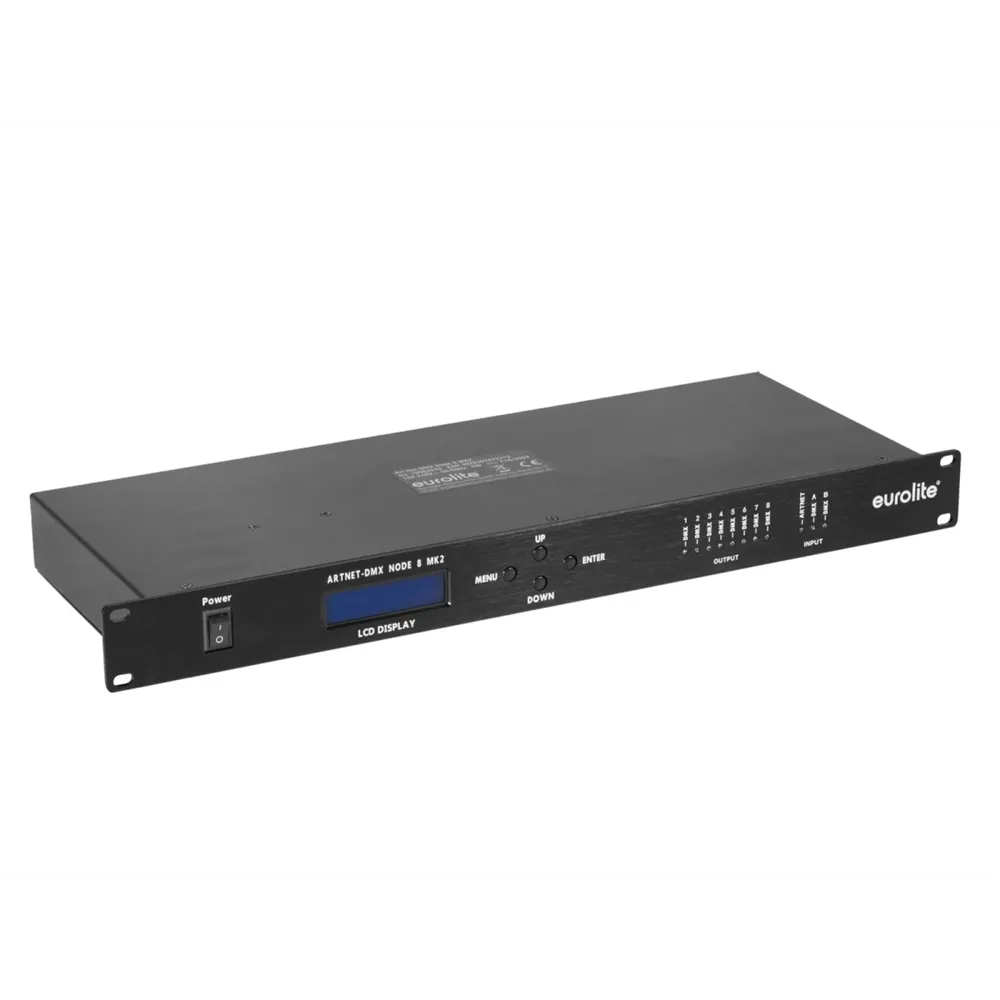

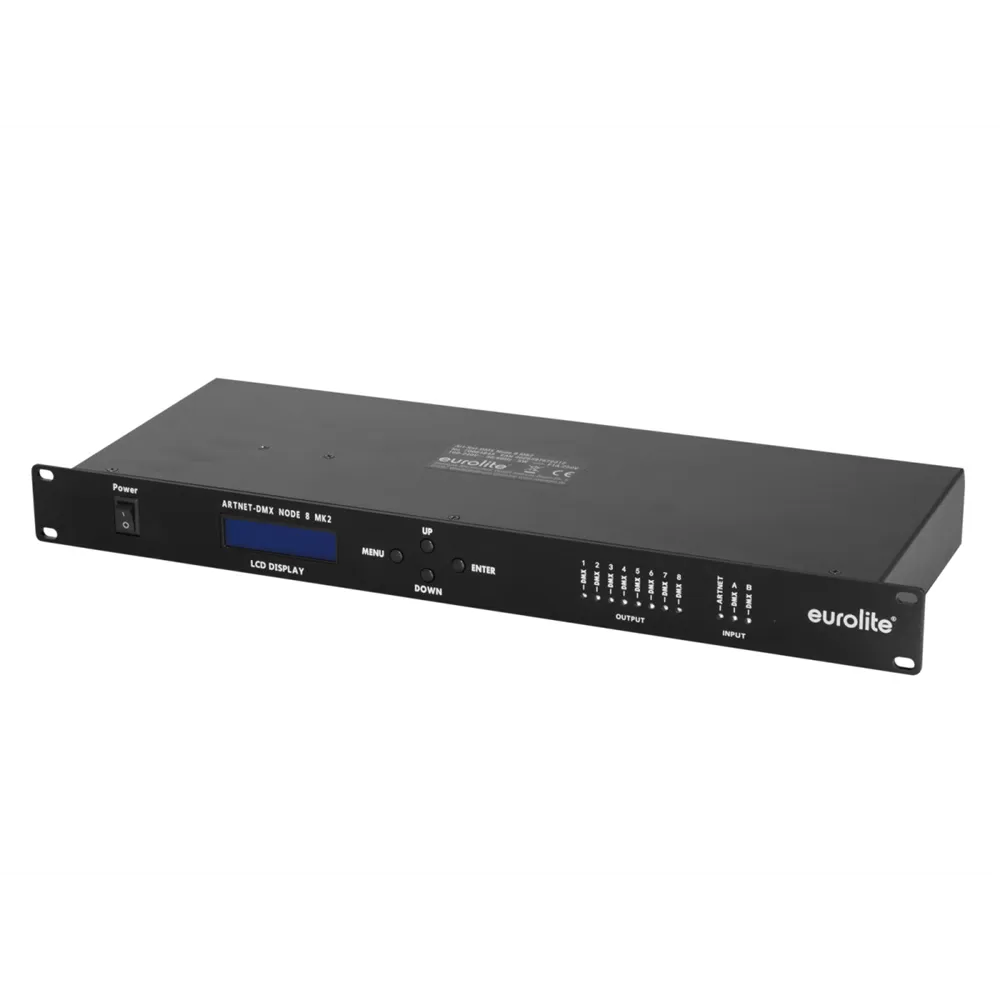

EUROLITE Art-Net DMX Node 8 MK2

Brand:

EUROLITE DXT DMX Pixel Converter PRO, Male Connector

Features

Art-Net interface for outputting 8 DMX universes via XLR
Parallel DMX input is also possible (1024 channels)

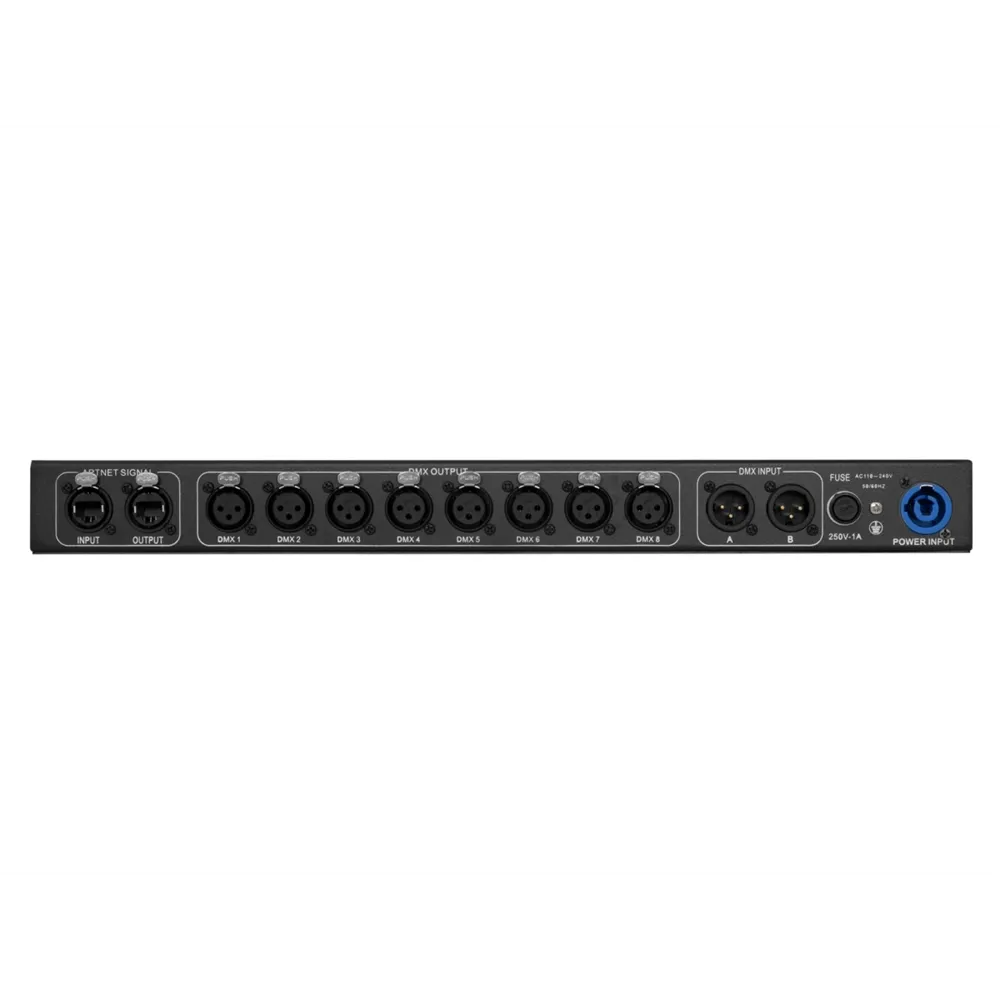

8 optically isolated XLR connectors (3-pin) for DMX output
2 XLR sockets (3-pin) for DMX input
Flexible routing of data signals
User-friendly configuration directly on the device via 4 control buttons and alphanumeric LCD display (2 x 16 characters)
LED function indicator
Splitter operation possible
Can transmit up to 4096 DMX channels
Controllable via Art-Net
Device can be connected to a PC via RJ-45 (W) installation version
(19") 48.3 cm rack mountable
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 5 W
Power connection: Power supply via P-Con (blue), installation version power connection cable with protective contact plug (included)
DMX channels: Output 4096
DMX input: 2 x 3-pin XLR (M) installation version
DMX output: 8 x 3-pin XLR (F) installation version
Network connection: Protocol: Art-Net 3 via 2x RJ-45 (F) installation version
Connections: 2 x RJ-45 E-Con (F) installation version
PC connection: Via RJ-45 (F) installation version
Housing design: (19") 48.3 cm rack mountable
Dimensions: Width: 48.3 cm, Depth: 17.5 cm, Height: 4.45 cm
Weight: 2.40 kg

EUROLITE Art-Net-DMX Node 8 MK2

The EUROLITE Art-Net-DMX Node 8 MK2 is the perfect solution for anyone in need of a reliable and powerful DMX control system. With the capability to output up to 8 DMX universes via XLR, this interface offers impressive flexibility for your lighting installations. The parallel DMX input allows for the use of up to 1024 channels, providing you with comprehensive control over your lighting technology.

The device features 8 optically isolated XLR connectors (3-pin) for DMX output, as well as 2 XLR sockets (3-pin) for DMX input. User-friendly configuration is done directly on the device via 4 control buttons and an alphanumeric LCD display (2 x 16 characters). An LED function indicator ensures easy monitoring of operation.

Additionally, the splitter operation allows for flexible signal distribution. Connection to your network is made via RJ-45, and the device is designed for 19" rack mounting. With a total power consumption of only 5 W, the EUROLITE Art-Net-DMX Node 8 MK2 is both powerful and energy-efficient. Included in the package are the device, a user manual, and a power cable.
