Features
- Supports ArtNET and sACN protocols
- 2 Universes DMX Input or Output
- Remote control interface
- Power over Ethernet (PoE) (IEEE 802.3af)
- Power Supply: 12VDC / 240VAC 50Hz
- Power over Ethernet (PoE): Yes
- Power Consumption: 8 W
- Power Input Connector: Low Voltage DC Connector
- DMX Connector: XLR 5P In/Out
- DMX Connector IN: XLR 5P
- DMX Connector OUT: XLR 5P
- Data Connection Input: etherCON
- Length: 115 mm
- Width: 67 mm
- Height: 44 mm
- Weight: 0.3 kg
- Housing Material: Metal / Plastic
- Color: Black
- Control Mode: Art-Net / DMX
- Protocols: Art-Net / DMX / sACN / TCP-IPv4
- Display: OLED
- Universes: 2

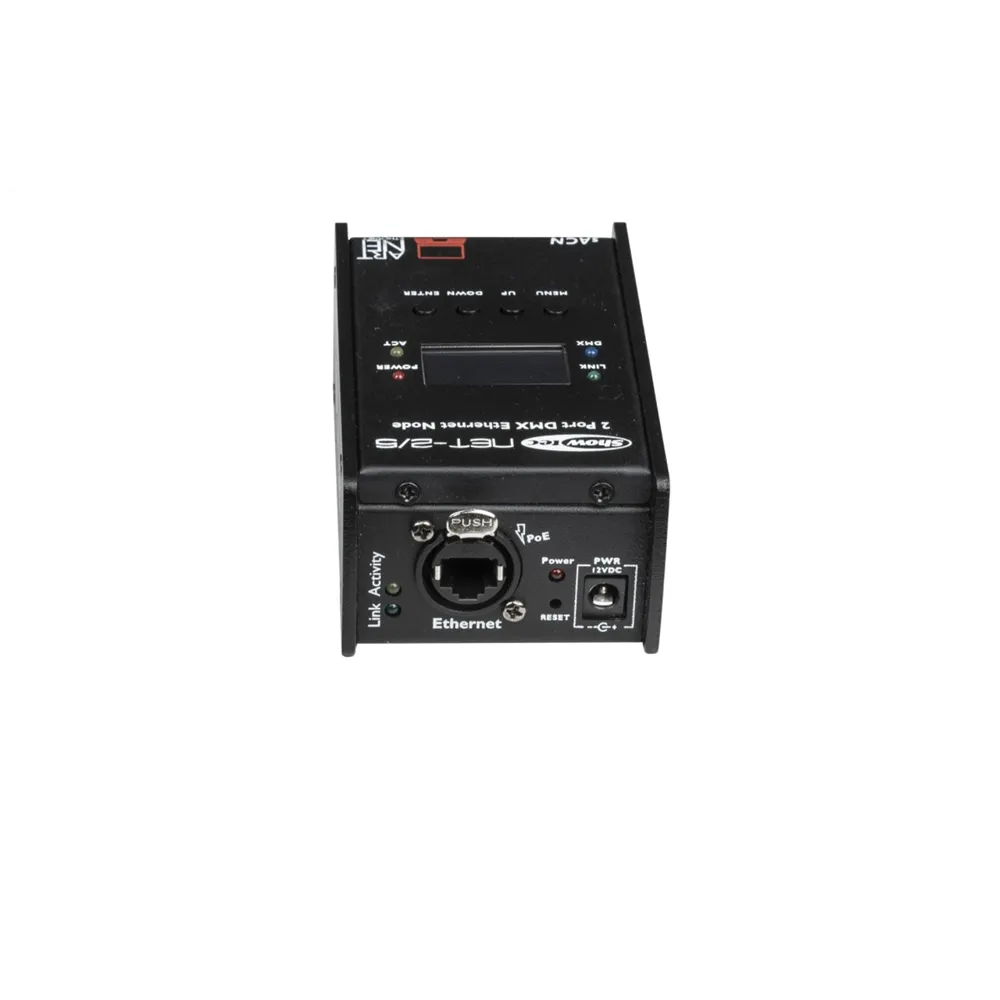

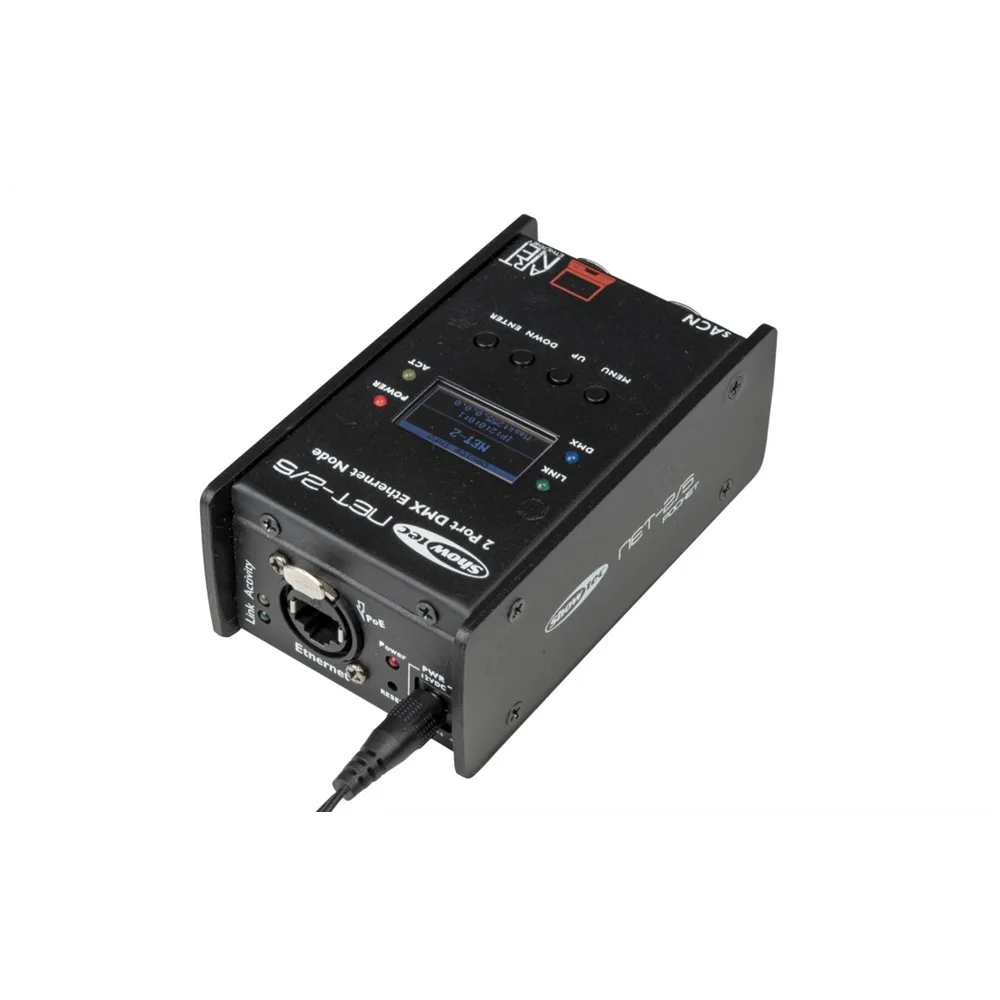

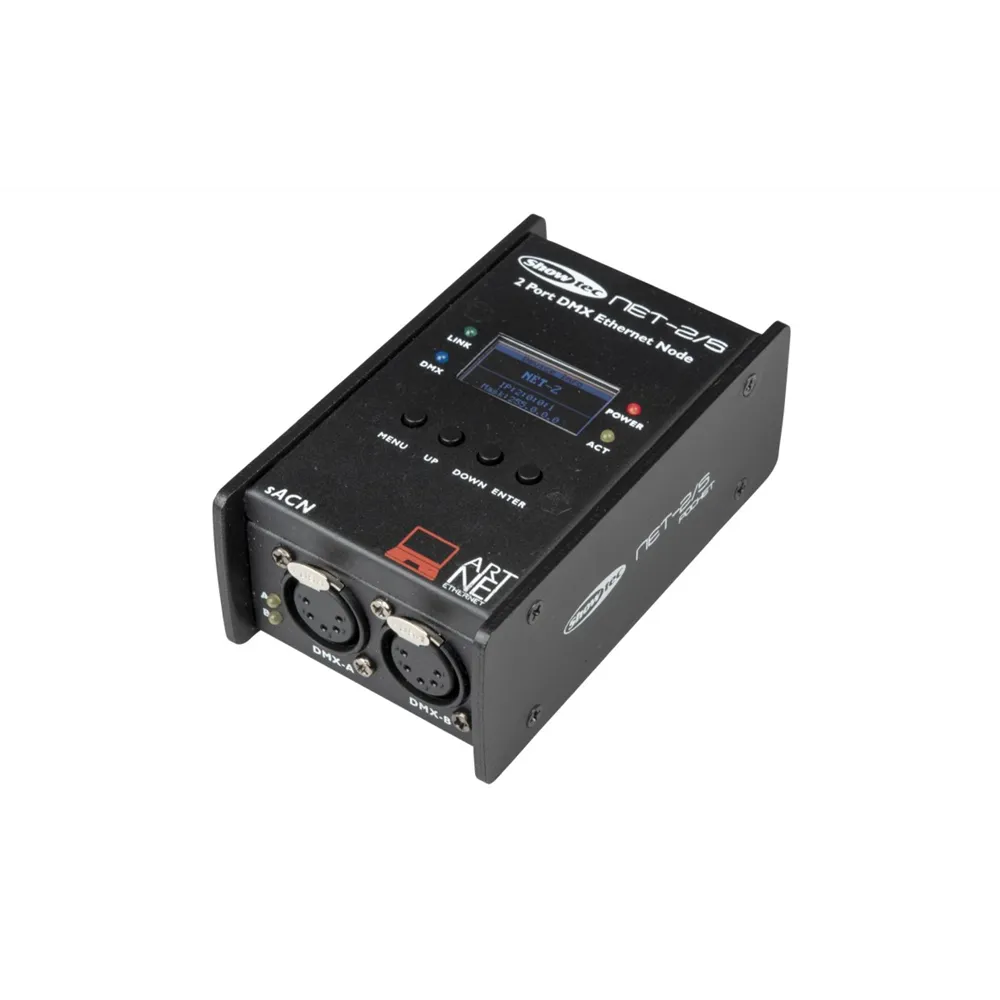

Showtec NET-2/5 Pocket Art-Net Node with 2 Channels, XLR, 5-Pin
The Showtec NET-2/5 Pocket Art-Net Node is the perfect solution for anyone needing a reliable and powerful connection between Art-Net and sACN protocols and DMX-512 signals. With two universes for DMX input or output, this compact device offers a flexible and user-friendly interface for remote setup. Thanks to Power over Ethernet (PoE) support, you can easily power the device via a CAT5 cable without the need for an additional 12V power adapter.
With a maximum transmission of 1024 channels and a clear menu on the graphical OLED display, all settings can be easily adjusted. Alternatively, you can conveniently configure the device through a web browser on the network. The NET-2/5 is not only lightweight and compact but also robust, featuring a metal and plastic housing suitable for use in various environments.
Whether for professional lighting installations or creative projects, the Showtec NET-2/5 Pocket Art-Net Node is the ideal choice for those who value quality and user-friendliness.
