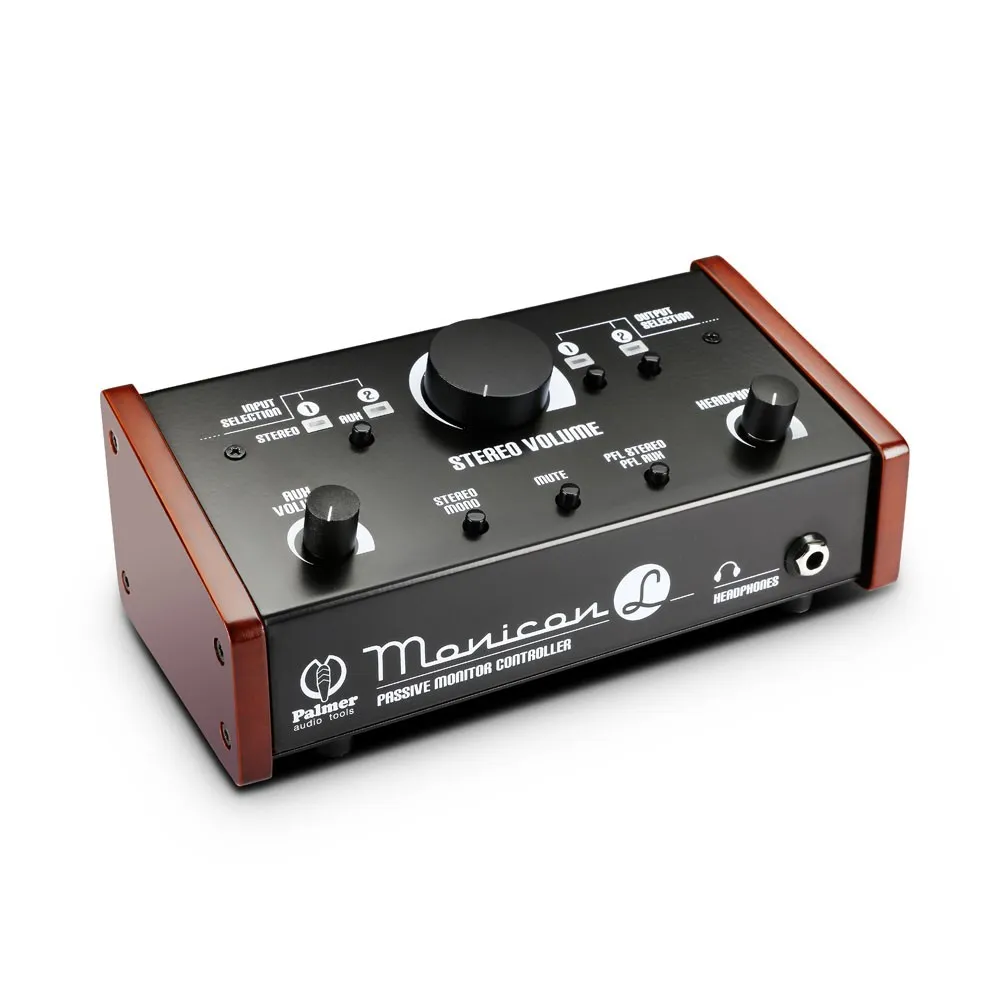

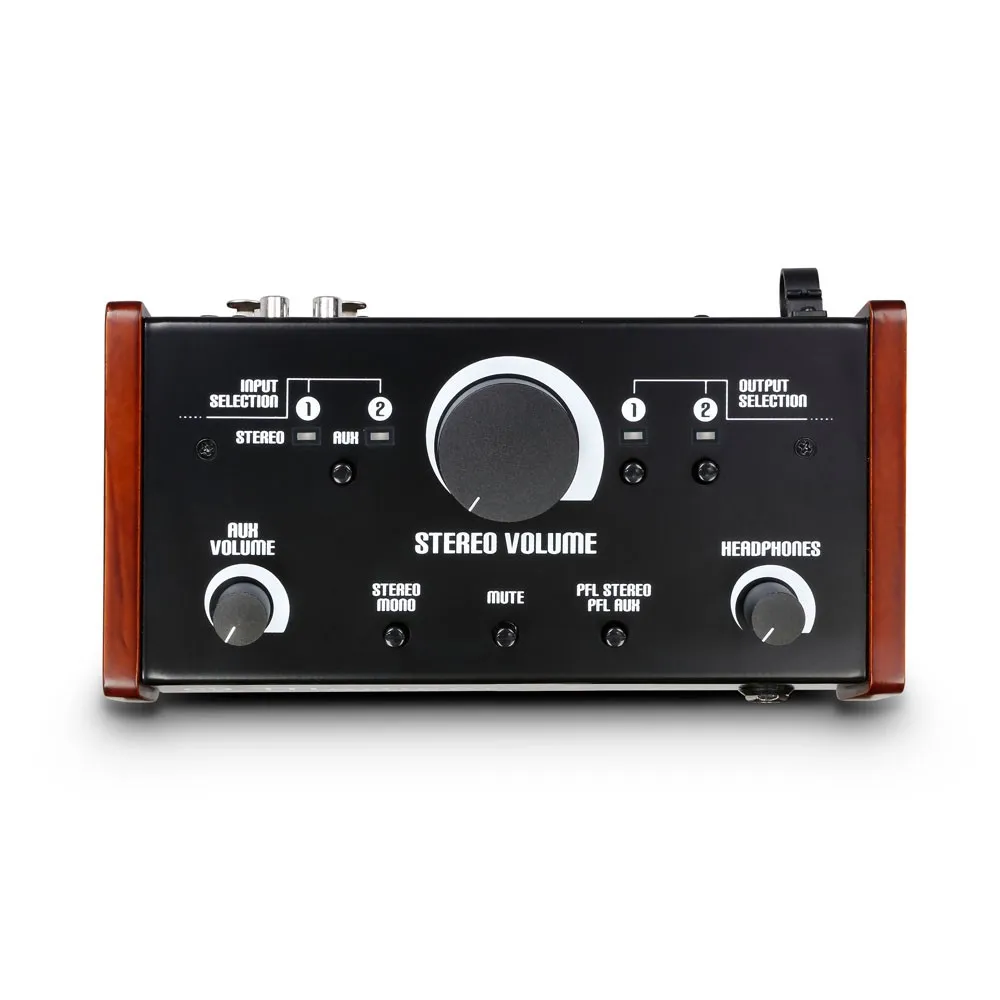

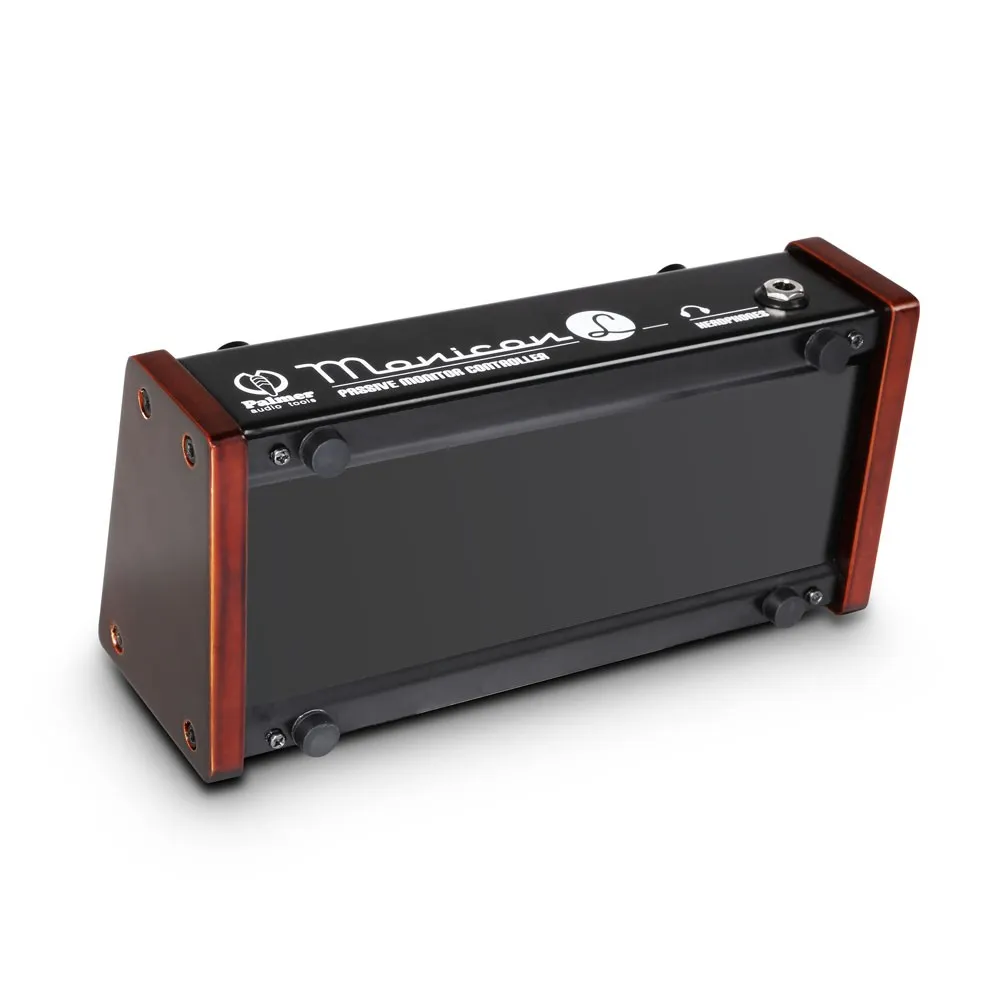

Palmer MONICON® L - Passive Monitor Controller

Brand:

Features

  • Passive Volume Control
  • Stereo and AUX Inputs
  • Two Outputs
  • Mono Summing Output
  • Balanced and Unbalanced Connection Options
  • Integrated Headphone Amplifier
  • Mono, Mute, and PFL Switches
  • Additional Volume Controls for AUX and Headphones
  • Sleek Design with Solid Wood Side Panels
  • Robust Construction
  • Number of Channels: 2
  • Number of Inputs: 2
  • Input Connections: 3.5 mm Stereo Jack, RCA, XLR
  • Input Type: Balanced / Unbalanced depending on the Jack Plug
  • Max Input Level: 20 dBu
  • Input Impedance: (Balanced) 10k Ohm, (Unbalanced) 5k Ohm
  • Number of Outputs: 3
  • Output Connections: XLR
  • Output Type: Balanced / Unbalanced depending on the Jack Plug
  • Max Output Level: 20 dBu
  • Output Impedance: 600 Ohm
  • Frequency Response: 10 - 40,000 Hz
  • Total Harmonic Distortion (THD): 0.001 %
  • Max Attenuation: (Attenuator + Mute) 112, (Attenuator) 85
  • Controls: Attenuation, Output Selection, Input Selection, Mono, Mute, PFL Source
  • Housing Material: Wood, Steel Sheet
  • Housing Finish: Powder Coated
  • Width: 218 mm
  • Height: 77 mm
  • Depth: 100 mm
  • Weight: 1.14 kg
Read moreShow less
169.00 (tax incl.)
Reference:
AHPMONICONL
Love0
Add to compare0
Description

Palmer MONICON® L - Passive Monitor Controller

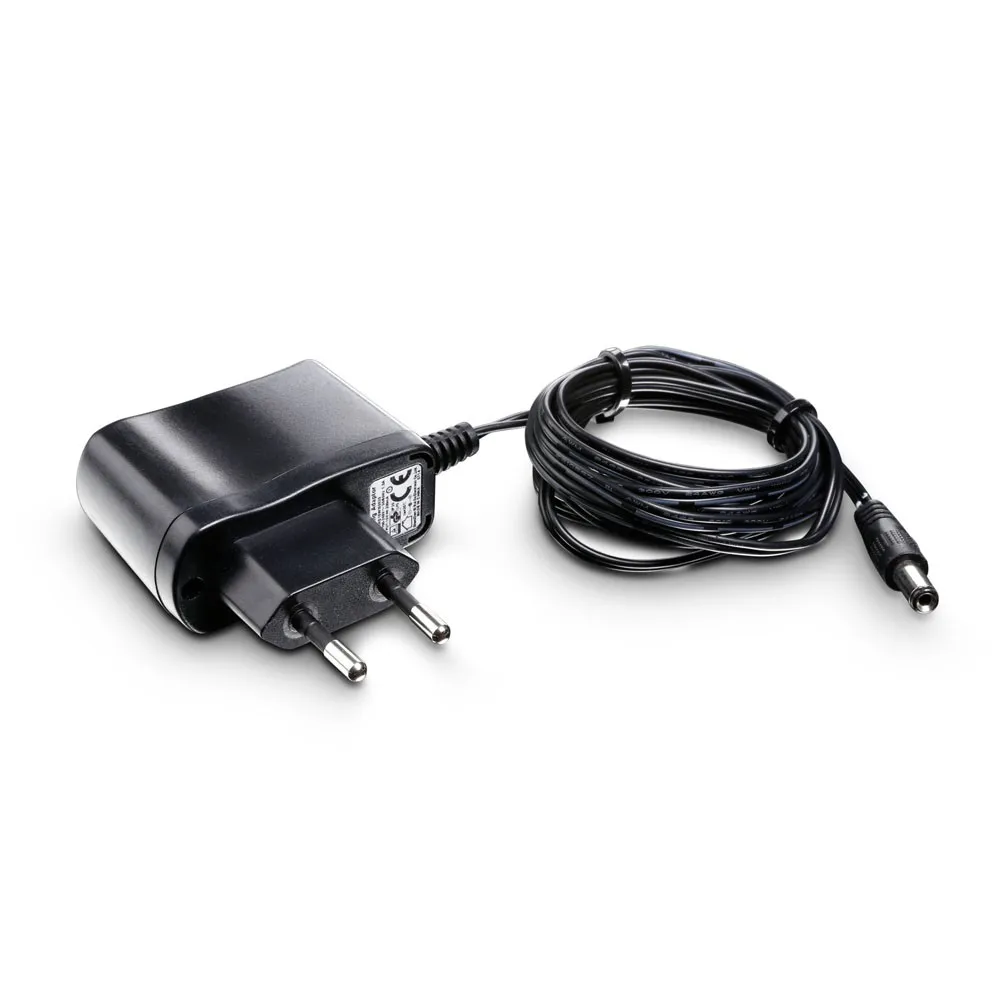

The Palmer MONICON® L is the ideal passive monitor controller for professional audio applications. With its precise analog volume control, it enables uncolored sound transmission between your computer or audio interface and active monitor speakers. The fully passive circuitry ensures clear and transparent sound quality, while the LED indicators and the integrated headphone amplifier are powered by the included power supply.

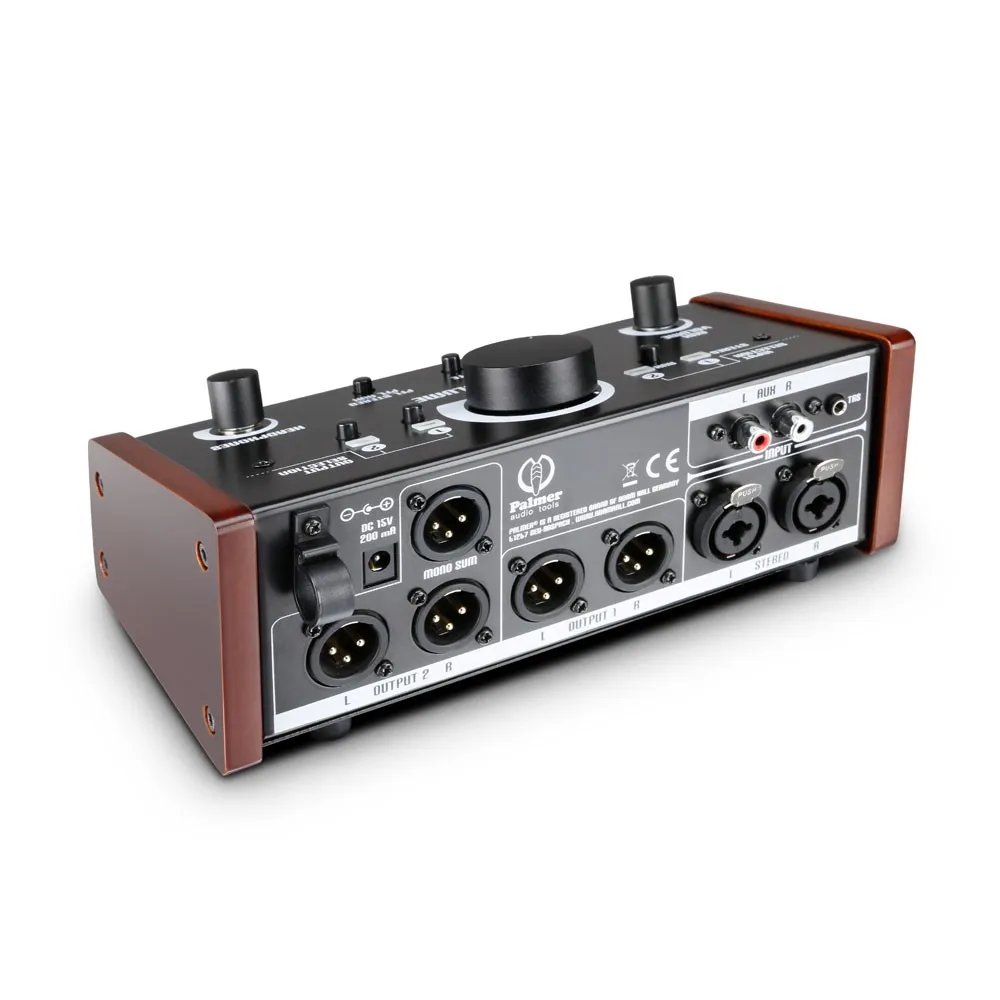

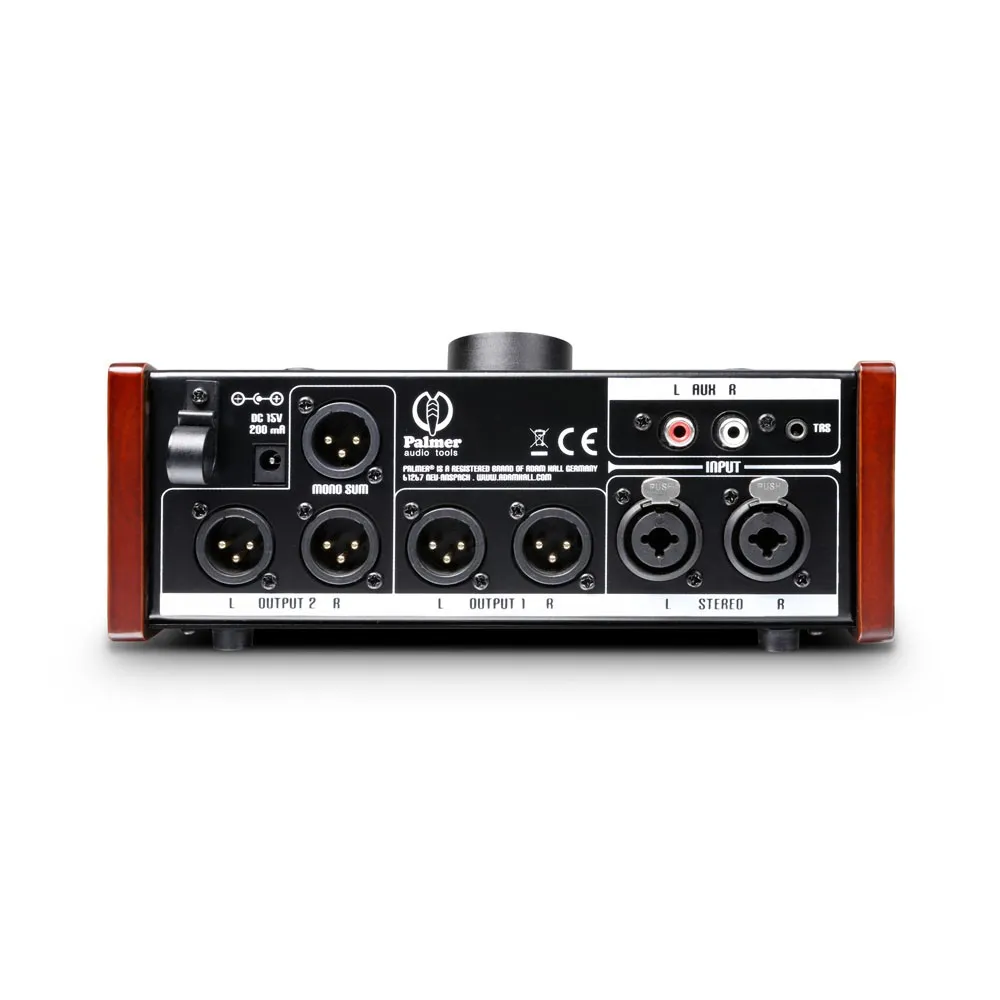

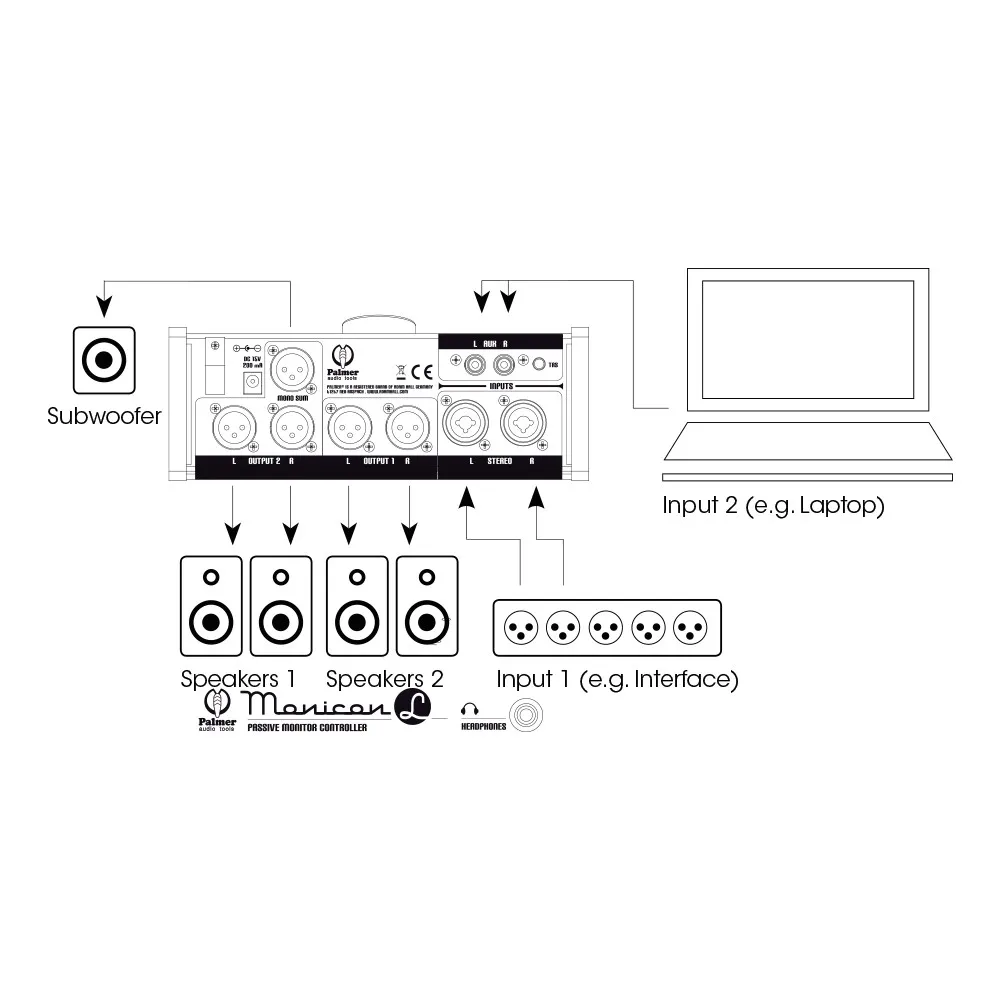

The MONICON® L offers versatile connectivity options: balanced combo jacks for stereo input, RCA jacks, and a 3.5 mm stereo jack for AUX input. With outputs for two pairs of monitors and a mono sum output via XLR connectors, it is extremely flexible. User-friendly operation is enhanced by a large volume knob, mono, mute, and PFL switches, as well as separate volume controls for AUX and headphones. The elegant design featuring solid wood side panels and robust construction makes the MONICON® L not only functional but also a stylish addition to your studio.

Experience perfect control over your audio environment with the Palmer MONICON® L – for sound quality that impresses!
