Features
- Stereo headphone amplifier
- 4 separate headphone amplifiers in one housing
- Individual volume control for each amplifier
- 6.3 mm stereo jack input
- 6.3 mm stereo jack outputs
- Frequency range: 20-20,000 Hz
- Input signal: 300 mV
- Output signal: 2 x 16 mW/8 Ω, 2 x 35 mW/32 Ω, 2 x 15 mW/600 Ω (per headphone)
- Signal-to-noise ratio: 64 dB
- Total harmonic distortion: 0.1%
- Operating temperature range: 0-40 °C
- Power supply: via included power adapter
- Dimensions: 117 x 93 x 40 mm
- Weight: 560 g
- Inputs: 1 x 6.3 mm jack
- Outputs: 4 x 6.3 mm jack

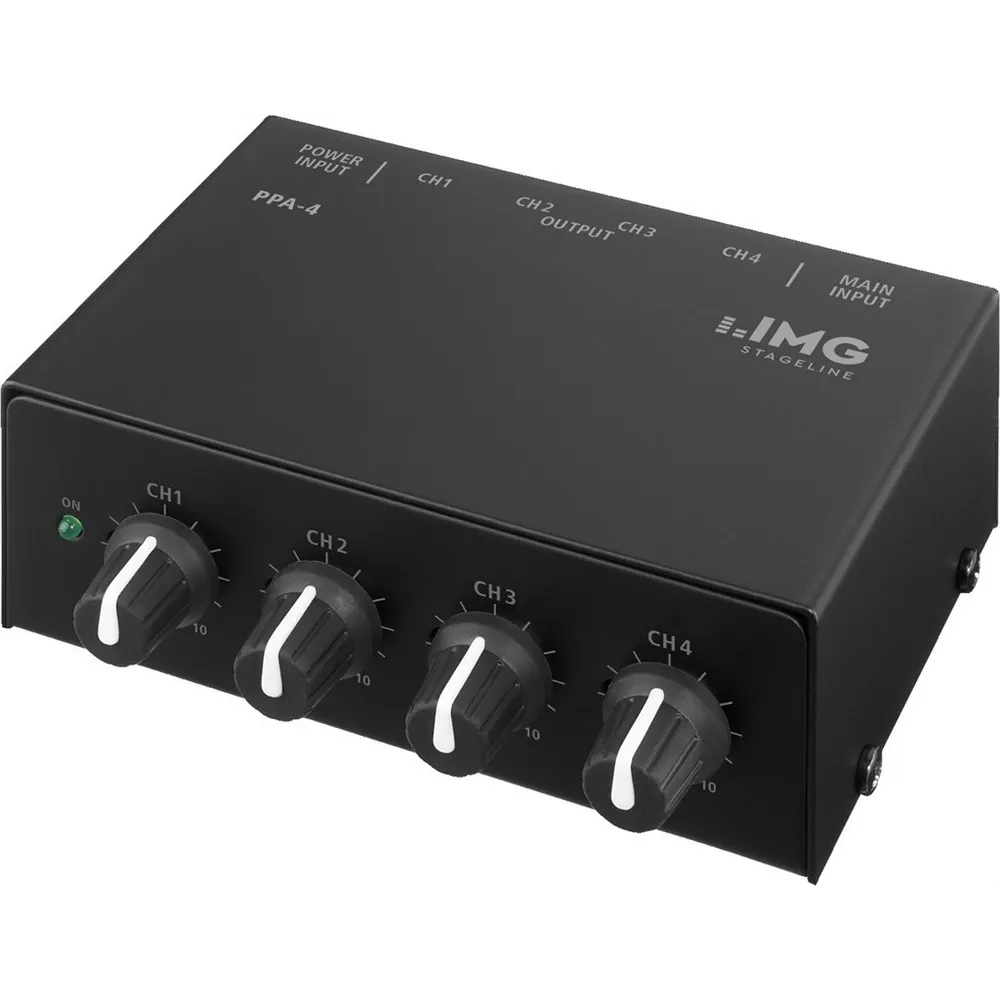

IMG STAGELINE PPA-4 Headphone Amplifier
The IMG STAGELINE PPA-4 Headphone Amplifier is the ideal solution for anyone in need of high-quality and powerful audio amplification. Featuring four separate headphone amplifiers in a compact housing, this device delivers excellent sound quality and flexibility for various applications. Each amplifier is equipped with its own level control, allowing you to customize the sound to your preference.
The PPA-4 is equipped with a 6.3 mm stereo jack input and offers four 6.3 mm stereo jack outputs, enabling multiple headphones to be connected simultaneously. With a frequency range of 20-20,000 Hz and a signal-to-noise ratio of 64 dB, this amplifier ensures clear and precise audio transmission. The output power of up to 35 mW at 32 Ω guarantees optimal performance even with demanding headphones.
Thanks to its compact dimensions of 117 x 93 x 40 mm and a weight of only 560 g, the PPA-4 is easy to transport and ideal for use in the studio or at live events. The power supply is provided via an included plug-in power adapter, further enhancing usability. Experience the difference with the IMG STAGELINE PPA-4 Headphone Amplifier!
