Features
- 6 separate headphone amplifiers, each with 1 level control and 1 signal/clip LED, as well as main/solo switching
- 1 input per amplifier (Solo), switchable to the common main input (Main)
- Main input with low/high switch for signal level adjustment

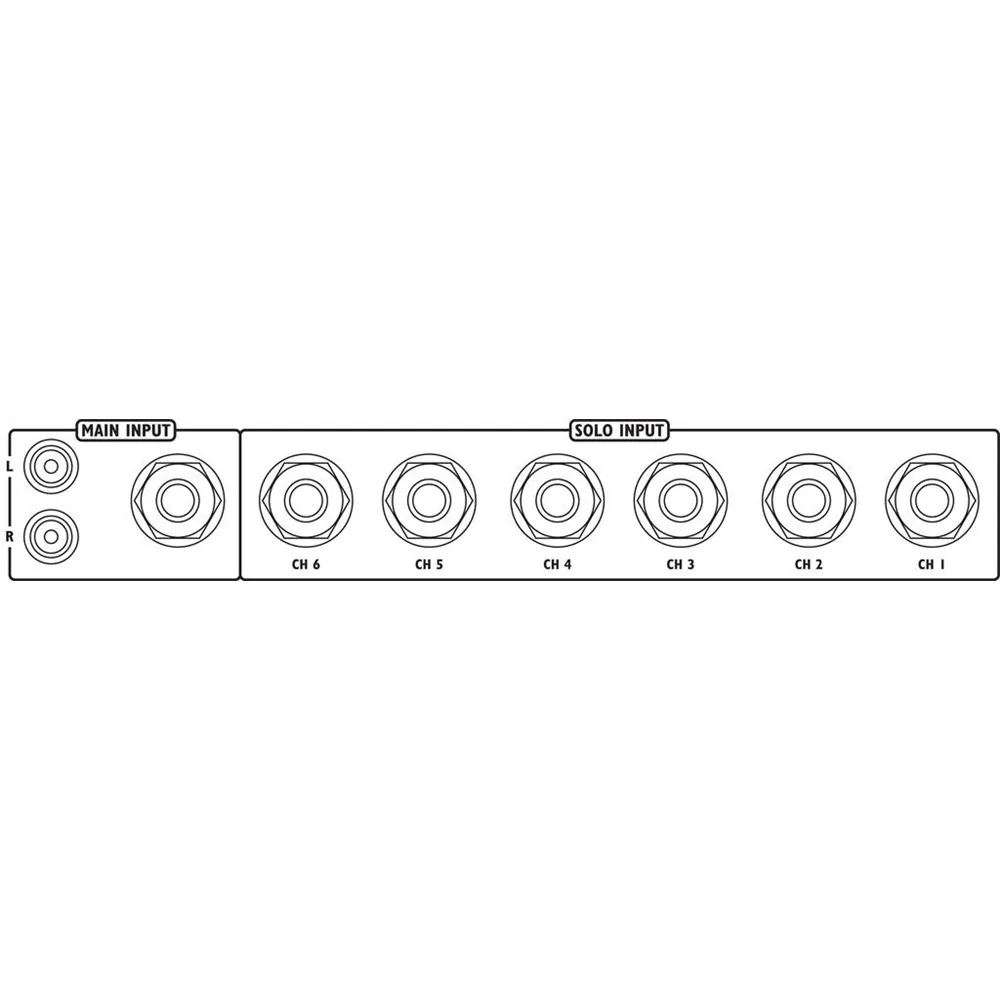

- Inputs: Solo (stereo) 6 x 6.3 mm jack, Main (stereo) 2 x 6.3 mm jack, 2 x RCA L/R
- Outputs: Headphone (stereo) 6 x 6.3 mm jack
- Frequency range: 5-30,000 Hz
- Input signal: 250 mV/50 kΩ (Solo), 250 mV/50 kΩ (Main Low), 2.2 V/60 kΩ (Main High)
- Output signal: 2 x 16 mW/8 Ω, 2 x 45 mW/32 Ω, 2 x 75 mW/600 Ω
- Signal-to-noise ratio: > 60 dB
- Channel separation: 50 dB
- THD (Total Harmonic Distortion): 0.02 %
- Permissible operating temperature: 0-40 °C
- Power supply: ˜ 230 V/50 Hz/11 VA
- Dimensions: 482 x 44 x 185 mm, 1 U
- Weight: 2.3 kg

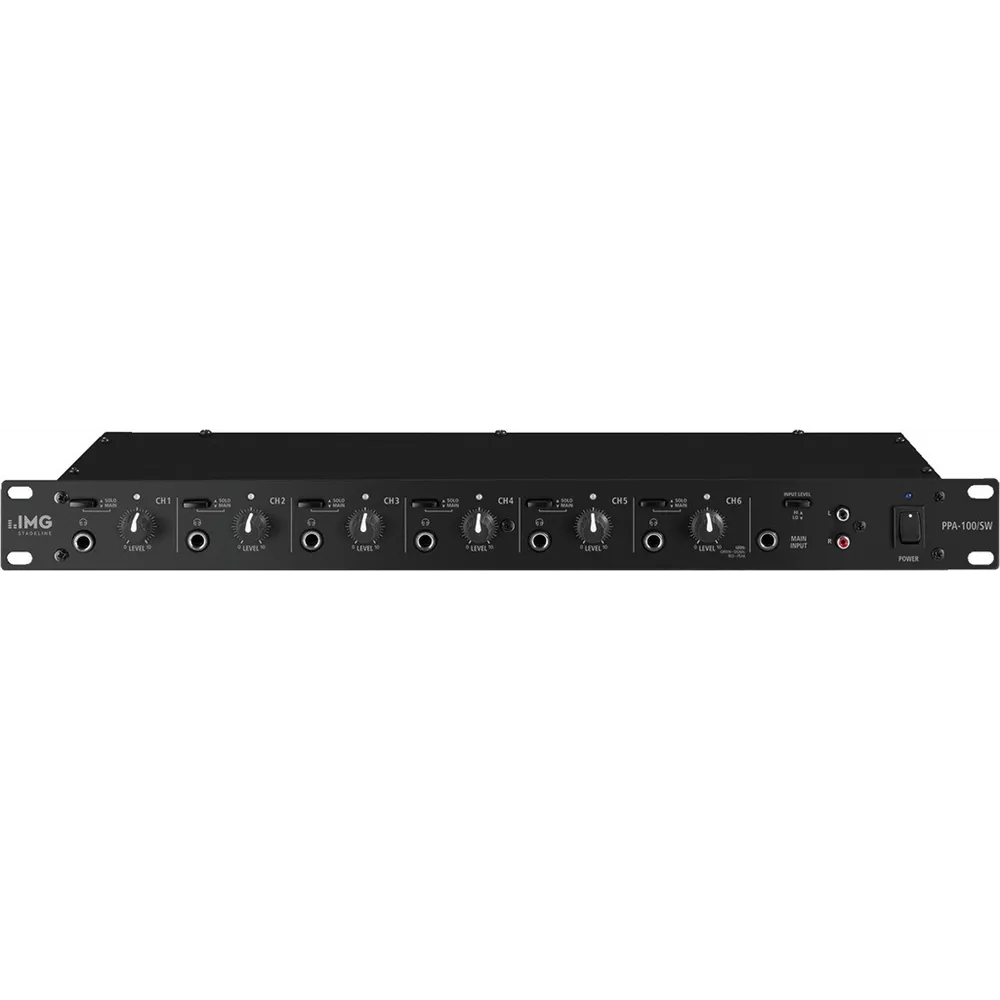

IMG STAGELINE PPA-100/SW Stereo Headphone Amplifier
The IMG STAGELINE PPA-100/SW Stereo Headphone Amplifier is the perfect solution for anyone in need of high-quality and powerful audio amplification. Featuring six separate headphone amplifiers, each equipped with its own level control and a signal/clip LED, this device offers flexible and user-friendly operation. The main/solo switch allows you to toggle between a common main input and individual solo inputs, making it easy to adapt to various audio sources.
The main input is equipped with a low/high switch to optimally adjust the input signal. The inputs include 6 x 6.3 mm jacks for solo and 2 x 6.3 mm jacks as well as 2 x RCA L/R for the main input. The outputs provide 6 x 6.3 mm jacks for headphones, allowing multiple users to enjoy clear and powerful sound simultaneously.
With a frequency range of 5-30,000 Hz, a signal-to-noise ratio of over 60 dB, and a total harmonic distortion of just 0.02%, the PPA-100/SW guarantees outstanding sound quality. Compact and lightweight, this headphone amplifier is ideal for use in studios, at live events, or in rehearsal spaces.
