Features
- 2-channel microphone system with UHF-PLL technology
- 2-channel multi-frequency receiver unit and 2 handheld microphones with UHF-PLL technology
- 93 preset channels in 10 channel groups
- Infrared interface for quick and error-free synchronization between transmitter and receiver
- LED indicators for carrier and audio signal
- 2 separate channels with volume control
- Balanced XLR output per channel
- Detachable BNC antennas
- 2 dynamic handheld microphones with cardioid pickup pattern and LCD display for battery capacity and frequency
- UHF 823 - 832 MHz registration-free and fee-free in large parts of Europe
- UHF 863 - 865 MHz registration-free and fee-free in Europe
- Range of up to 60m in line of sight
- Suitable for applications such as clubs/dance schools, weddings/gala/events, mobile use, mobile DJs/solo entertainers, restaurants, bars, and hotels
- LCD display
- Tabletop housing, (19") 48.3 cm rack mountable, 1U
- Type: Wireless Complete Set
- Protection class: IP20
- Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
- Frequency selection: 93 switchable frequencies
- Weight: 2.30 kg
- Power supply for receiver: 100-240 V AC, 50/60 Hz, 14V DC 350 mA
- Frequency range: 50 - 18,000 Hz
- Signal-to-noise ratio: >80 dB
- Display type: LCD display
- Controls: Power switch, volume control, encoder

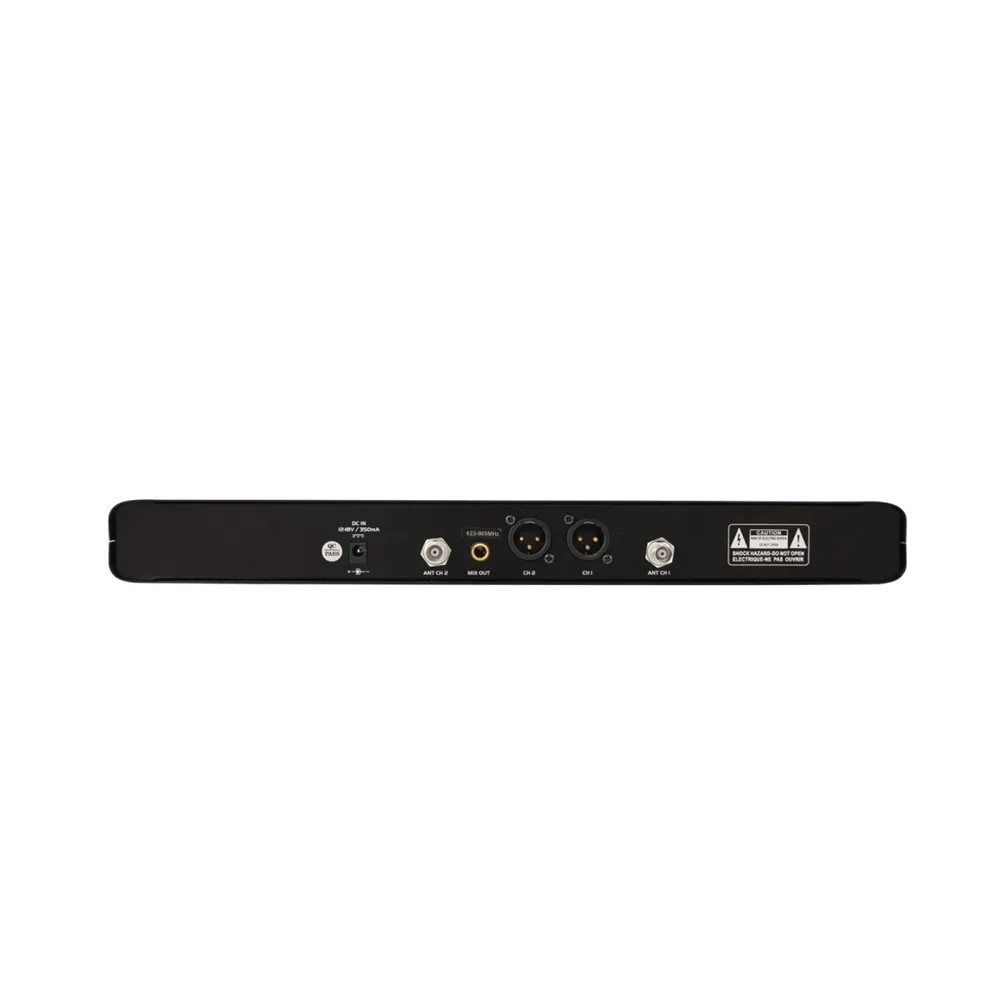

- Connections: Input: Antenna via 2 x BNC (female), Output: Line via 1 x 6.3 mm jack (unbalanced), Output: Microphone via 2 x 3-pin XLR
- Material: Metal
- Receiver dimensions: Width: 41 cm, Depth: 23.5 cm, Height: 4.7 cm
- Microphone type: Handheld transmitter
- Microphone power supply: 3V DC
- Capsule type: Dynamic
- RF output power: 10 mW
- Microphone material: Plastic
- Microphone dimensions: Length: 25 cm, Diameter: Ø 5.2 cm
- Microphone weight: 0.23 kg

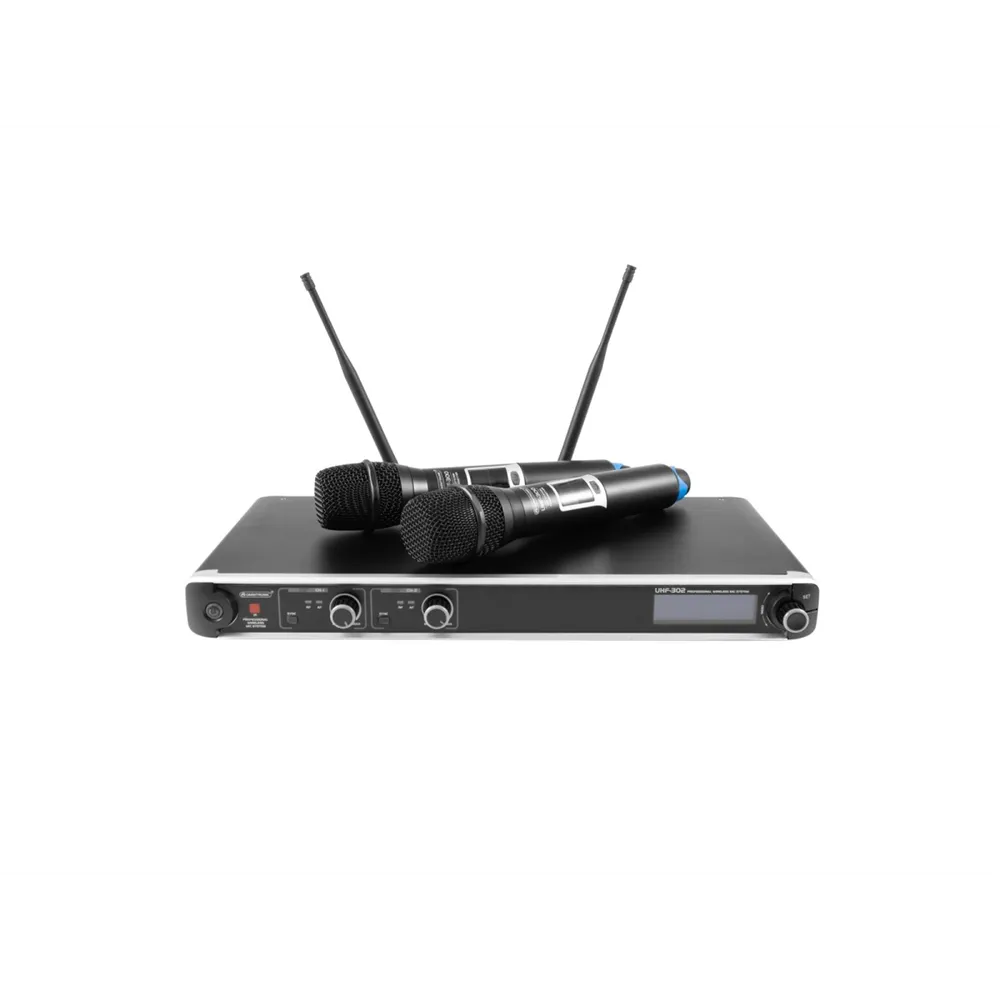

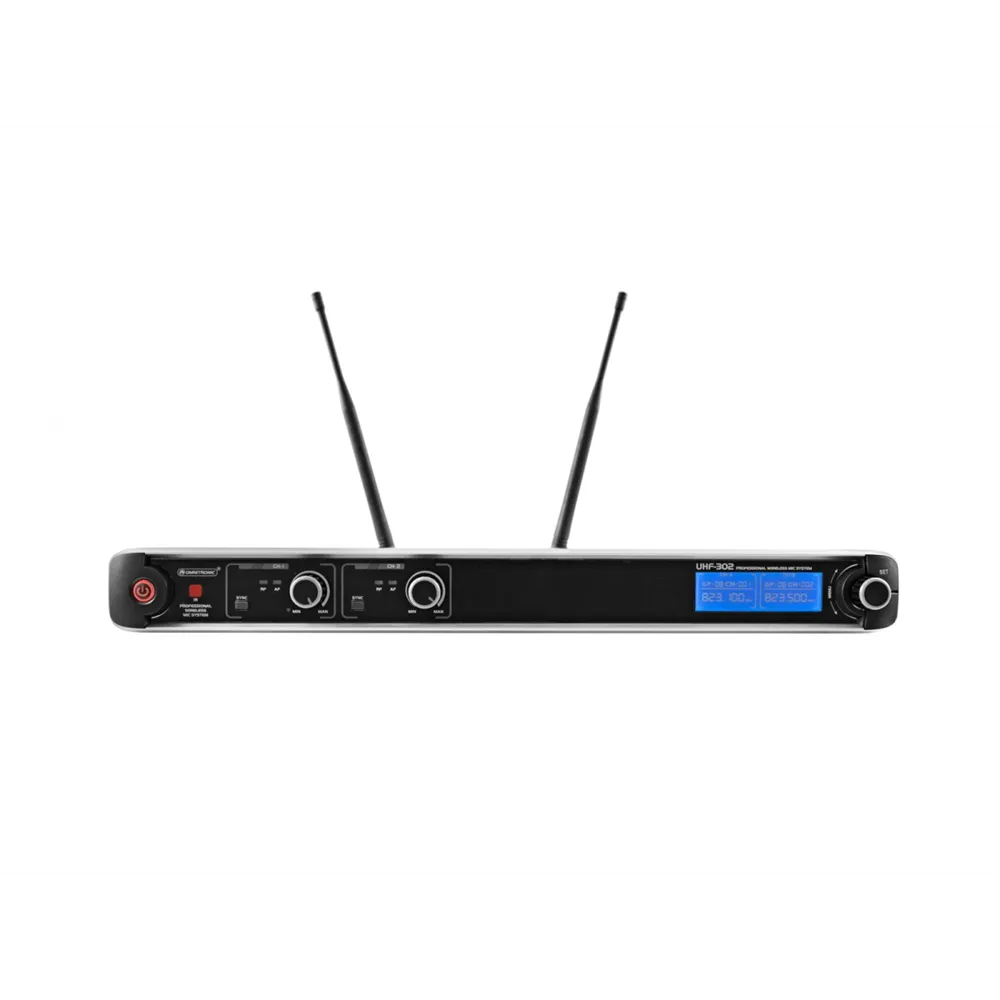

OMNITRONIC UHF-302 2-Channel Wireless Microphone System 823-832/863-865MHz
Experience the freedom of wireless communication with the OMNITRONIC UHF-302 2-Channel Wireless Microphone System. This high-quality system operates in the UHF-PLL range and offers a variety of features ideal for professional applications. With 93 preset channels in 10 groups and a range of up to 60 meters in line of sight, it is perfect for clubs, weddings, events, and mobile DJs.
The set includes two dynamic handheld microphones with a cardioid pickup pattern, equipped with an LCD display to show frequency and battery capacity. The infrared interface allows for quick and error-free synchronization between transmitter and receiver. The receiver features a user-friendly LCD display, separate volume controls for each channel, and balanced XLR outputs.
The robust tabletop housing is suitable for 19-inch rack mounting, ensuring easy integration into your existing audio setup. With detachable BNC antennas and a total weight of just 2.30 kg, the OMNITRONIC UHF-302 is both powerful and portable. Elevate your events with the professional sound they deserve!
