Features
- 4-channel microphone system with UHF-PLL technology
- 4-channel multi-frequency receiver unit and 4 handheld microphones with UHF-PLL technology
- 93 preset channels in 10 channel groups
- Infrared interface for quick and error-free synchronization between transmitter and receiver
- LED indicators for carrier and audio signal
- 4 separate channels with volume control
- Balanced XLR output per channel
- Detachable BNC antennas

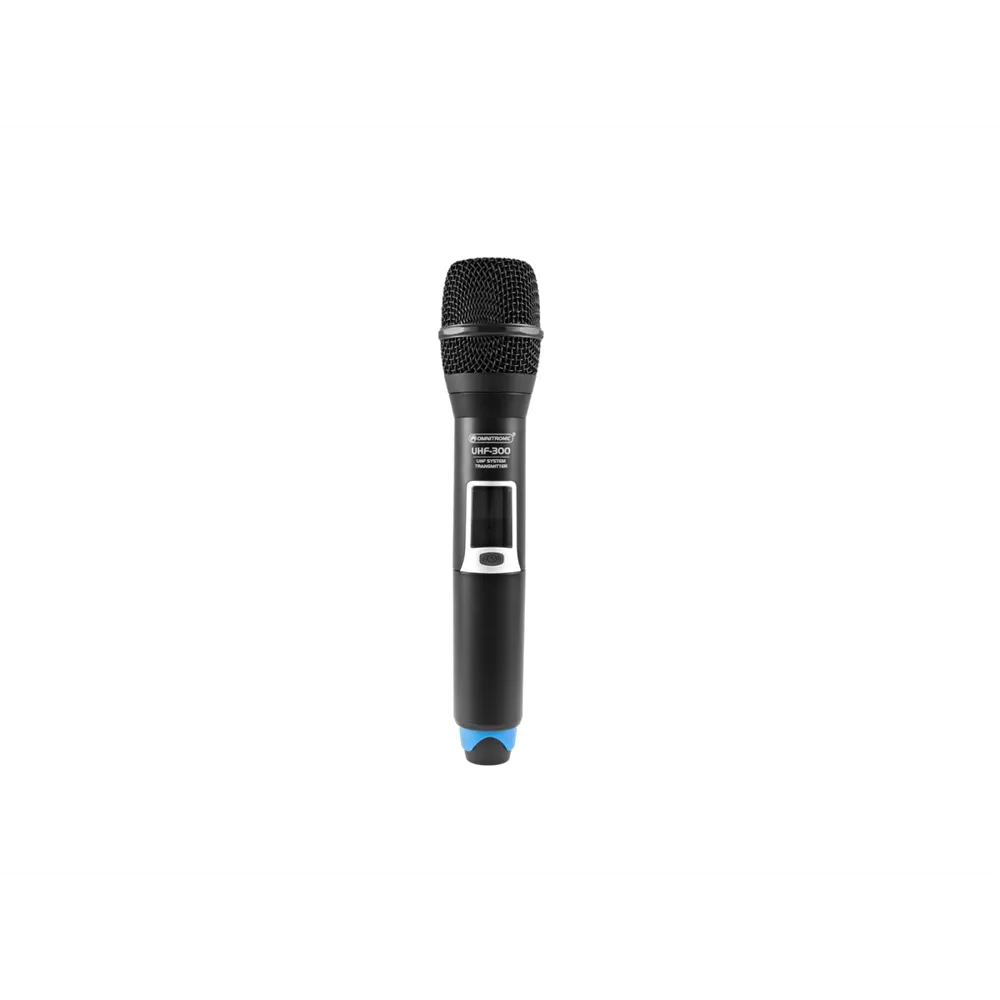

- 4 dynamic handheld microphones with cardioid pickup pattern and LCD display for battery capacity and frequency
- UHF 823 - 832 MHz license-free in large parts of Europe
- UHF 863 - 865 MHz license-free in Europe
- Range of up to 60m in line of sight
- Suitable for applications such as clubs/dance schools, weddings/galas/events, mobile use, mobile DJs/entertainers, restaurants, bars, and hotels
- LCD display
- Tabletop housing, 19" rack mountable (1U)
- Power supply: 100-240 V AC, 50/60 Hz, 12V DC 500 mA
- Total power consumption: 6 W
- Number of channels: 4
- Frequency range: 50 - 18,000 Hz
- Signal-to-noise ratio: >80 dB
- Display type: LCD display
- Controls: Power switch, volume control, encoder
- Status LEDs: Power, signal, level indicator

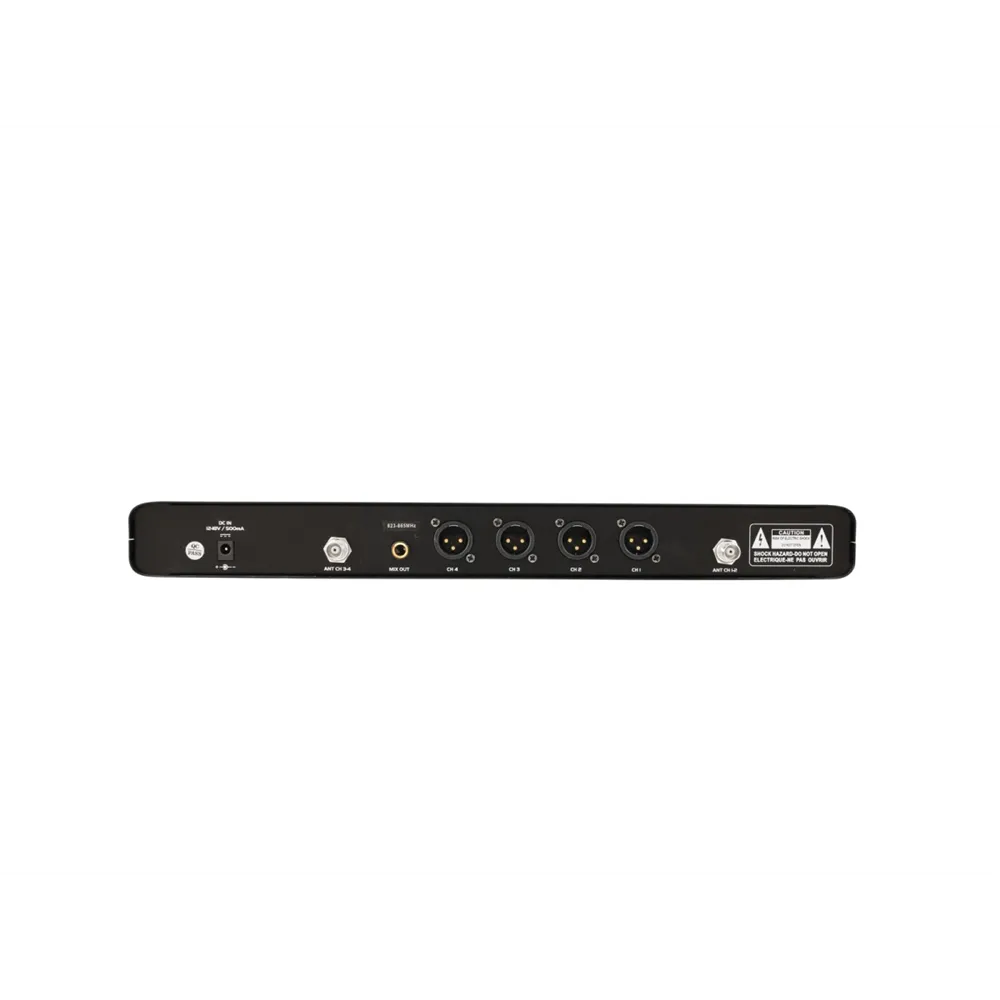

- Connections: Antenna via 2 x BNC (female), line via 1 x 6.3 mm jack (unbalanced), microphone via 4 x 3-pin XLR
- Material: Metal
- Dimensions: Width: 41 cm, Depth: 23.5 cm, Height: 4.7 cm
- Microphone: Handheld transmitter, power supply: 3V DC, capsule type: Dynamic, battery: 2 x AA (not included)
- RF output power: 10 mW
- Microphone material: Plastic
- Microphone dimensions: Length: 25 cm, Diameter: Ø 5.2 cm
- Receiver weight: 3.00 kg
- Microphone weight: 0.23 kg

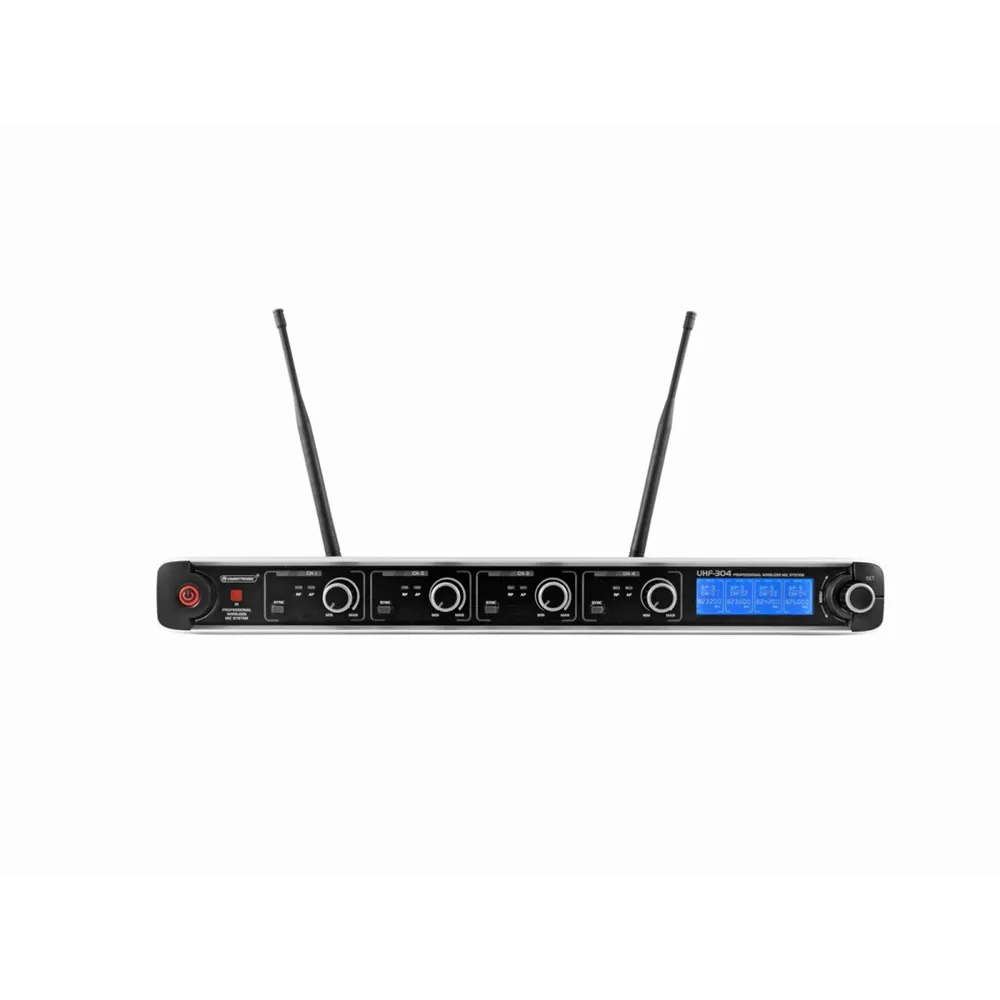

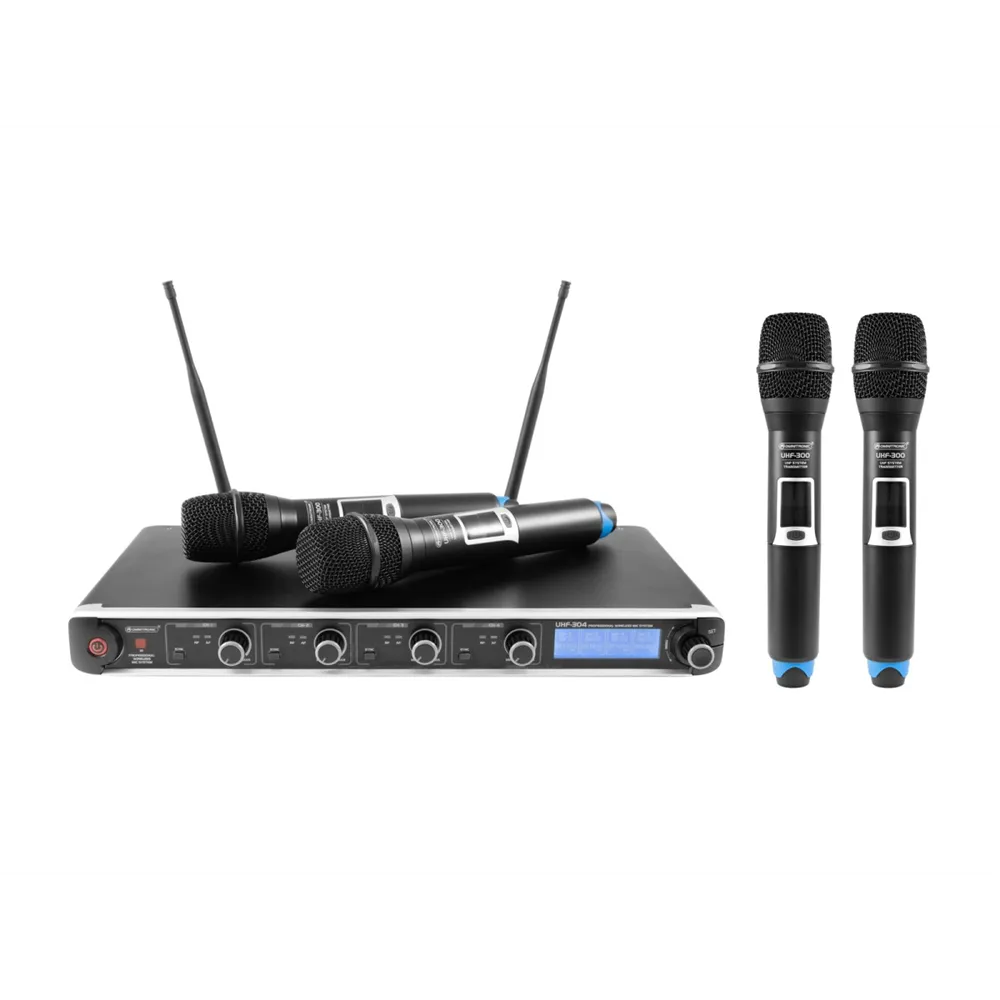

OMNITRONIC UHF-304 4-Channel Wireless Microphone System 823-832/863-865MHz
Experience the freedom of wireless communication with the OMNITRONIC UHF-304 4-Channel Wireless Microphone System. This high-quality system operates in the UHF-PLL range and offers a variety of features essential for professional applications. With 93 preset channels across 10 groups and a range of up to 60 meters in line of sight, it is ideal for clubs, weddings, events, and mobile DJs.
The set includes a 4-channel multi-frequency receiver unit and four dynamic handheld microphones with a cardioid pickup pattern. Each microphone is equipped with an LCD display to show frequency and battery capacity. The infrared interface allows for quick and error-free synchronization between transmitter and receiver. Additionally, the detachable BNC antennas and balanced XLR outputs per channel are designed for easy integration into existing systems.
The robust tabletop housing is suitable for rack mounting and provides user-friendly operation with volume controls and status LEDs. The OMNITRONIC UHF-304 is the perfect choice for anyone seeking a reliable and powerful wireless microphone system.
