LD Systems XS 200 - PA Endstufe Class D 2 x 100 W 4 Ohm

LD Systems XS 200 - Class D Power Amplifier 2 x 100 W 4 Ohm

Brand:

LD Systems XS 400 - Class D Power Amplifier 2 x 200 W 4 Ohm

Features

Product Type: Power Amplifiers
Type: PA Power Amplifiers
Output Power (1 kHz @ 4 Ohm): 2 x 100 W
Output Power (1 kHz @ 8 Ohm): 2 x 50 W
Output Power (1 kHz @ 8 Ohm, Bridge Mode): 200 W
Circuit Design: Class D
Frequency Response: 20 - 20,000 Hz
Voltage Gain: 30 dB / 26 dB / 24 dB
Input Sensitivity: 0.77 V / 1.1 V / 1.4 V
Protection Circuits: DC Protection
Protection Circuits: Short Circuit Protection
Protection Circuits: Soft Start
Protection Circuits: Overheating Protection
Protection Circuits: Overvoltage Protection

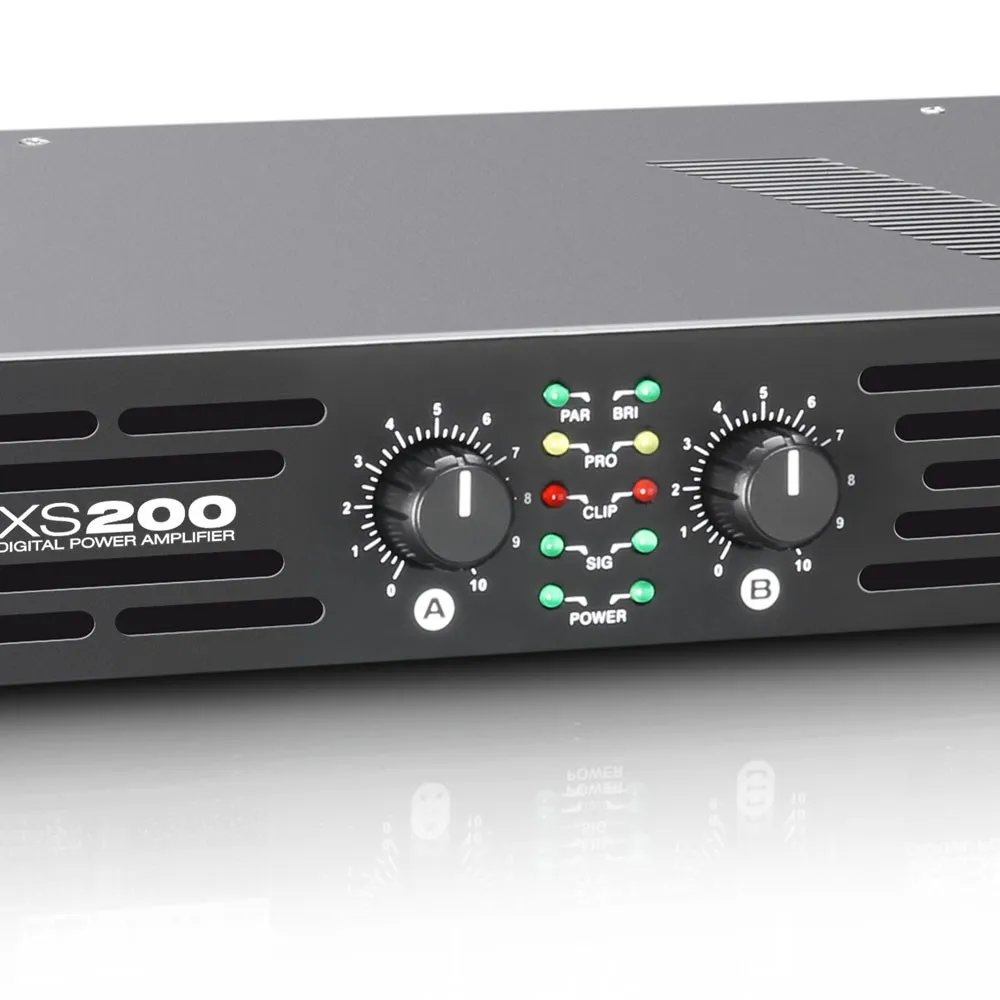

Controls: Gain
Controls: Ground Lift
Controls: Limiter
Controls: Mode
Controls: On / Off
Controls: Volume
Indicators: Clip
Indicators: Mode
Indicators: Power
Indicators: Protect (Protection Circuit Active)
Indicators: Signal
Line Inputs: 2
Line Input Connectors: 6.3 mm Jack
Line Input Connectors: RCA
Speaker Outputs: 2
Speaker Output Connectors: Binding Posts
Speaker Output Connectors: Speakon Compatible
Power Supply: Switching Power Supply
Power Consumption (at Full Load): 240 W
Operating Voltage: 115 V AC / 230 V AC (Selectable)
Width: 482 mm
Height: 44 mm
Depth: 244 mm
Weight: 3 kg

LD Systems XS 200 - Class D Power Amplifier 2 x 100 W 4 Ohm

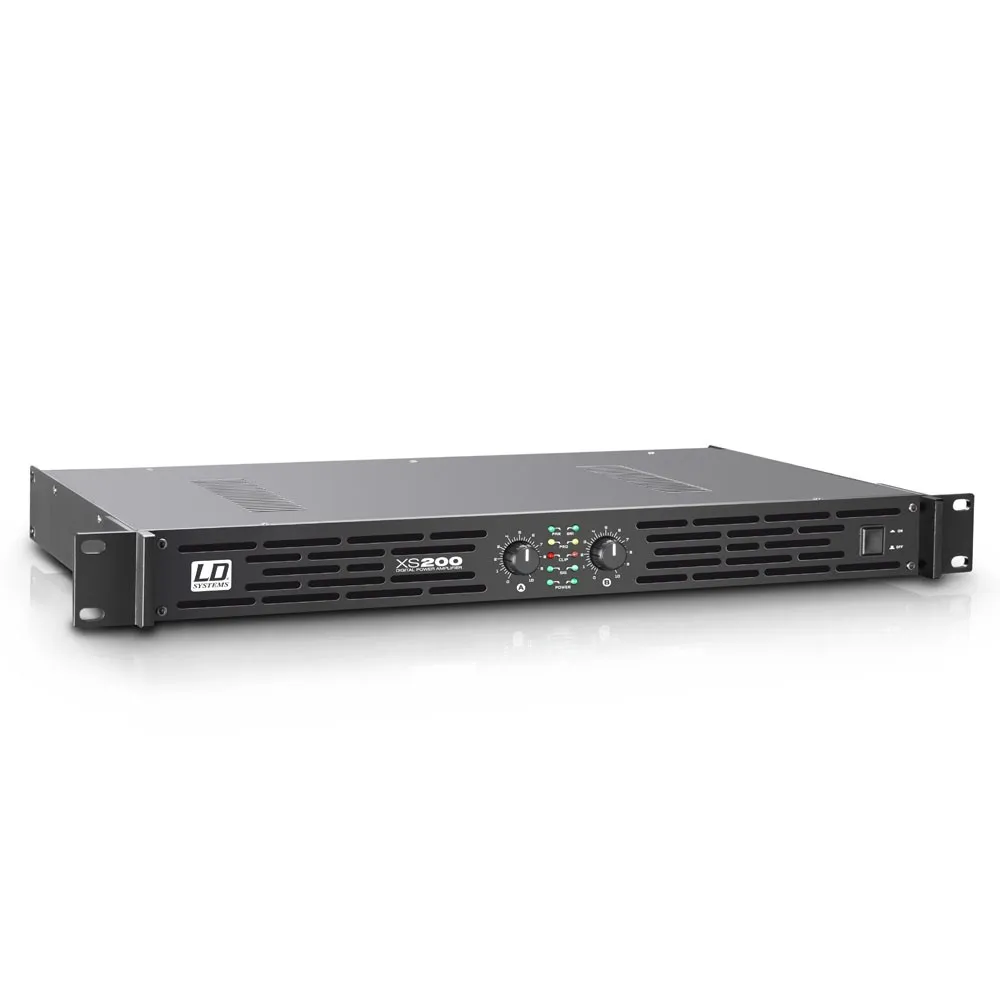

The LD Systems XS 200 is a state-of-the-art Class D power amplifier that impresses with an output of 2 x 100 W at 4 Ohms. With a frequency range of 20 Hz to 20 kHz, it delivers outstanding sound quality, making it suitable for both mobile applications and fixed installations. Its compact design, measuring just 1U and weighing only 3 kg, makes it ideal for transport and placement in various environments, whether in professional settings or home use.

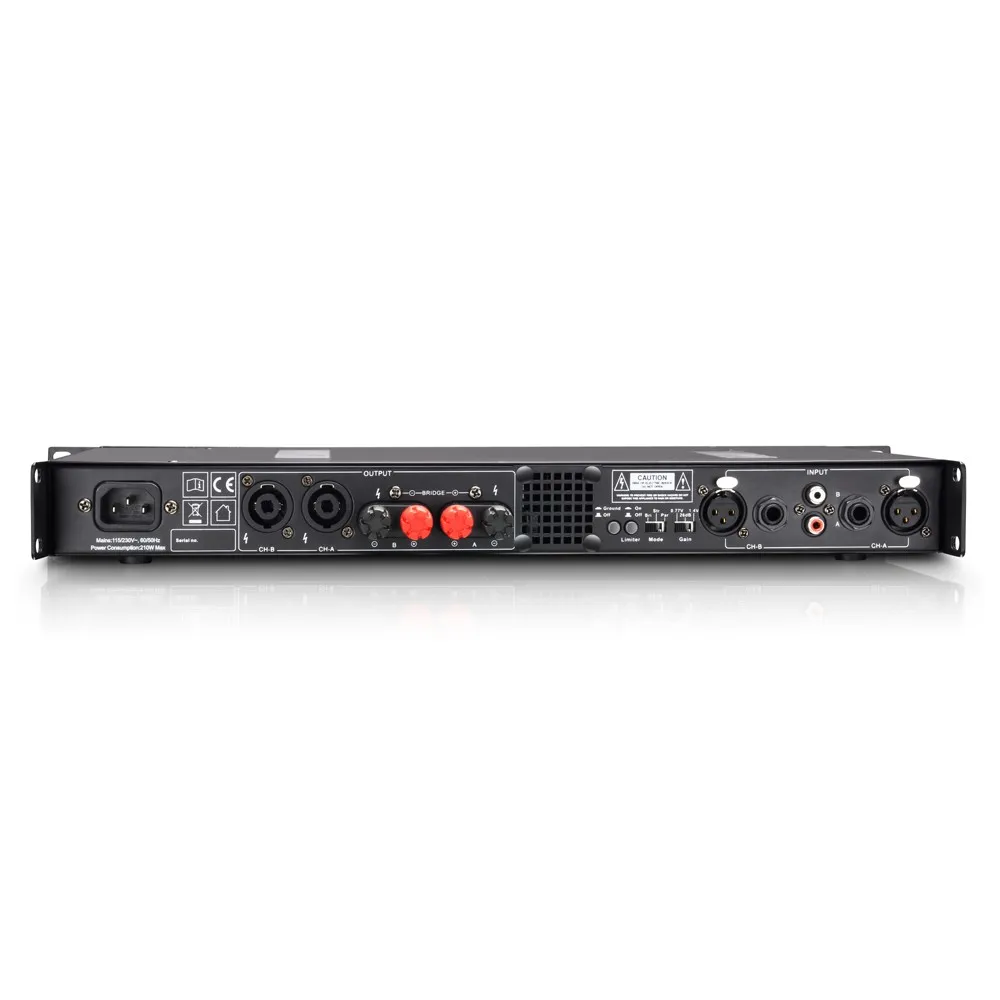

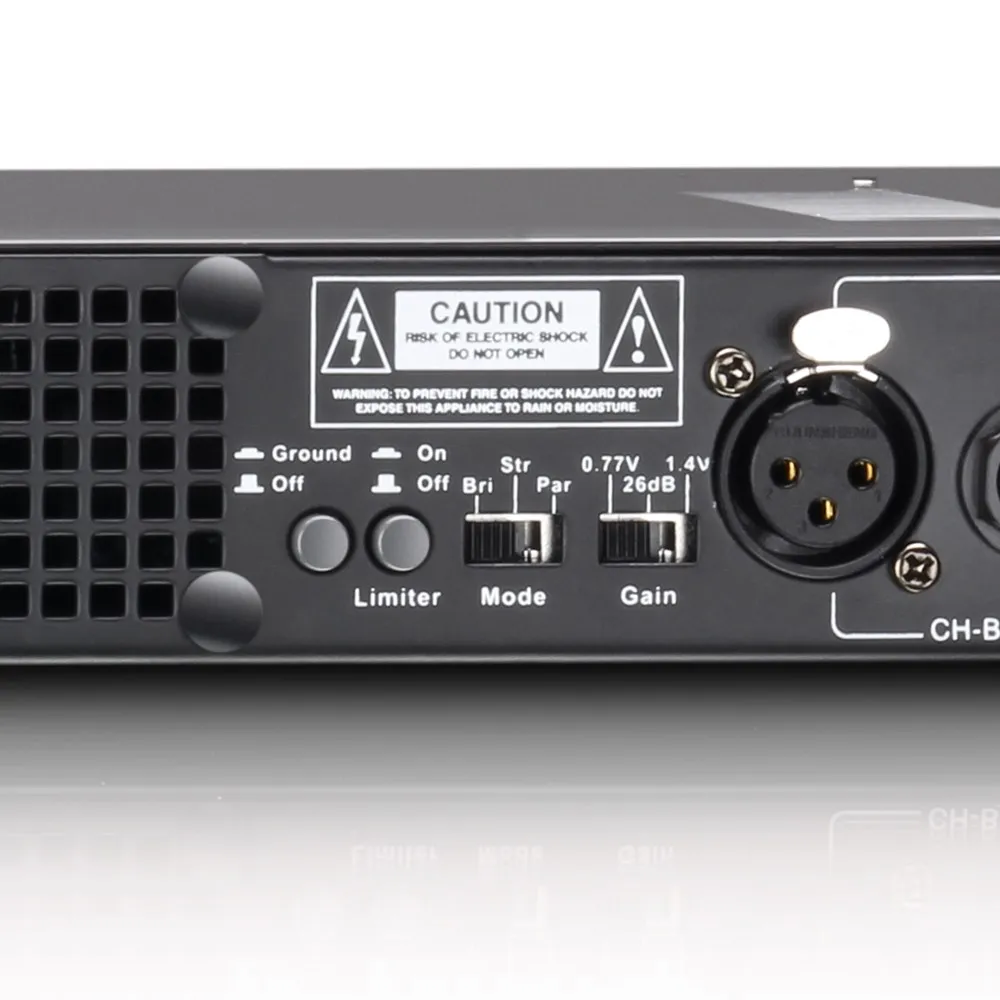

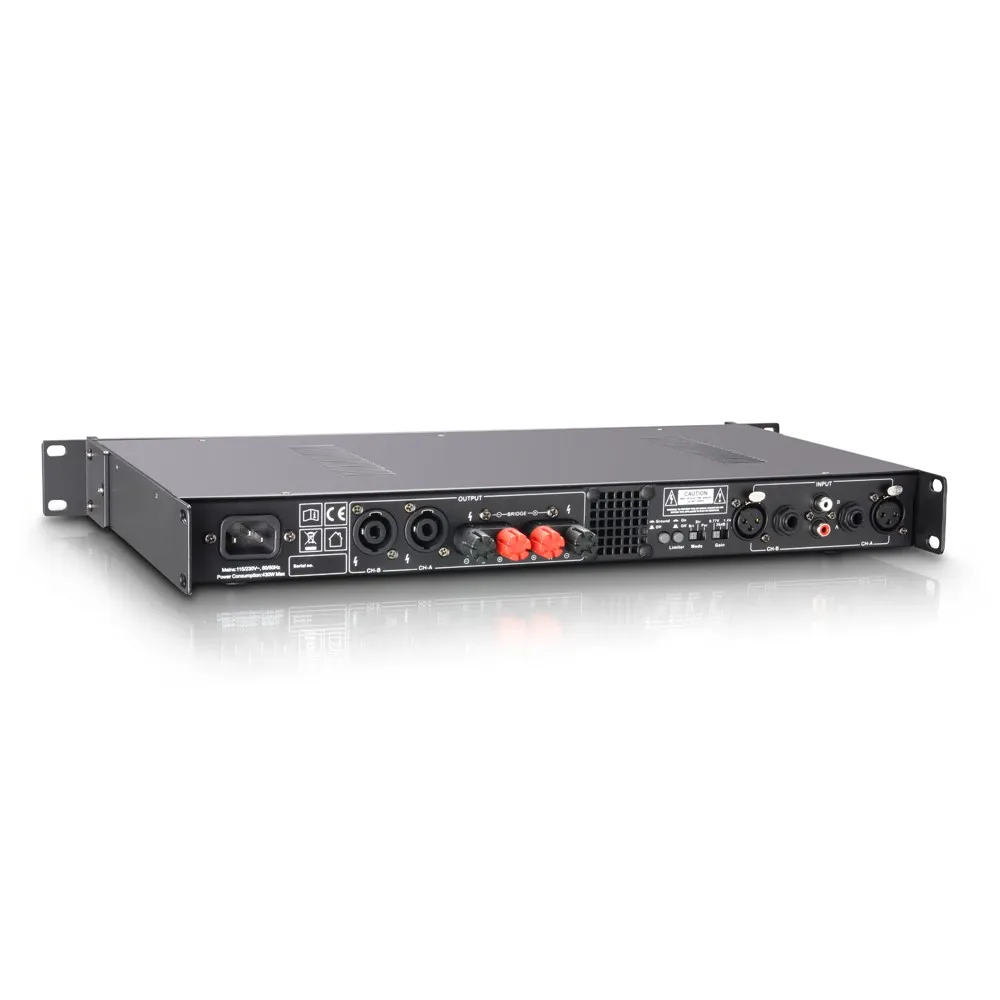

The XS 200 is equipped with comprehensive protection circuits that safeguard against short circuits, overheating, and overload. Additionally, the integrated power-on delay ensures a smooth start. The rear panel of the amplifier offers versatile connectivity options, including XLR, RCA, and 1/4" inputs, as well as Speakon-compatible outputs and binding posts. With practical controls for adjusting gain, limiter, and ground lift functions, the XS 200 is not only powerful but also user-friendly. Experience the high dynamics and transparent sound of this premium amplifier!
