LD Systems XS 400 - PA Endstufe Class D 2 x 200 W 4 Ohm

LD Systems XS 400 - Class D Power Amplifier 2 x 200 W 4 Ohm

Brand:

LD Systems XS 200 - Class D Power Amplifier 2 x 100 W 4 Ohm

LD Systems XS 700 - Class D Power Amplifier 2 x 350 W 4 Ohm

Features

Product Type: Power Amplifiers
Type: PA Power Amplifiers
Output Power (1 kHz @ 4 Ohm): 2 x 200 W
Output Power (1 kHz @ 8 Ohm): 2 x 100 W
Output Power (1 kHz @ 8 Ohm, Bridge Mode): 400 W
Circuit Design: Class D
Frequency Response: 20 - 20,000 Hz
Voltage Gain: 32 dB / 26 dB / 28 dB
Input Sensitivity: 0.68 V / 1.4 V / 1.2 V
Protection Circuits: DC Protection
Protection Circuits: Short Circuit Protection
Protection Circuits: Soft Start
Protection Circuits: Overheating Protection
Protection Circuits: Overvoltage Protection
Controls: Gain
Controls: Ground Lift
Controls: Limiter
Controls: Mode
Controls: On / Off
Controls: Volume
Indicators: Clip
Indicators: Mode
Indicators: Power
Indicators: Protect (Protection Circuit Active)
Indicators: Signal
Line Inputs: 2
Line Input Connectors: 6.3 mm Jack
Line Input Connectors: RCA
Speaker Outputs: 2
Speaker Output Connectors: Binding Posts
Speaker Output Connectors: Speakon Compatible
Cooling: Quiet Fan
Power Supply: Switching Power Supply
Power Consumption (at Full Load): 470 W
Operating Voltage: 115 V AC / 230 V AC (switchable)
Width: 482 mm
Height: 44 mm
Depth: 244 mm
Weight: 3.4 kg

LD Systems XS 400 - Class D Power Amplifier 2 x 200 W 4 Ohm

The LD Systems XS 400 is a state-of-the-art Class D power amplifier that impresses with its compact design and remarkable performance of 200 W per channel at 4 Ohms. With a total output of 400 W in bridged mode at 8 Ohms, it is the ideal choice for professional applications, whether at live events or in fixed installations. The frequency range of 20 Hz to 20 kHz ensures clear and dynamic sound that meets the highest demands.

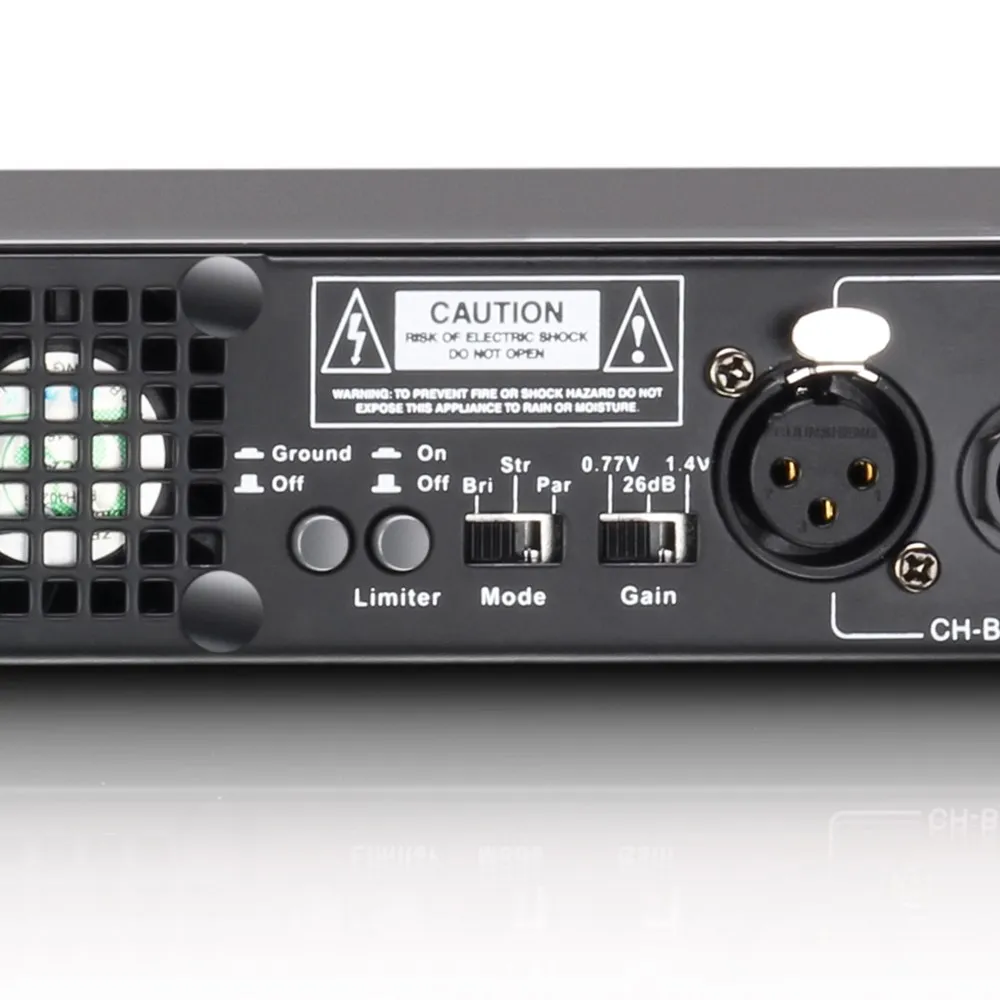

Thanks to its compact size of just 1 U and a weight of only 3.4 kg, the XS 400 is easy to transport and install. The amplifier is equipped with comprehensive protection circuits that prevent short circuits, overheating, and overload. Versatile inputs (XLR, RCA, 1/4" TRS) and Speakon-compatible outputs provide maximum flexibility. Additionally, controls such as Gain, Ground-Lift, and Limiter allow for precise adjustments to suit your needs. With the LD Systems XS 400, you will experience unparalleled sound quality and reliability in a compact format.
