LD Systems MS 828 - 19" 8-Kanal Splitter/Mixer

LD Systems MS 828 - 19" 8-Channel Splitter/Mixer

Brand:

LD Systems MAUI P900 SUB PC - Padded Protective Cover for MAUI P900 Subwoofer

LD Systems PHA - Phantomspeise Adapter 48 V

Features

Product Type: Mixers
Type: Installations
Channels: 8
Mono Line Input Channels: 6
Mono Line Input Connectors: 2 x 6.3 mm Jack
Mono Line Input Type: Electronically Balanced
Stereo Line Input Channels: 1
Stereo Line Input Connectors: 2 x XLR
Stereo Line Input Type: Electronically Balanced
Input Impedance (balanced): 50,000 Ohms
Input Impedance (unbalanced): 25,000 Ohms
Max. Input Level: +21 dBu
Nominal Operating Level: -10 dBV - +4 dBu
Mono Output Channels: 6
Mono Output Connectors: 2 x 6.3 mm Jack
Mono Output Type: Electronically Balanced
Stereo Output Channels: 1
Stereo Output Connectors: 1 x XLR
Stereo Output Type: Electronically Balanced
Output Impedance (balanced): 60 Ohms
Output Impedance (unbalanced): 30 Ohms
Max. Output Level: +22 dBu
Frequency Response: 5 - 40,000 Hz
THD: 0.0008 %
S/N Ratio: 85 dB
Controls: Level Channel 1-6, Balance/Pan Channel 1-6
Controls: Main Input Level
Controls: Main Link
Controls: Main Output Level
Controls: Power
Controls: Splitter/Mixer Channel 1-6
Indicators: In/Out Level Channel 1-6 (6 Segment)
Indicators: Input Level LED Display (6 Segment)
Indicators: Output Level Display (6 Segment)
Indicators: Power
Operating Voltage: 220 V AC - 240 V AC, 50 - 60 Hz
Power Connection: IEC Device Socket
Power Consumption: 15 W
Fuse: T 315 mAL, AC 250V
Width: 483 mm
Height: 44.5 mm
Depth: 216 mm
Weight: 3 kg
Included Accessories: Power Cable

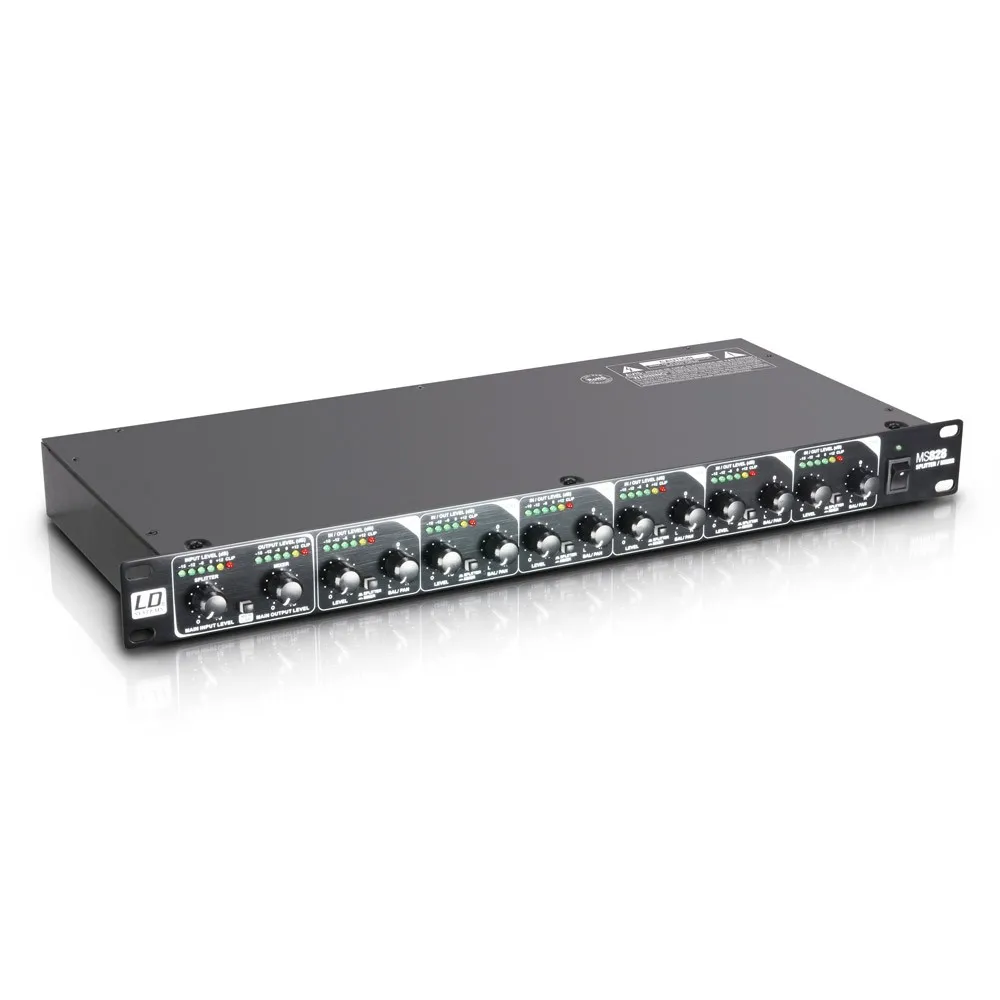

LD Systems MS 828 - 19" 8-Channel Splitter/Mixer

The LD Systems MS 828 is a versatile 19" mixer and signal distributor, ideal for live and studio applications. With its 8 channels, including 6 mono and 1 stereo channel, it offers a flexible solution for processing and distributing audio signals. Each channel is equipped with individual LED indicators for level monitoring, allowing for precise control.

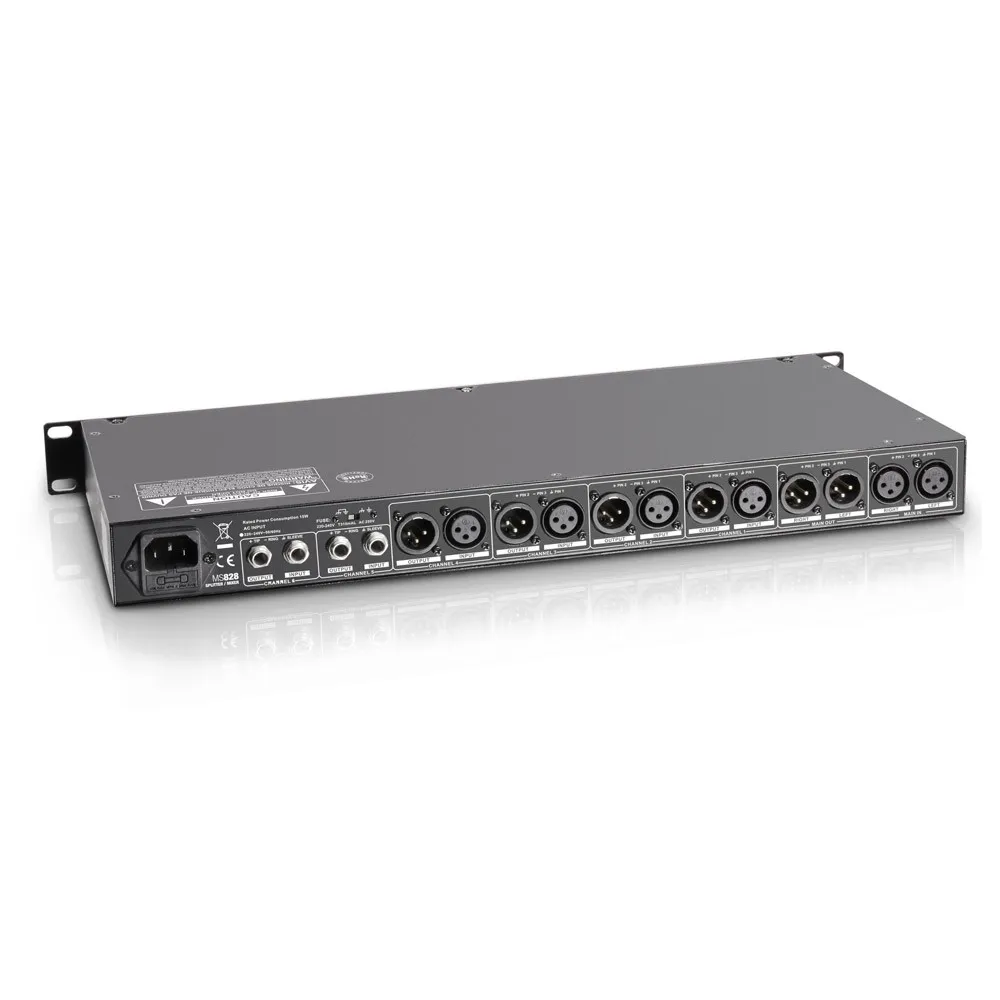

The inputs are electronically balanced, with two mono channels featuring stereo jack sockets and the remaining connections provided as XLR sockets. The stereo channel includes separate volume controls for input and output, as well as a link button for signal looping. The mono channels offer volume and pan controls, along with a switch to select between splitter and mixing functions.

Technically, the MS 828 impresses with a frequency response of 5 - 40,000 Hz, a dynamic range of 85 dB, and an extremely low total harmonic distortion of 0.0008%. With a nominal operating level of -10 dBV to +4 dBu, this mixer/splitter is suitable for both professional and consumer devices. It is the perfect choice for anyone seeking the highest signal fidelity and flexibility in a compact format.
