Features
- Compact and powerful stage monitor with high-quality technology
- Class-D amplifier with 300 W RMS / 1200 W Peak and 121 dB max. SPL

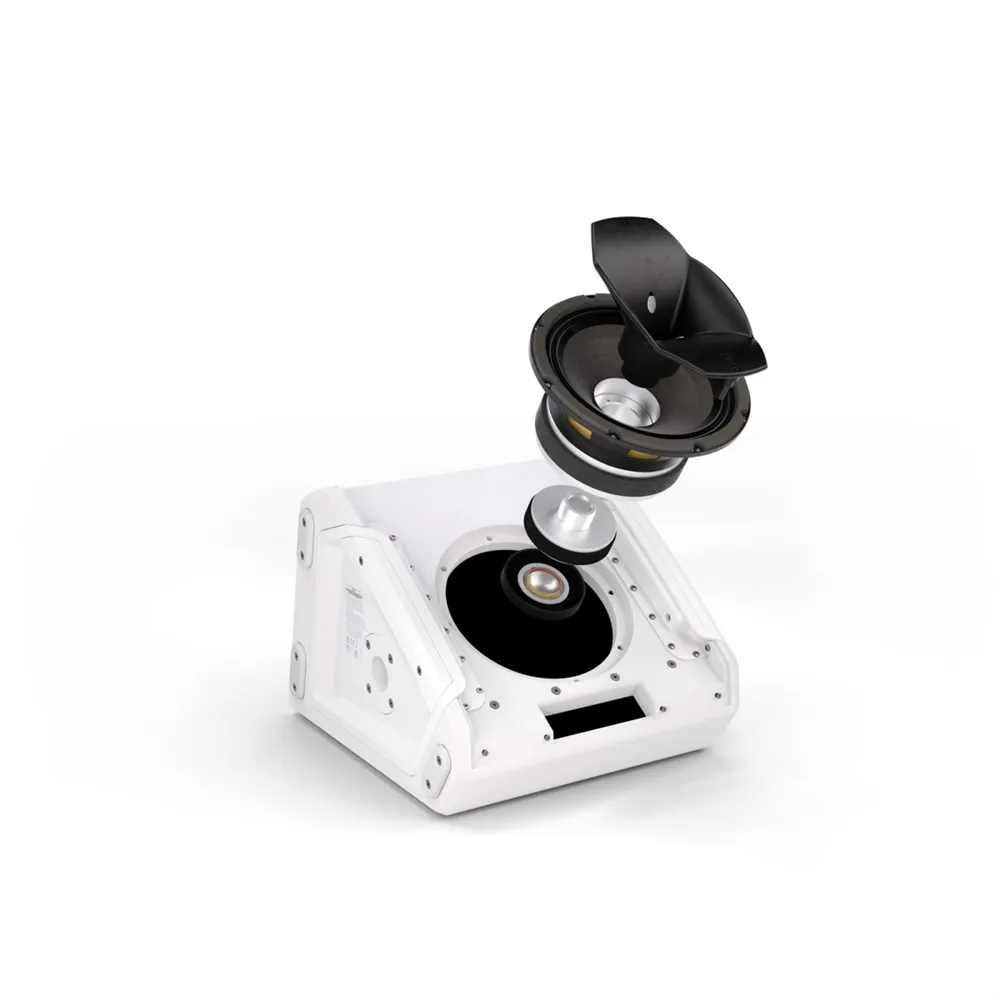

- Coaxial design for a true point sound source with a 1.75" titanium diaphragm HF driver
- 8" woofer with a 2.5" voice coil
- Optimized practical radiation pattern through 50° x 90° CD horn
- DynX® DSP (Gen.2) for distortion-free playback even at maximum volume

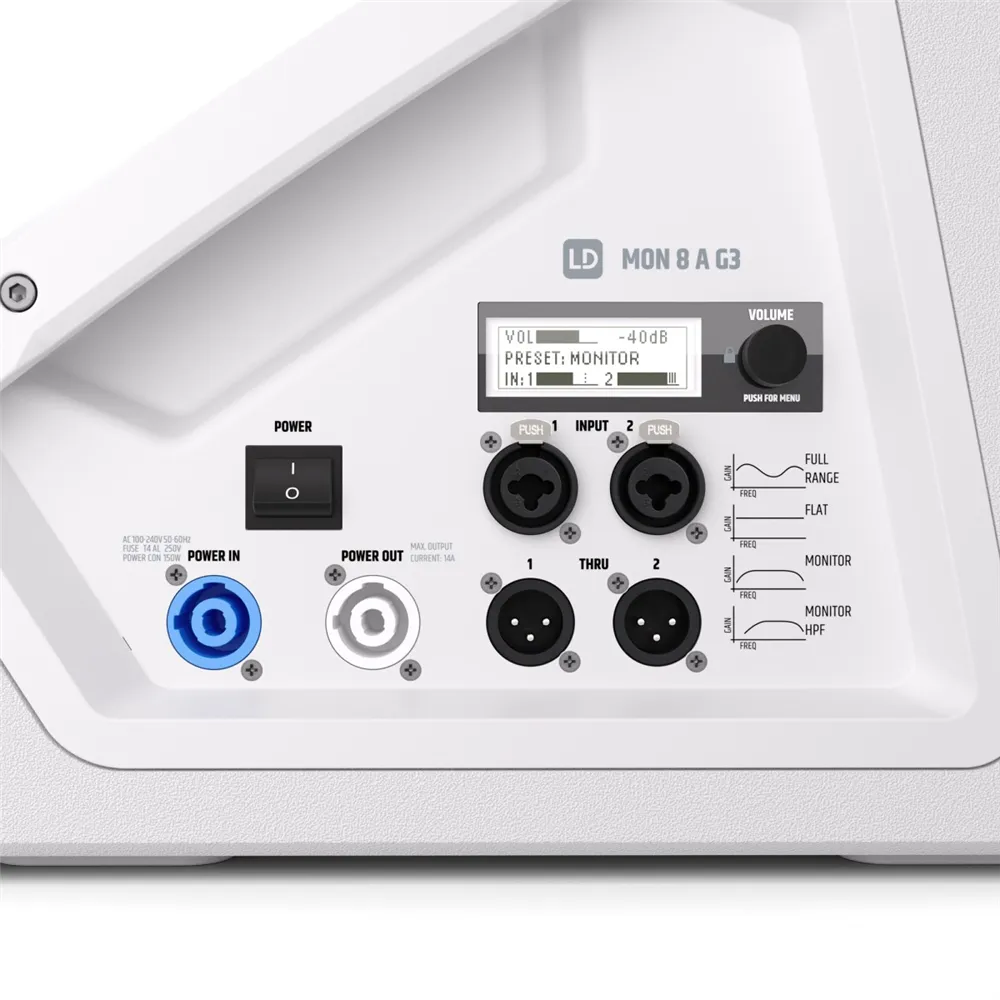

- 3-band EQ, notch filter, 4 application presets, and delay function

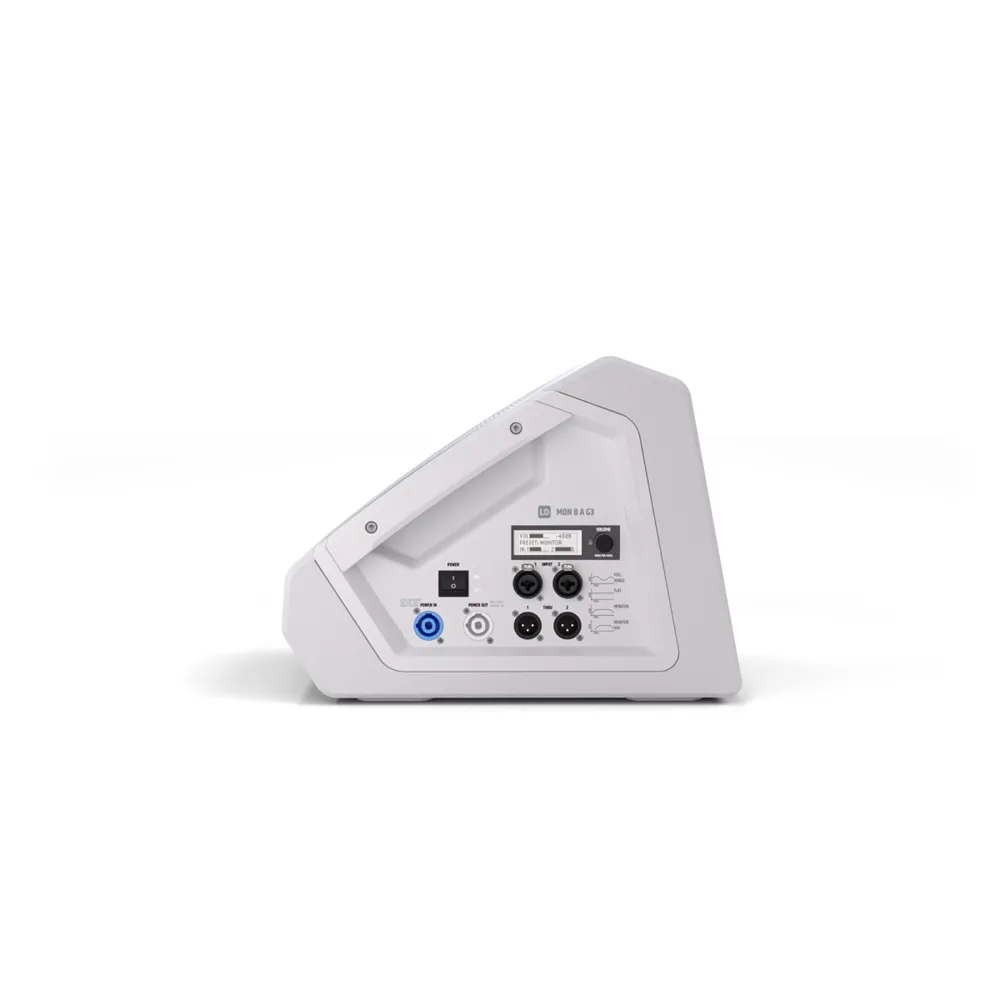

- PowerCON-compatible, loop-through professional power connection

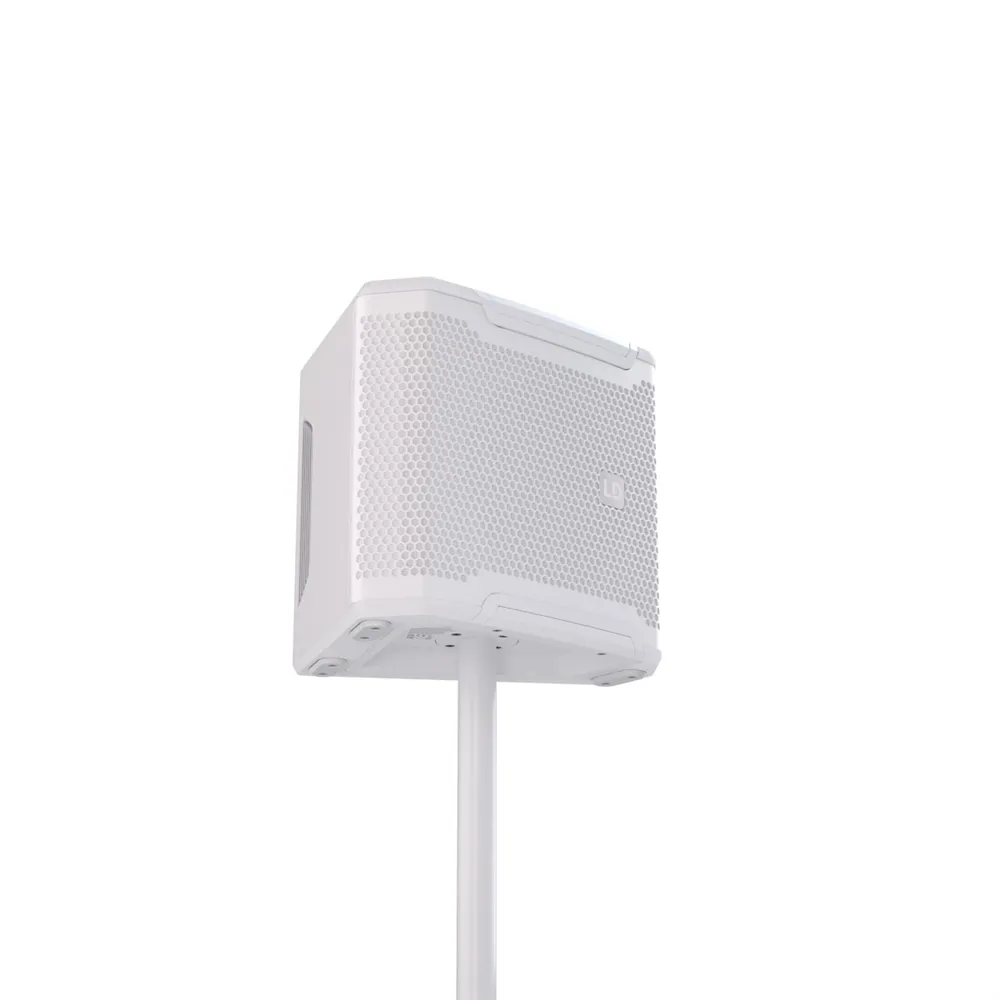

- 35 mm pole mount for FOH applications

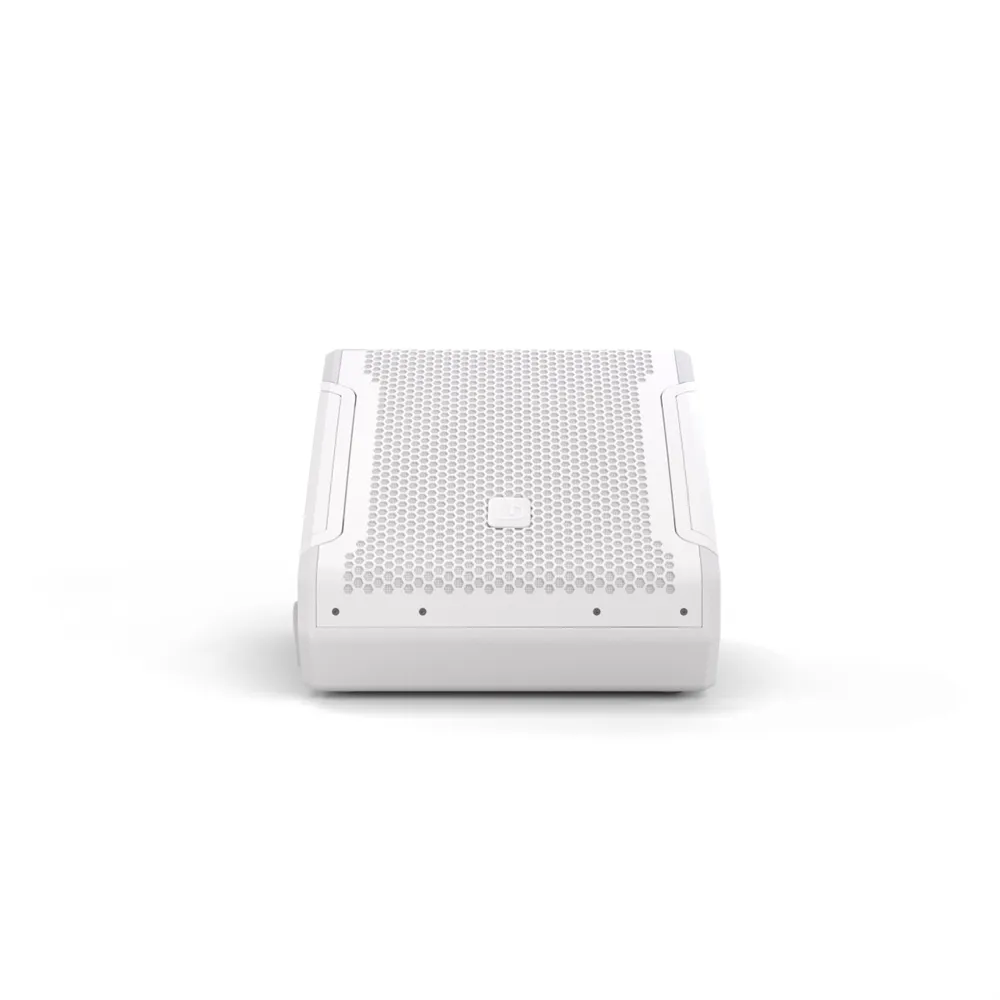

- Durable polyurea coating and robust front grille
- Frequency range (-3 dB): 68 - 18000 Hz
- Frequency range (-10 dB): 59 - 20000 Hz
- Max. SPL Average (Sine burst): 116 dB
- Max. SPL Peak (Sine burst): 121 dB
- Monitor angle: 33°
- Radiation angle (H x V): 50° x 90°
- Weight: 13.2 kg

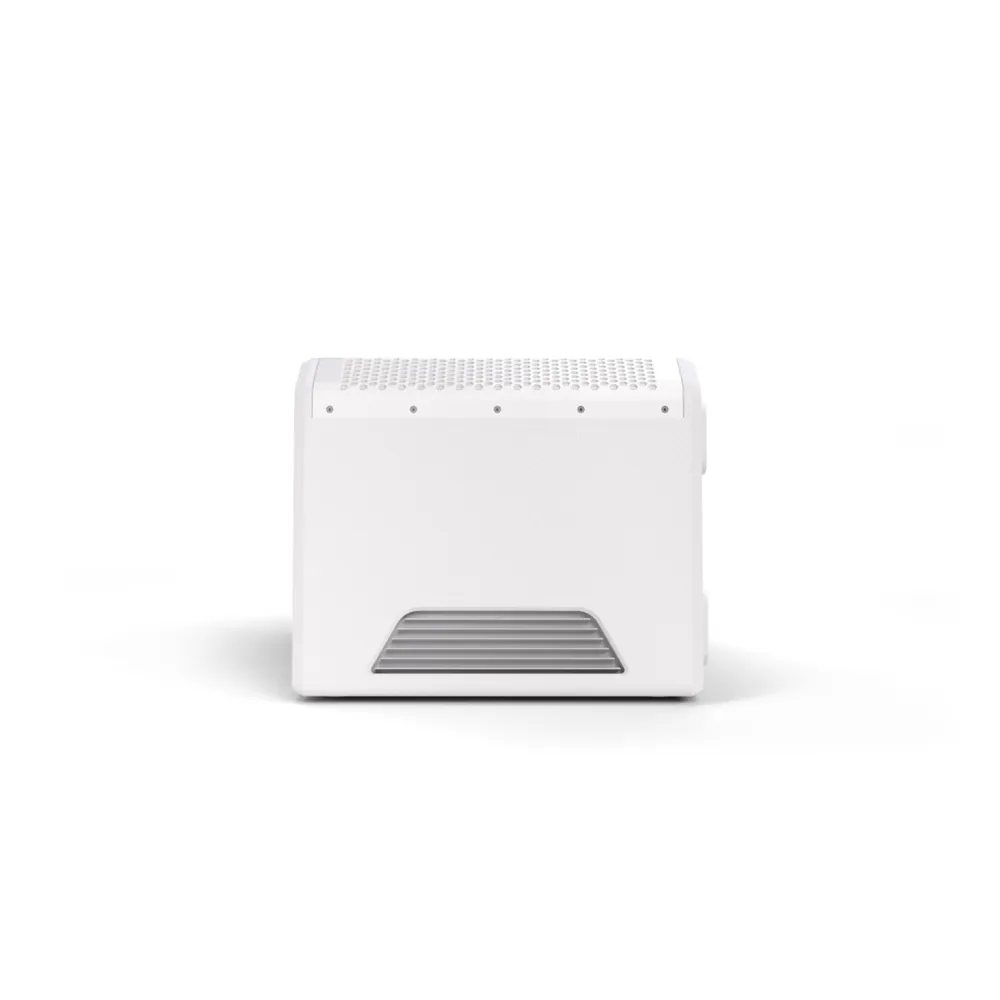

- Enclosure type: Bass reflex
- Enclosure material: 15 mm birch plywood and 15 mm MDF
- Amplifier: Class D
- Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent
- Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
- Power consumption: 150 W

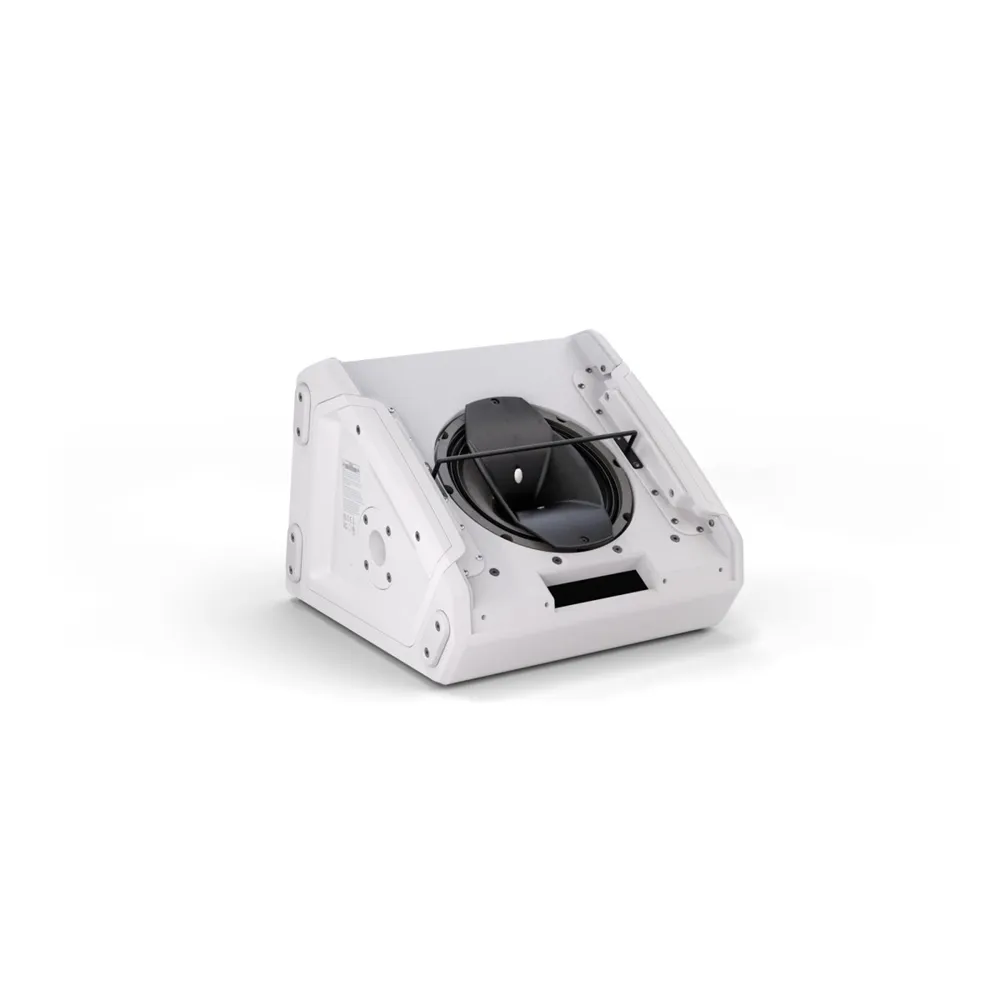

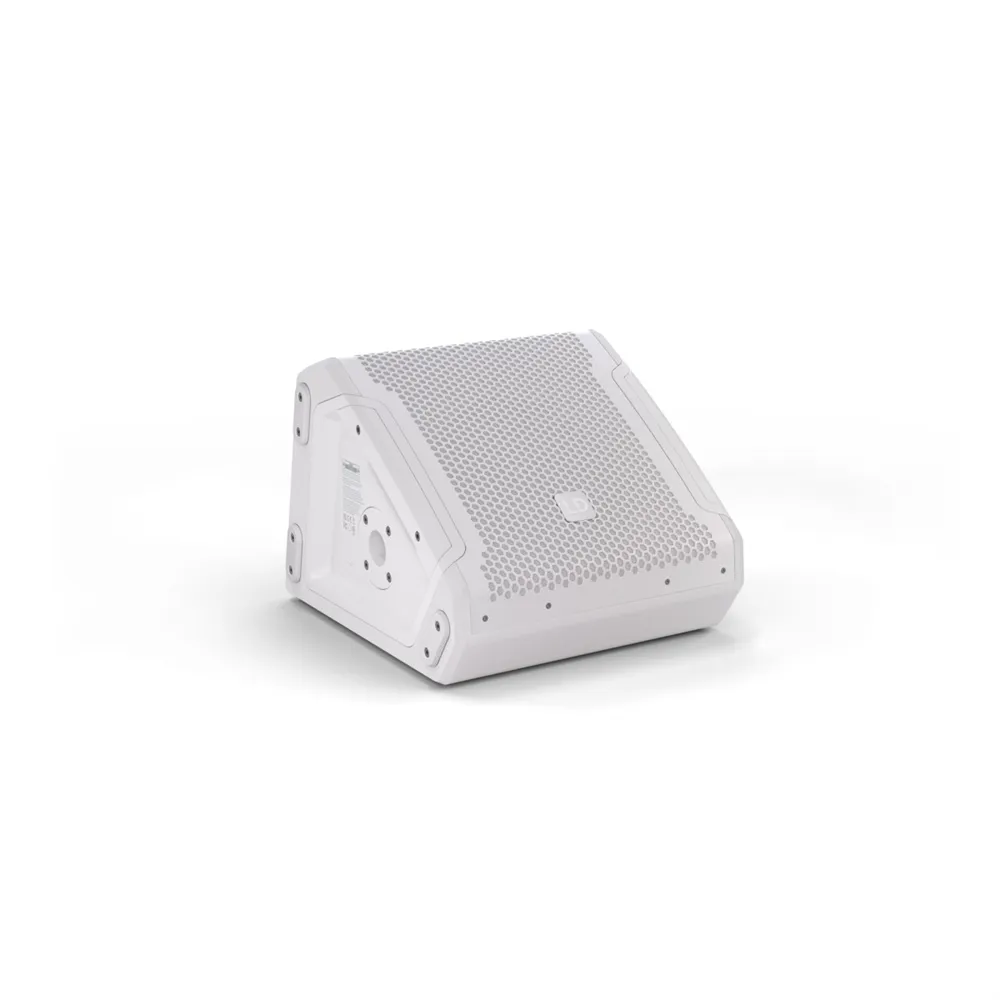

LD Systems MON 8 A G3 W - 8" Active Coaxial Stage Monitor, White
The LD Systems MON 8 A G3 W is the perfect stage monitor for professional applications, impressing with its compact design and outstanding performance. Equipped with a Class-D amplifier delivering 300 W RMS and up to 1200 W Peak, this monitor achieves a maximum sound pressure level of 121 dB. The coaxial design features a 1.75" titanium diaphragm HF driver and an 8" woofer, ensuring a precise point sound source and exceptional audio quality, even at short listening distances.
Thanks to the optimized 50° x 90° CD horn, the MON 8 A G3 W offers excellent dispersion characteristics. The integrated DynX® DSP technology guarantees distortion-free playback, even at maximum volume. With a 3-band EQ, notch filter, and four application presets, this monitor is highly versatile—suitable for use as a stage monitor, DJ setup, or FOH speaker.
The robust polyurea coating and durable front grille make the MON 8 A G3 W a long-lasting companion on any stage. With a frequency response of 59 Hz to 20 kHz, it delivers a full-range sound that will impress even the most discerning musicians.
