LD Systems MON 8 A G3 - 8" aktiver koaxialer Bühnenmonitor

LD Systems MON 8 A G3 - 8" Active Coaxial Stage Monitor

Brand:

LD Systems MON 81 A G2 - 8" Active Stage Monitor

LD Systems MON 8 A G3 W - 8" Active Coaxial Stage Monitor, White

Features

Compact and powerful stage monitor with high-quality technology
Class-D amplifier with 300 W RMS / 1200 W Peak and 121 dB max. SPL

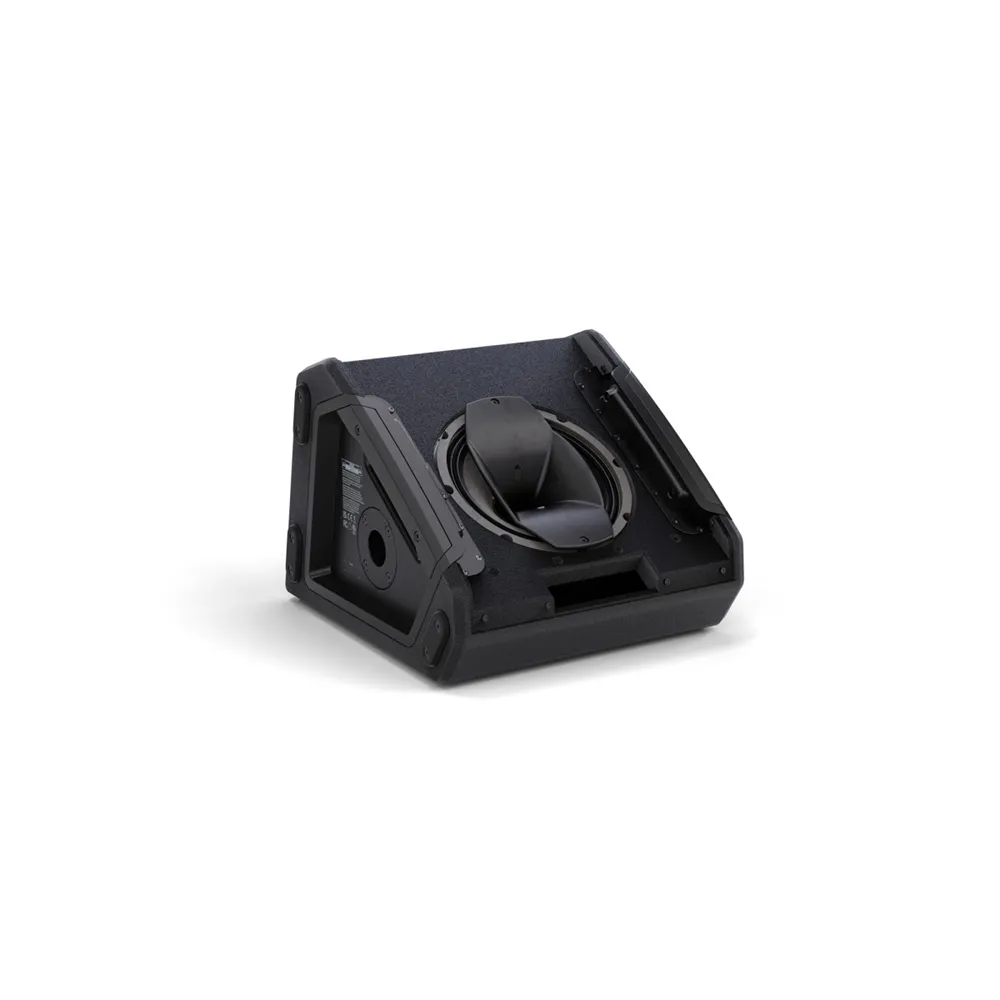

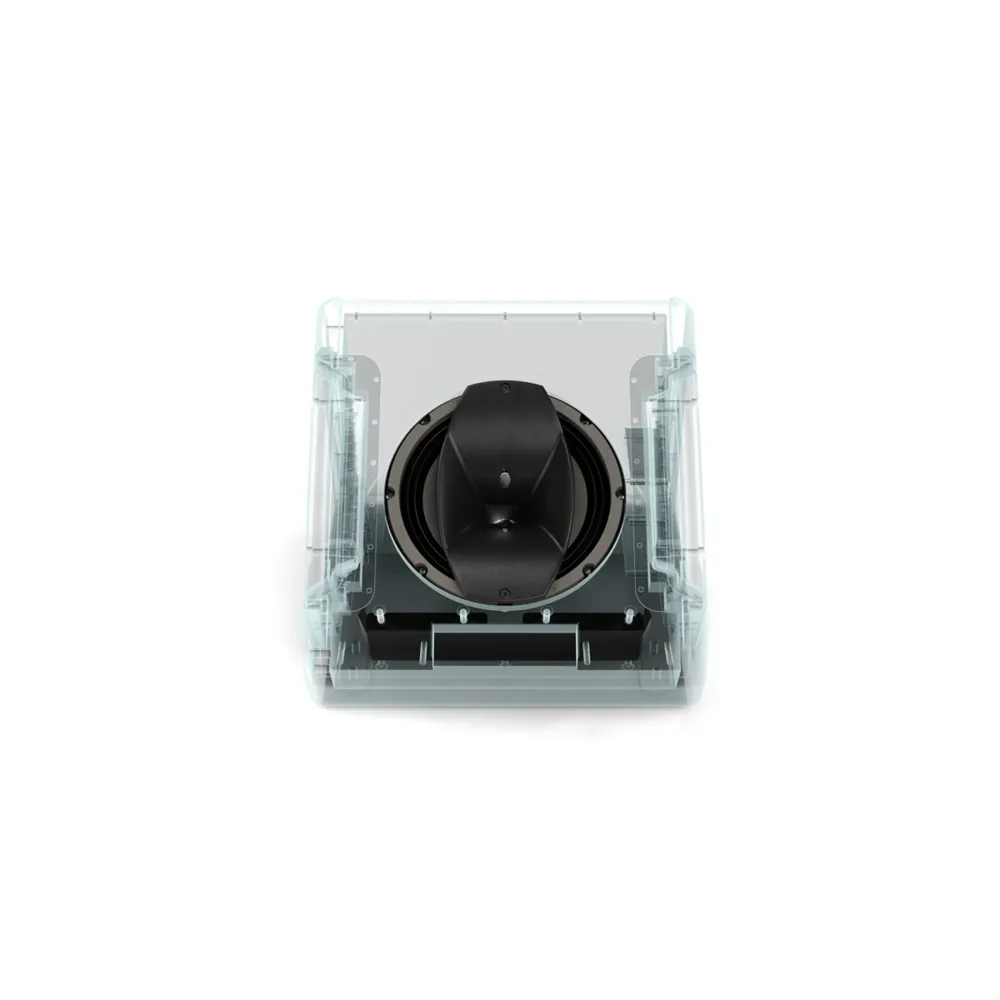

Coaxial design for a true point sound source with a 1.75" titanium diaphragm HF driver
8" woofer with a 2.5" voice coil
Optimized, practical radiation characteristic through 50° x 90° CD horn
DynX® DSP (Gen.2) for distortion-free playback even at maximum volume
3-band EQ, notch filter, 4 application presets, and delay function
PowerCON-compatible, loop-through professional power connection
35 mm pole mount for FOH applications
Durable polyurea coating and robust front grille
Frequency range (-3 dB): 68 Hz - 18,000 Hz
Frequency range (-10 dB): 59 Hz - 20,000 Hz
Max. SPL Average (Sine burst): 116 dB (100 Hz - 12 kHz, full space @1m, 10% THD)
Max. SPL Peak (Sine burst): 121 dB (full space @1m, 10% THD)
Monitor angle: 33°
Radiation angle (H x V): 50° x 90°
Weight: 13.2 kg
Cabinet material: 15 mm birch plywood and 15 mm MDF
Cabinet design: Bass reflex
Amplifier: Class D
Protection circuits: Multi-band limiter, overheating, overvoltage, overcurrent
Operating temperature: 0 - 40 °C
Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Power consumption: 150 W

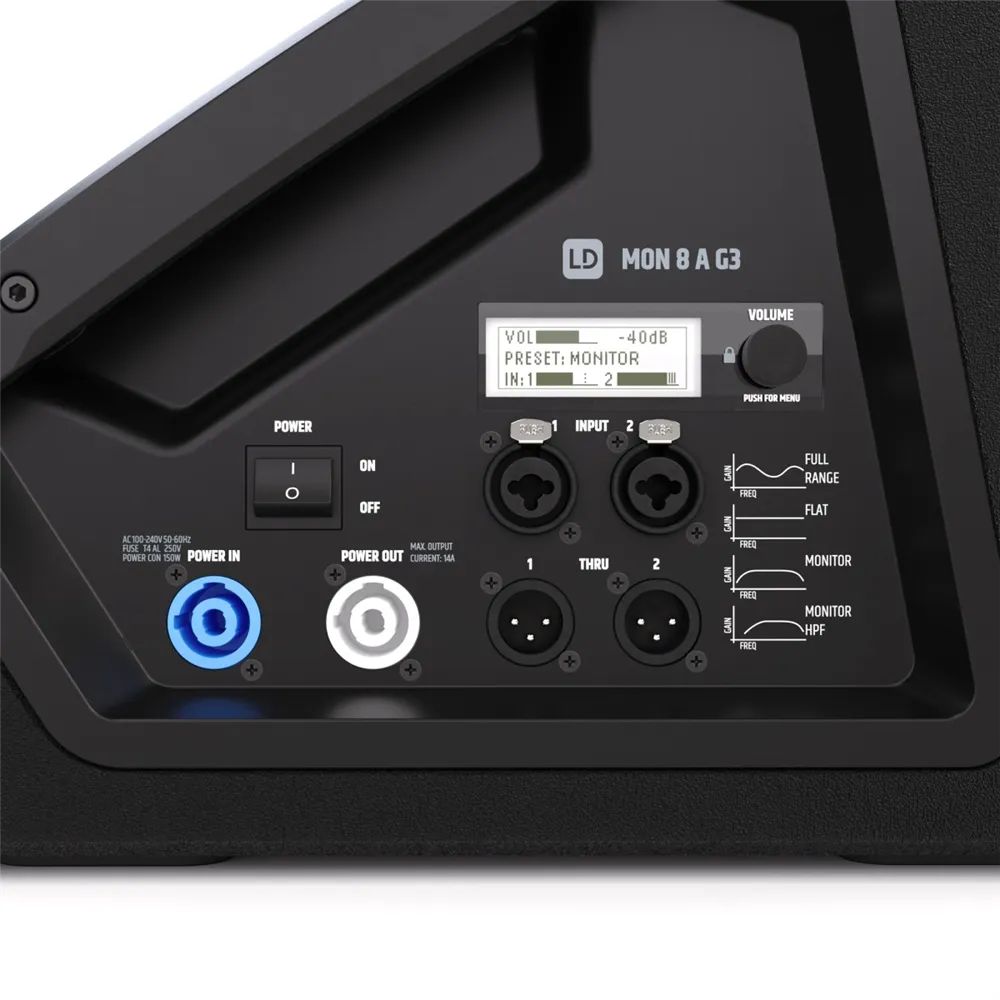

Line inputs: 2 (6.3 mm jack, XLR - combo)
Line output: 2 (XLR)

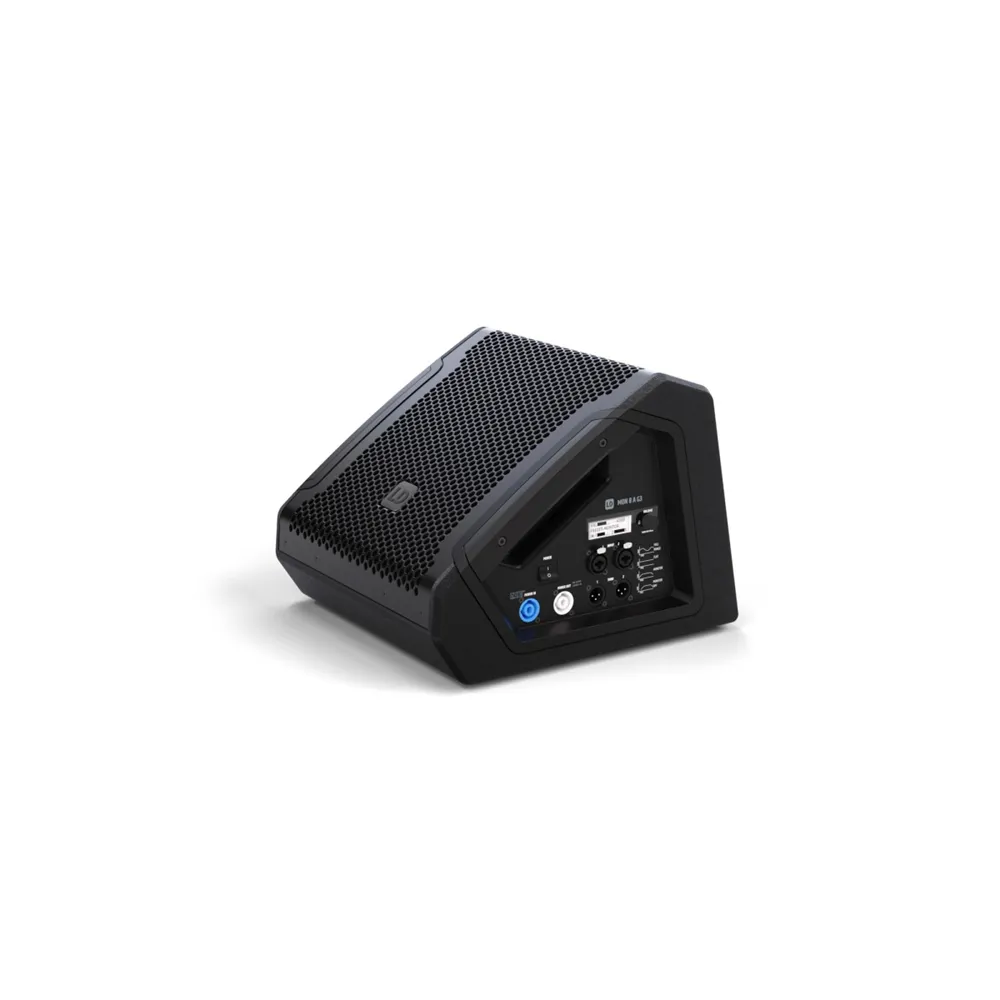

LD Systems MON 8 A G3 - 8" Active Coaxial Stage Monitor

The LD Systems MON 8 A G3 is the perfect stage monitor for professional applications, impressing with its compact design and remarkable performance. Featuring a Class-D amplifier that delivers 300 W RMS and up to 1200 W peak power, this monitor achieves a maximum sound pressure level of 121 dB. The coaxial design, equipped with a 1.75" titanium diaphragm HF driver and an 8" woofer, ensures a true point sound source and outstanding audio quality, even at short listening distances.

Thanks to the optimized radiation pattern of 50° x 90° and the integrated DynX® DSP (Gen.2), the MON 8 A G3 provides distortion-free playback, even at maximum volume. Its extensive features include a 3-band EQ, notch filter, four application presets, and a delay function, making it a versatile tool for any live performance.

With a robust polyurea coating and a sturdy front grille, the MON 8 A G3 is not only powerful but also durable. Whether used as a stage monitor, in a DJ setup, or as a FOH speaker, this monitor offers a deep frequency response down to 59 Hz, ensuring full-range sound. Experience the next level of stage monitor technology with the LD Systems MON 8 A G3!
