LD Systems MON 81 A G2 - 8" Bühnenmonitor aktiv

LD Systems MON 81 A G2 - 8" Active Stage Monitor

Brand:

LD Systems MON 15 G3 PC - Gepolsterte Schutzhülle für MON 15 A G3

LD Systems MON 8 A G3 - 8" Active Coaxial Stage Monitor

Features

Product Type: PA Speaker
Type: Active
Woofer Size: 8"
Woofer Size: 203 mm
Woofer Type: Coaxial Speaker
Woofer Magnet: Ferrite
Woofer Brand: Custom Made
Woofer Voice Coil: 2"
Woofer Voice Coil: 50.8 mm
HF Driver Size: 1"
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: Custom Made
HF Driver Voice Coil: 1"
HF Driver Voice Coil: 25.4 mm
Amplifier: Class A/B
Dispersion Angle (H x V): 75 x 75 °
Power (RMS): 80 W
Power (Peak): 320 W
Frequency Response: 90 - 20000 Hz
Crossover Frequency: 2400 Hz
SPL (1 W/1 m): 97 dB
Max. SPL (Continuous): 111 dB
Max. SPL (Peak): 116 dB
Protection Circuits: Short Circuit
Protection Circuits: Limiter
Controls: On / Off
Controls: Volume
Indicators: Limit
Indicators: Power
Number of Line Inputs: 1
Line Input Connectors: 6.3 mm Jack
Line Input Connectors: XLR
Number of Line Outputs: 1
Line Output Connectors: XLR
Power Supply: Transformer
Operating Voltage: 230 V AC, 50 - 60 Hz
Enclosure Material: 15 mm Birch Plywood
Enclosure Design: Bass Reflex
Monitor Angle: 35 °
Width: 320 mm
Depth: 250 mm
Height: 361 mm
Weight: 10.6 kg
Features: Ergonomic Grip Handles

LD Systems MON 81 A G2 - 8" Active Stage Monitor

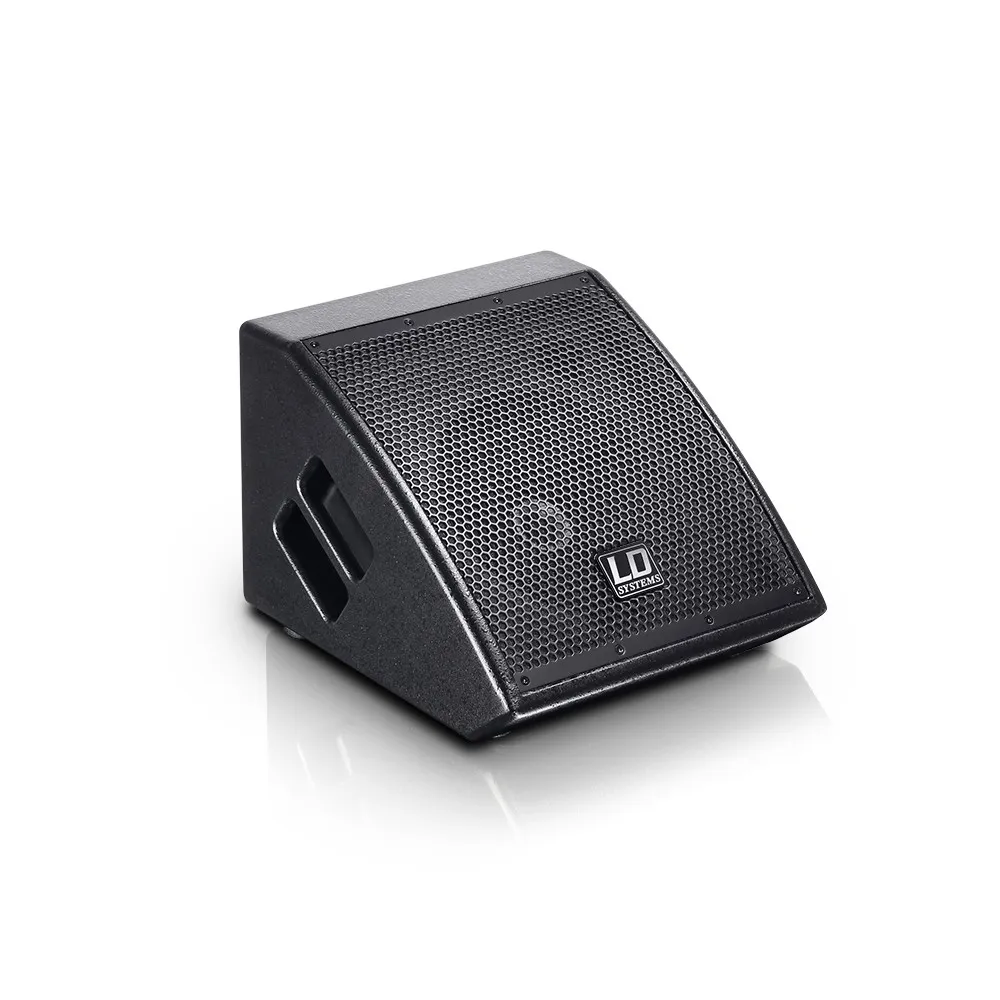

The LD Systems MON 81 A G2 is the ideal active stage monitor for professional applications. With a compact design and an impressive frequency response of 90 Hz to 20 kHz, this monitor delivers a maximum sound pressure level of 116 dB, remaining clear and precise even in loud environments.

Equipped with an 8" coaxial speaker and an integrated 1" tweeter, the MON 81 A G2 offers a dispersion angle of 75° x 75°, ensuring even sound distribution. The Class AB power amplifier with 320 W peak power provides powerful and reliable performance, while protection circuits such as short-circuit protection and a limiter ensure safe operation.

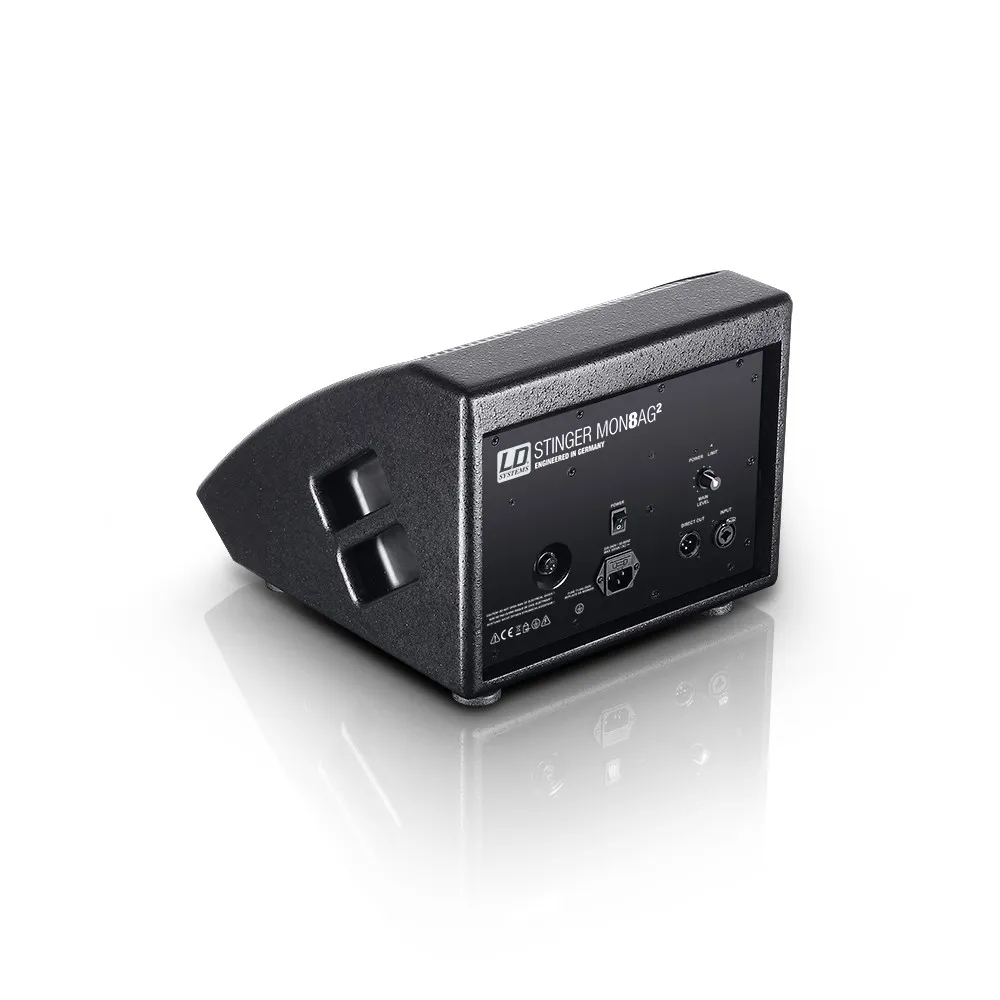

The rear of the monitor features an XLR/TRS combo input for signal connection as well as an XLR output for looping through. A convenient volume control and LED indicators complete the user-friendly design. The robust bass reflex enclosure made of 15 mm multiplex is not only durable but also equipped with ergonomic handles and a protective metal grille. With a monitor angle of 35°, the MON 81 A G2 is perfectly suited for any stage application.
