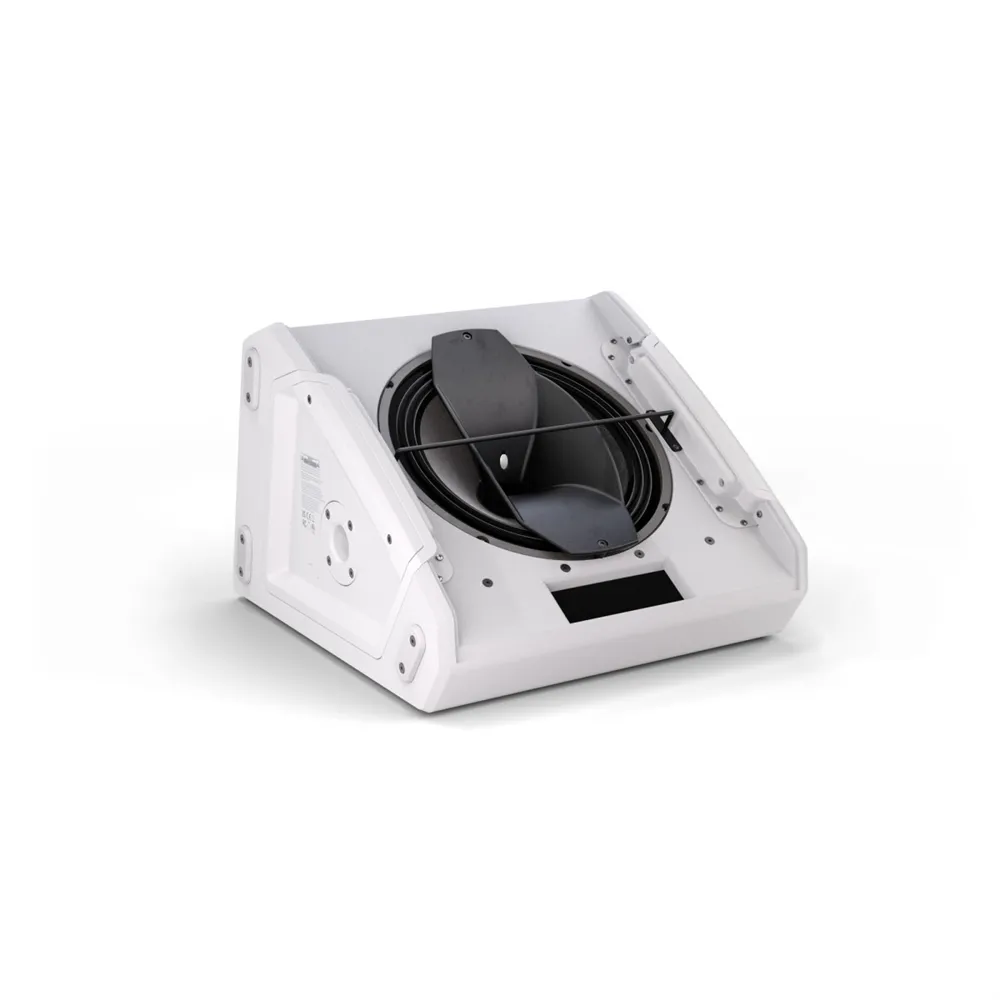

LD Systems MON 12 A G3 W - 12" aktiver koaxialer Bühnenmonitor, weiß

LD Systems MON 12 A G3 W - 12" Active Coaxial Stage Monitor, White

Brand:

LD Systems MON 12 A G3 - 12" Active Coaxial Stage Monitor

LD Systems MON 12 G3 PC - Gepolsterte Schutzhülle für MON 12 A G3

Features

Compact and powerful stage monitor with high-quality technology
Class-D amplifier with 300 W RMS / 1200 W Peak and 127 dB max. SPL

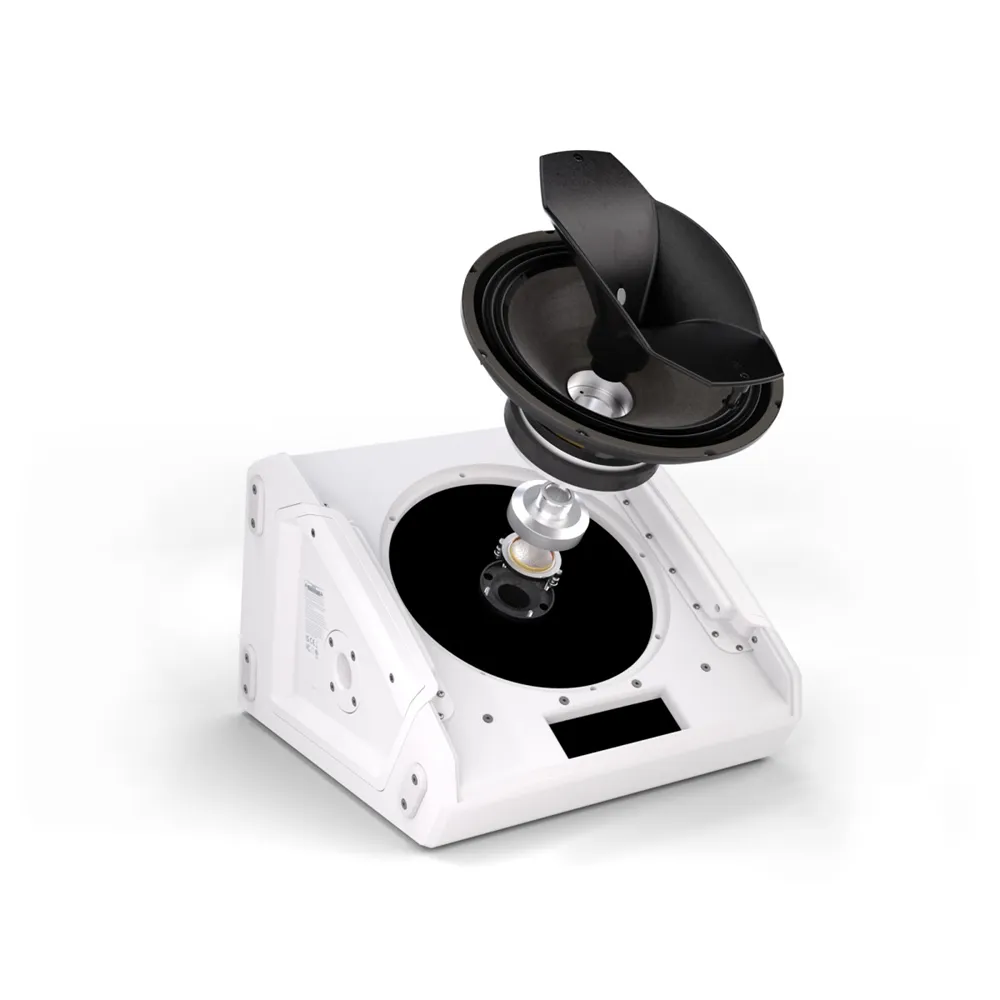

Coaxial design for a true point sound source with a 1.75" titanium diaphragm HF driver
12" woofer with a 2.5" voice coil
Optimized practical radiation pattern through 50° x 90° CD horn
DynX® DSP (Gen.2) for distortion-free playback even at maximum volume
3-band EQ, notch filter, 4 application presets, and delay function

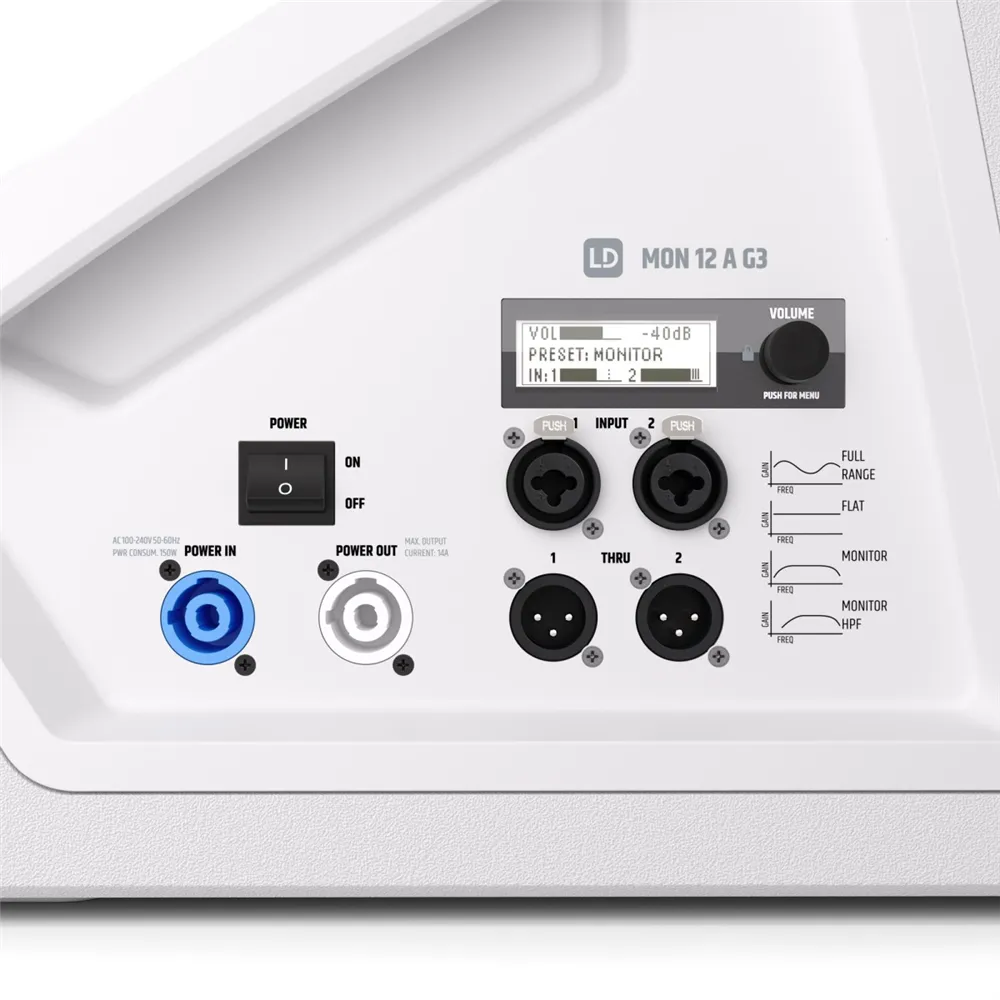

PowerCON-compatible, loop-through professional power connection

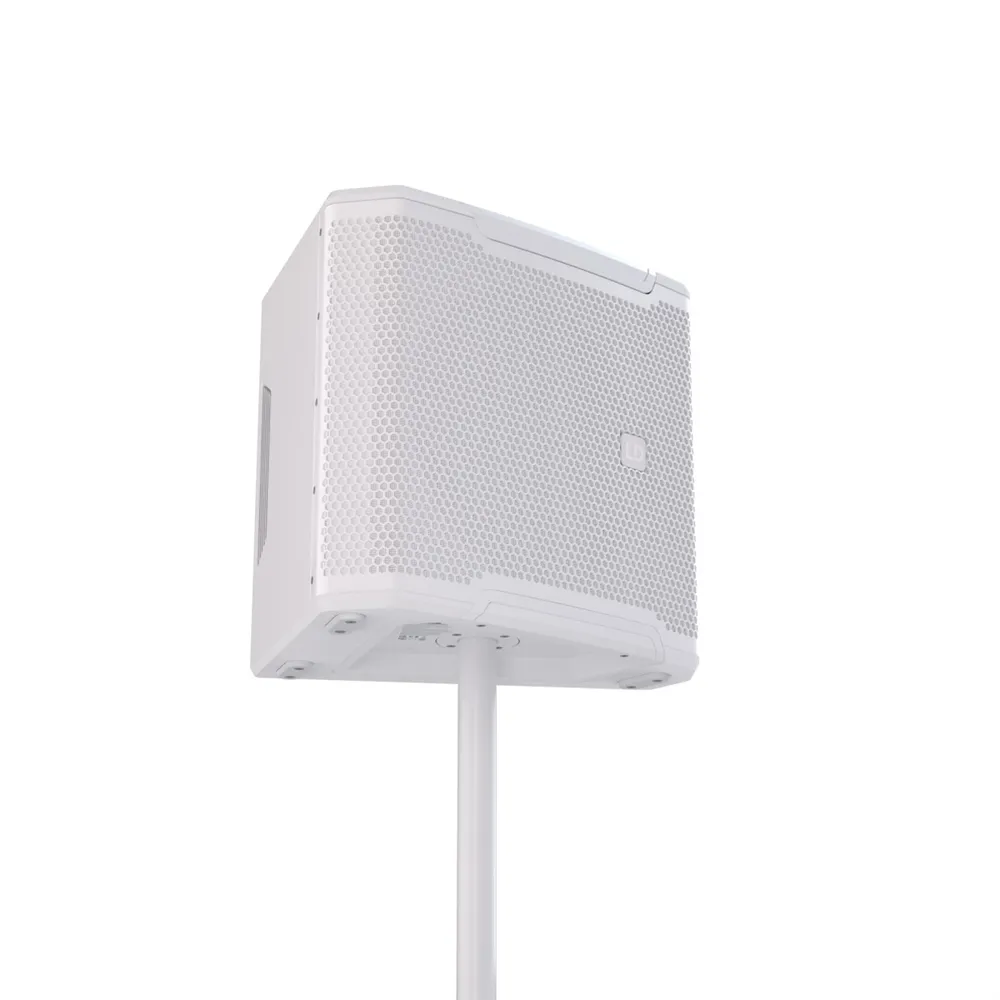

35 mm pole mount for FOH applications
Durable polyurea coating and robust front grille
Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, full space @1m, 10% THD)
Max. SPL Peak (Sine burst): 127 dB (full space @1m, 10% THD)
Frequency range (-3 dB): 68 - 18,000 Hz
Frequency range (-10 dB): 55 - 20,000 Hz
Crossover frequency: 1400 Hz
Monitor angle: 33°
Dispersion angle (H x V): 50° x 90°
Weight: 17.4 kg
Enclosure type: Bass reflex
Enclosure material: 15 mm birch plywood and 15 mm MDF
Amplifier: Class D
Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent
Operating temperature: 0 - 40 °C
Power supply: SMPS
Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Power consumption: 150 W

LD Systems MON 12 A G3 W - 12" Active Coaxial Stage Monitor, White

The LD Systems MON 12 A G3 W is the perfect stage monitor for professional applications, impressing with its compact design and remarkable performance. Featuring a Class-D amplifier that delivers 300 W RMS and up to 1200 W Peak, this monitor achieves a maximum sound pressure level of 127 dB. The coaxial design, equipped with a 12" woofer and a 1.75" titanium diaphragm HF driver, ensures a true point sound source and outstanding audio quality, even at short listening distances.

The optimized radiation pattern of 50° x 90° allows for precise sound distribution, while the integrated DynX® DSP (Gen.2) guarantees distortion-free playback even at maximum volume. With a 3-band EQ, notch filter, and four application presets, the MON 12 A G3 W offers versatile customization options for any situation.

The robust polyurea coating and durable front grille make this monitor ideal for the rigors of stage use. Thanks to the PowerCON-compatible, loop-through power connections and the 35 mm stand mount, the MON 12 A G3 W is not only powerful but also extremely flexible in application. Experience top-notch sound and reliable performance with the LD Systems MON 12 A G3 W!
