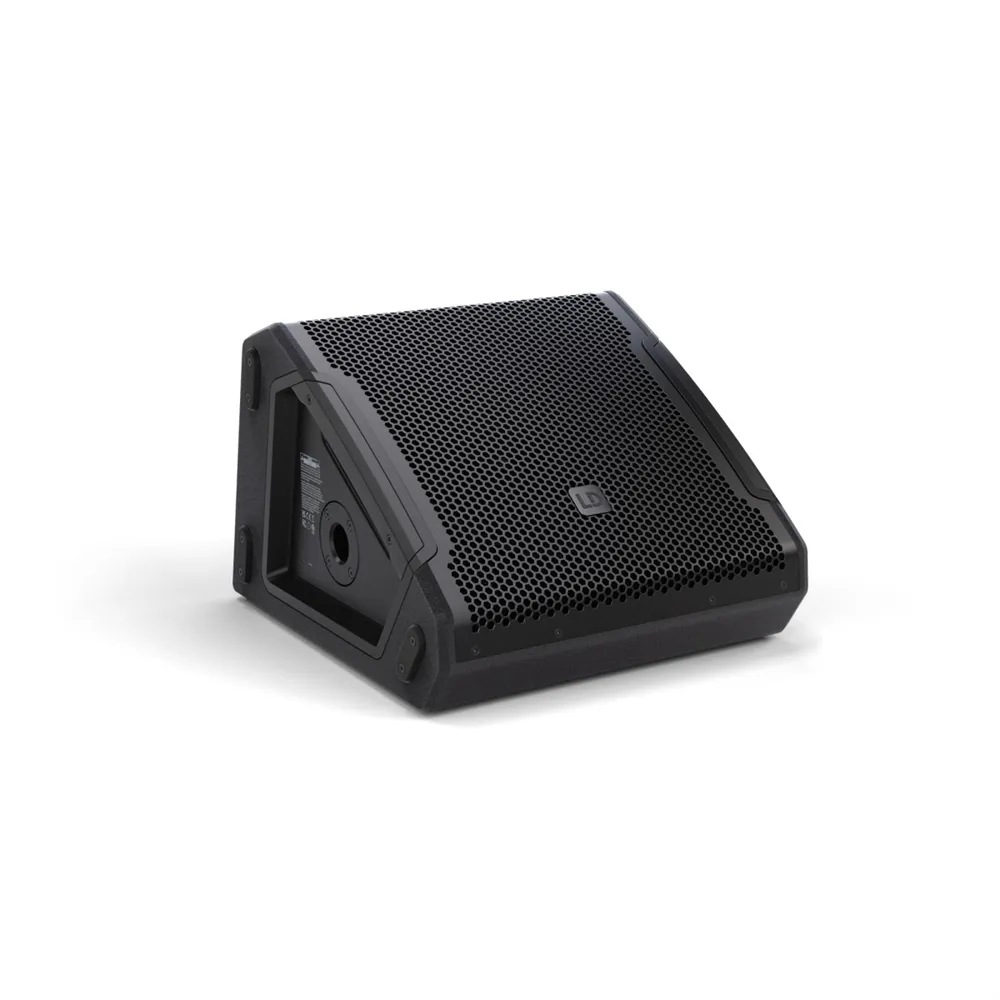

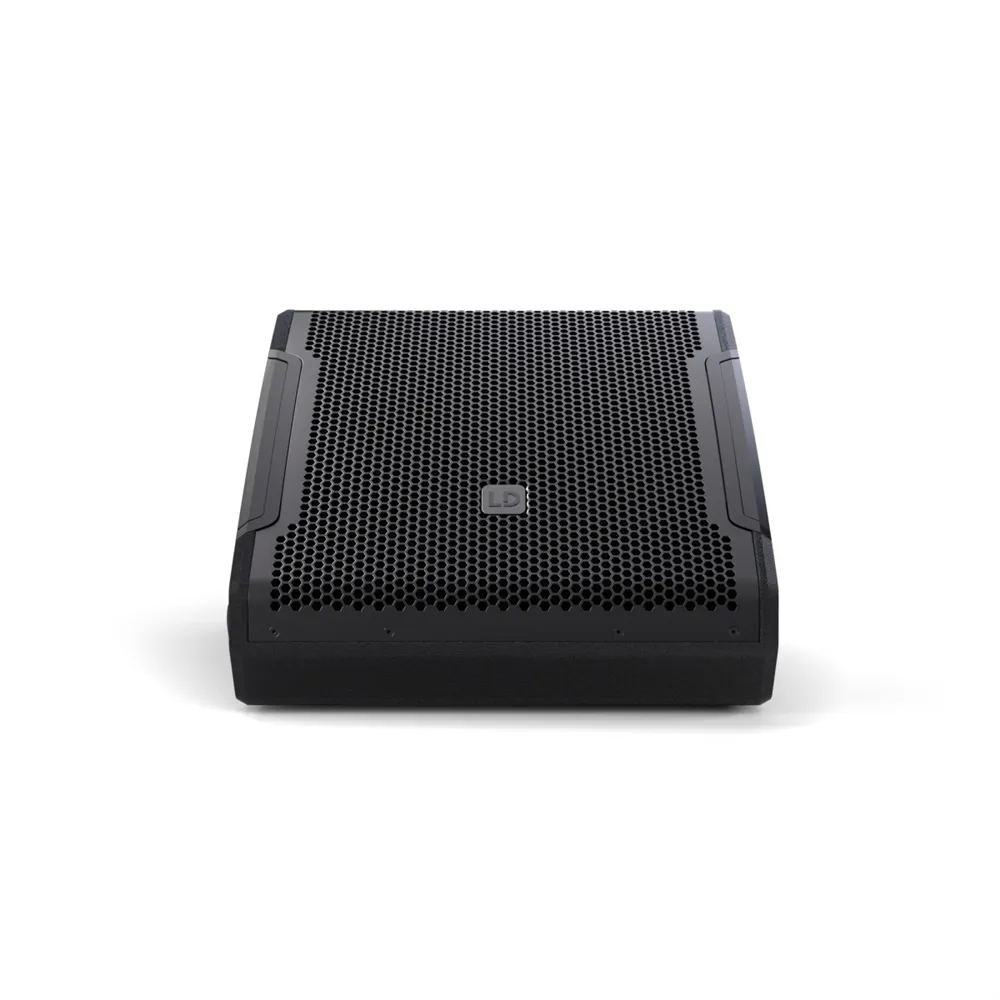

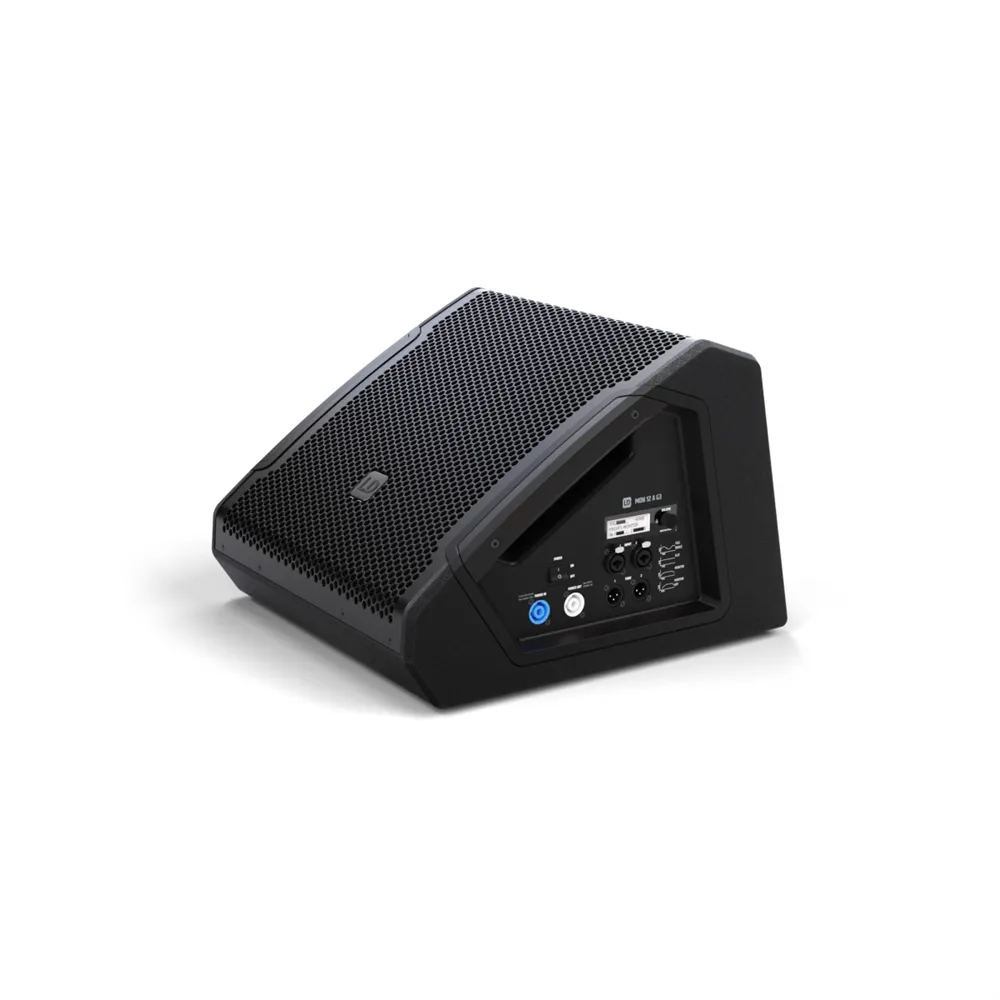

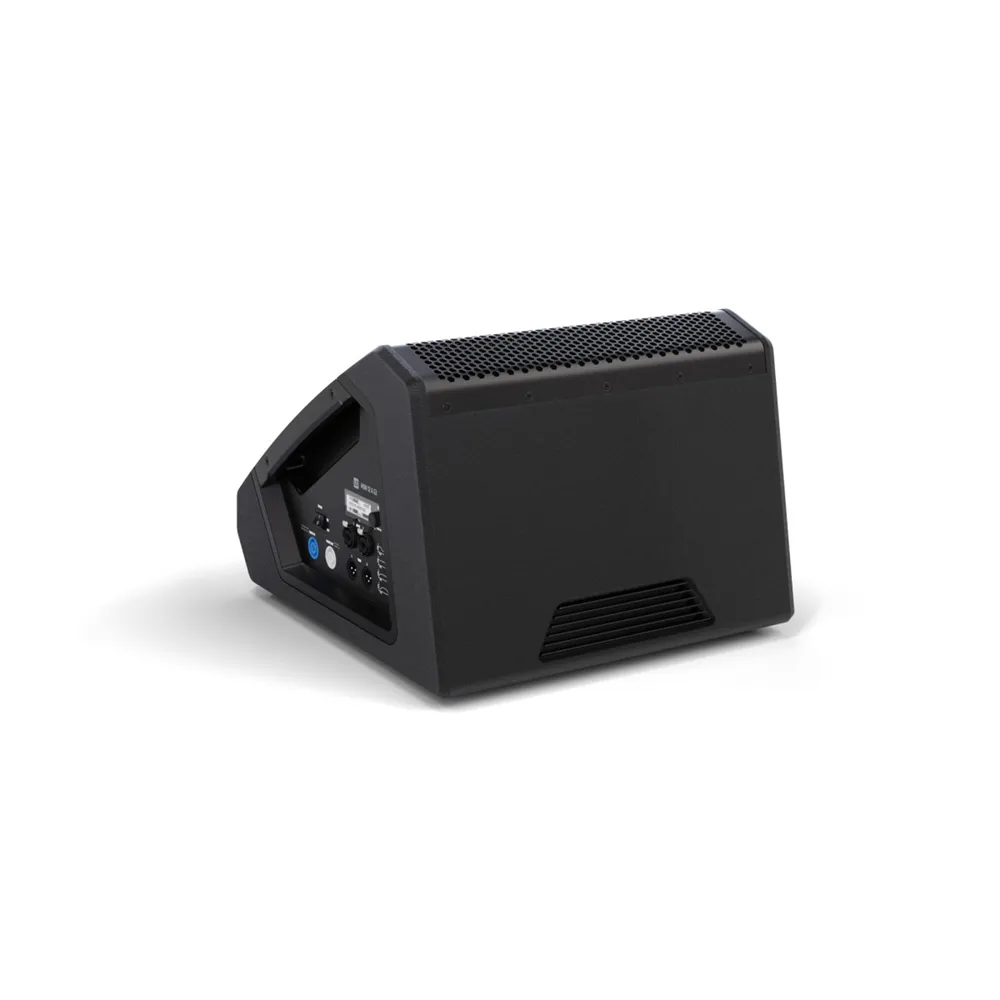

LD Systems MON 12 A G3 - 12" Active Coaxial Stage Monitor

Brand:

Features

  • Compact and powerful stage monitor with high-quality technology
  • Class-D amplifier with 300 W RMS / 1200 W Peak and 127 dB max. SPL

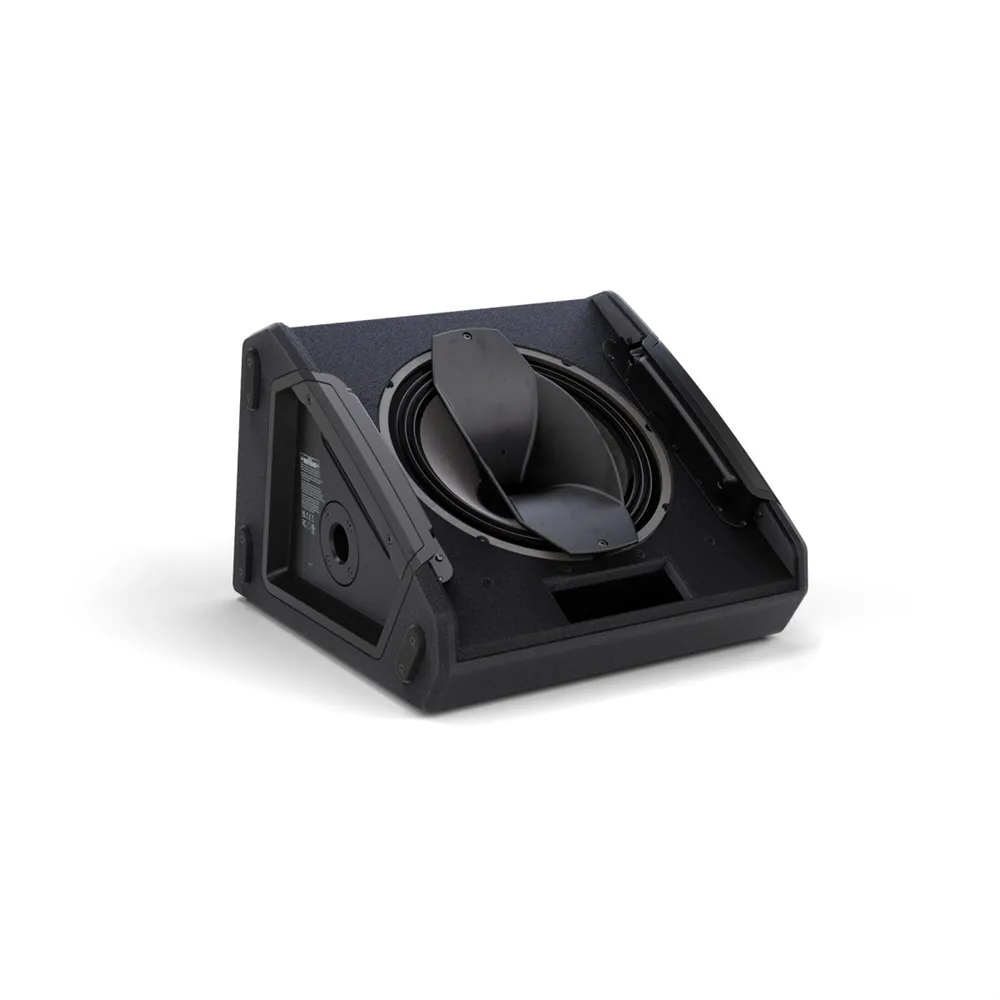

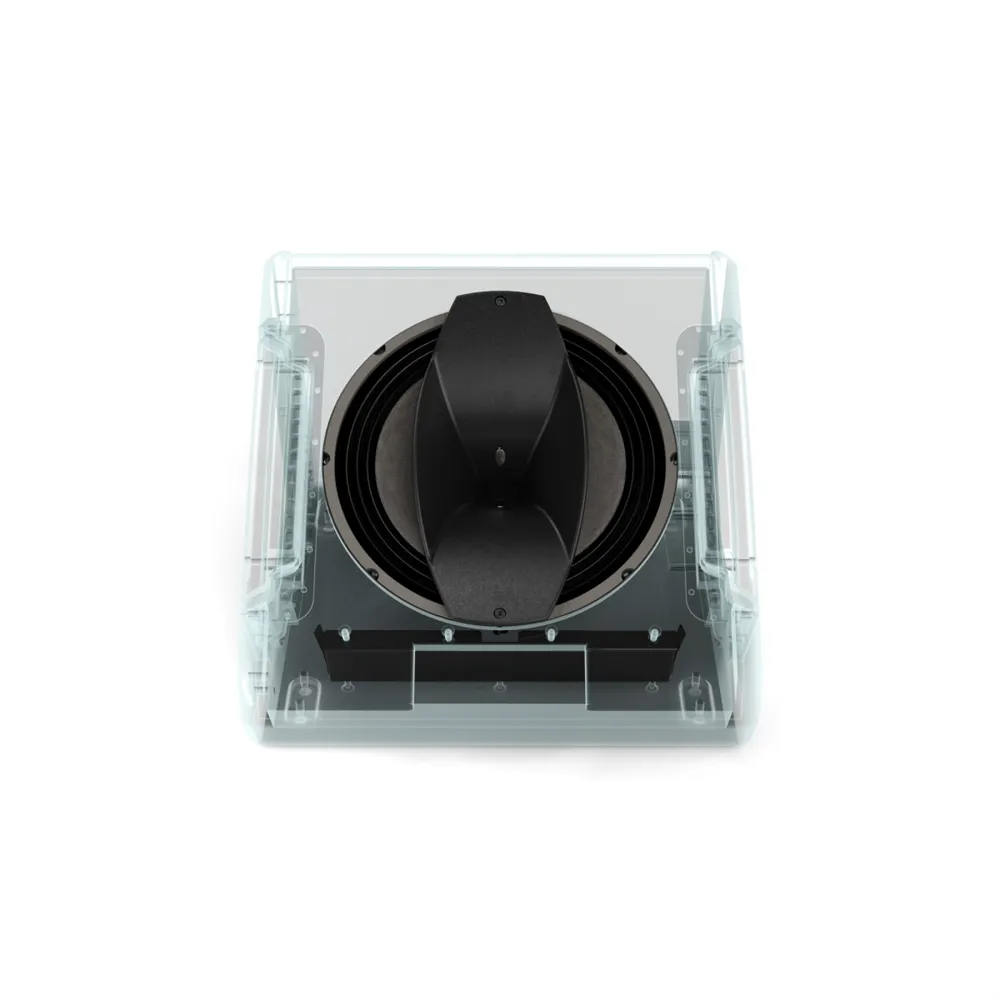

  • Coaxial design for a true point sound source with a 1.75" titanium diaphragm HF driver
  • 12" woofer with a 2.5" voice coil
  • Optimized practical radiation pattern through 50° x 90° CD horn
  • DynX® DSP (Gen.2) for distortion-free playback even at maximum volume

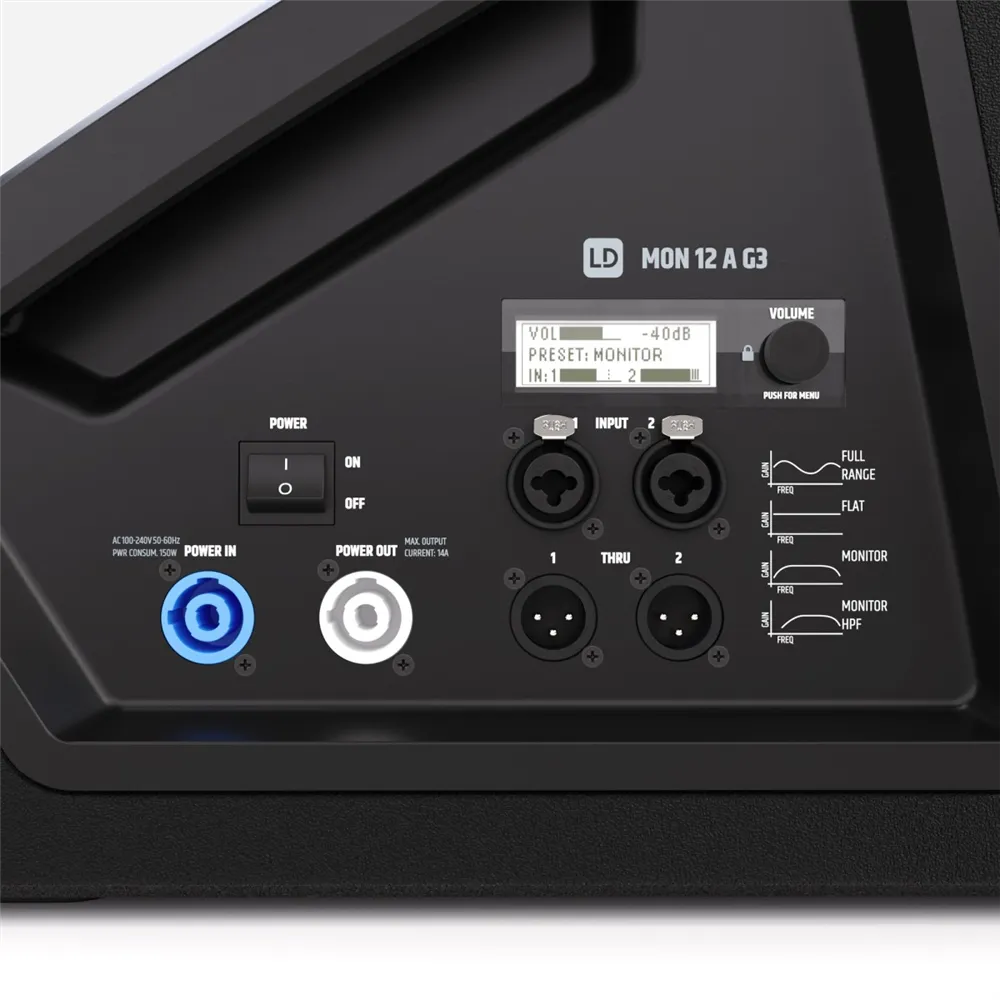

  • 3-band EQ, notch filter, 4 application presets, and delay function
  • PowerCON-compatible, loop-through professional power connection
  • 35 mm pole mount for FOH applications
  • Durable polyurea coating and robust front grille
  • Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, full space @1m, 10% THD)
  • Max. SPL Peak (Sine burst): 127 dB (full space @1m, 10% THD)
  • Frequency range (-3 dB): 68 - 18,000 Hz
  • Frequency range (-10 dB): 55 - 20,000 Hz
  • Crossover frequency: 1400 Hz
  • Monitor angle: 33°
  • Dispersion angle (H x V): 50° x 90°
  • Weight: 17.4 kg

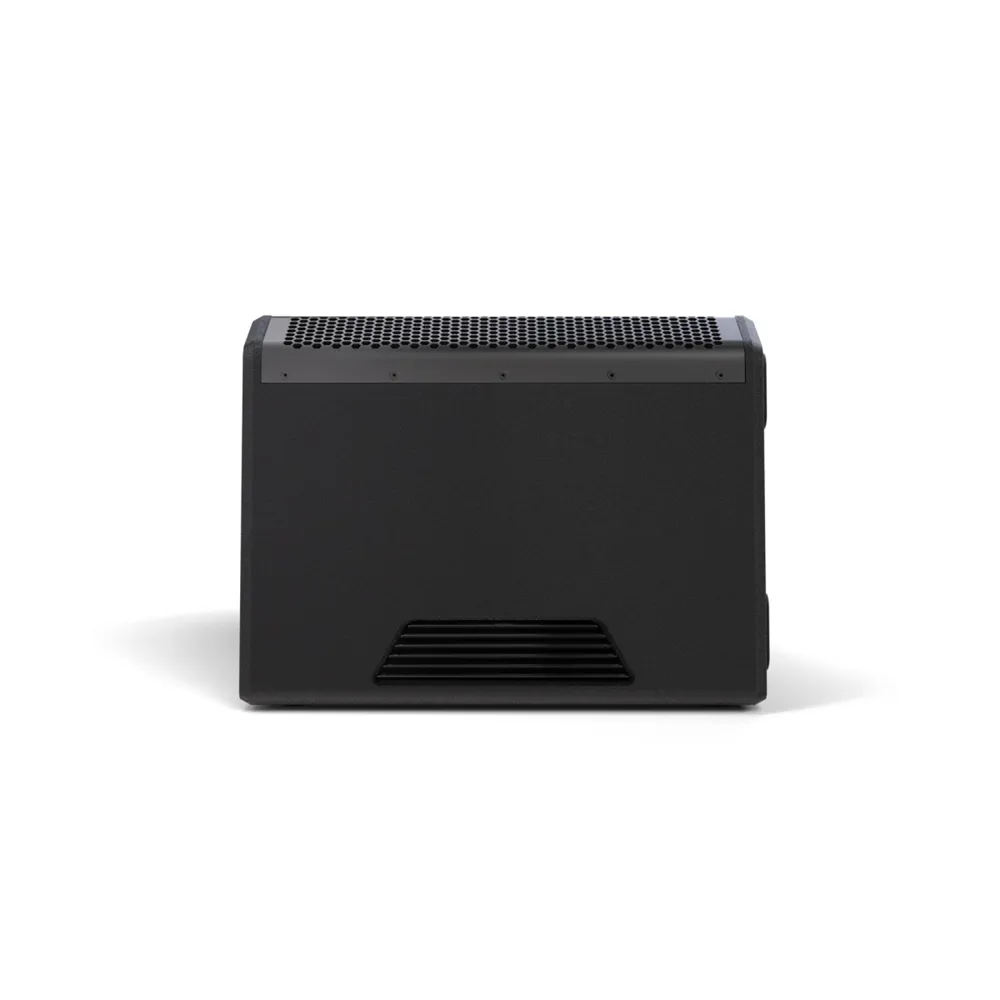

  • Enclosure type: Bass reflex
  • Enclosure material: 15 mm birch plywood and 15 mm MDF
  • Amplifier: Class D
  • Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent
  • Operating temperature: 0 - 40 °C
  • Power supply: SMPS
  • Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
  • Power consumption: 150 W
Read moreShow less
485.00 (tax incl.)
Last items in stock 2 Items
Reference:
AHLDMON12AG3
Love0
Add to compare0
Description

LD Systems MON 12 A G3 - 12" Active Coaxial Stage Monitor

The LD Systems MON 12 A G3 is the perfect stage monitor for professional applications, impressing with its compact design and outstanding performance. Featuring a Class-D amplifier that delivers 300 W RMS and up to 1200 W peak power, this monitor achieves a maximum sound pressure level of 127 dB. The coaxial design, equipped with a 12" woofer and a 1.75" titanium diaphragm HF driver, ensures a true point sound source and exceptional audio quality, even at short listening distances.

The optimized radiation pattern of 50° x 90° allows for precise sound distribution, while the integrated DynX® DSP (Gen.2) guarantees distortion-free playback at maximum volume. With a 3-band EQ, notch filter, and four application presets, the MON 12 A G3 offers versatile customization options for any situation.

Thanks to its robust polyurea coating and sturdy front grille, this monitor is well-equipped for the rigors of stage use. The PowerCON-compatible connectors enable easy cabling, while the 35 mm pole mount makes it a flexible companion for FOH applications. The LD Systems MON 12 A G3 combines high-quality technology with thoughtful design – ideal for musicians and technicians who value top-notch sound.

Read moreShow less
Product Details
AHLDMON12AG3
